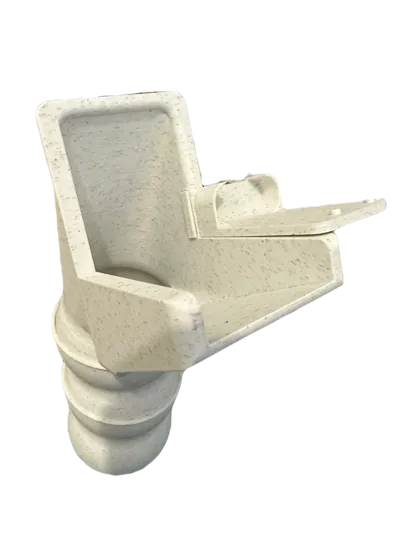

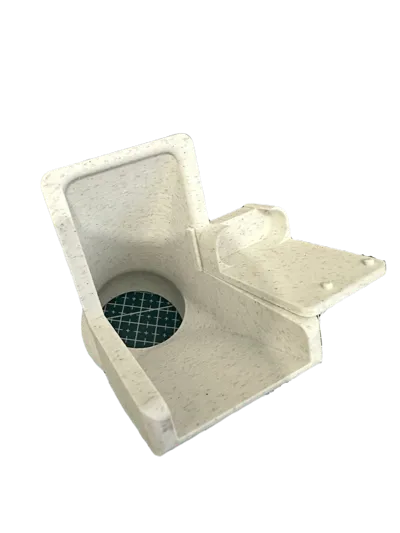

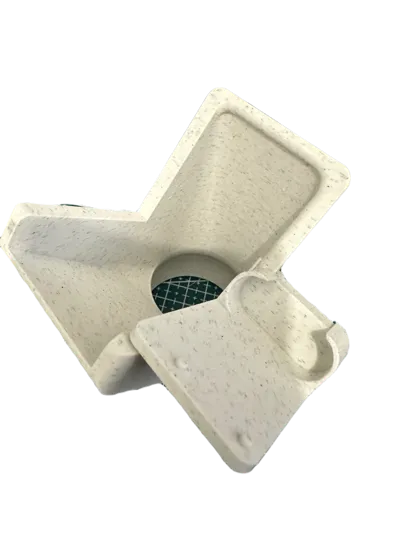

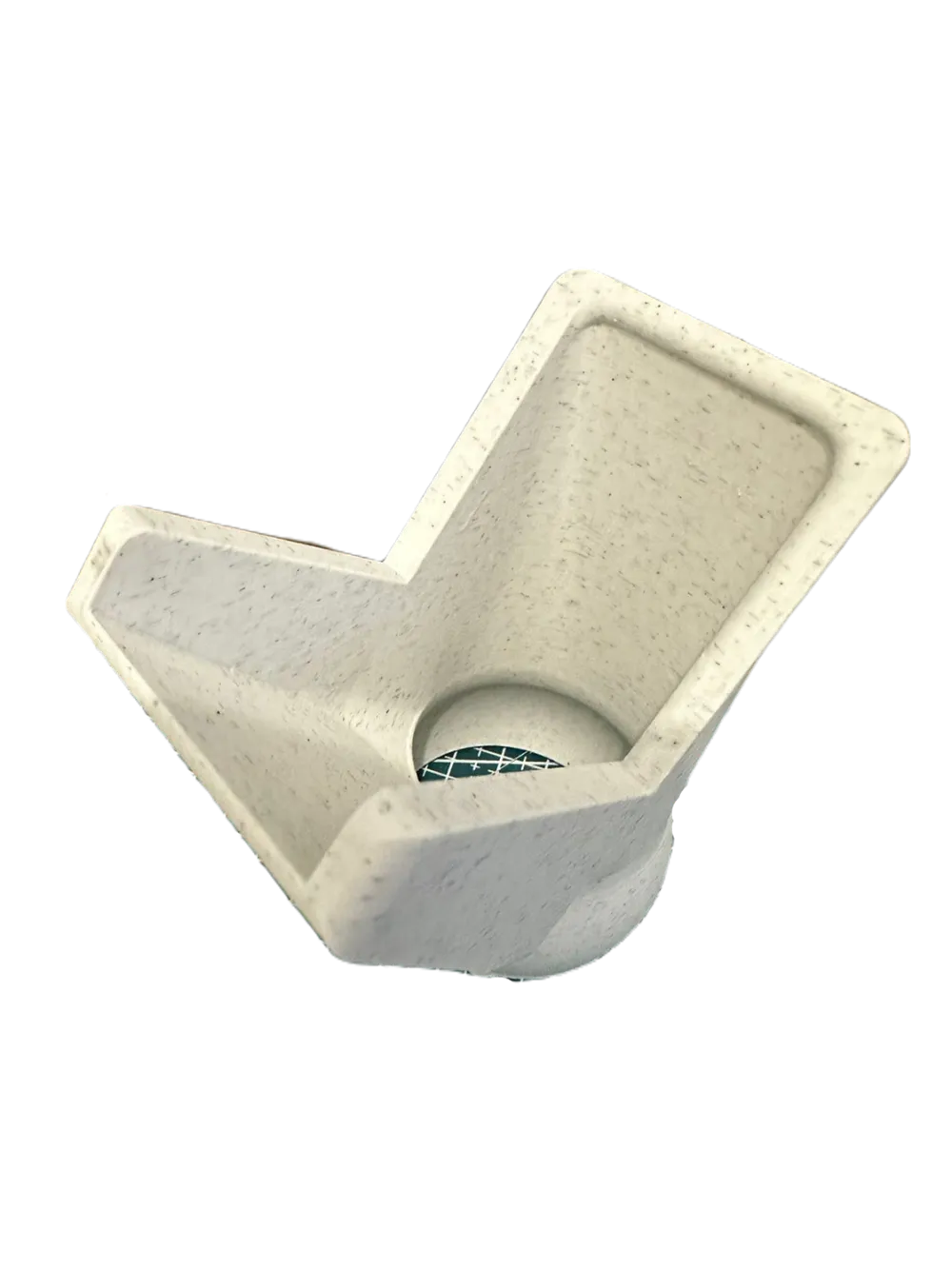

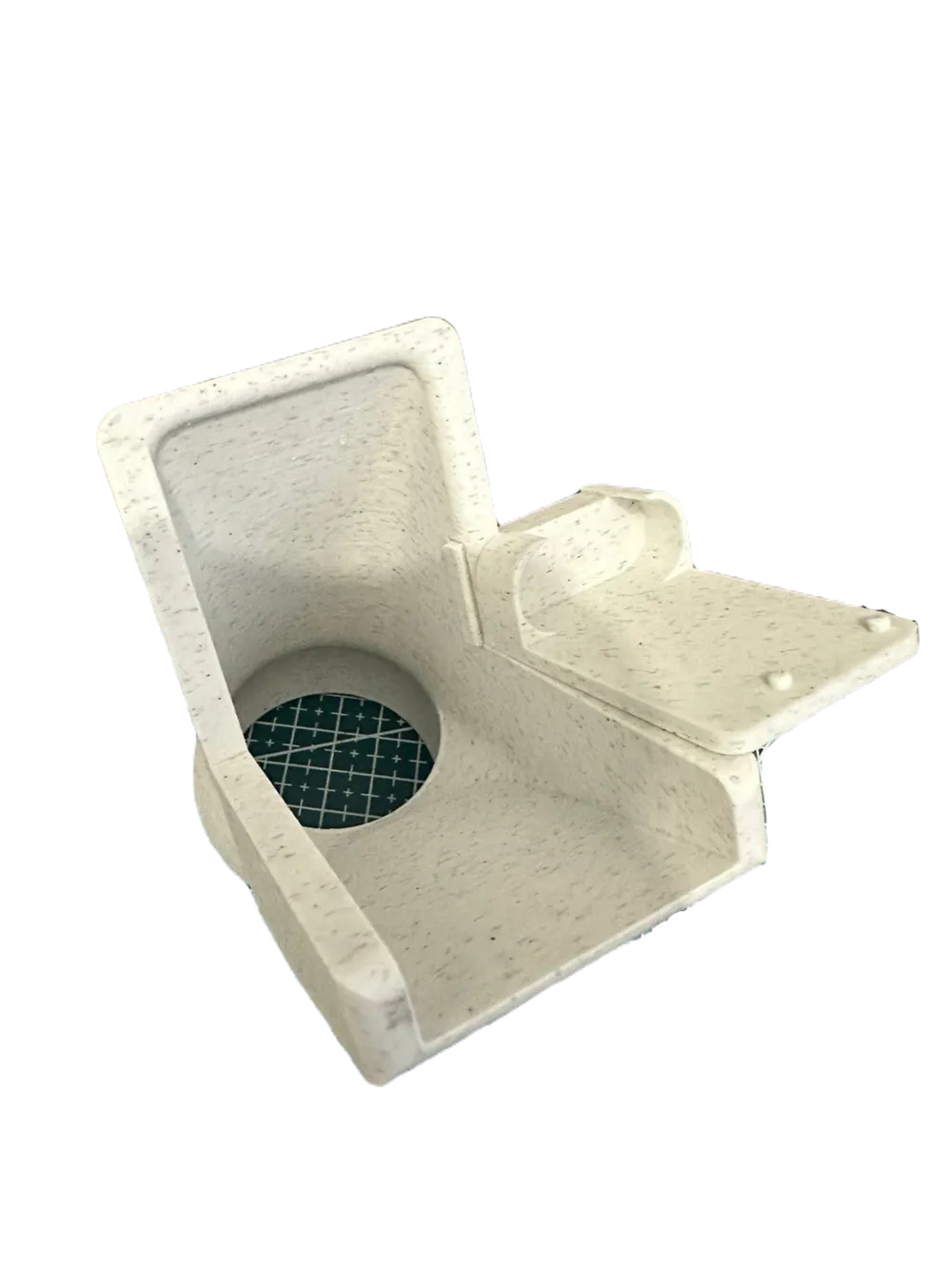

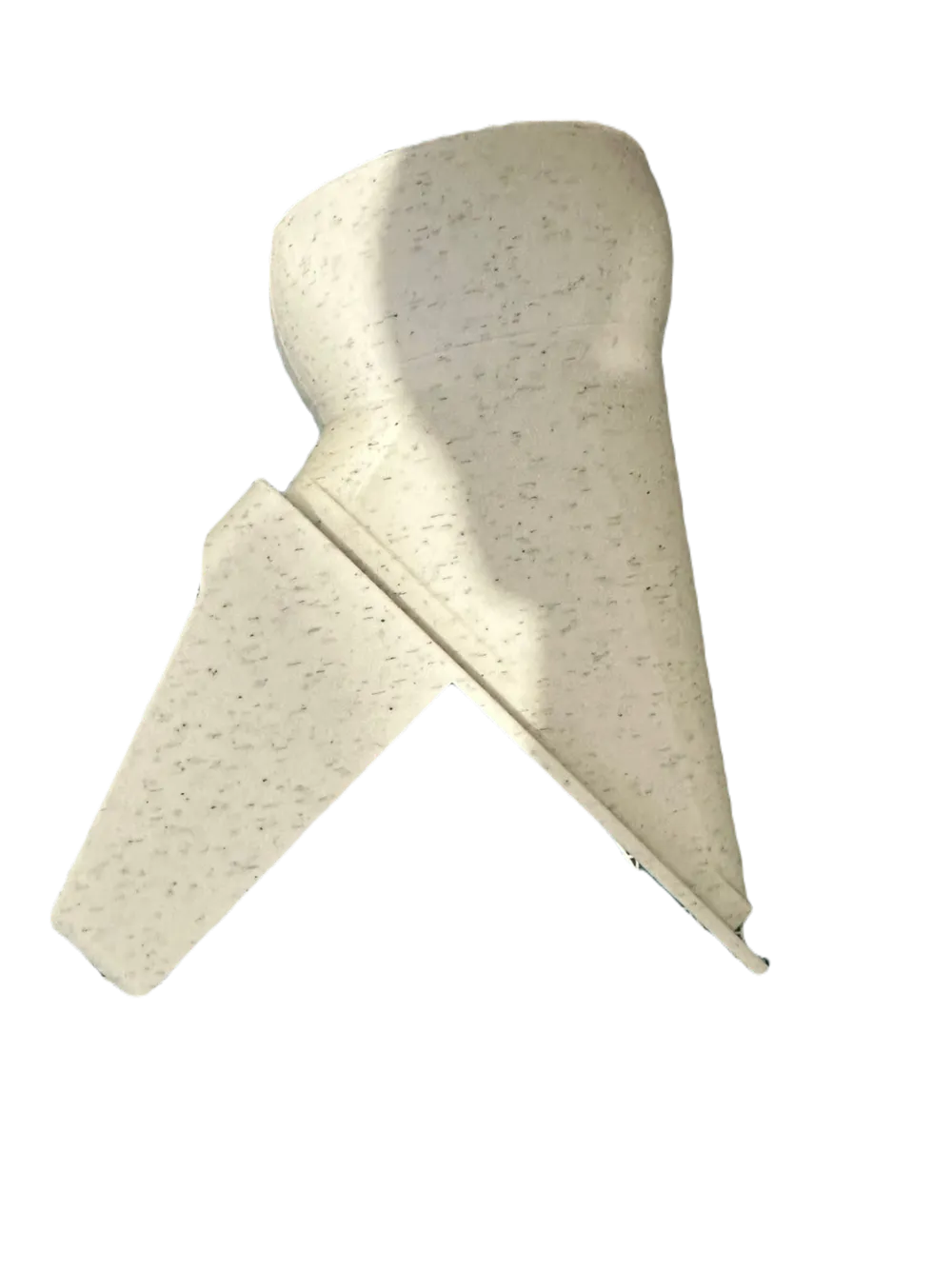

Found the magnetic poop chute by mrdeeds and the segments tube by JP, and mixed the first to be able to be used on an A1 Mini.

I removed the magnetic part, as, from my perspective, didnt make a lot of sense, since the attach point is easy to remove on the A1 mini.

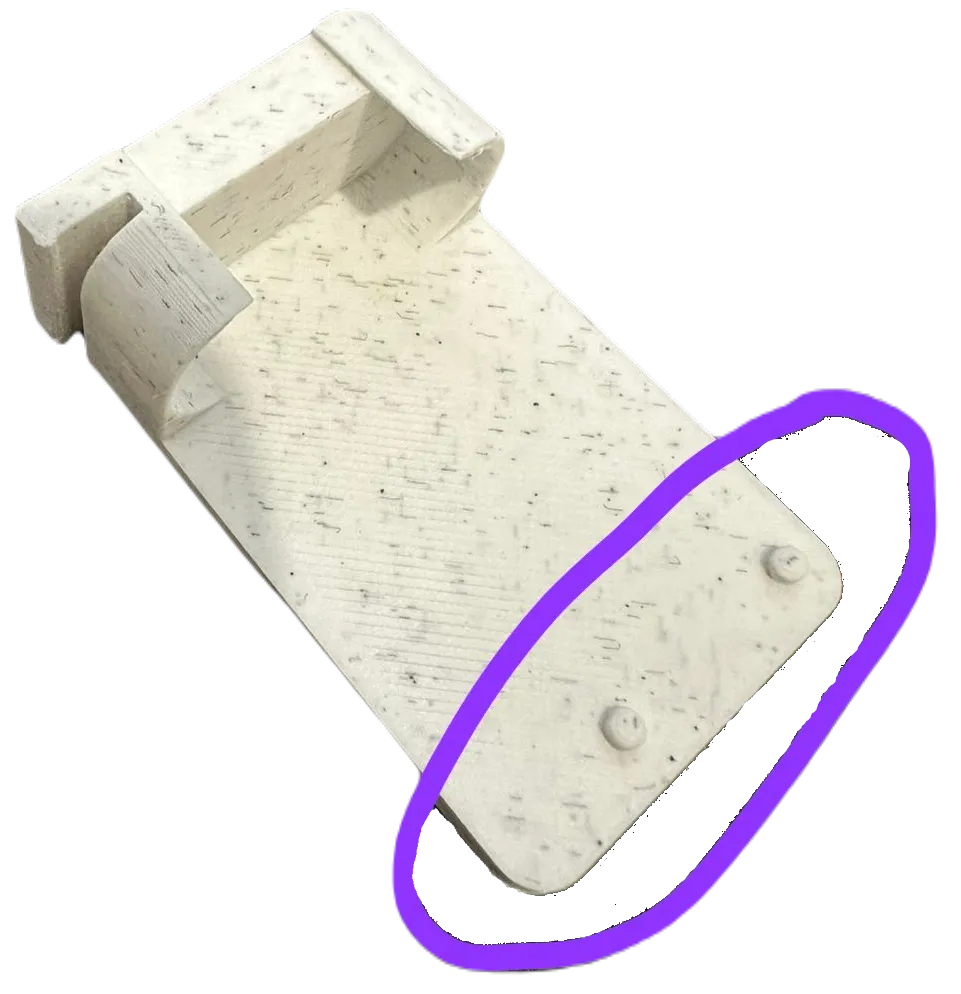

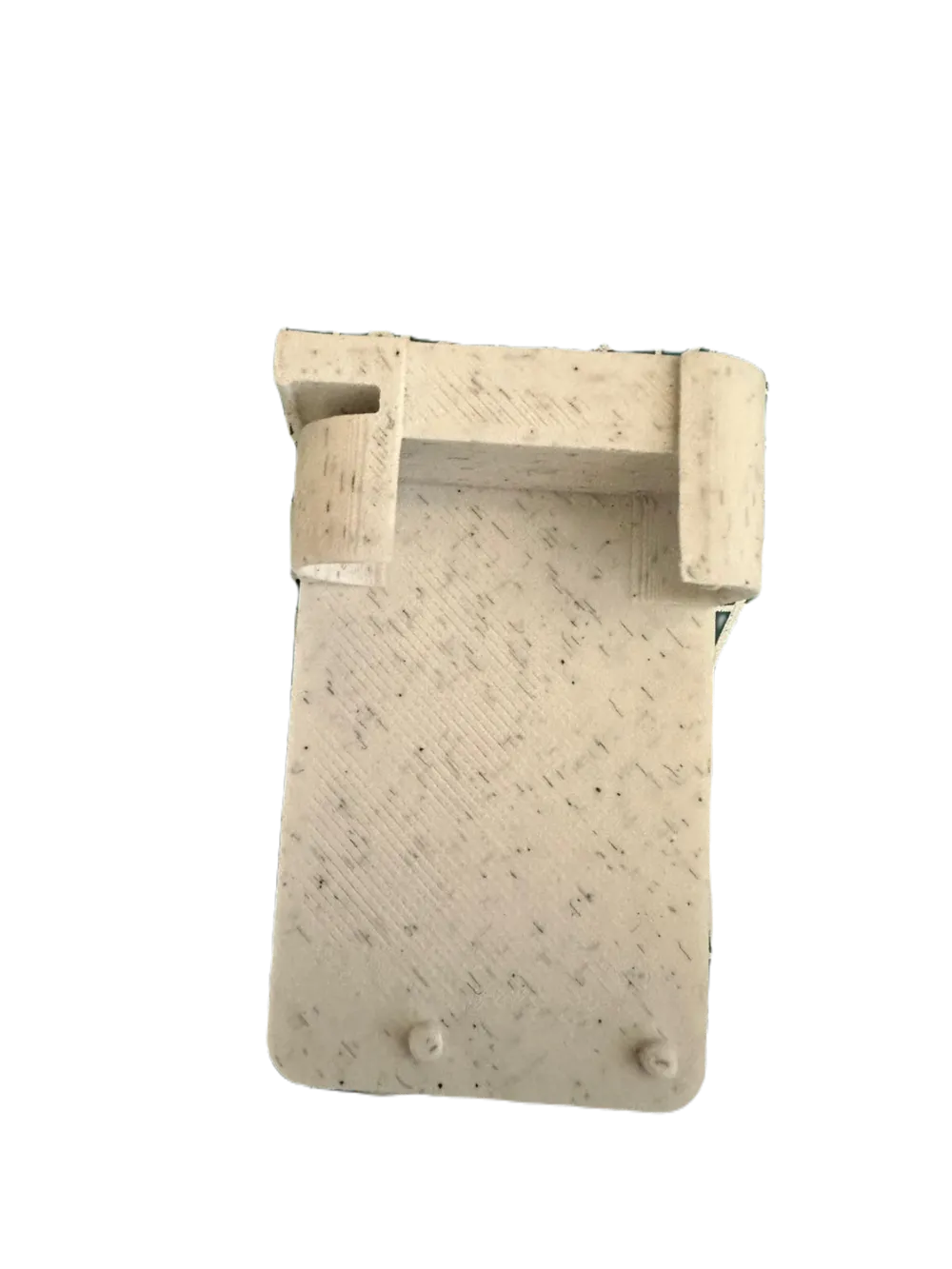

You can secure the attacher by plugging the two notches into the screw holes on the “poop maker thingy”.

From my tests it didn't vibrate that much and didn't upset the prints in any way.

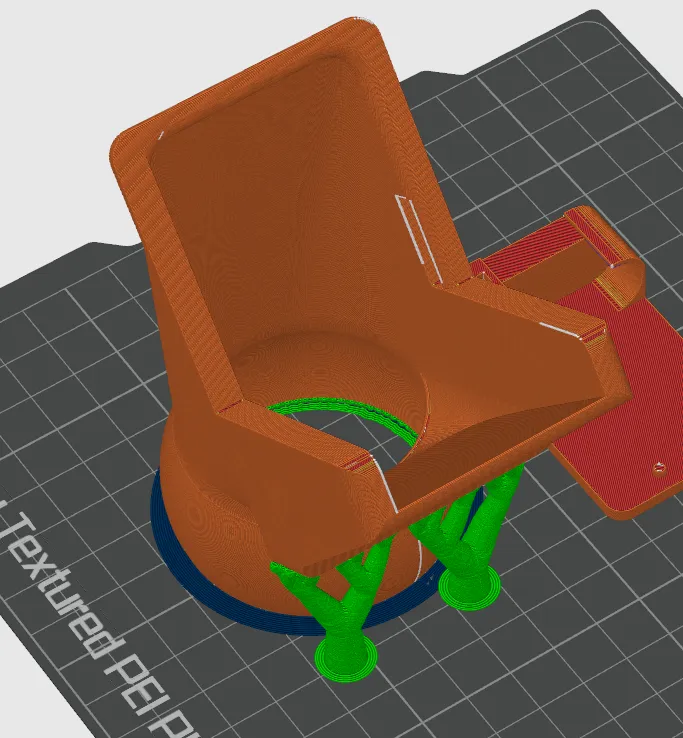

Tree support and (optional) 5mm brim inside/outside are set for the poop chute part (3mf file).

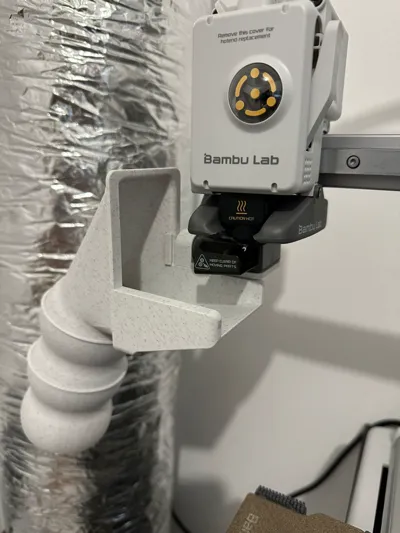

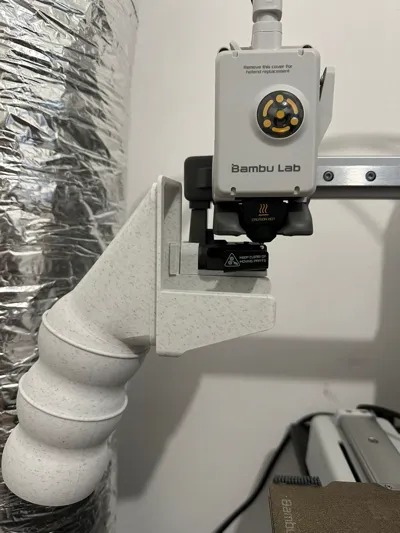

Worth noting that I use this on an A1 mini that has plenty of space on it's side, so the segments could drop the poop downwards with a lot of room. May or may not work for your setup depending on how much room you have.

Comment & Rating (48)

@Anso

Print Profile

0.2mm layer, 2 walls, 15% infill

Twice the print only produced spaghetti, though the filament is already calibrated. When properly mounted, it unfortunately sits too close to the bed. I would not recommend it further.

Show original

@Richoats

where can the segments be found? they're not included in the files

The designer has replied

@dmmd

quite late reply, but, it's in the description, there's a link to the segments

@Richoats

Replying to @dmmd :

Yea I found them. Not sure how I missed that. Thank you

@Mammut

Print Profile

0.2mm layer, 2 walls, 15% infill

@creteloc

Does this work for the A1?

The designer has replied

@dmmd

Not sure, but if the "drop area" is the same as the A1 mini, then quite possible it will work.

@Braxtonl

Replying to @dmmd :

is there a separate print to make the tube longer

@Braxtonl

Replying to @dmmd :

like the photo

@RB4R

😆 so its dragging around while printing ?

The designer has replied

@dmmd

what do you mean?

@acerimmeh

Print Profile

0.2mm layer, 2 walls, 15% infill

I had to shave off a little of so as not to interfere with the plate, but works well

@jensbodal

Same. I also found the two-part connection not fantastic since the two pieces move. I think just having it as one piece and removing material on the side towards the build plate would improve things a lot
