ARIENS IKON 52 ARMREST RELOCATOR

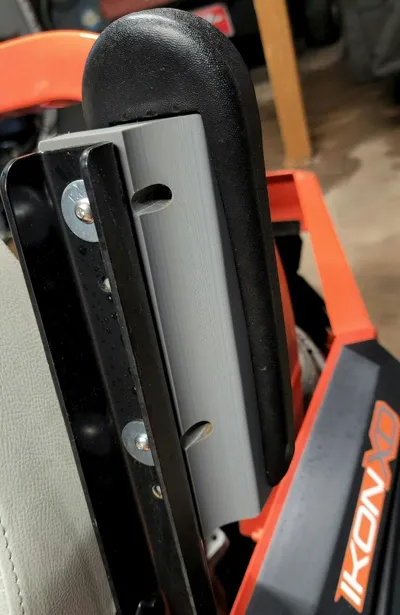

I got tired of having armrests that i could not reach while mowing my lawn on an Ariens Ikon 52" zero turn. I designed these relocators to move the armrests up and out to better rest while mowing. the holes going to the pad were a little tight, but i just opened them up with a slightly larger drill bit. to attach the relocator to the metal armrest part, I used m5x10 heat press threaded barrels into the printed part and m5x10 bolts with small fender washers.

included is the SKP file for any alterations you'd like.
