tektro M275 bike break Lever blade
Print Profile(1)
Description

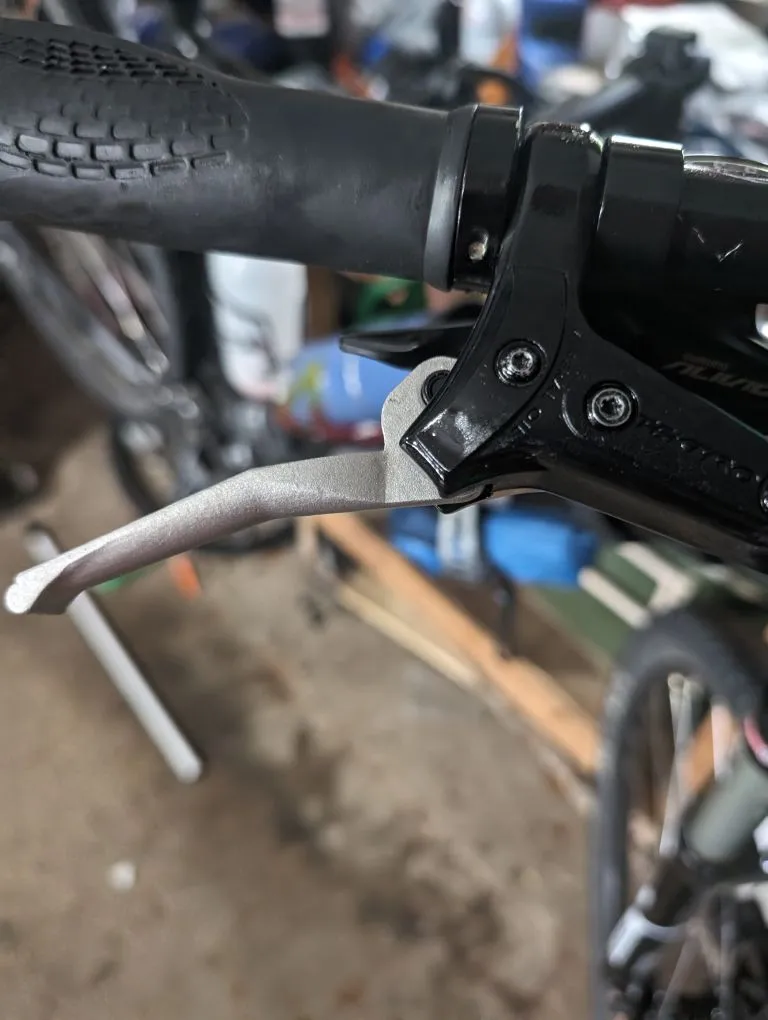

Use at your Own risk this is your break lever I would do some panic Grabs when not moving and make sure you wont just snap it. Boo for Tektro not making replacement parts available for something so damn simple. Hopefully it's helpful for someone else.

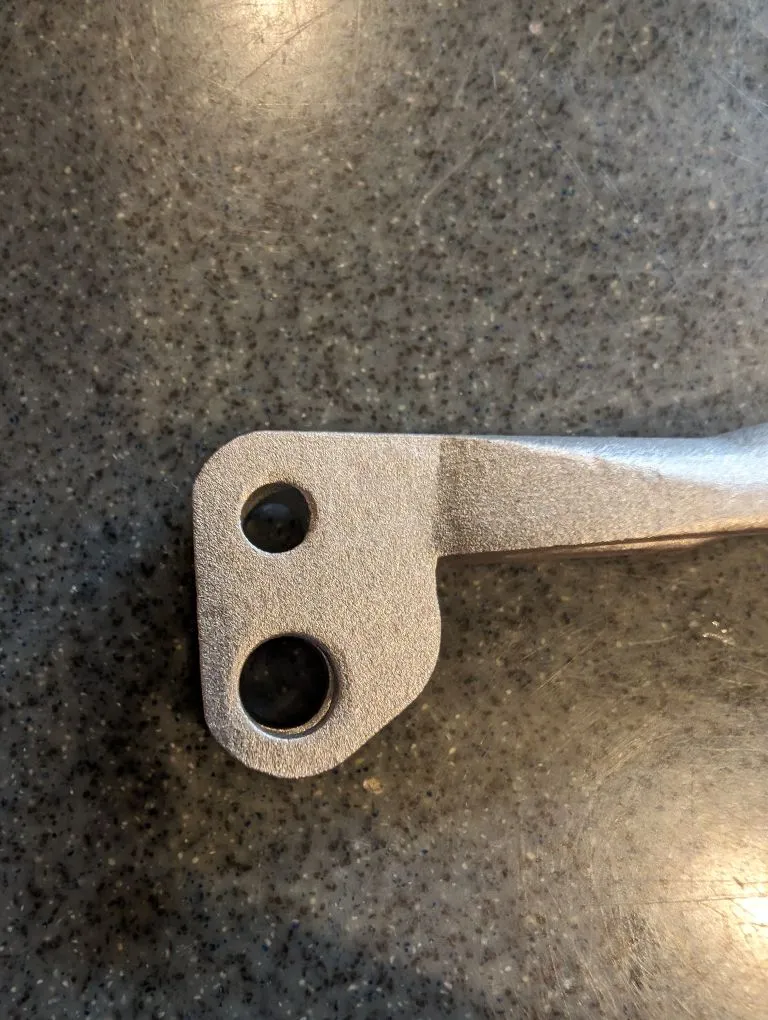

I recommend V2 Plastic its less flexy unless you grab the out most edge. I printed Mine in Polymax PC and have yet to break it, after a few weeks, though I'm no where near a extreme rider. I also never broke the PLA one but I did snap a ASA one, I tried because I know PLA likes to warp if put under strain allot.

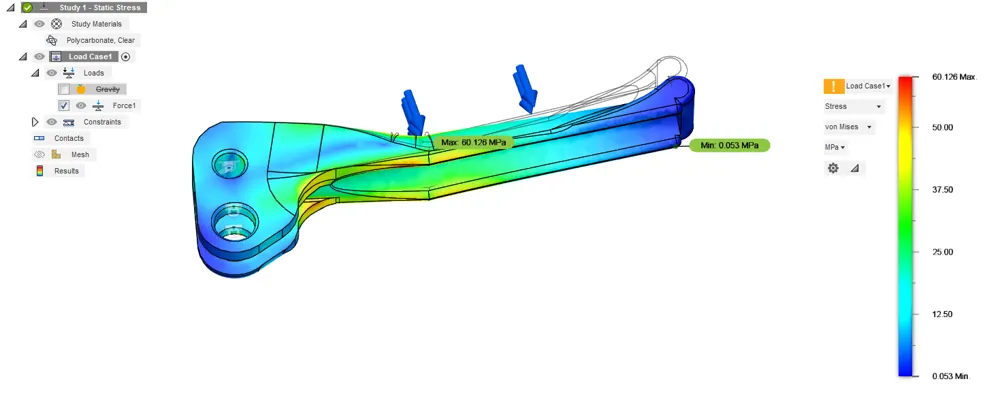

Fusion 360 static pressure test said it would handle 45 LB of force once it was bottomed out ( Using Poly carbonate)
V2 Can Be ordered for metal printing over at PCBway.
