Summary

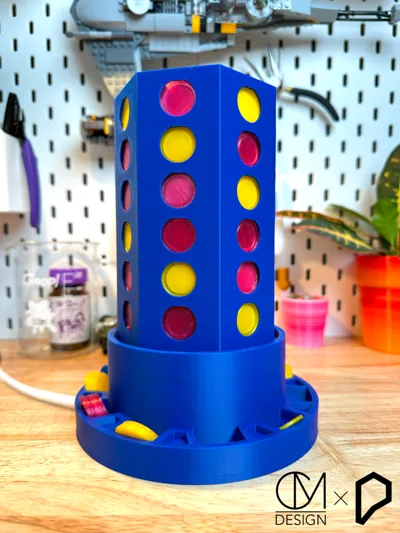

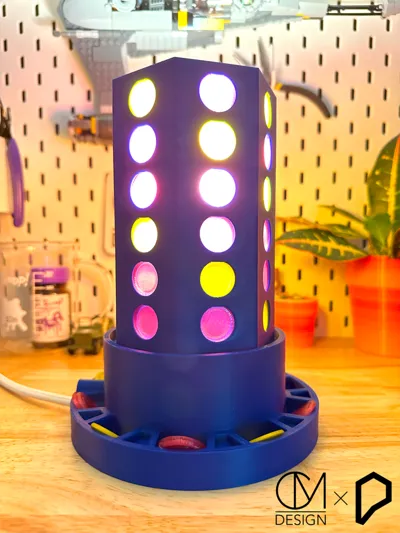

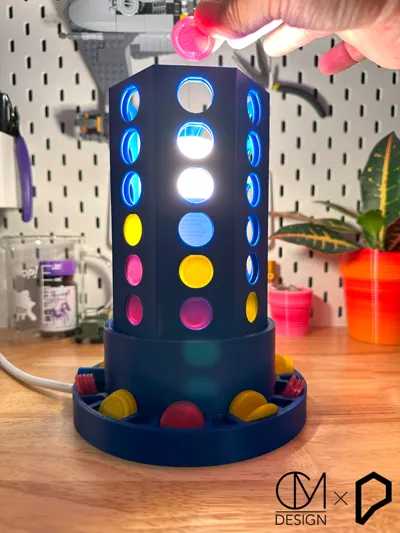

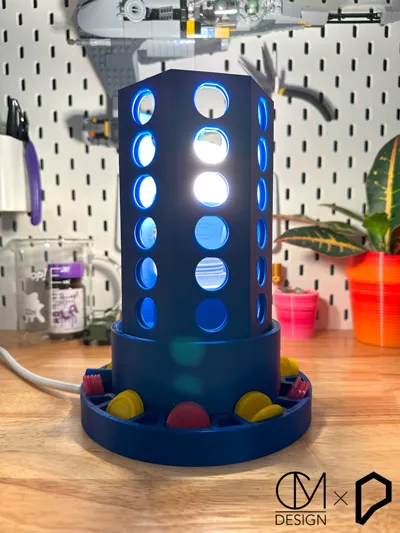

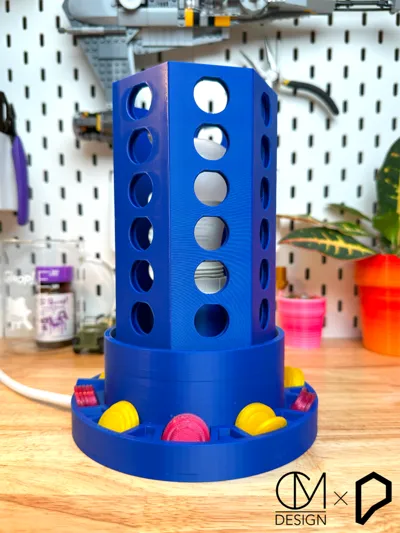

We decided to mash up the classic "4 in a row game" with a lamp and got this fun model! Sit with your friend and spin the lamp shade to play!

Print Settings

Rafts:

Doesn't Matter

                                            Supports:
Yes

Resolution:

.2mm

                                            Infill:
15%

Filament: Protopasta PLA


                        Notes:
-0.2mm layer height
-15-20% infill
-Supports needed for the base where the lamp will be seated
-Print the base
-I used this lamp cord:
Lamp Cord
-Print 21 red chips and 21 yellow chips
-To print with optimal clarity:
-.1mm layer height
-2 perimeters
-avoid crossing perimeters
-100% infill
-Aligned Rectilinear fill pattern
-0 top and 0 bottom layers
-Slow all speed to 20mm/s
-Print at a higher temp for PLA, I used 220 for mine
-Print on a smooth sheet or glass bed for best clarity
-I used the “print by object” setting and filled the bed with copies for the transparent  filament
