Radius Gauges
Print Profile(4)
Description

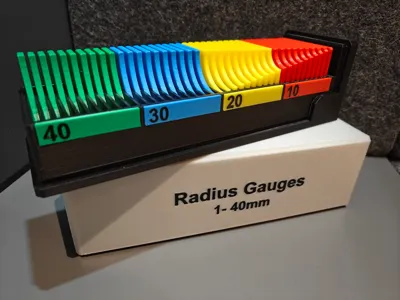

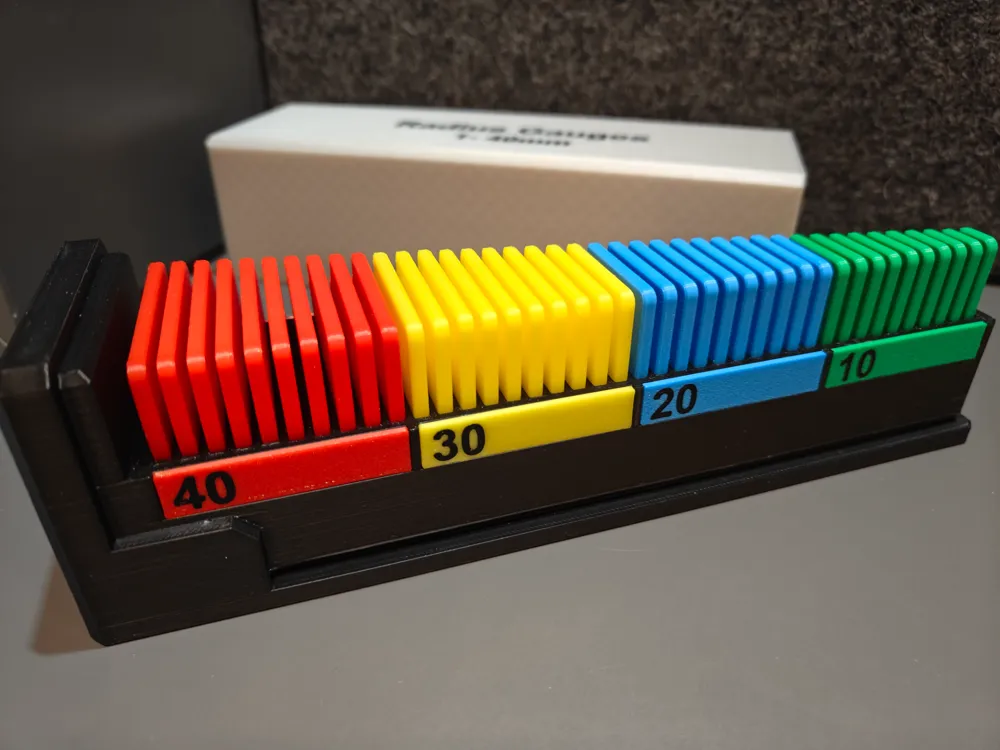

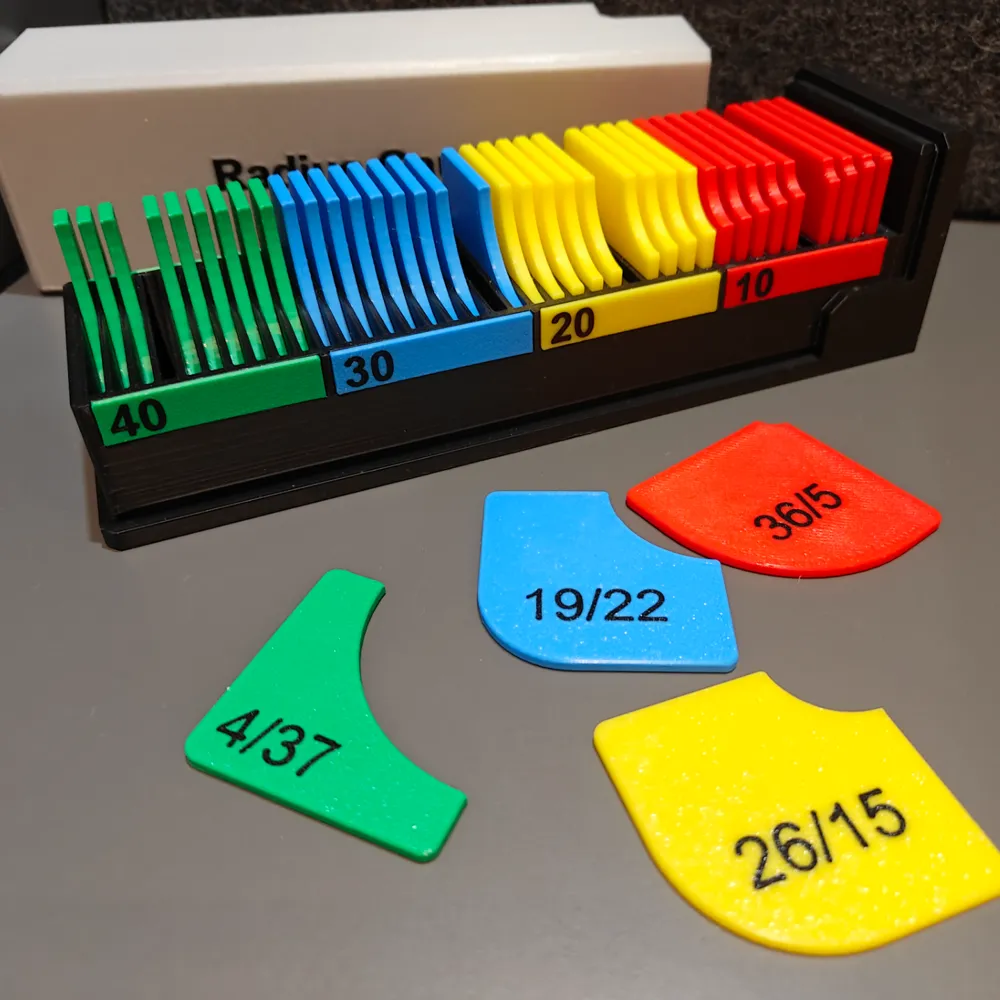

This is a tool that helps measure inner and outer radiuses. It comes in a nice little box with 40 gauges, ranging from 1mm to 40mm.

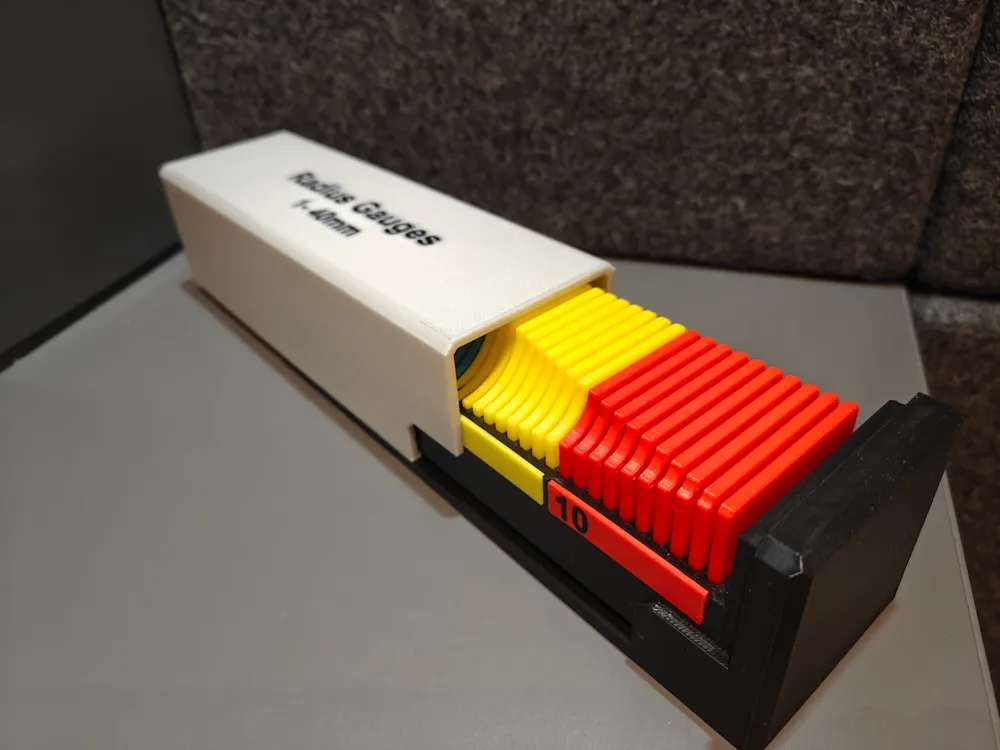

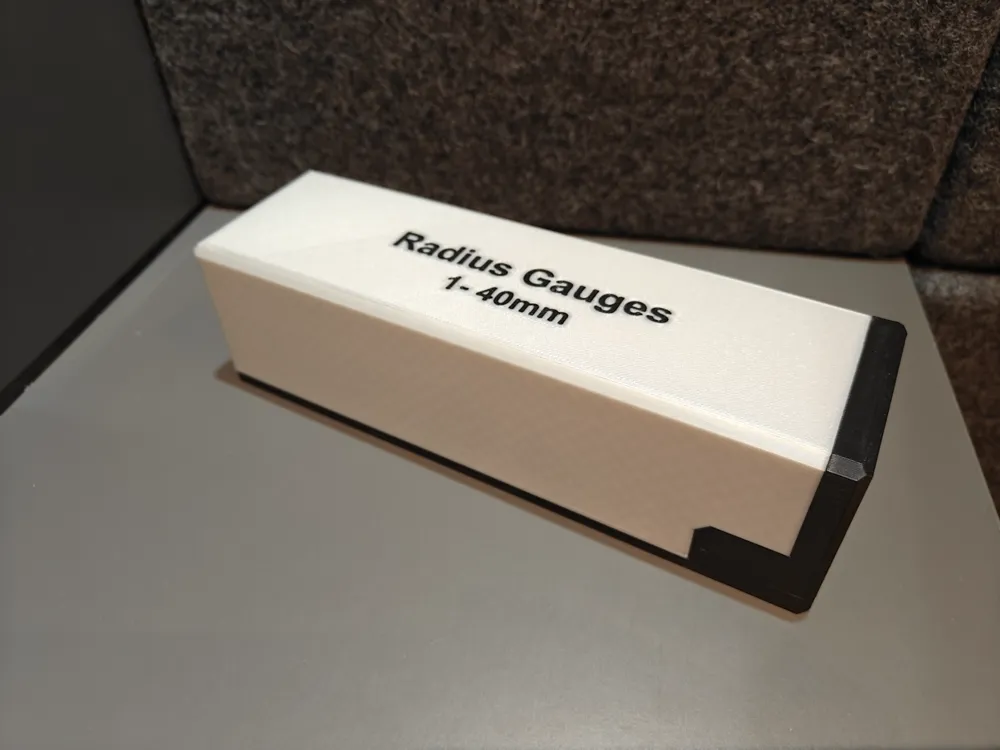

The box has a lid that slides onto the box. Small magnets will ensure the lid stays closed.
Prerequisites
- 6 magnets sized 8x1.5mm (optional).
- Super glue.
Assembly
The assembly is straight-forward. Only two things:
- The size-tags that go on the sides of the box need to be glued on.
- Use 3 magnets for the lid and 3 for the box. Give them a little glue as well, so they stay put.
That's all. I hope you will enjoy it.
Feel free to contact me if you have any questions.
Update (10-01-2026)
Added a new print profile for a Gridfinity base
