Onewheel FST Pin Insert

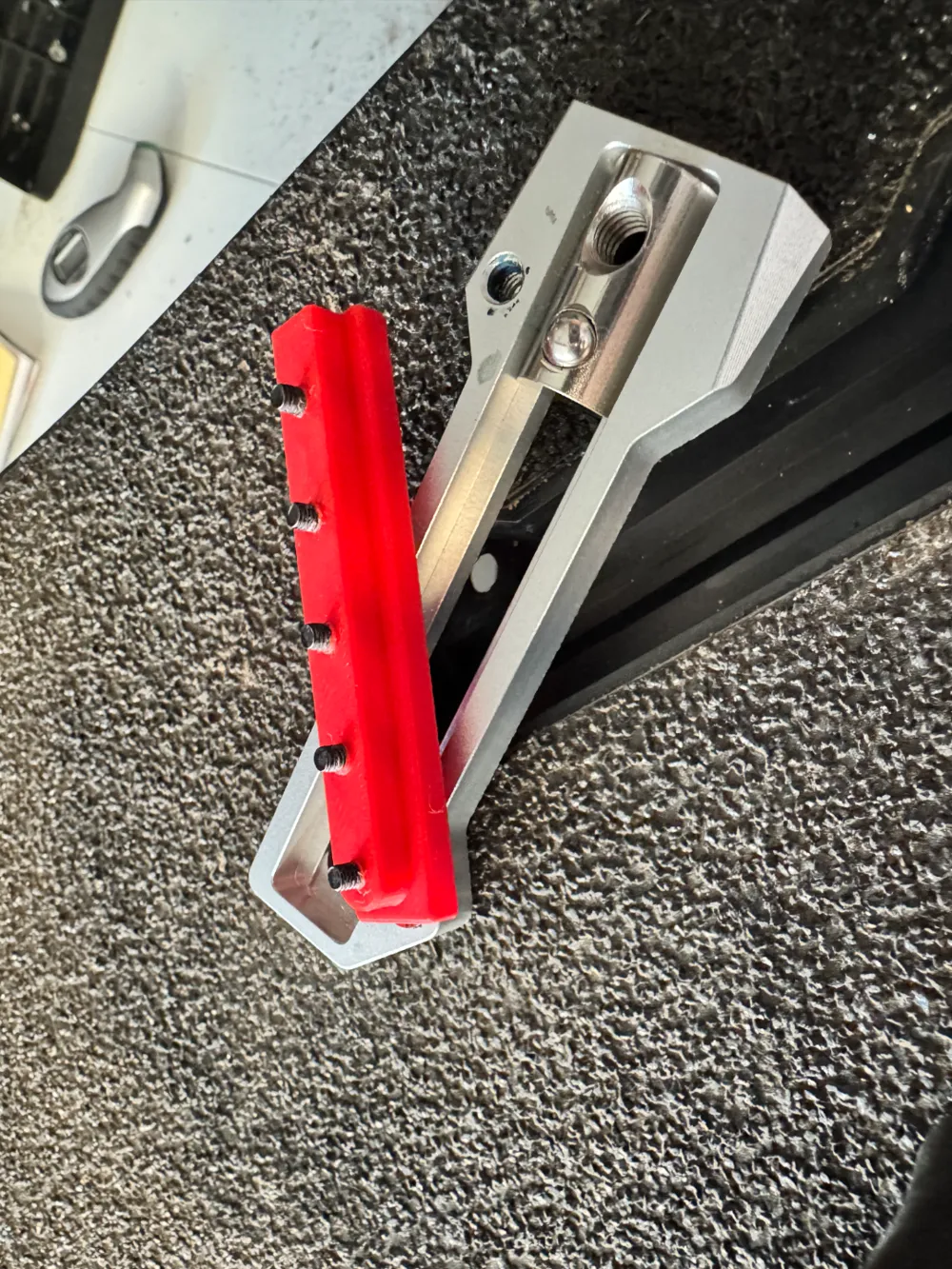

This is a 3D model for the FST Pin inserts. There are two STEP versions provided, one with the M3 threads modeled and one without them.

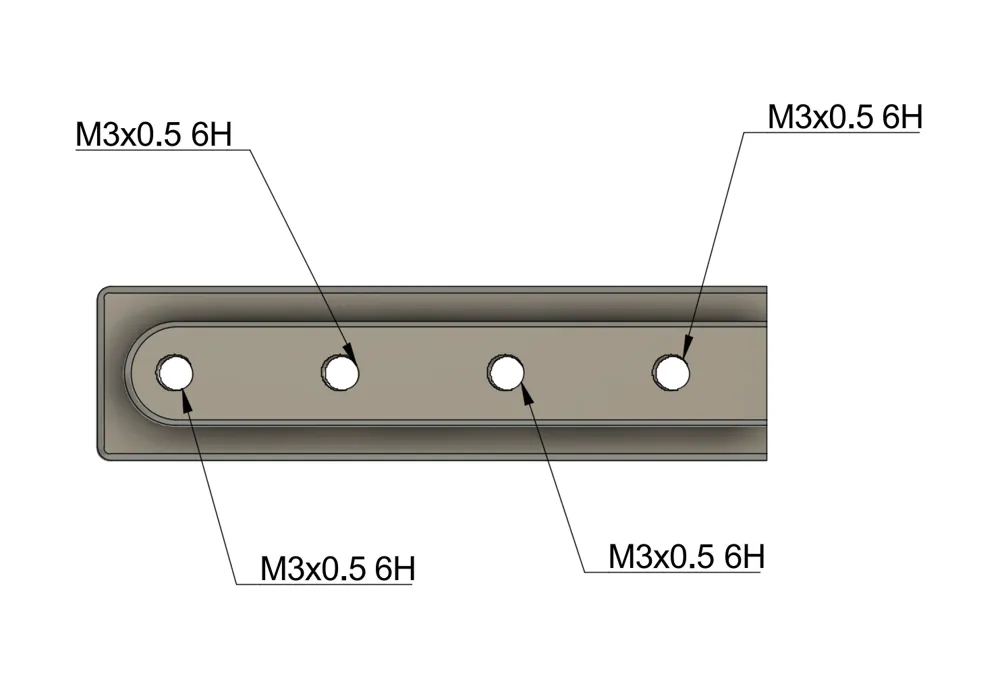

I have had success with the threaded one on my X1C but I provide the one without threads in case someone wants to get them CNC'd. In that case, threads are M3x05 6H.

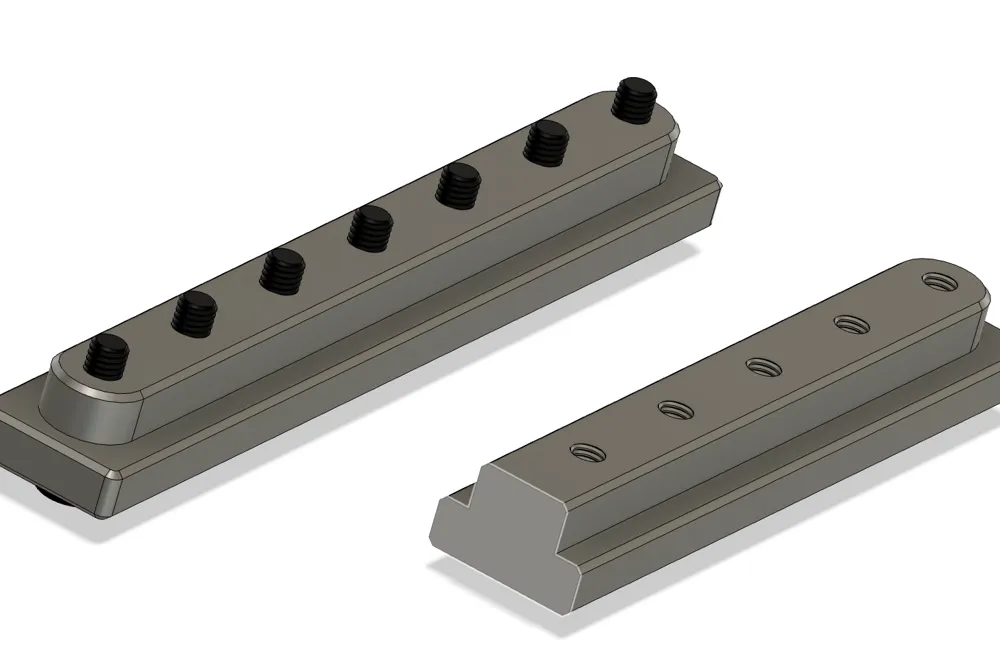

The STEP files have 3 versions of the insert:

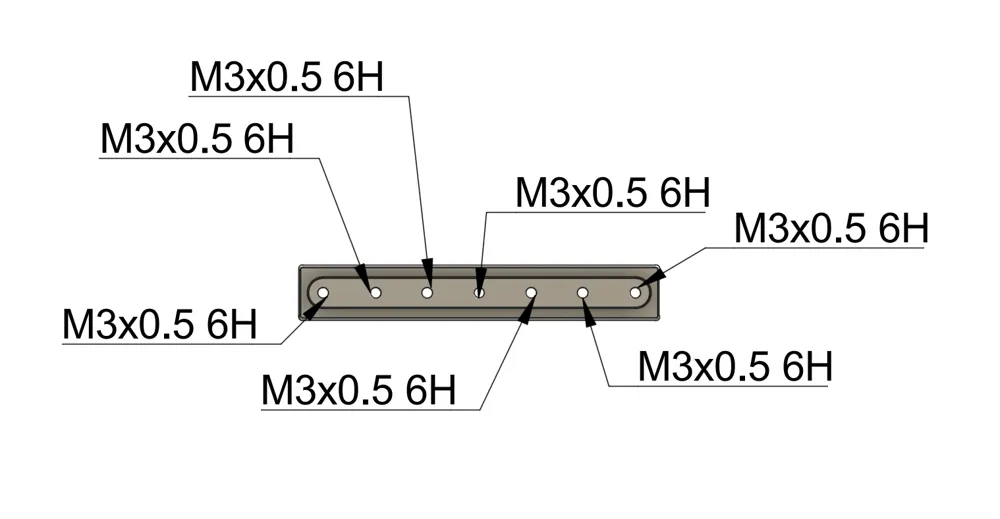

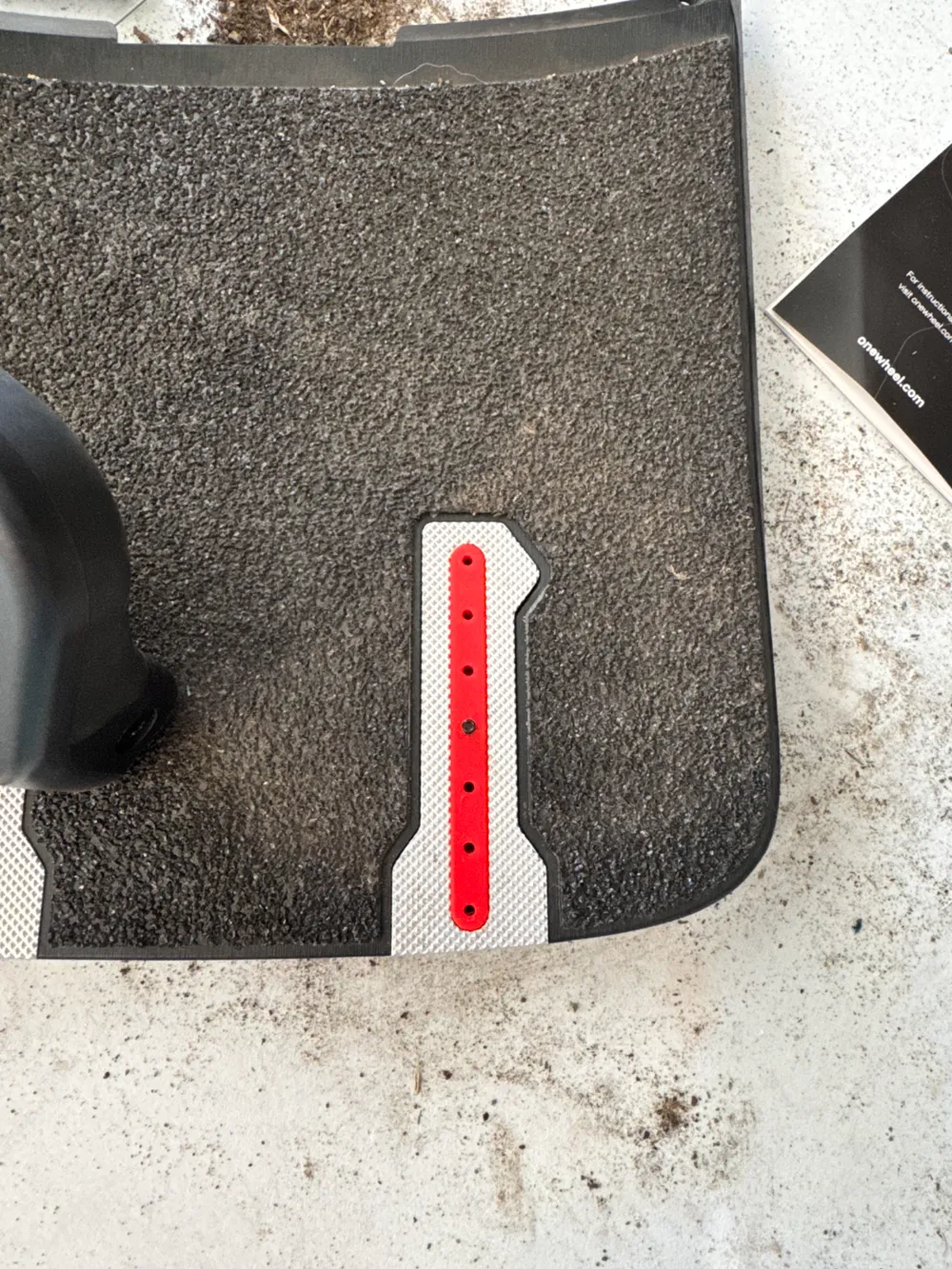

• Full: it has all 7 screw holes, this is when you don't want to run a block along with the pins.

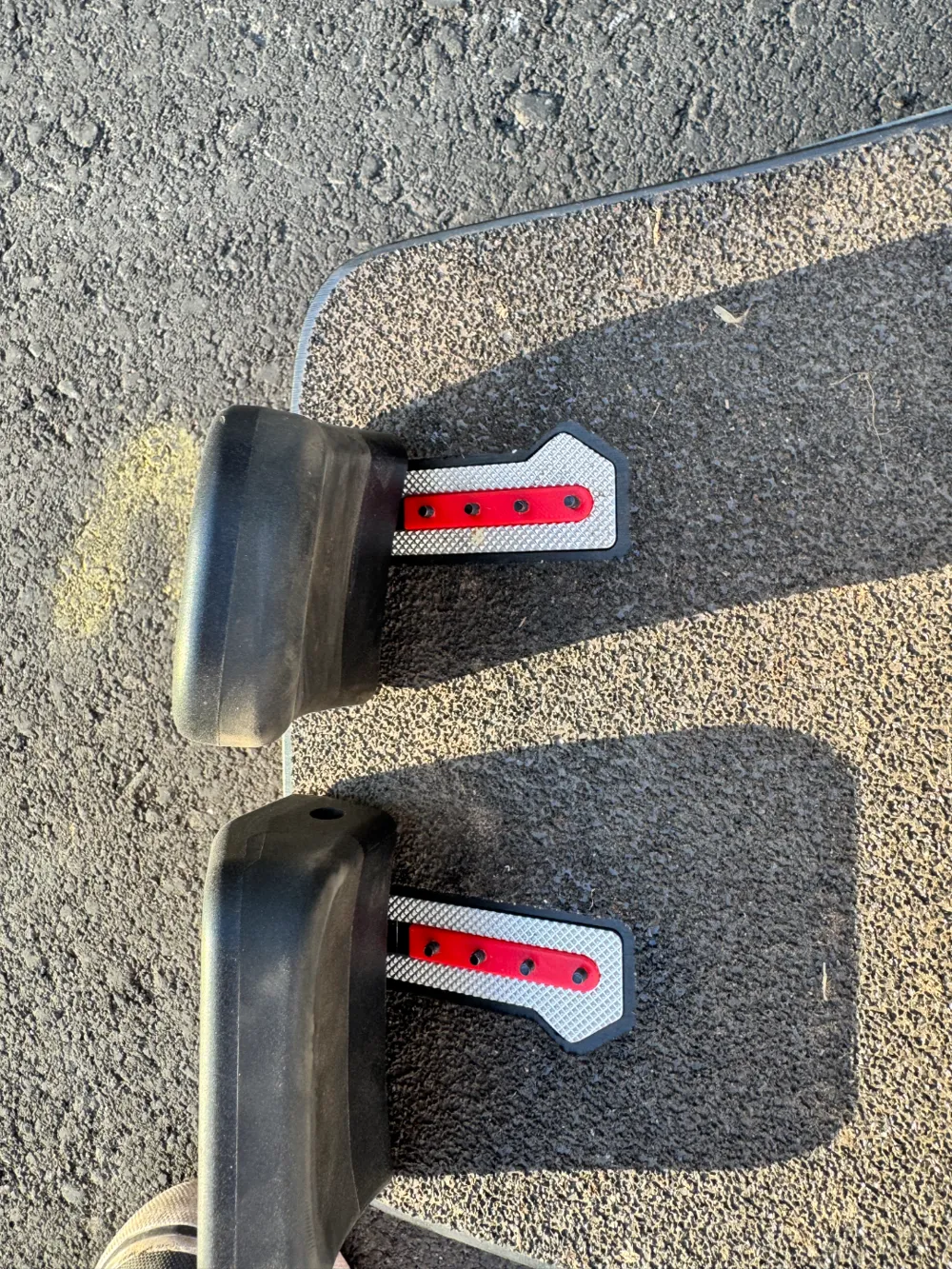

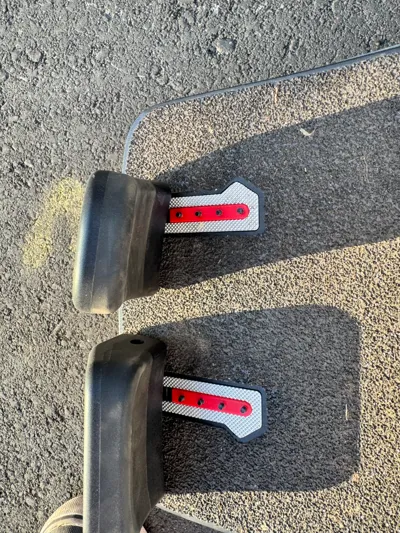

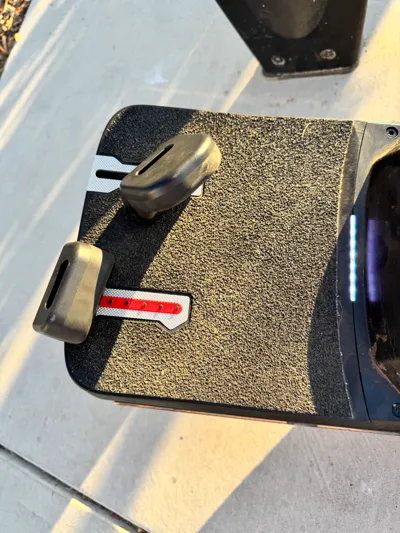

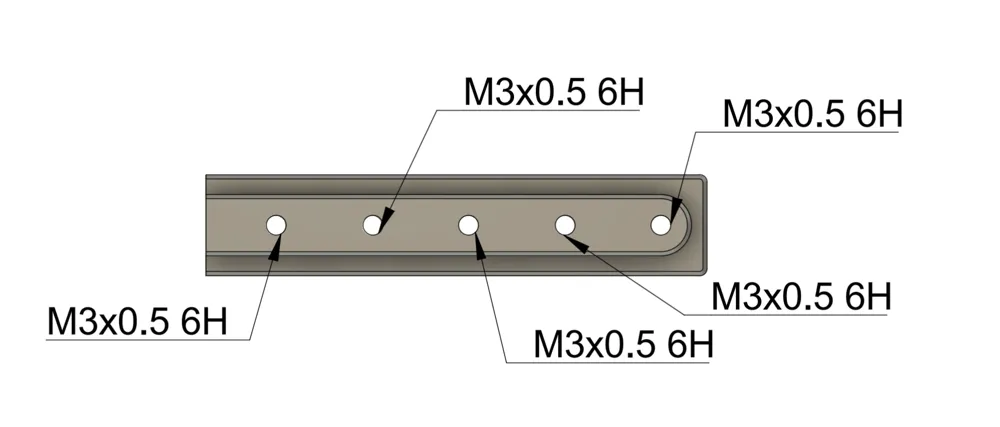

• Short: it has only 5 screw holes and allows for a block to also be used at the very end of the FST slot. I use it on the front footpad, toe side.

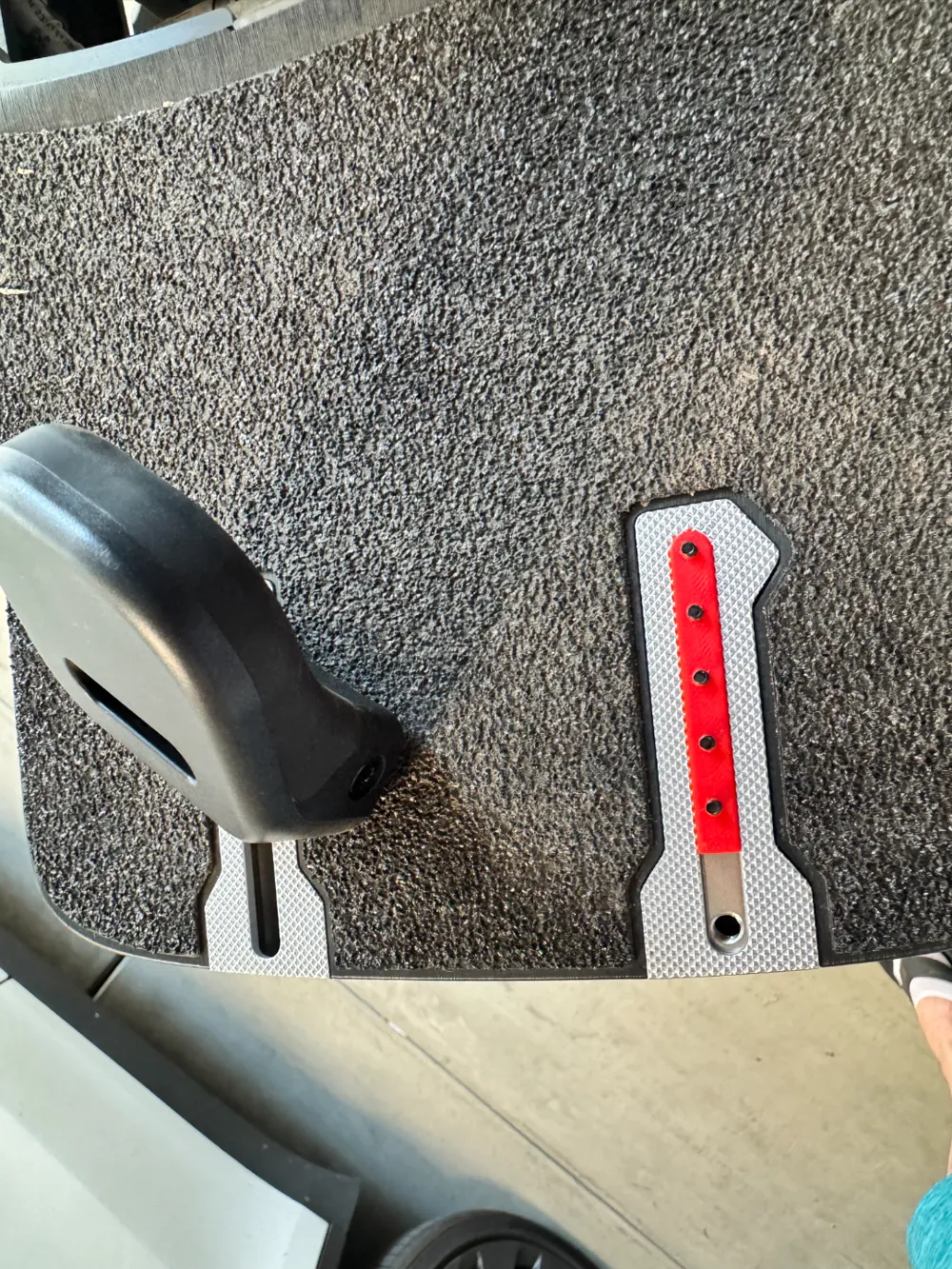

• Shorter: it has only 4 screw holes and allows for a block to also be used but leaving more room to adjust its position. I use it on the back footpad.

You can always cut the full version in the slicer to create a slot of your desired length.

All the screws are M3 socket head and should be 10mm long minimum for them to be effective in providing extra grip. Longer ones can be used and are user preference.
