This is a remix of the "Sleek and upright-friendly Decrypto Insert" by Waschbaer91, mostly adjusting sizes and adding a frame.



The main issue for me were the compartments: I printed the original model and could not fit all keyword cards, also the width of the space for the code cards was a bit too small. Therefore I increased the length of the keywords compartment and the width of both code compartments by a small bit to make more space.

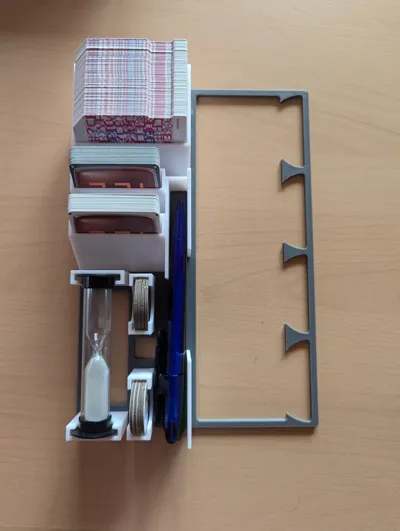

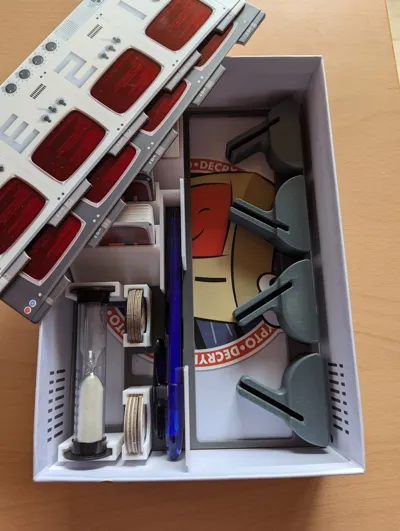

As I was already editing the original file, I also added a frame, so the insert can't slide in the box and added cutouts for the angled stands by kap42: https://www.thingiverse.com/thing:6436939 The last thing I changed was opening up the pen compartment, to lift the size restriction and allow taking everything out while leaving the insert in the box.

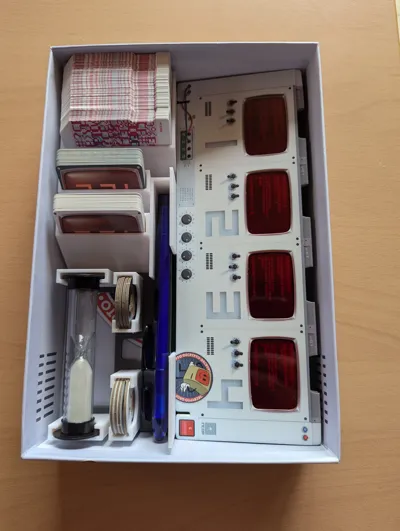

This insert allows for vertical storage, however the angled feet can come lose if you twist the box too much. But at least for me this is no real issue, as the cutouts are only a small gag built into the frame I wanted. And as long as the cards don't fly all around I don't care about the four angled stands ;)



For a nice look I paused after the base frame and switched colour. I provide two print profiles: one with the pause and one colour coded
