Stativschelle für das Tamron 35-150 mm

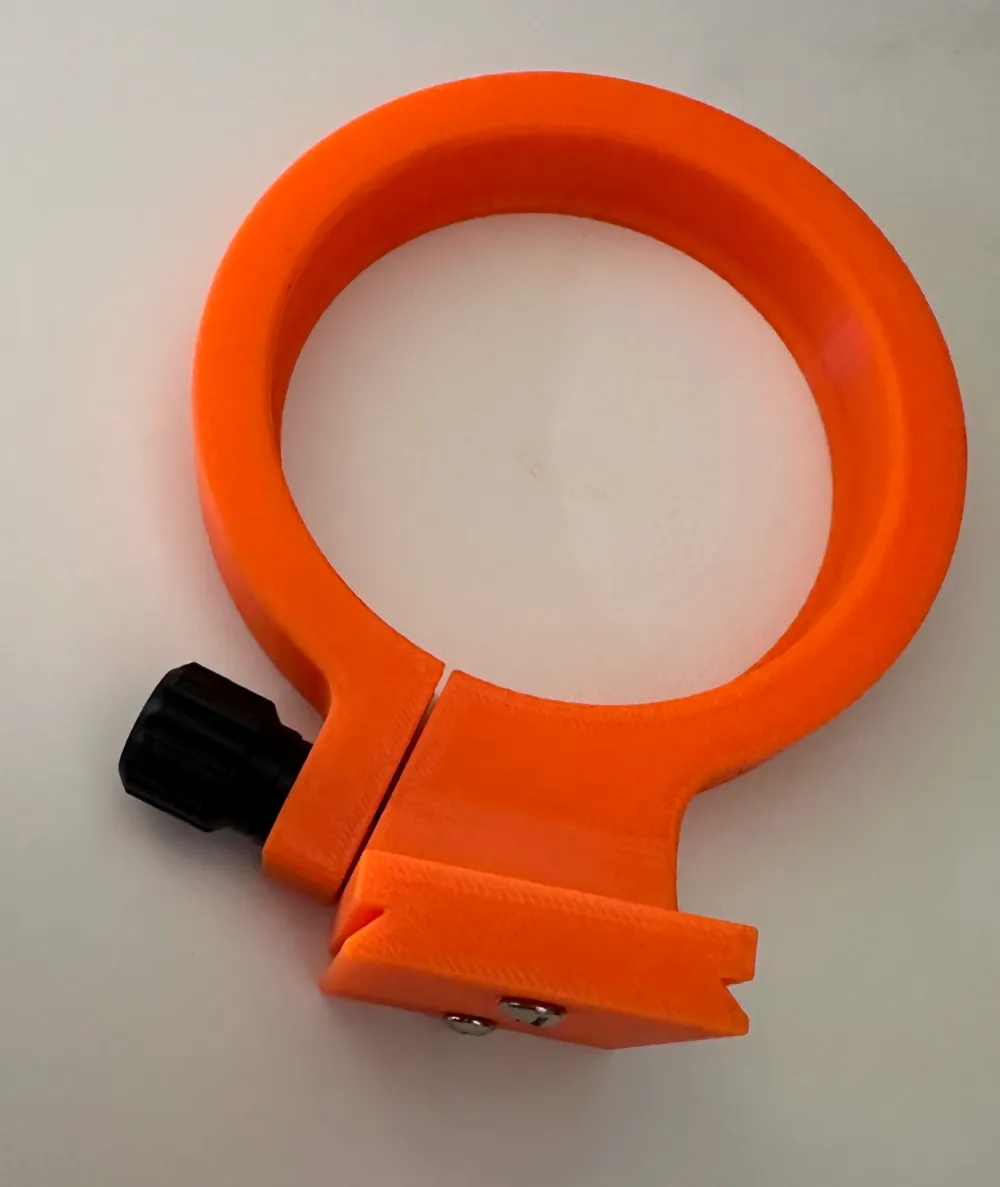

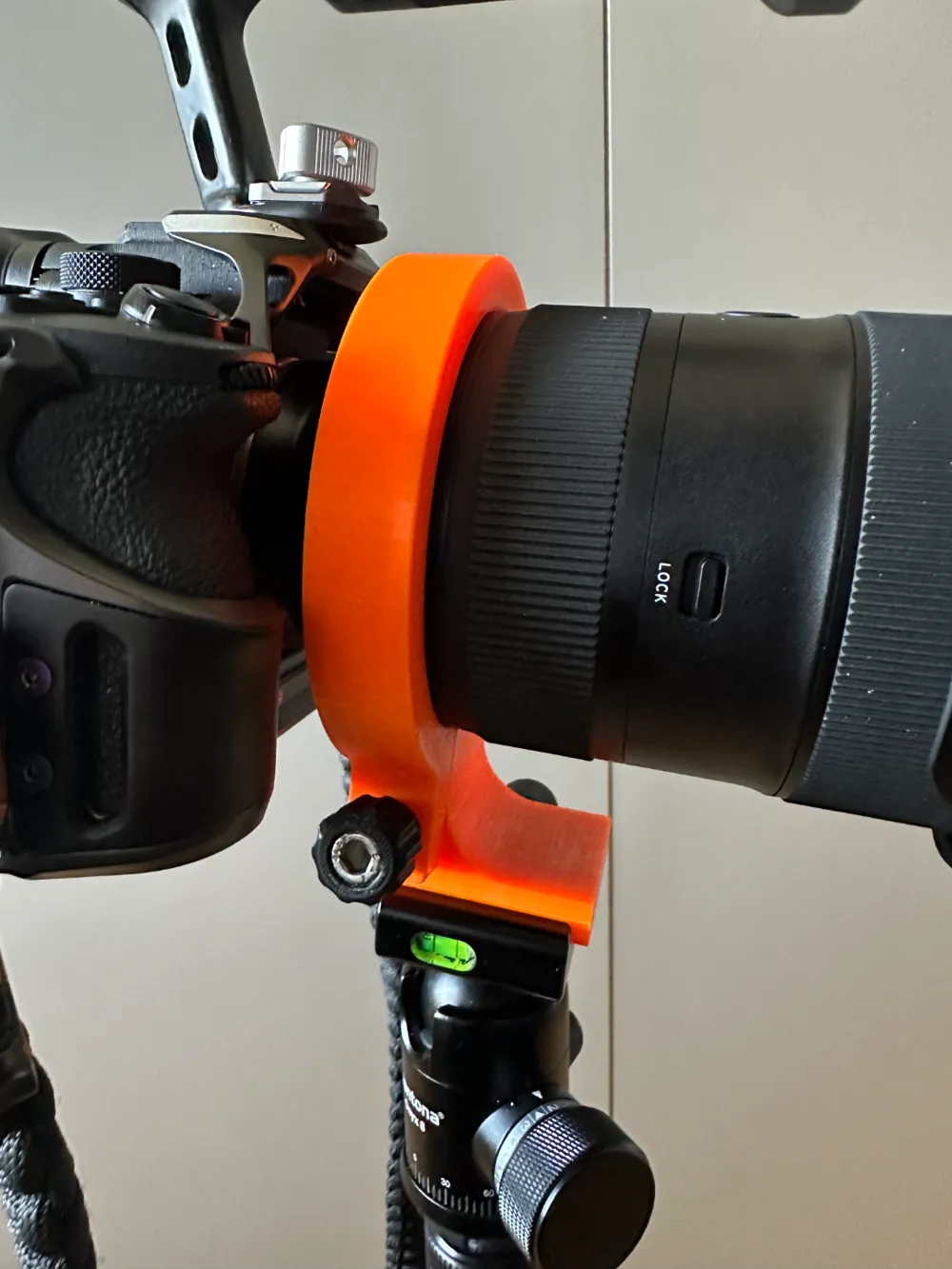

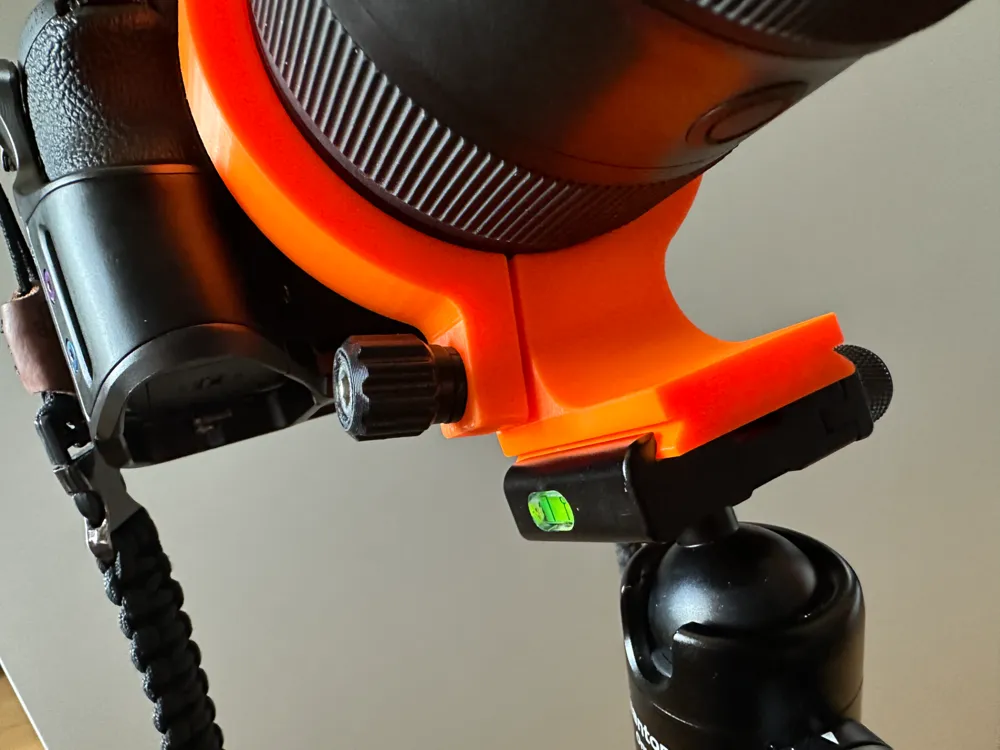

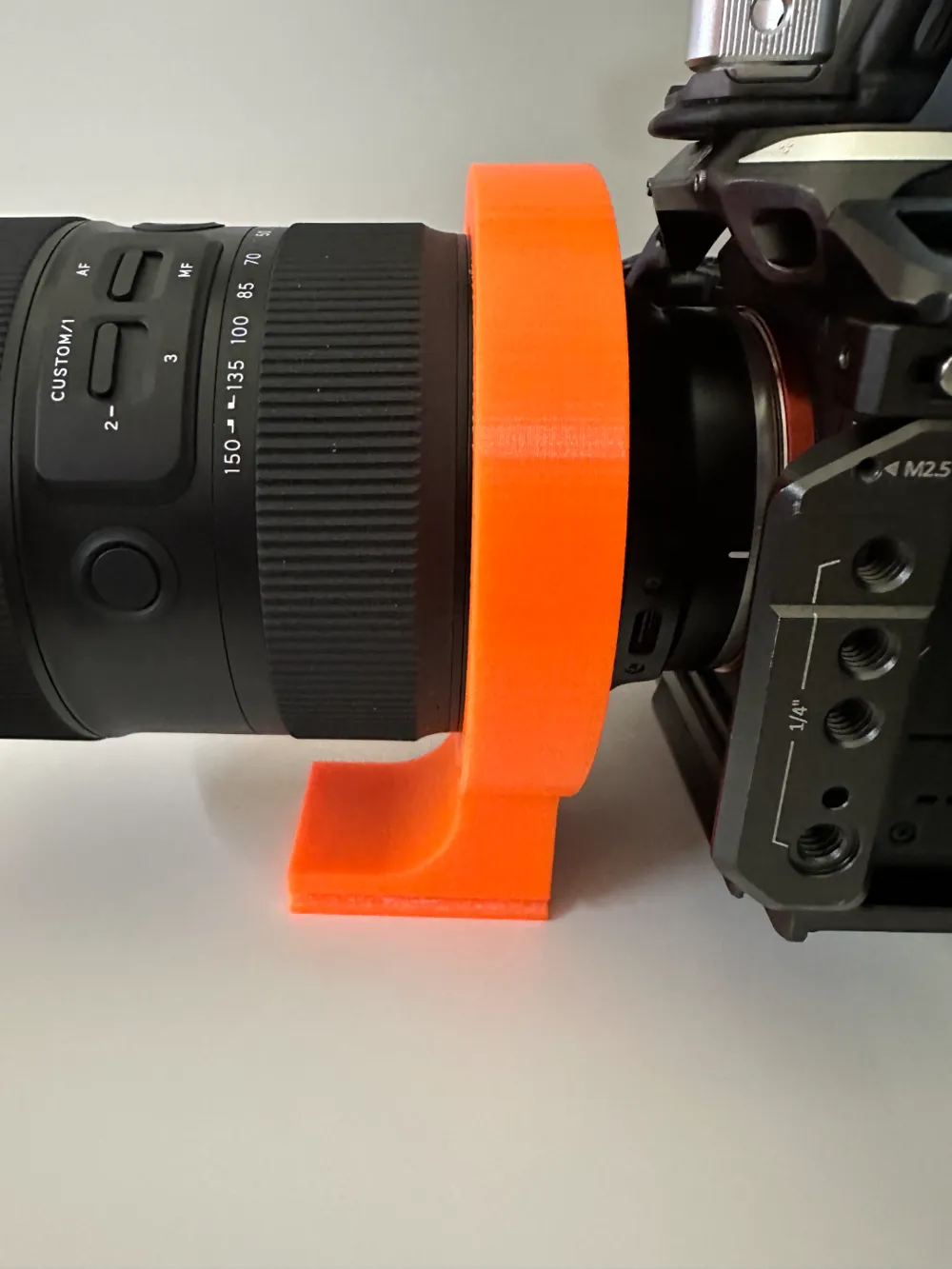

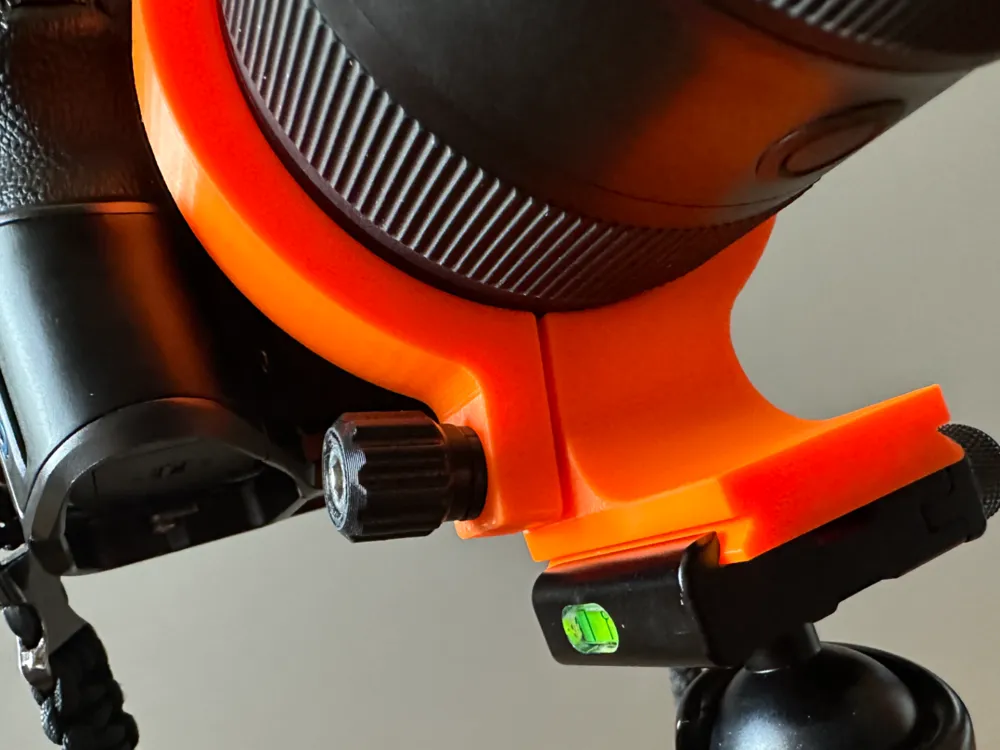

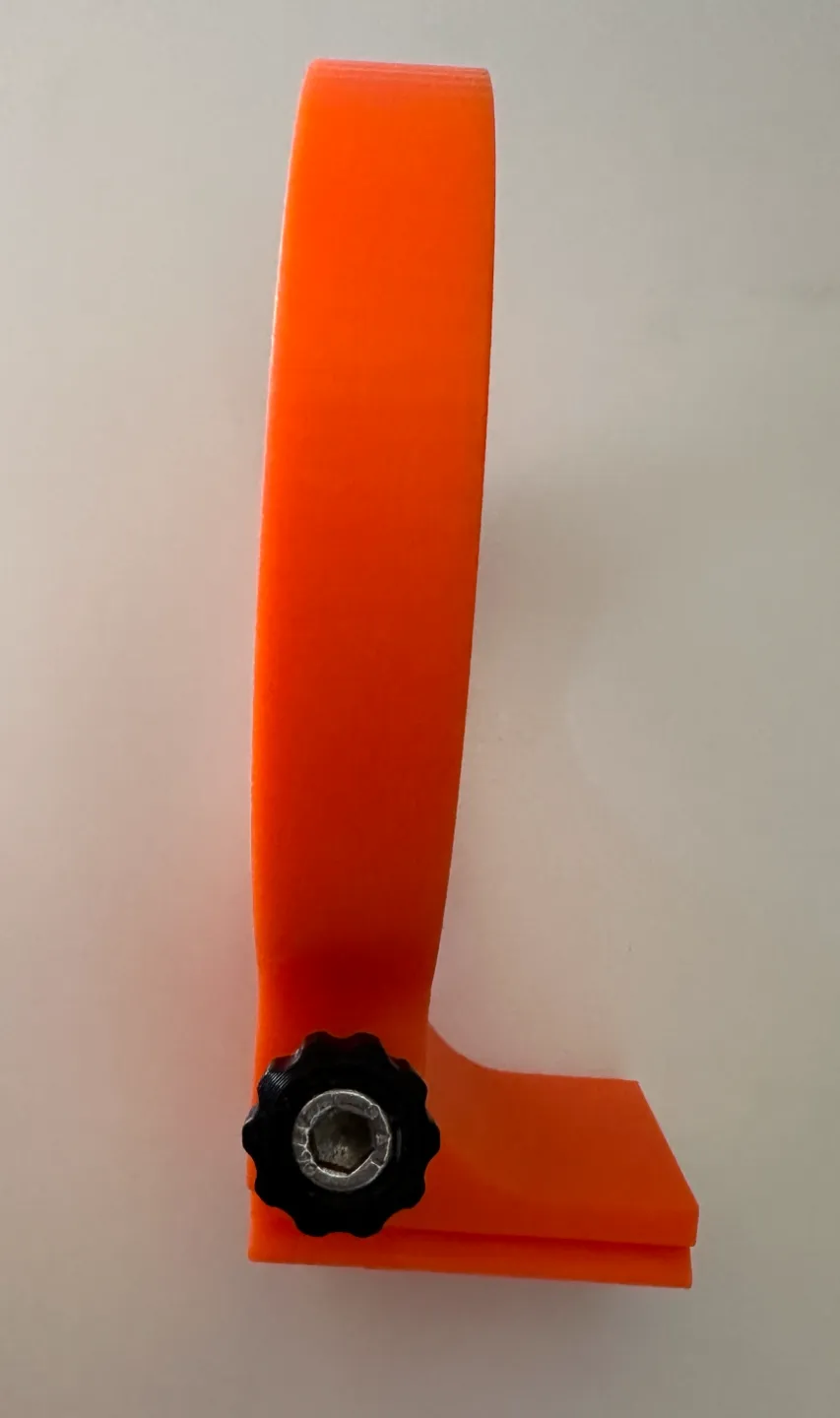

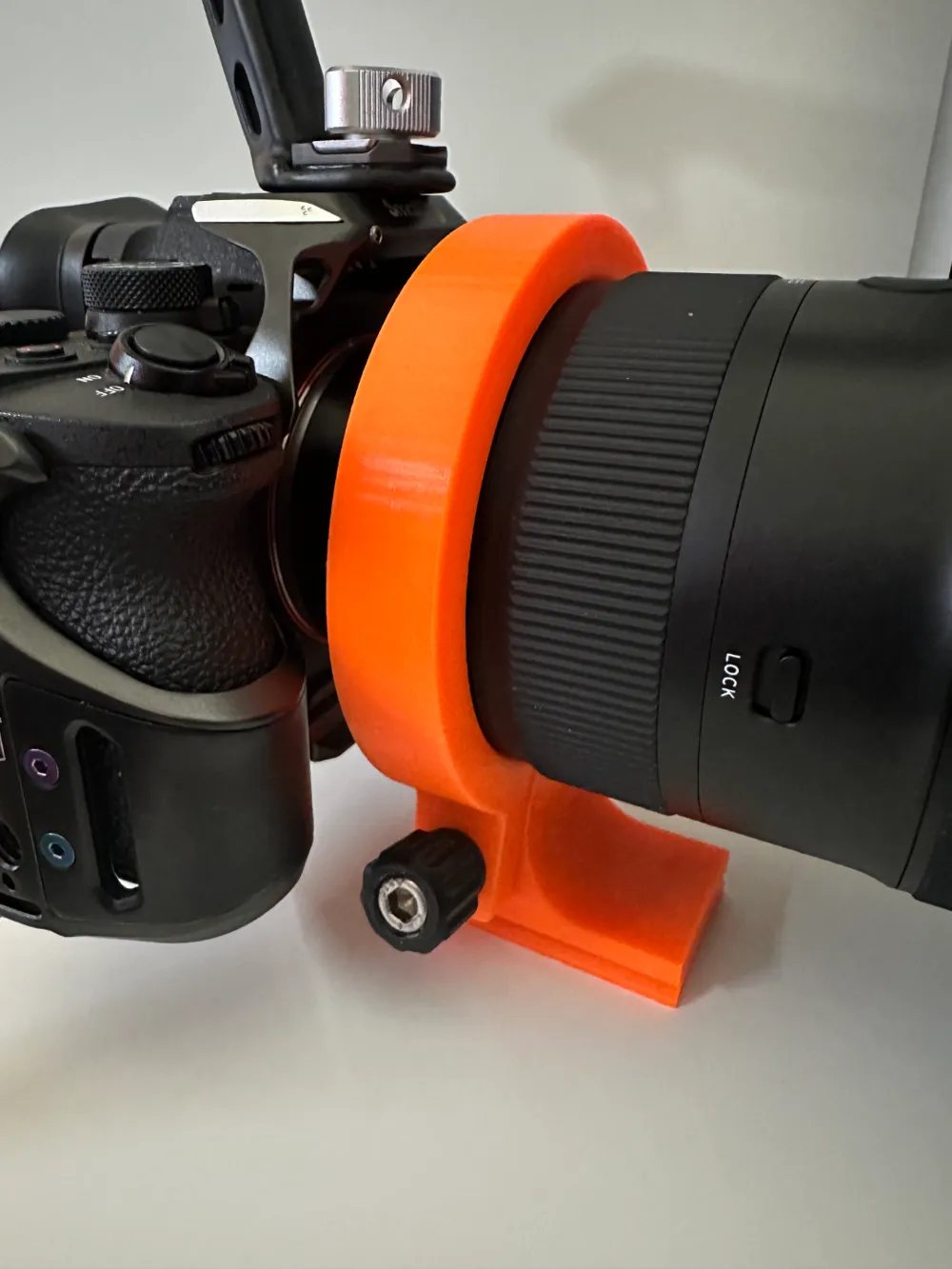

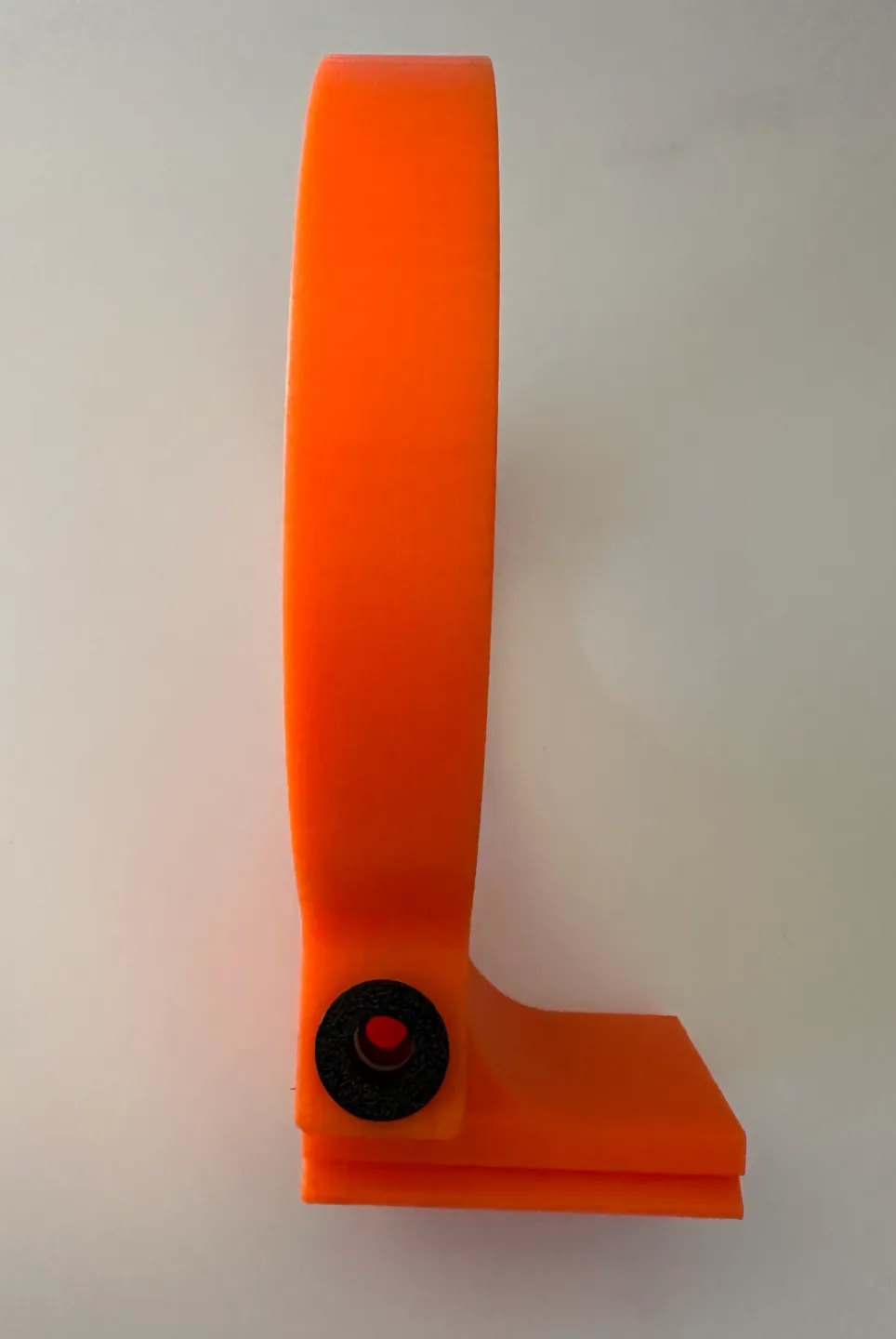

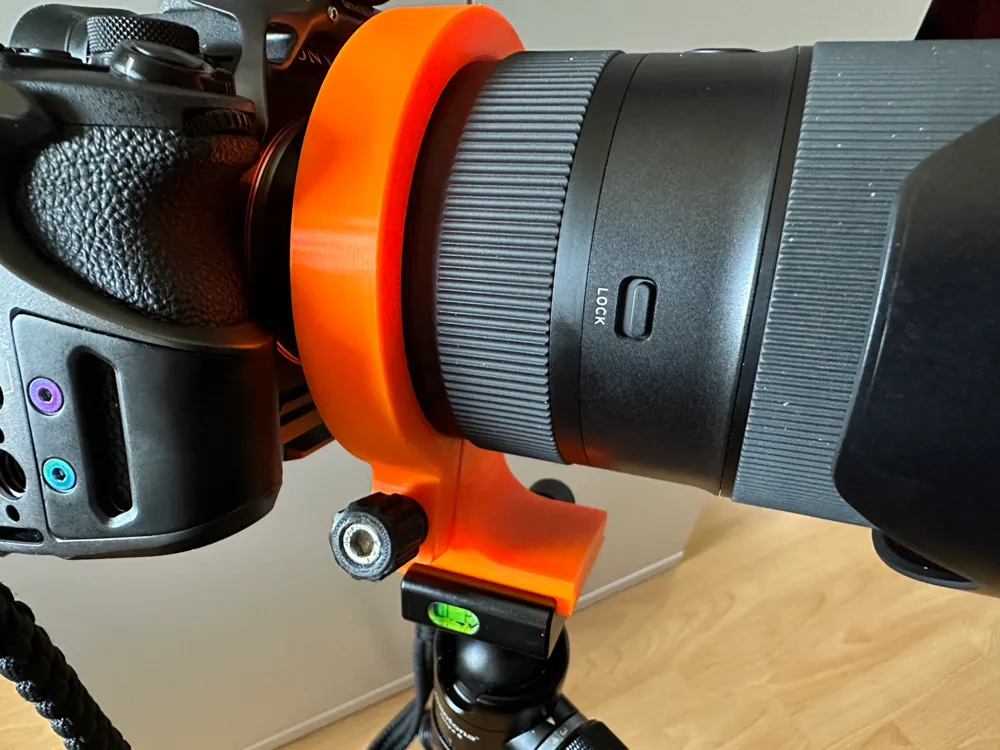

Tripod mount for the Tamron 35-150mm f/2.8 Di III VXD Sony lens.

Printed in PETG with five wall thicknesses, top and bottom layers.

Additionally, the following are required:

1 x Stainless steel cylindrical screw M6 x 35mm
1 x Threaded insert M6 x 12.7 (M6 x 6.8 short version also sufficient)
2 x Threaded insert M3 x 5.7

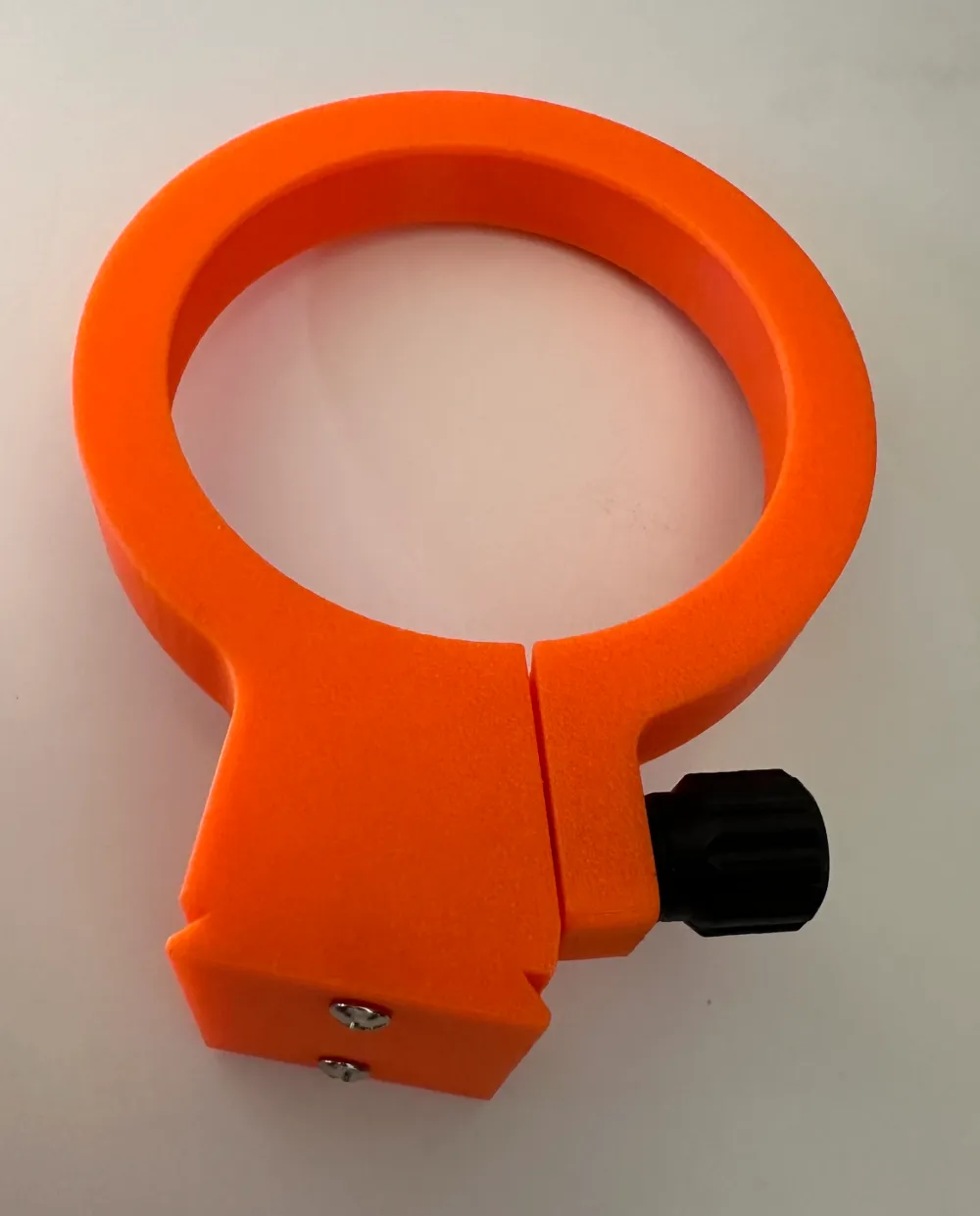

2 x M3 x 4 countersunk screw (other M3 screws can be used; the head should not protrude more than 2.5mm from the underside).

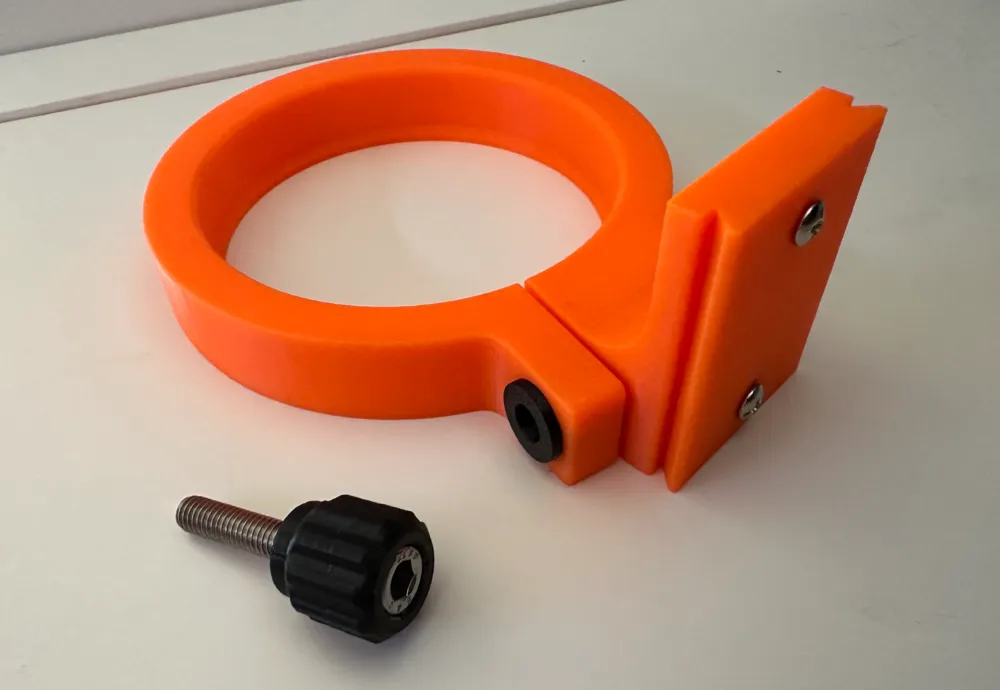

I glued the screw to the knurled part with super glue.
The screw fit relatively tightly in my case.

I have attached my Fusion 360 files. Remixes are welcome.

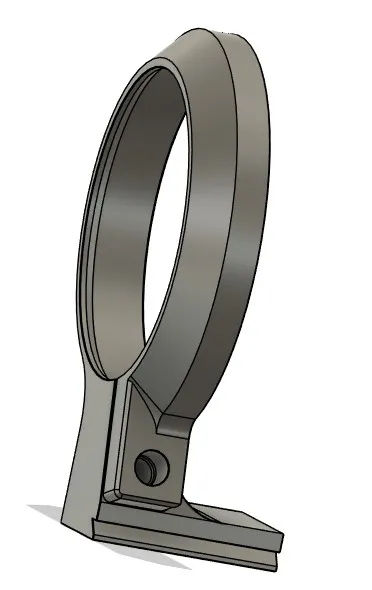

Update 07.07.2025 - I have created a bevelled version and uploaded it as a STEP file and STL file. This version may provide better access to the camera grip. I have not yet tested its functionality. Perhaps someone could test it and report back :-)
