Description

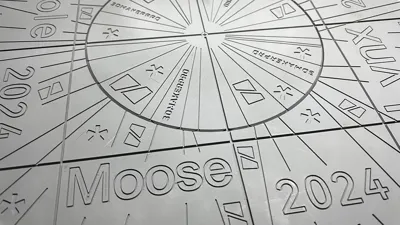

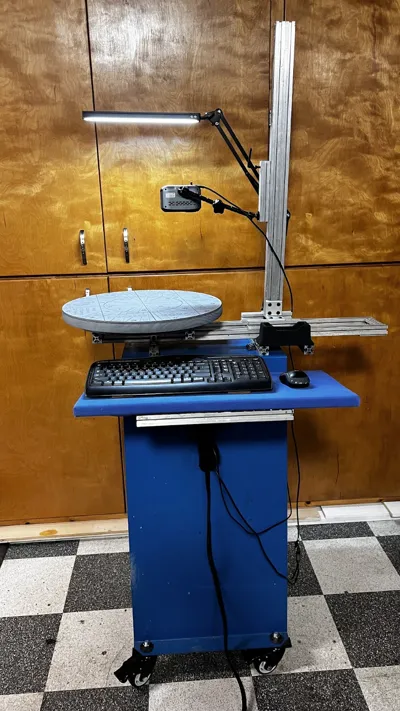

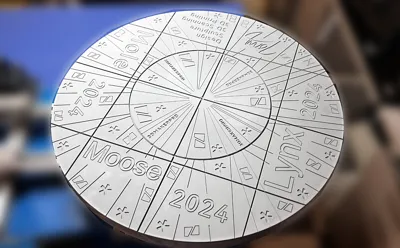

This 18" Fanboy TN Scanner Plate is an updated version of the first plate I made. It was designed to help me scan my RC chassis. The scanning plates features 250mm grid to help me align my projects on the plate accurately. The plate has 1mm wide x 1mm deep lines and 2mm wide x 2mm deep lines. The graphics are 1mm deep. The center plate is 230mm diameter and can be printed separately. This is a DIY project where you need to screw and glue the 3D printed parts on a 18" x 1" wooden blank you can purchase at the home improvement store.
