Tiger Light box (James ONeill designed)
Print Profile(1)
Description

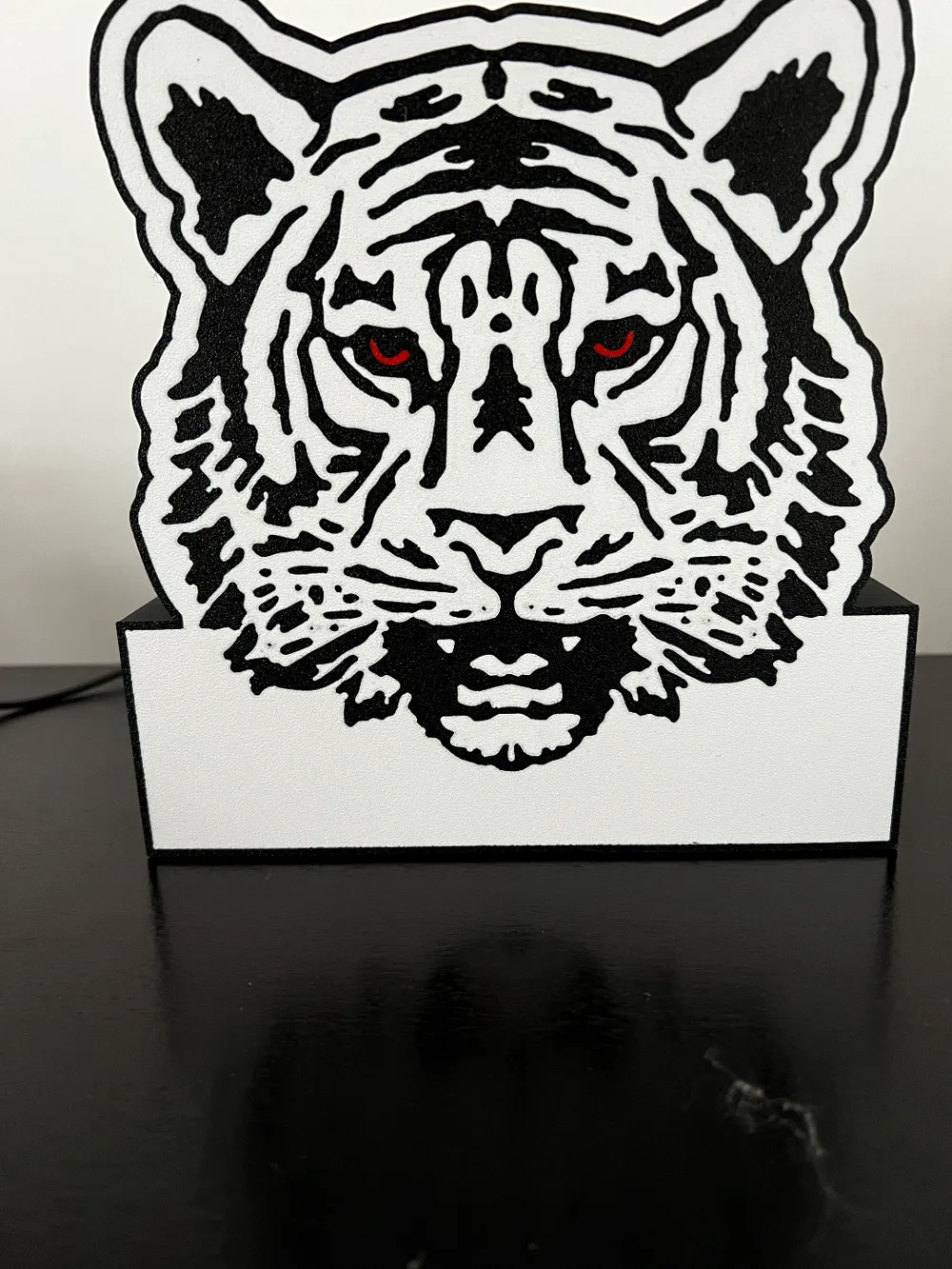

Here's a unique tiger design light box.
The artwork for this light box designed was done by a talented local artist. I've turned it into a light box using Fusion 360 and I'm pleased with the result. I hope you like it.
The design was completed with customization in mind - there's space on the bottom for a name or phrase. I've left it blank, as I think you should be able to add text using Bambu Studio.
If you'd like me to make a 3MF for you with a custom name then contact me.

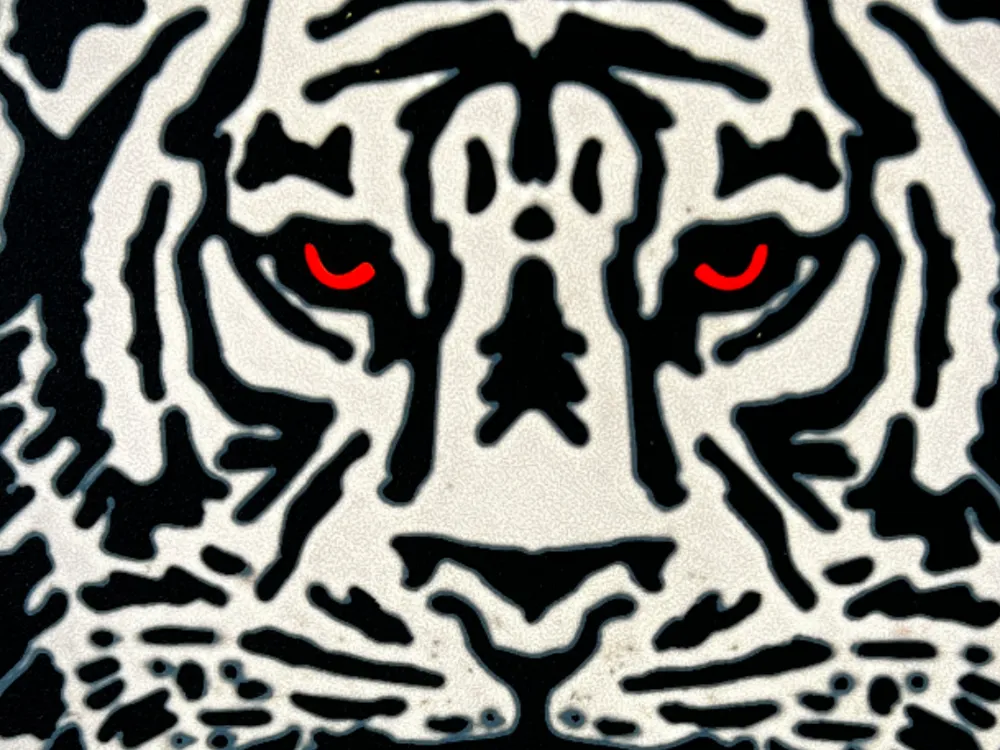

This was printed on a Bambu P1P with three colours in my AMS. Colours are up to you - I've gone with the white and black and the red eyes. You could easily print this in two colours if you are not worried about the red eyes.

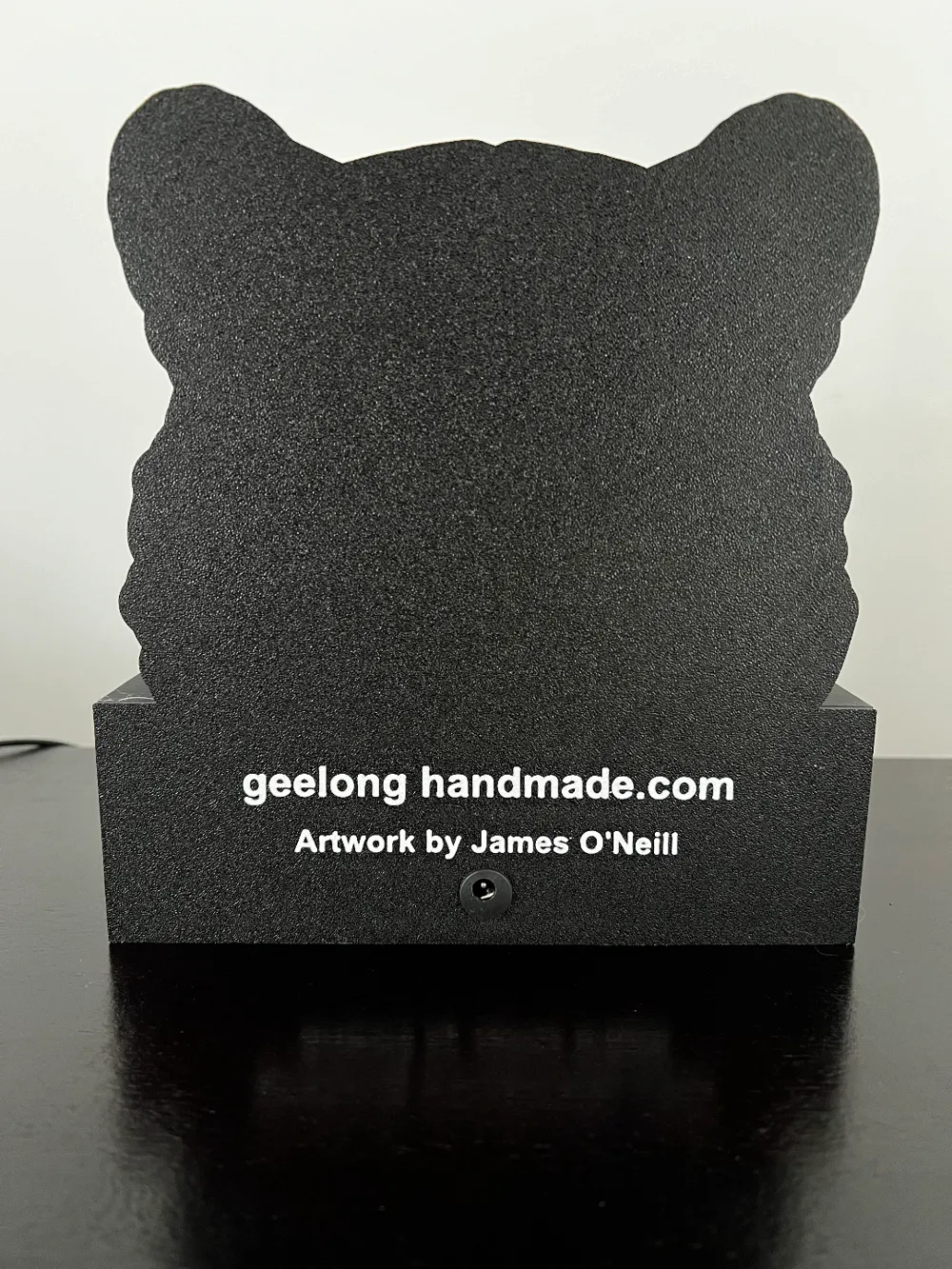

This version is supplied with a 12mm hole in the back plate.

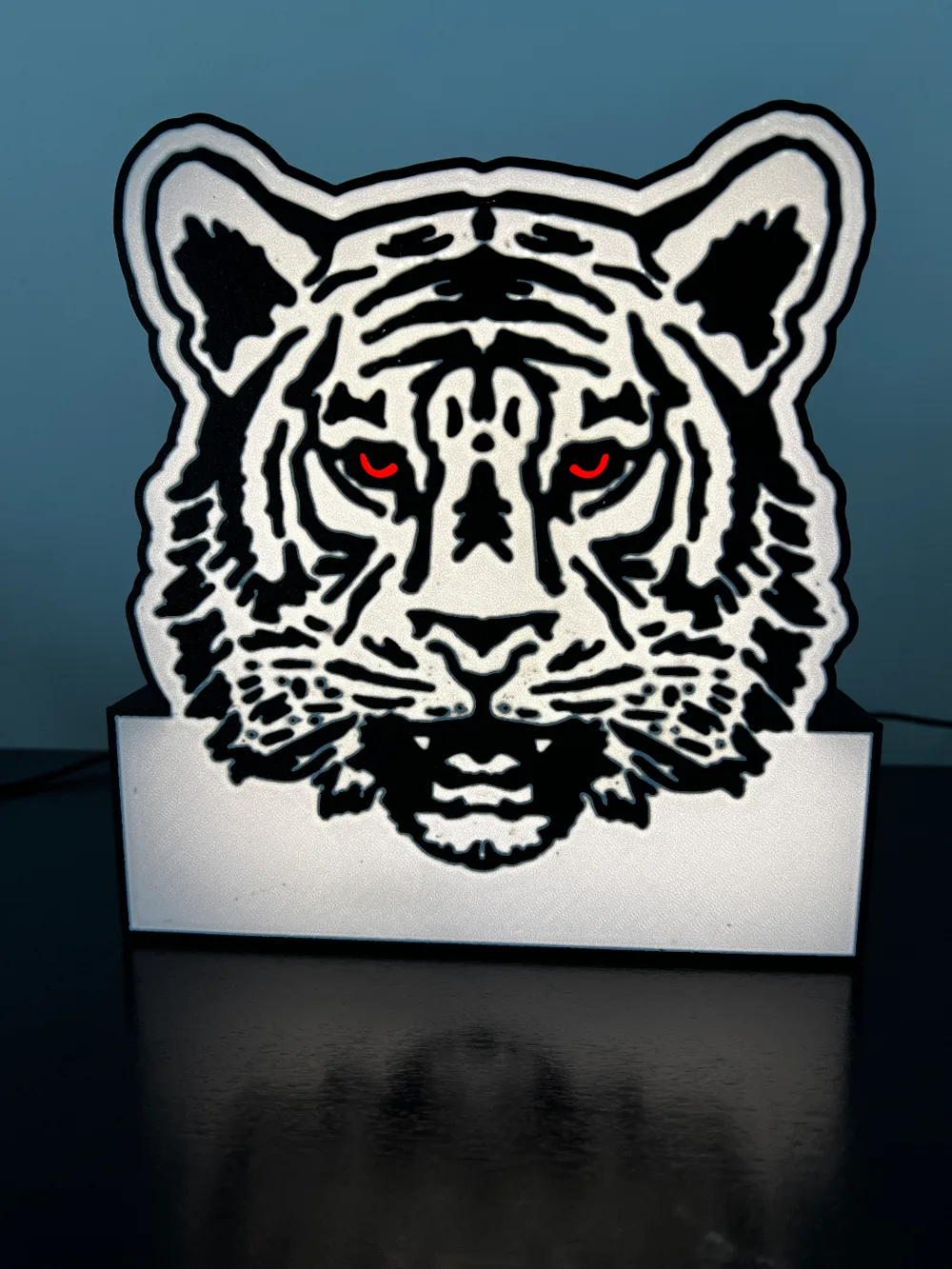

I use 12V LED COB strips connected to a 12mm socket piece, and power it using an AC adapter.
This section applies to light boxes
A version without the writing on the back and without the 12mm hole is also available.
Parts that I use in my light boxes
Note: I use components that are readily available through AliExpress. There are many variations of these items that you can use if you can find local suppliers.
| Item | Comment | Link |
| 12V Mains adapter | This is for the AU version, choose one that suits your location (1A) | https://www.aliexpress.com/item/1005003438232392.html |
| LED Strip | I used the 3mm version as it's easier to bend around the light box. Choose the 12V version to match your adapter. The 320 LEDs item is bright enough for a light box. I usually choose the 1m versions - it can be trimmed if needed. | https://www.aliexpress.com/item/1005005626311944.html |
| DC 12v socket | These fit nicely into the back plate of the light box with the pre-made 12mm hole. I solder the LED strip to the socket terminals. Only two pins of the socket are used. | https://www.aliexpress.com/item/1005007870570657.html |
| Inline switch | This inline switch allows you to turn the light box off or on. | https://www.aliexpress.com/item/1005005754107667.html |
