Logitech C920 Webcam Mount/ Universal Webcam Mount

Print Profile(1)

All
P1S
P2S
X1 Carbon
H2D Pro
A1
A1 mini
H2S
X1E
H2D
P1P
X1
X2D
H2C
A2L

0.2mm layer, 6 walls, 15% infill gyroid
0.2mm layer, 6 walls, 15% infill gyroid
Designer
5.2 h
4 plates
5.0(31)

Open in Bambu Studio
Boost
101
266
57
28
403
242
Released

Description

Confirmed Compatability List So far:

Logitech C920:

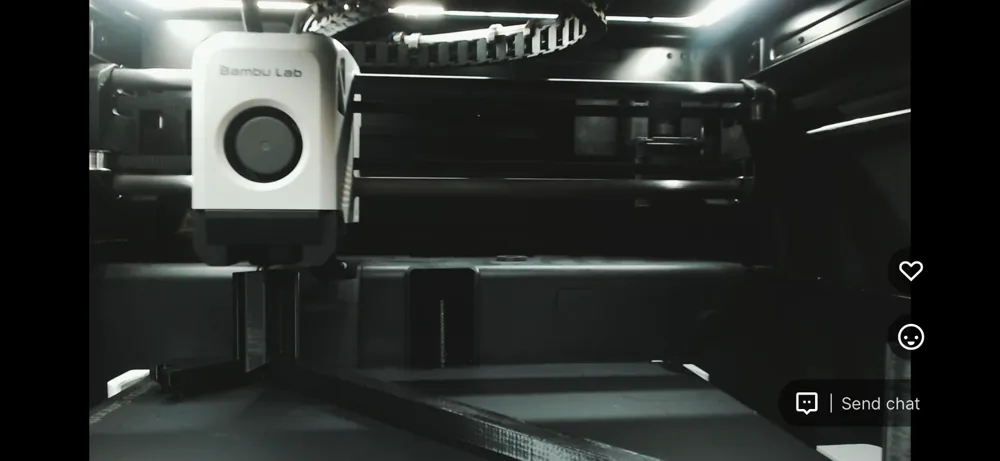

Minor tilting available, Can see about 90% of the plate with the short mount, POV is about 10-15mm past the prime line. Long plate is available for better FOV, though C920 suffers greatly from glass glare in a bright room.

Razer Kiyo Series:
 With and without stock base plate (cannot tilt much lifting action brings it out of plane) , without is preferred, and Long Plate model can view the whole build plate in mid focal length or Short Plate Model can view the whole plate in Wide View mode, wide view in the forward most slider position will give full build plate coverage (minus prime line) and Low to No Glare.

Update 7/16/24: Updated Ziptie Mounts and Added Experimental 4th Slotted Long Mount for C920

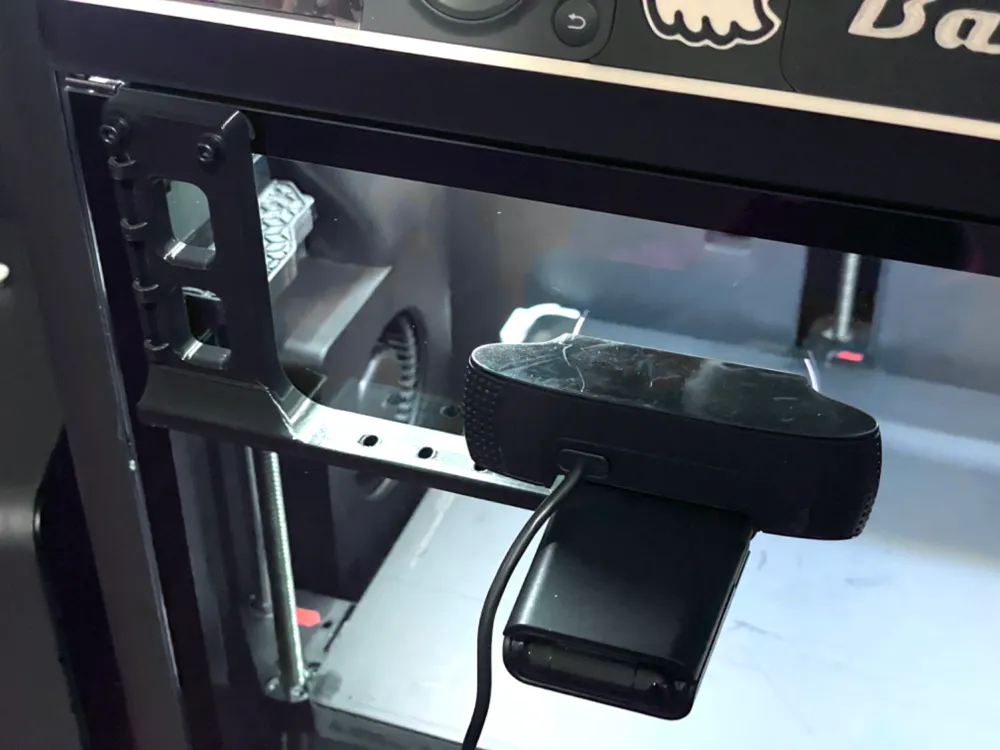

Webcam Camera Mount that attaches to the P1S/X1C door upper door hinge, uses a 2 - M3 x 10 or 2 - M3 x 12 with washers.
Optional TPU Gasket Plated, must glue Gasket onto bracket, upper screw holes guide alignment.
Longer Universal Mount plated separately.
Holes and Loops are for threading zip ties for cable management
