Porsche Fox Rim Clock / Porsche Fuchsfelge Uhr

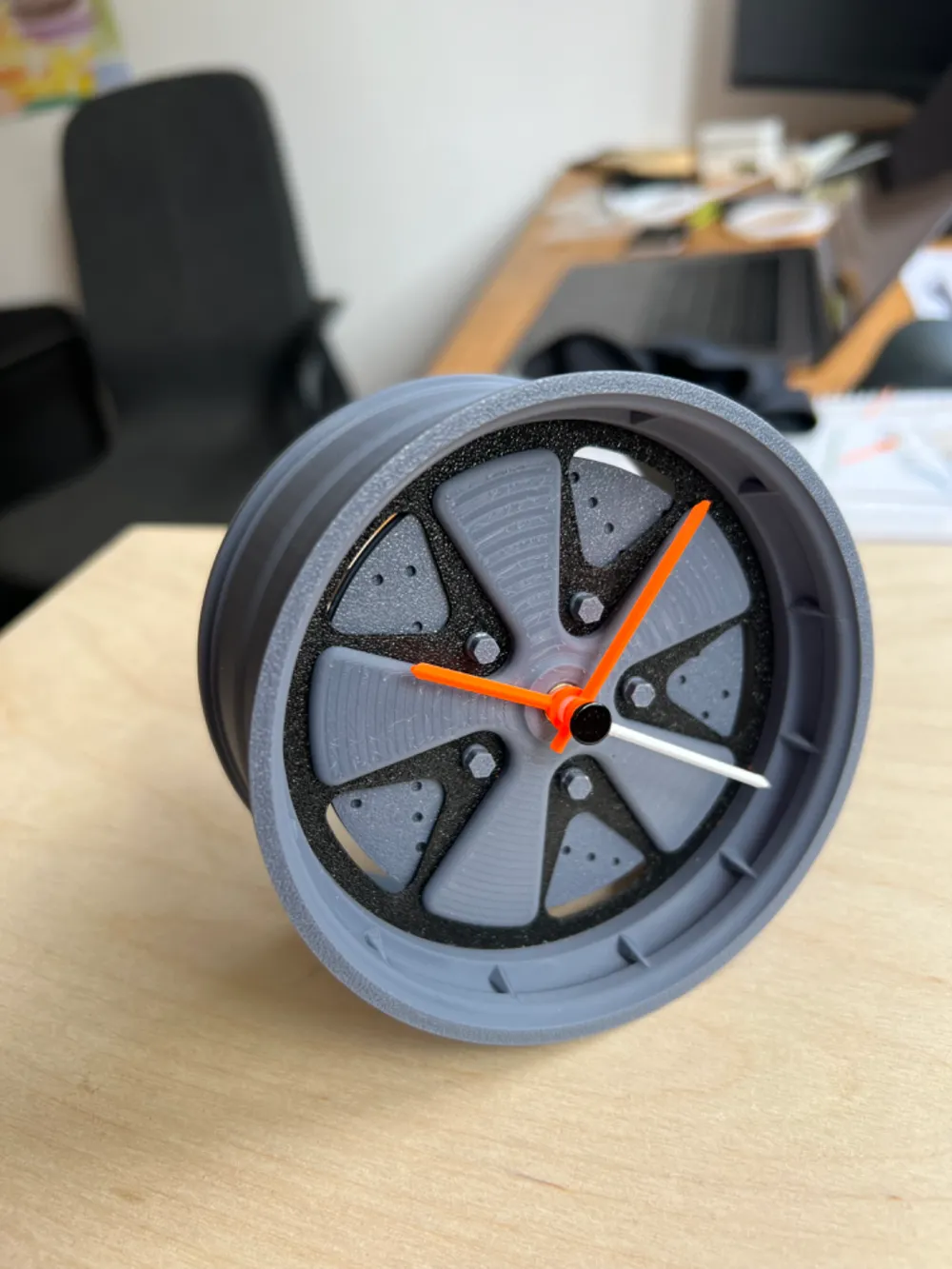

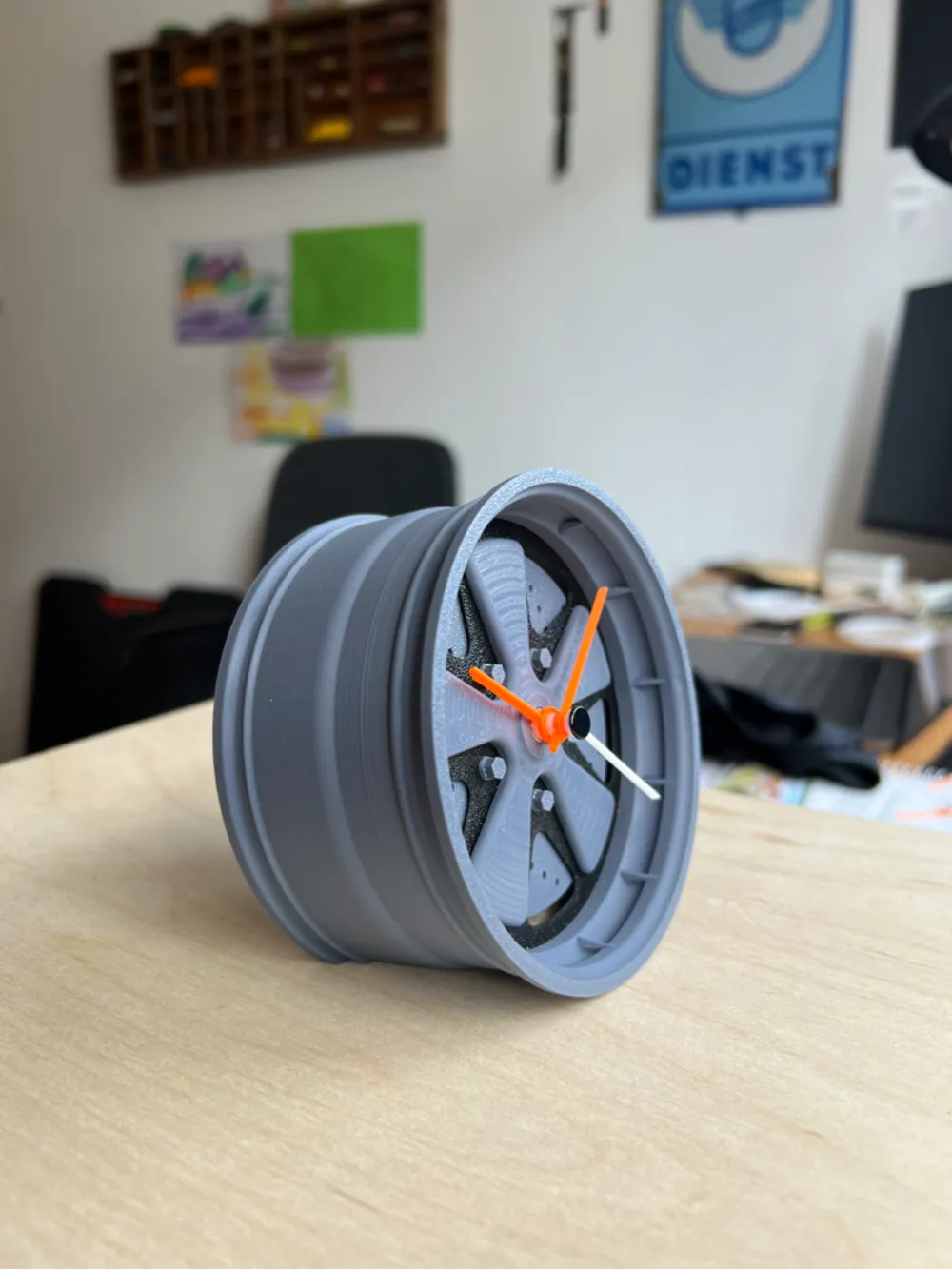

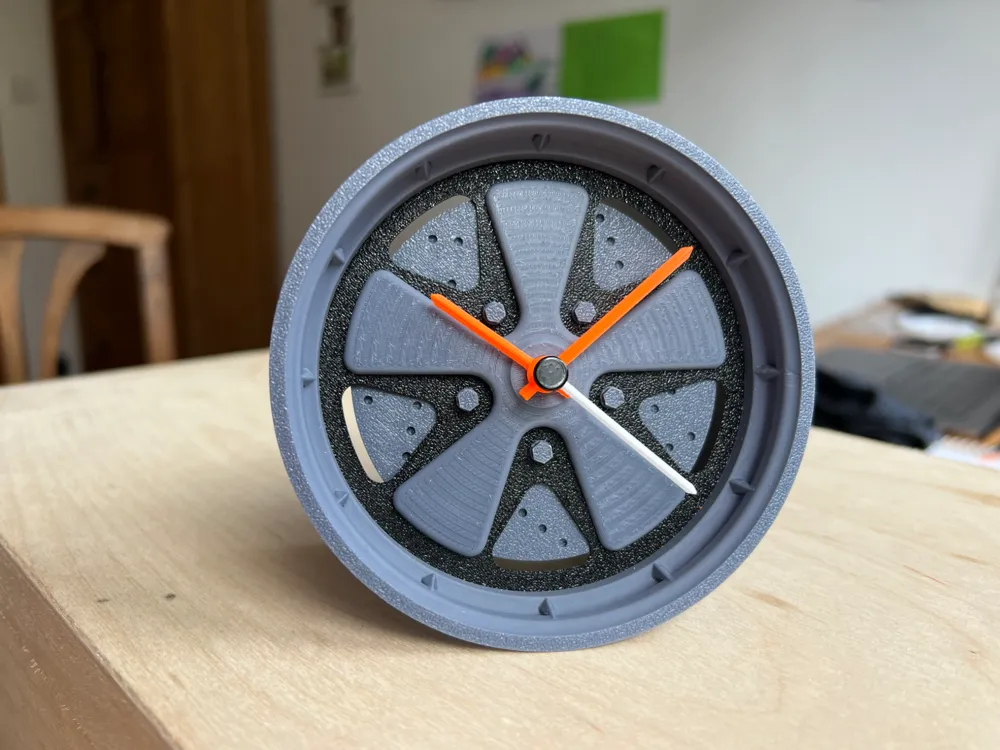

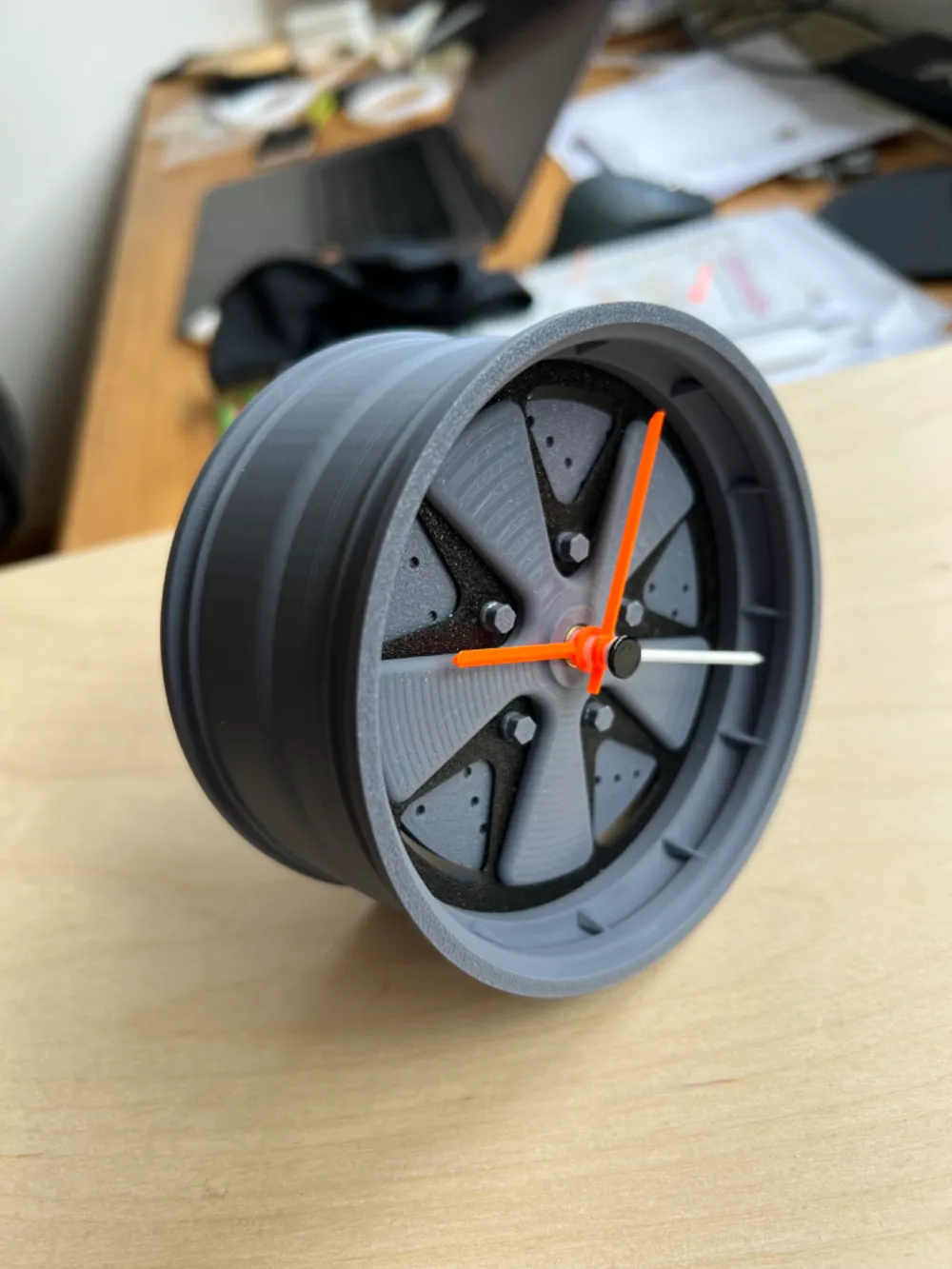

This is a Porsche Fox Rim Clock I designed.

It’s mimicking the Porsche Fox rim design from the 1980s.

Print the black part first!

The rim print itself has a pause programmed into it, during which you insert the black part.

Be careful with the orientation. :) It has a little tongue and groove feature to ensure the radial orientation is correct.

I printed the screws without support, standing upright. Unfortunately they're too small to be printed at an angle or laying down.

I couldn’t figure out how to make the threads fit right away, so I retapped the threads on the clock side. Screwing in an M3 metal screw should do the job as well. The screws screw in just fine after that.

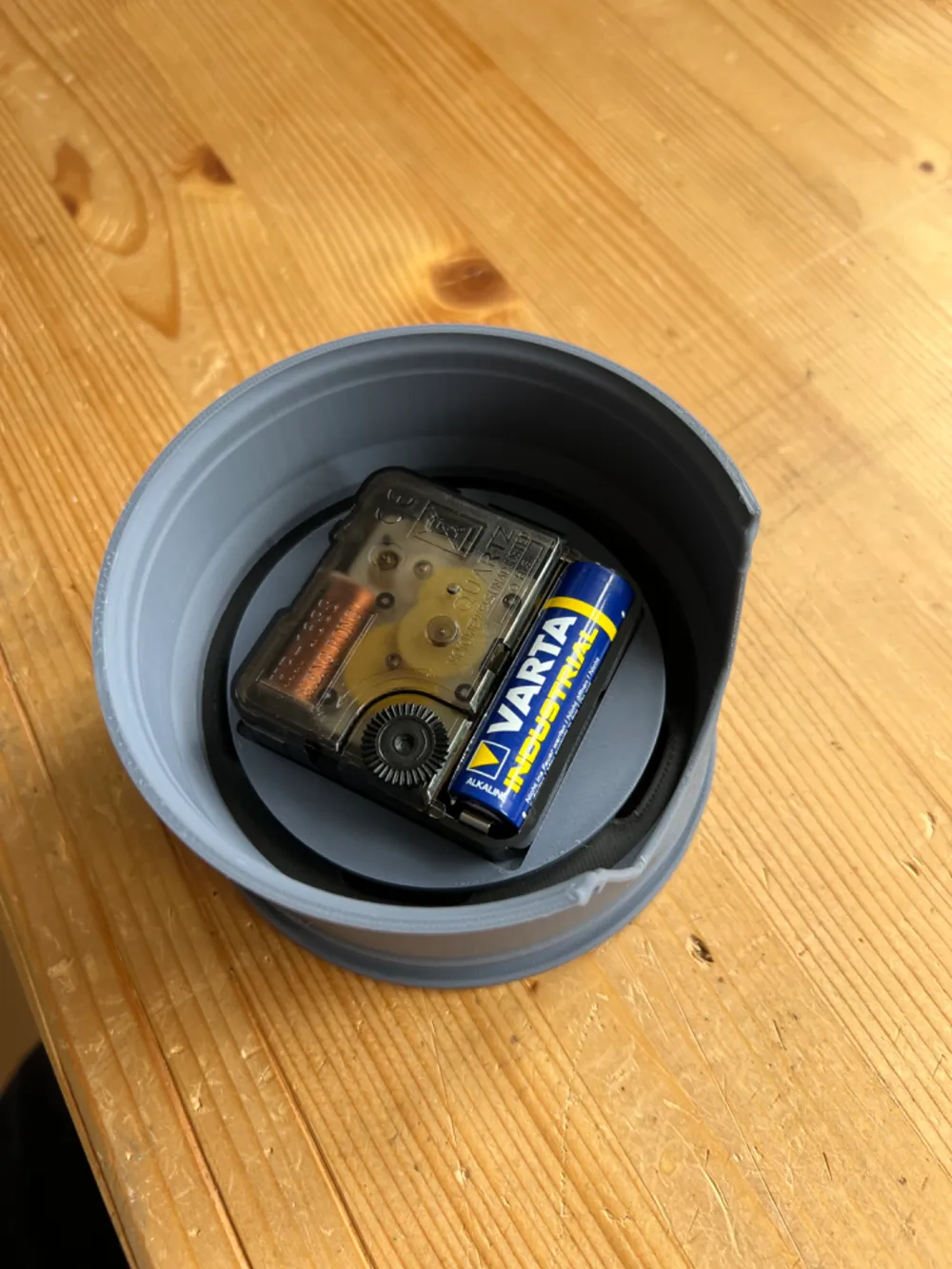

Be sure to put in the clockwork first and secure it with the gray “5-star” part.

Afterwards, you can screw in the wheel bolts to secure the brake disc to the clock.
