Castles of Burgundy SE Fixed Duchy Overlay

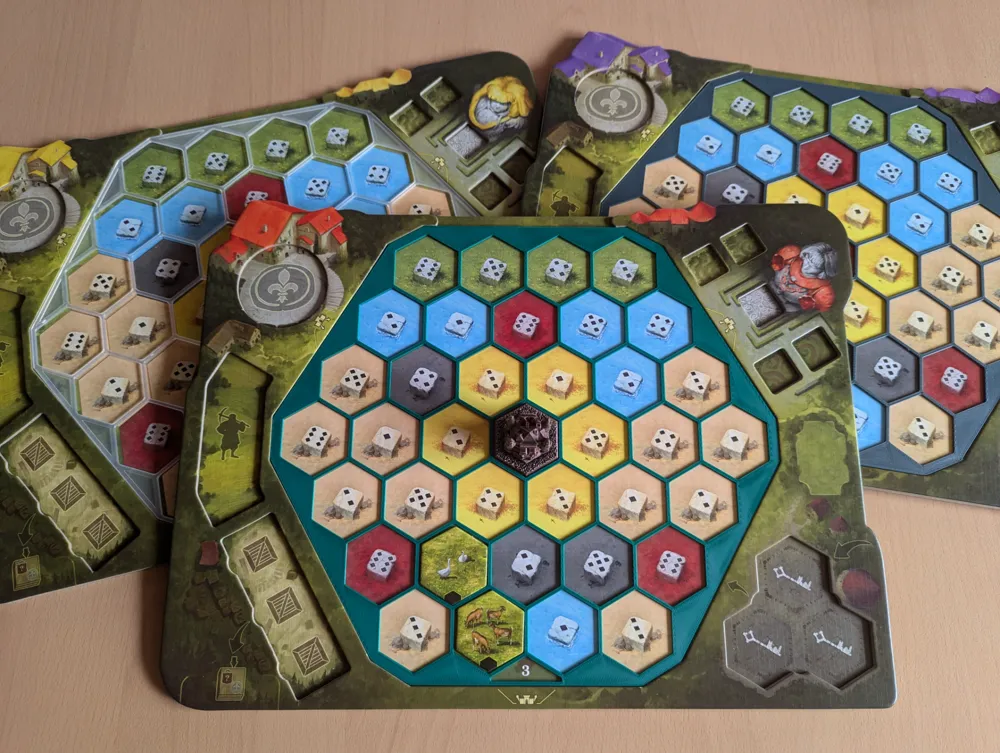

This duchy grid is meant to replace the grid included in the castles of burgundy special edition by awaken realms. The semi-transparent grid is not aligned correctly with the hex spaces (as seen on the comparison image), which really bugs me.

Therefore I designed a new overlay, which fits pretty tight in the player board, provides a bit less (but still enough) space for the tiles and, most importantly, doesn't is aligned and doesn't skew.

I provide to options, one with a cutout to see the duchy number, one without - that's purely an esthetic decision.

Note: While I didn't test it myself,  over on printables I got the confirmation, that the acrylic tiles indeed fit in the grid - thank you!

The proportions of one hex slot are:

• edge length 19mm
• corner to opposite corner 38mm
• edge to opposite edge ~33mm

Printing should be no issue, as I'm a newbie myself and managed to do it quite easily ;)

Have fun playing!
