Keycaps set for Mechanical keyboard - Cross Stem

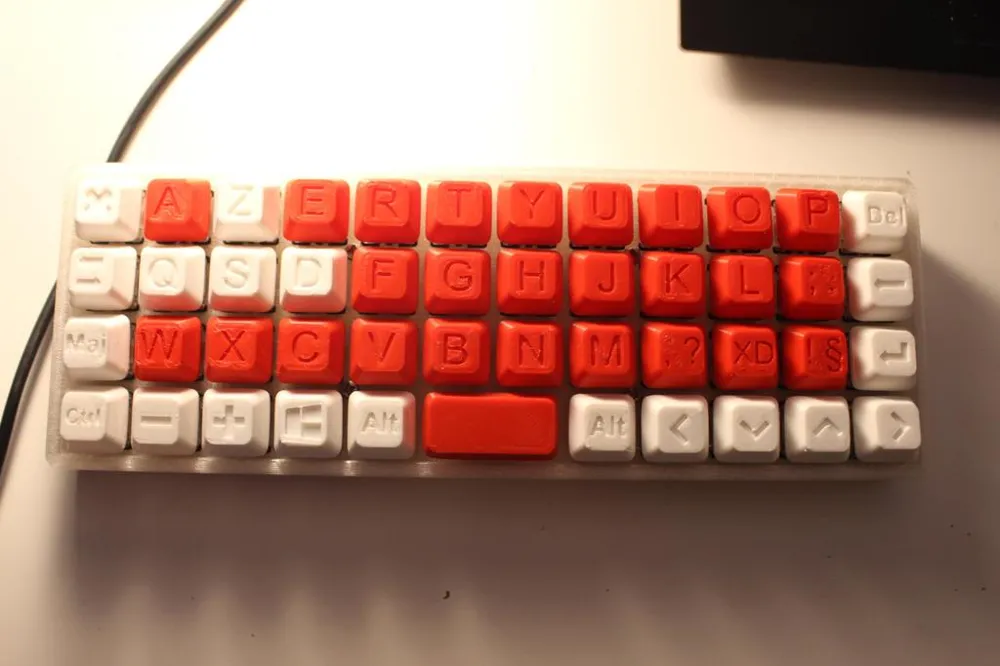

A set of keycaps designed for mechanical keyboards. These keycaps have a rather flat finish, that can be even better if enabling Ironing, and they are resting very high on the switch. To ensure the stem quality, have a well calibrated machine, and it should fit pretty nicely, maybe with some filing of the stem. The spacebar keycap is designed to fit the VOID40 by V0ID, it is the project for which I designed these keycaps.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

Doesn't Matter

Resolution:

0.2

Infill:

30%

Filament: Any PLA works well



Notes:



Be careful if you have to remove supports from around the stem, go gently, and remember that tree supports are much easier to remove than normal ones. Try to fit the keycap on a switch, and file the stem if necessary. Sometimes, the inside of the stem's cross can use a bit of finishing using cutting pliers (and going gently with these too :))

Category: Computer
