A1 Adjustable Original Camera
Print Profile(11)
Description
This is my second upgrade to A1 3D printer.
I wanted to combine two features: the ability to adjust the camera and a look similar to the company's.

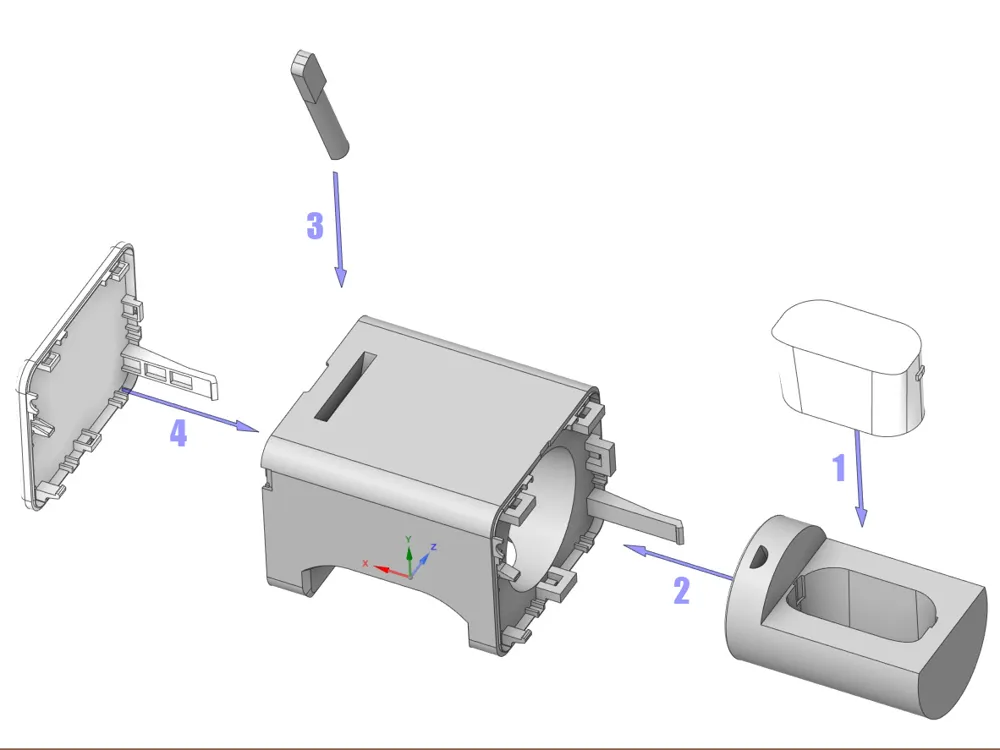

Assembly Instructions
- Print all 3 parts with supports
- Print camera cover https://makerworld.com/en/models/478855#profileId-392195
- Turn off printer
- Remove the camera according to the Bambu Lab instructions: https://wiki.bambulab.com/en/a1-mini/camera-replacement-guide
- Replace the camera with a cover
- Re-connect the camera cable
- Insert the camera into the cylinder
- Insert the cylinder into the body
- Insert the handle into the cylinder. The handle will keep the cylinder in place

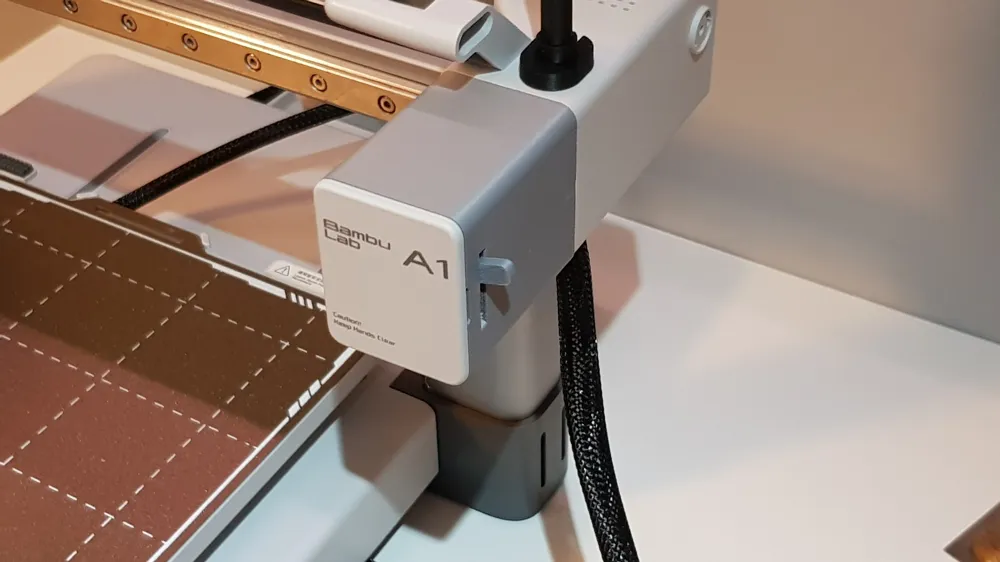

- Install the module in place of the original cover. Press the latches carefully, paying special attention to the longest one.
- Attach the original cover
The housing slightly obscures the view of the camera. If it bothers you, then use Extended camera Profile.
Good Luck!
