Ultimate hotend for Rook Evolution

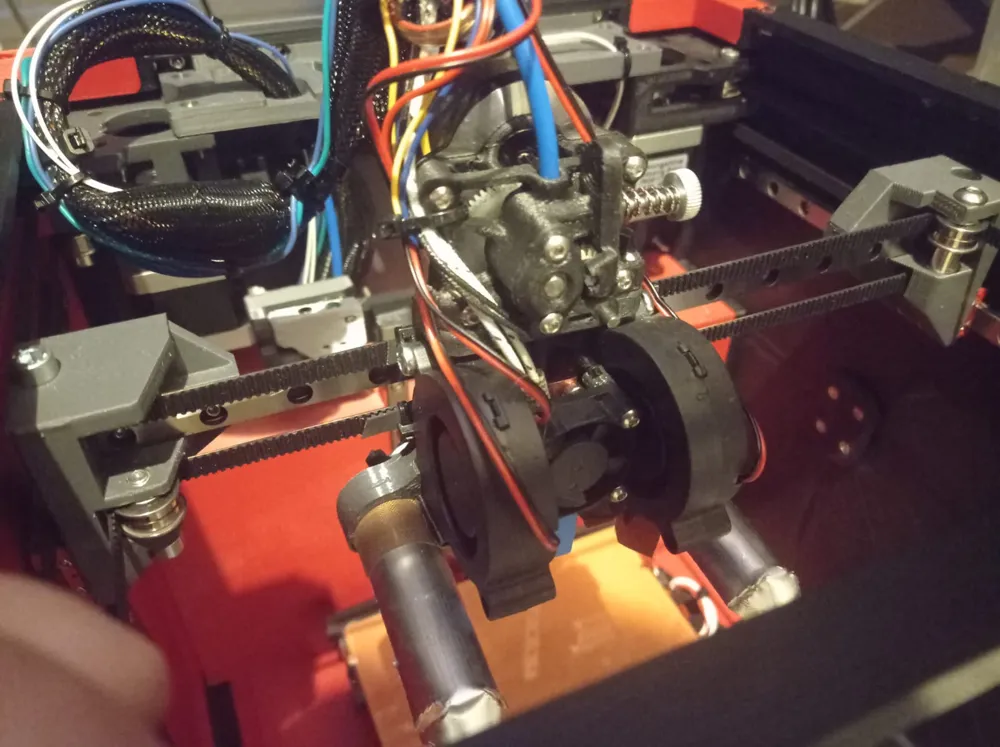

Ultimate hotend for your Rook evolution.

includes:

• Volcano hotend
• Sherpa mini extruder
• 2 5015 fans for part cooling
• Klicky style probe
• Halogen bulbs for improved layer adhesion.

Use filament with high temperature resistance for printing toolplate as it experiences high temperatures from the halogen bulbs.

I used 100w halogen bulbs which is total overkill with 50% power the temperature at the base reaches +100C almost instantly. I printed my toolplate from pps anneled at 150c for 3h and it is able to handle 50% power.

Probe offsets

x_offset: 10.0
y_offset: -18

Dock location

x=12, y=150

Video of Probing

BOM:

• Micro switch https://www.aliexpress.com/item/32939882024.html
• 3010 fan
• 2 5015 fans
• Volcano heating block+nozzle
• mk8 heatsink
• 6 6x3 magnets
• 10 M3x5x4 heatset inserts
• 2 G6.5 halogen bulbs https://www.aliexpress.com/item/1005004366630273.html
• 2 G6.5 base for halogen bulb with spring https://www.aliexpress.com/item/1005004022325494.html
• 20x18mm aluminium tubing
• m3 hardware
• sherpa mini extruder
