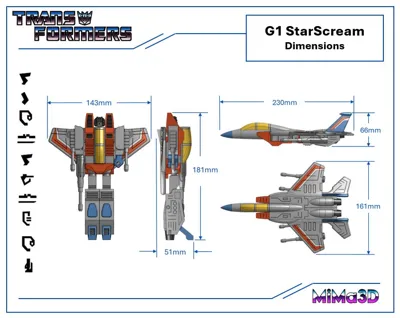

StarScream - Transforming Jet

Introducing the exclusive Starscream Transformer 3D print, a marvel of design and engineering tailored for the ultimate Transformers fan. This intricate model transforms seamlessly from an F-15 Eagle jet to the iconic Decepticon robot, capturing the essence of Starscream with precision and flair.

UPDATE! (2024-07-13) THIS IS THE FULL LAUNCH: The 6-color version is here. I still advise printing the 8hr single-color model to ensure you are happy before committing to the 61hr+ multi-color prints.

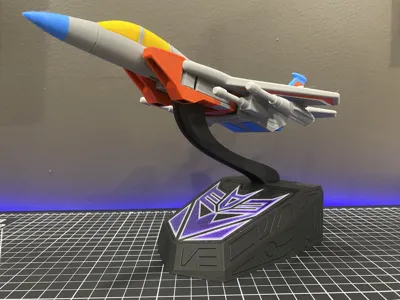

UPDATE! (2024-08-03): The Jet stand is now available here: https://makerworld.com/en/models/571387#profileId-491391

UPDATE! (2024-08-05) Looser Fit Launch: A second build plate - Looser Fit V32 Rev C has been added to the file. All articulating features have been loosened to address fusing issues.

Profile Options:

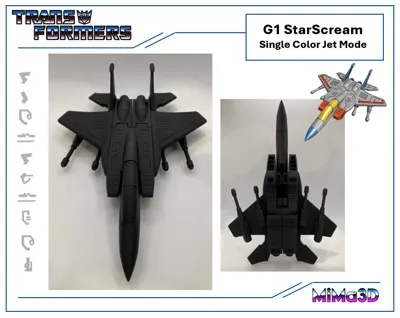

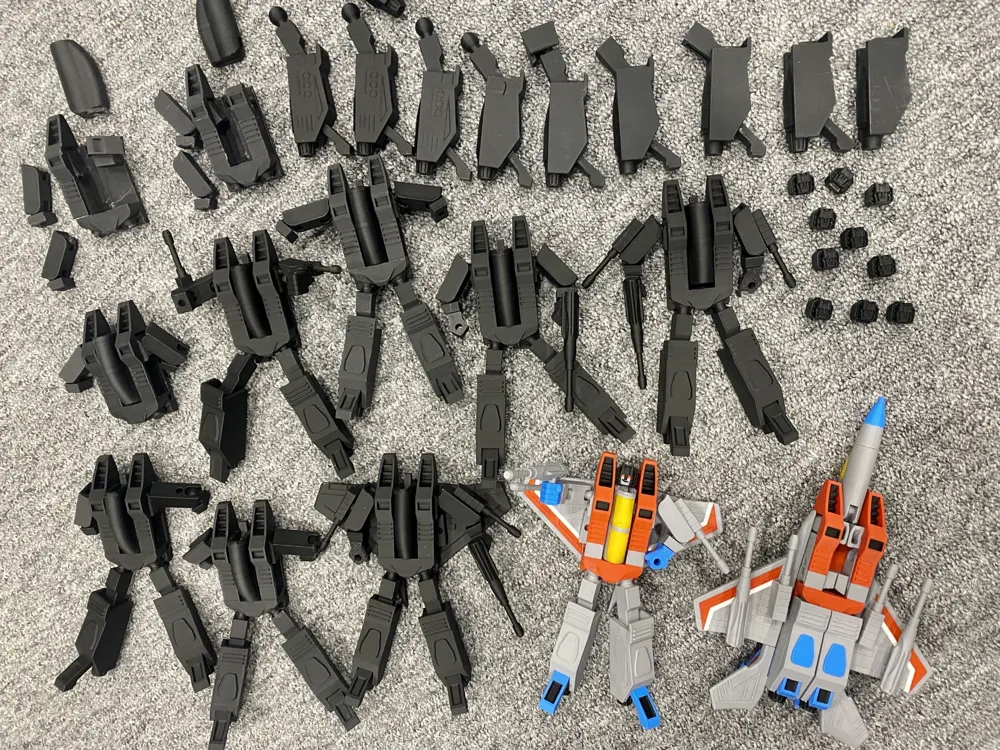

• Single Color - Verified. Seeing various results with different material brands. Rev B hopefully addresses issues.

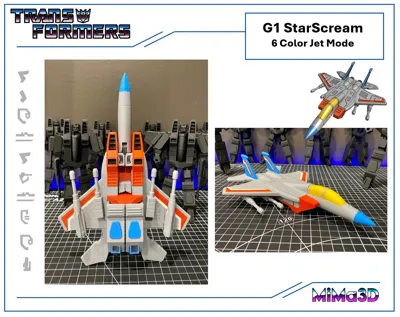

• 6 Color 1-AMS - Verified! Be a bit more careful as color splits could fail if handled too aggressively.
• 5 Color 1-AMS - I have not printed it, however, I just moved the wings to a separate plate and colored the cockpit blue.
• 6 Color 1-AMS - I have not printed it, however, it's the same as the 5-color profile but with a pause at 22h30m. At the pause change the blue spool for the yellow (or whatever colors you use).

! PROFILE OPTION CAUTION !

Any additional profile that does NOT have 4 wall loops with 25%  Gyroid infill does not have my approval. Early development strength tests failed in this configuration. Print at you're own risk! Faster is not always better.

Materials Used:

Single Color

• Black (Charcoal) - Bambu Matte 11101 (amazing quality and dimensional stability)
• Tripple-color - R, G, B - Eryone Silk (Looks great, worked well with the “Looser Fits” version)

6 Color

• Grey - Ziro Pro (color is awesome, dimensional stability not great, lots of stringing, supports difficult to remove)
• Red - Bambu Tough (discontinued but I had it on hand, too stiff for the legs friction plug, good quality)
• Blue (Cyan) - Bambu Basic 10603 (noncritical sections, looks great, prints great)
• Black (Charcoal) - Bambu Matte 11101 (noncritical sections, prints great)
• White (Ivory) - Bambu Matte 111000 (noncritical sections, prints great)
• Yellow - Overture  (noncritical sections, the specific color I wanted, slightly transparent - can see a bit of grey underneath)

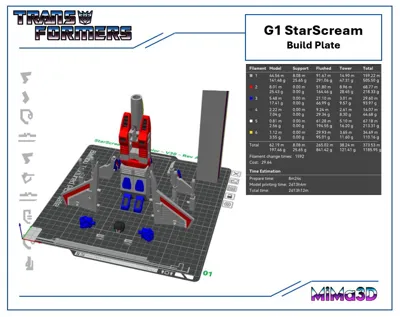

The profile has been sliced to these specific materials. Please ensure you change the materials to the brands, types, and colors you are printing. This model has only been printed in PLA at the original scale.

Key Features:

• Transforms: The Starscream model features an innovative transformation mechanism that allows it to morph from a sleek F-15 Eagle jet into a formidable robot. The transformation process is smooth and intuitive, reflecting the character's agility and power.



• Articulation: Designed with multiple points of articulation, this model boasts movable joints in the arms, legs, and head, enabling a wide range of dynamic poses in both jet and robot modes. The detailed articulation ensures that Starscream can be displayed in action-ready stances, perfect for any collector's showcase.



• Print-in-Place Design: Utilizing advanced 3D printing techniques, the Starscream model is designed to print in place, eliminating the need for assembly. The print-in-place design means all moving parts are printed in their final positions, ensuring optimal alignment and functionality right off the printer.



• Detailed Aesthetics: Every surface of Starscream has been meticulously crafted to capture the intricate details of the character. From the aerodynamic lines of the F-15 Eagle to the robotic features of Starscream, the model showcases high fidelity to the original design, providing an authentic and visually stunning piece.



• Quality: Designed with meticulous efforts to ensure precision friction in the joints, the Starscream model is built to withstand repeated transformations and posing. The robust construction ensures long-lasting enjoyment and display potential.



• Customization Options: The design includes options for customization, allowing makers to personalize their Starscream with different color schemes and finishing touches. This feature encourages creativity and makes each print unique.

Embark on a journey of creativity and nostalgia with this exclusive Starscream Transformer 3D print. Perfect for makers, collectors, and fans of the Transformers universe, this model is a testament to the power of 3D printing technology and the timeless appeal of Starscream. Transform your collection with this exceptional piece of craftsmanship.

Printer Maintenance:

This very advanced design relies on tight tolerances and small clearances. It is advised that your printer is well maintained, calibrated, and has a clean build plate before starting this print. Proper maintenance ensures the model prints with the required precision and functions as intended.

Support and Follow:

Please kindly support my work. If you like my designs, follow me to stay updated with my latest content. These designs require a significant amount of time to design and test to ensure they print well and function as advertised. Your boosts are much appreciated and help keep me motivated to continue creating. Thank you!

Let's Get Started:

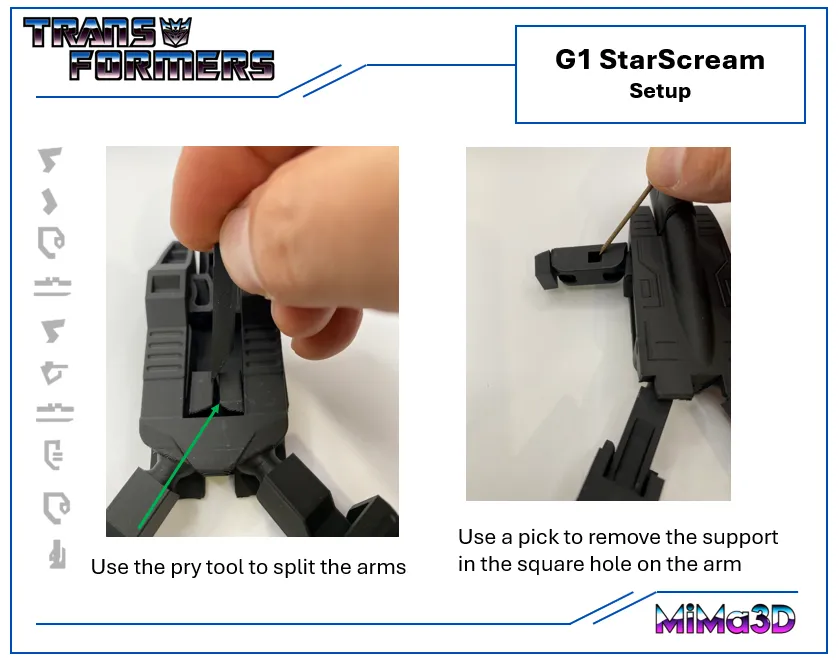

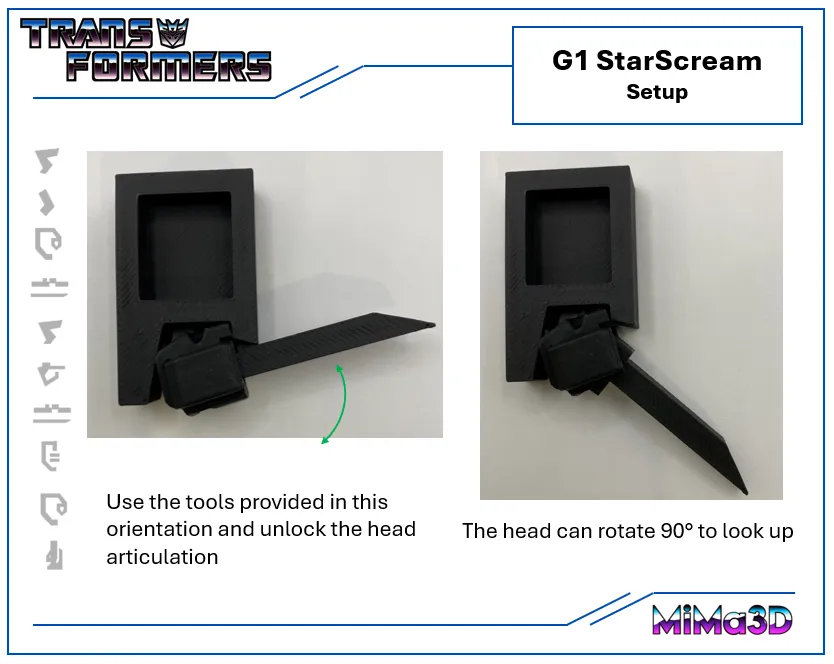

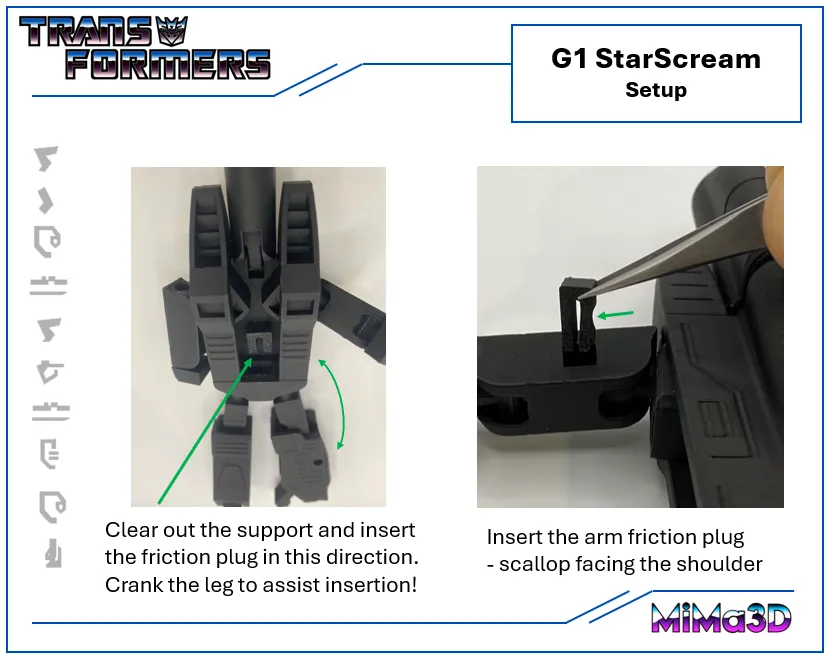

Cleaning and Setup

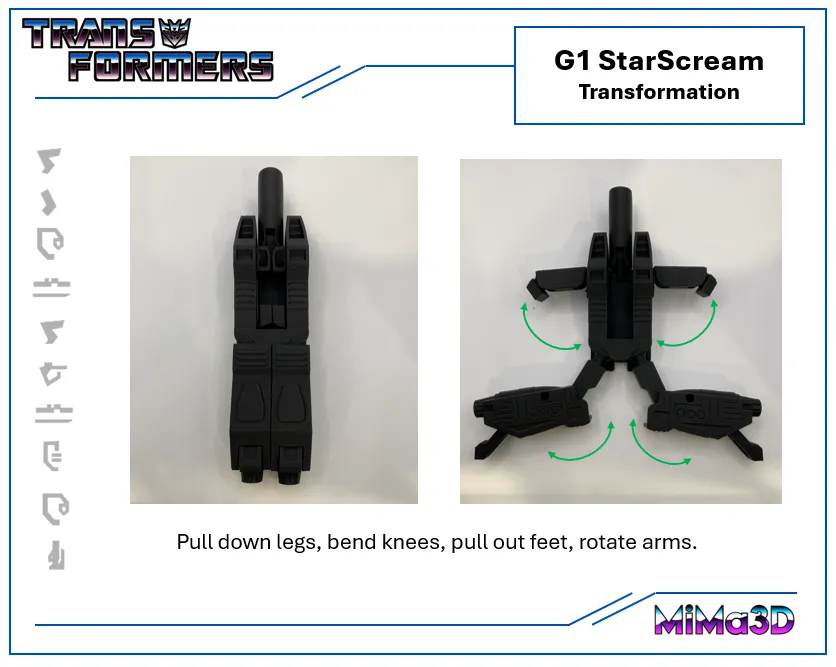

Transformation
