Offset U94/Nexus PTT Mount

logikal
Hobby & DIY>Sport & Outdoors
IP Report

Print Profile(1)

All
X1 Carbon
P1S
P1P
X1
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L
0.2mm layer, 8 walls, no sparse infill, scarf seams
0.2mm layer, 8 walls, no sparse infill, scarf seams
Designer
33 min
1 plate
4.9(10)
Open in Bambu Studio
Boost
43
114
14
7
182
95
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
M3 Carbon Steel Hex Nut (20PCS) - AB005
Carbon Steel Hex Nut
x1
M3x25 BHCS Machine Screw (5PCS) - AA062
M3 Button Head Cap Machine Screws (BHCS)
x2

Description

I needed a way to offset my PTT from the admin panel on my carrier further than other options out there.

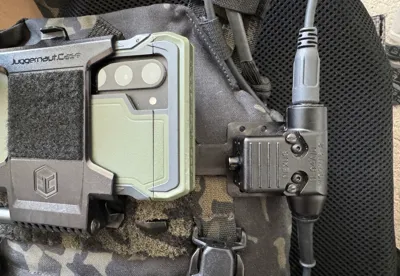

Print in PETG/PETG-CF, or other tough/malleable material. I used a heatgun to put a bend in the part right next to the molle attachment studs, so it tucks in very close to the carrier.



The 6 larger holes around the exterior are for routing shock cord.

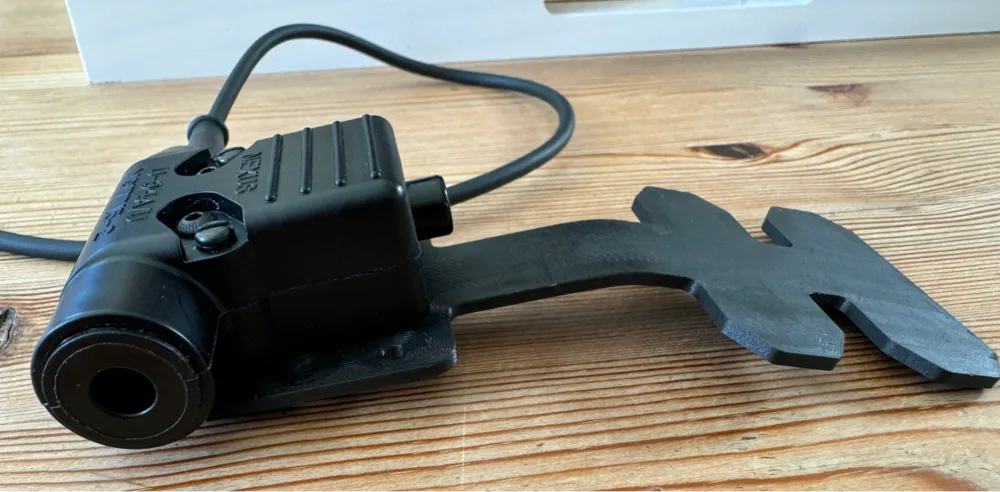

The inner holes are for mounting the PTT, button-in or button-out. Use 2x M3x25 bolts and nuts to attach PTT to the mount using the inner holes on your PTT.

nexus
ptt
molle
u94
