Description

If you like this design, please consider giving me a follow for more — or help support future projects with a coffee ☕ @ FCDS. Thank You.

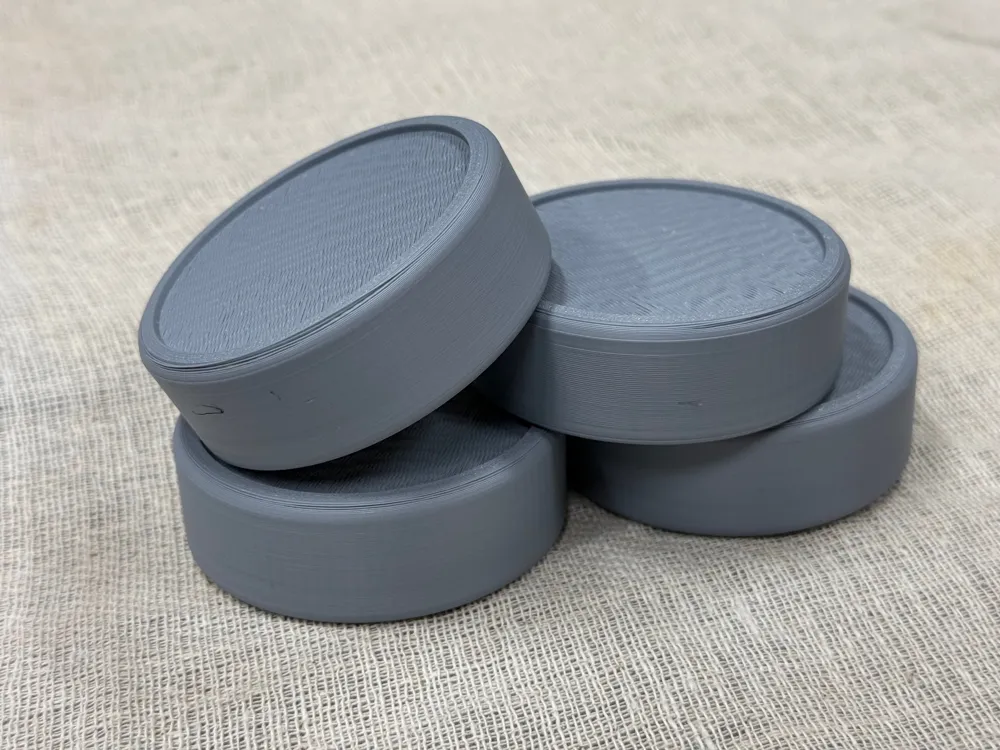

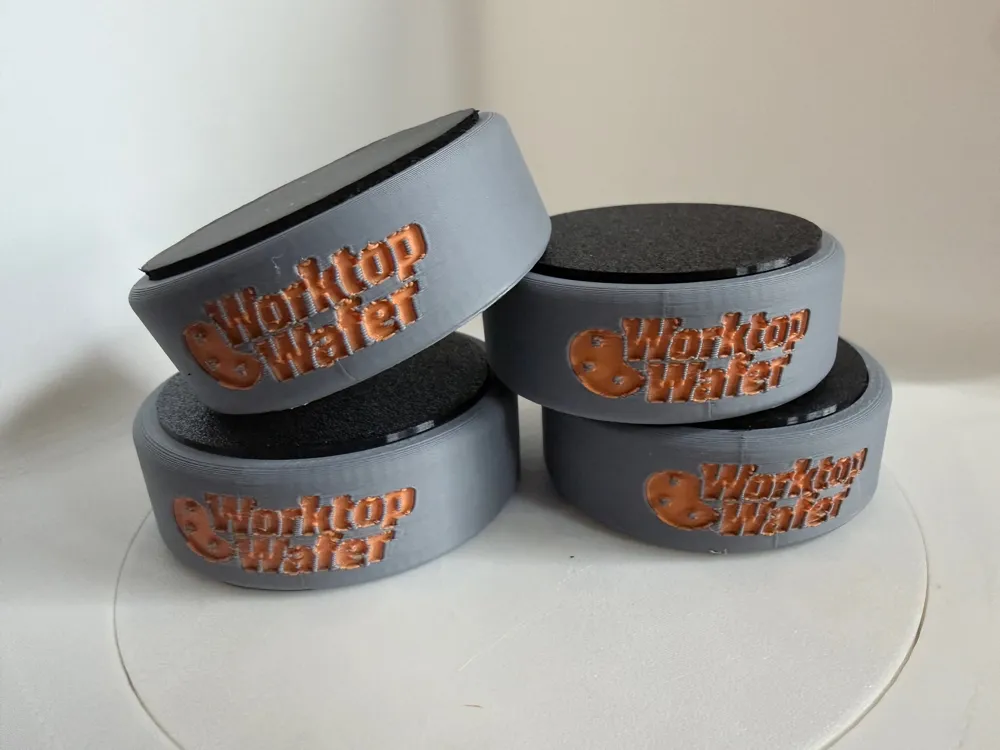

The Worktop Wafer – Non-Slip Work holding Pads for Woodworking & DIY

Worktop Wafers are low-profile work holding pads designed to keep your projects secure while protecting your work surface. Inspired by traditional bench cookies, these wafers use either self-adhesive rubber pads or TPU Printed pads to create a reliable non-slip surface, giving you control without clamps.

Each wafer lifts your workpiece slightly off the bench, allowing dust, glue squeeze-out, and finishes to stay clear of your project while reducing unwanted movement. Ideal for woodworking, model making, and general DIY tasks.

Key Features

Designed for stick-on rubber pads or TPU printed pads to provide excellent grip
Tool-friendly design – if you accidentally cut or sand into a wafer, it won’t damage blades or bits
Protects your worktop from scratches, glue, and finish marks
Low-profile clearance for sanding, routing, and finishing
No clamps required – fast and flexible work holding
Reusable and durable for everyday workshop use

Pad Requirement

To achieve the non-slip performance, self-adhesive rubber or silicone pads or TPU printed pads must be applied to the recessed areas of each Worktop Wafer.

Self-adhesive pads are commonly available online and in hardware stores (often sold as furniture feet or anti-slip pads).

Amazon: 5Pcs Foam Sheets Self Adhesive 300mm Longx200mm Widex3mm Thick Closed Cell Foam Neoprene Rubber Sheets Non-Slip

Information regarding the self-adhesive rubber pad and be found on the Worktop Wafer Cut-out Template print profile.

There are two types of TPU Self printed pads available.

Printing Recommendations

Material: PLA
Infill: 15%
Layer Height: 0.2mm
Supports optional (It is possible to print without supports but you will experience some stringing/sagging on the underside)

Use Cases

Sanding panels and small parts
Applying finishes or oils
Assembly and glue-ups
Light routing and shaping
General bench protection

Whether you’re a professional woodworker or a weekend maker, The Worktop Wafer are a simple, effective addition to any workshop.

If you have any suggestions for potential improvements please let me know.

Boost Me (for free)

If you find this project useful, please consider sending a Boost 🚀 — it directly supports the development of more printable designs.

Documentation (1)

Assembly Guide (1)

Assembly Instructions v1.1.pdf

Comment & Rating (101)

@user_1161230505

Prints very well even without supports. By this, other side is of course sagging little bit but rubber pad hides that. Also removed text altogether since it does not really bring much to model itself. Also printed 63mm template that makes cutting rubber very easy. Rubber itself is bought from automotive shop, it's some kind of sound-insulating rubber with adhesive back, works very well and won't come off. Cut easily with hobby knife and is very grippy, it was dirt cheap as well. I like simple design, easy and relatively fast to batch out and since they are only plastic, I can freely cut to cookies with power tools as much as I want.

The designer has replied

@FCDS

Good idea with the template for cutting the rubber pads

@user_1985207662

Boosted

Print Profile

Worktop Wafer (Mono Colour)

Printed well! used Matte PLA. Minor defects on the non-supported surface, but the rubber mat works great. Haven’t had a project to try them out on yet but they seem like they’ll work great. Thank you.

The profile uploader has replied

@FCDS

Hi, They look great and I hope they meet your expectations when you use them, I use mine all the time :-). Thanks for the comment and the 5 star rating.

@user_1985207662

Boosted

Oh don’t thank me, you earned it!

@user_3518696938

just printed one cookie. too squishy for me, especially the bottom. ramped up the strength settings a bit since I will have heavy items on them. changes added 21 grams of filament and increased print time. upped walls, bottom and infill. printing with changes now. will update when finished.

The designer has replied

@FCDS

Hi, What filament did you print this in, PLA?

@user_3518696938

Replying to @FCDS :

Sunlu PLA High Speed

@FCDS

Replying to @user_3518696938 :

That's Odd. I print mine using BL PLA Matte and have no movement in them, I just stood on one to test it and it was solid.

@LoneWolfer

Boosted

These were th third item that I printed on my new P1S. Awesome! I am baffled though at what the little rectangular item is that printed with it?

@Pigs_ear

Hi, The rectangular item is the purge tower, it's used to purge the nozzle between colour changes. You can throw it away.

@LoneWolfer

Boosted

Replying to @Pigs_ear :

Thank you. I am finding there is not a lot of clear information with this 3D printing hobby. Live and learn has always worked for me though.

@Kfhaigdesigns

Boosted

I really like this Bench Cookie. I printed 2 sets of 4 along with the peg board holder that matches them. On my second set I ran out of the green @ 90% and had to switch out to black. I think it actually looks better. I’m got some drawer liner and cut out the non grip pieces on my laser to finish these off. printed some peg board holders to go with them.

(Edited)

@Wagood24

thank you, these are great! only thing I’d like to modify would be for the bottoms and tops to both be recessed for the non-stick pads. but I can still add that on myself. much appreciated!

The designer has replied

@FCDS

Hi, glad you like these I think they work great (but I would say that!). They do have a little recess on the top and bottom of 1.5mm, this is so that the 3mm Neoprene Sheets protrude just enough to give them good grip. I hope you enjoy using them.

@Wagood24

Replying to @FCDS :

oh! I see a circle where the print looks kind of thin. is that meant to be removed?

@FCDS

Replying to @Wagood24 :

Hi, If that is on the underside then yes, it could just be the support to stop it sagging during the print.

@user_2064856922

Print Profile

Worktop Wafer (Dual Colour)

Great print. nice touch to have a template to cut non stick membrane.

@user_1968042328

Print Profile

Worktop Wafer (Dual Colour)

Printed well without a hitch. I printed them with PETG HF. Supports are easy to remove. These go well with the cookie toppings that came from another project Bench Cookie Finishing Cone + Bridge by naregji91.

(Edited)

@user_3518696938

Print Profile

Pad Type 1

nice design, very useful for several things.

The profile uploader has replied

@FCDS

Thank you for the comment and the 5 star rating, so glad you like it.

@thomi011179

Print Profile

Worktop Wafer (Mono Colour)

Printed great. Thanks. Just printing first TPU print for the pads.

The profile uploader has replied

@FCDS

Thanks for the 5 star rating for the wafer and the pad.
