160 mm air duct grill with mesh
Print Profile(1)
Description

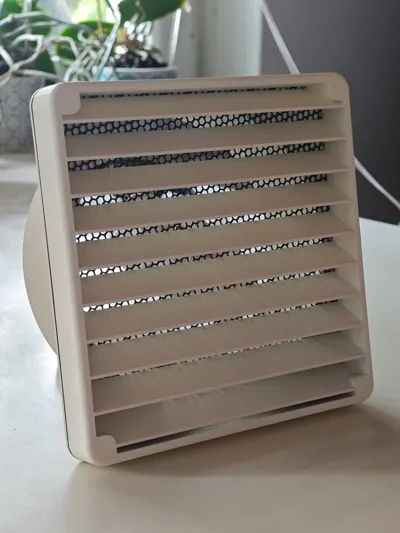

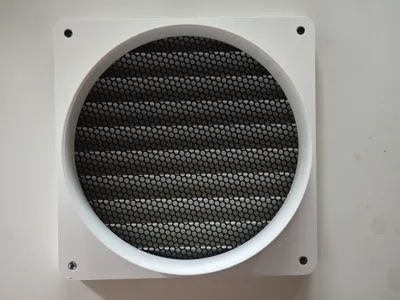

This is a model of a grill for air ducts with an internal diameter of 160 mm. I am using this to channel the air to the heat pump for water heating. The 3 parts are connected with 4 M3x10 countersunk screws and require 4 threaded inserts (M3). The mesh is printed with 0 top/bottom layers and honeycomb infill with 20% fill.
I printed it in white ASA as it will be mounted outside of the house.
