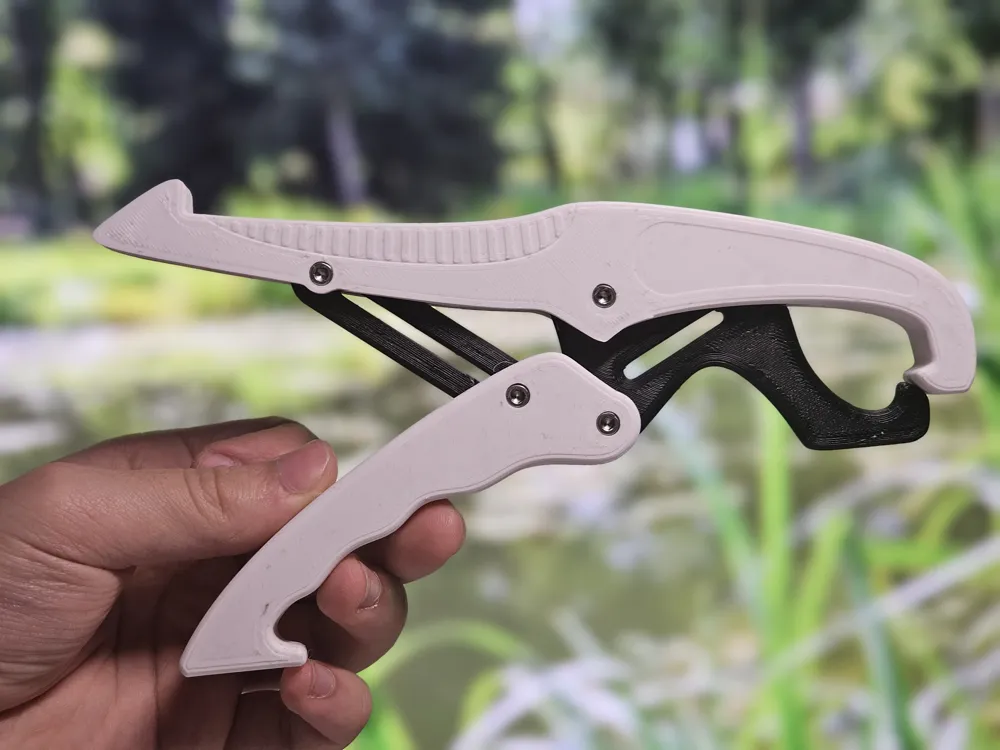

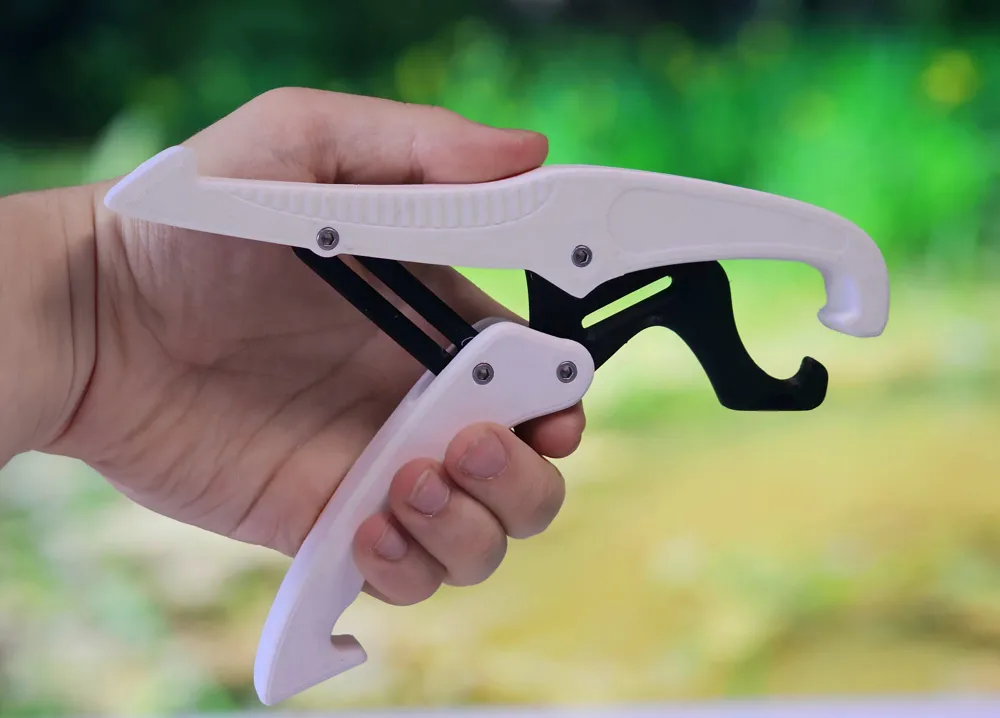

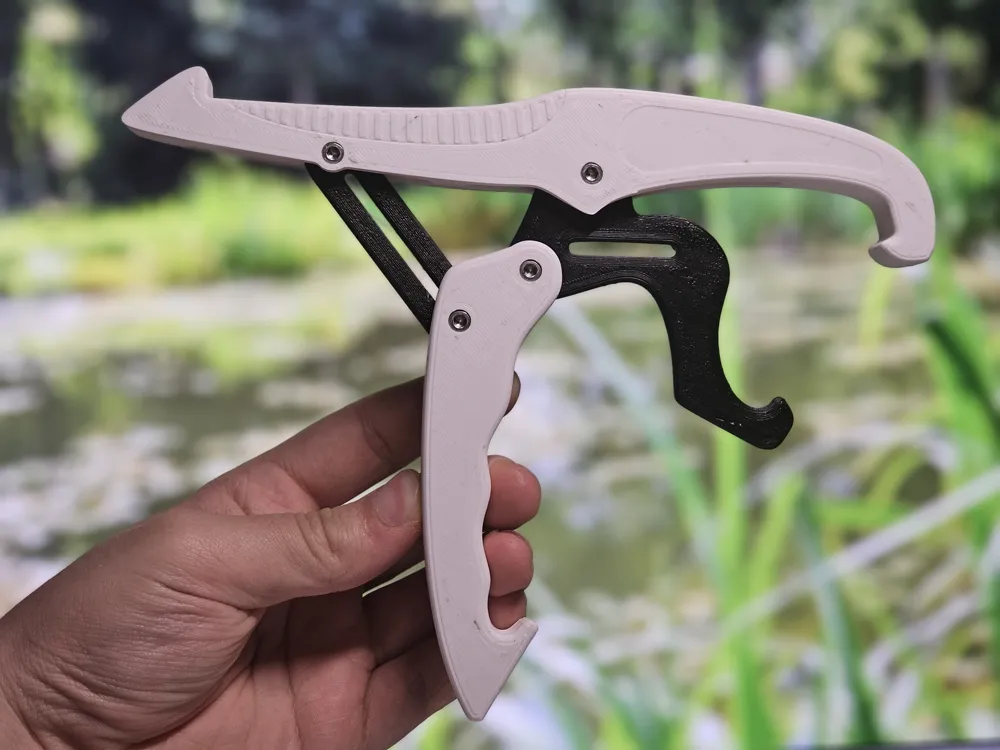

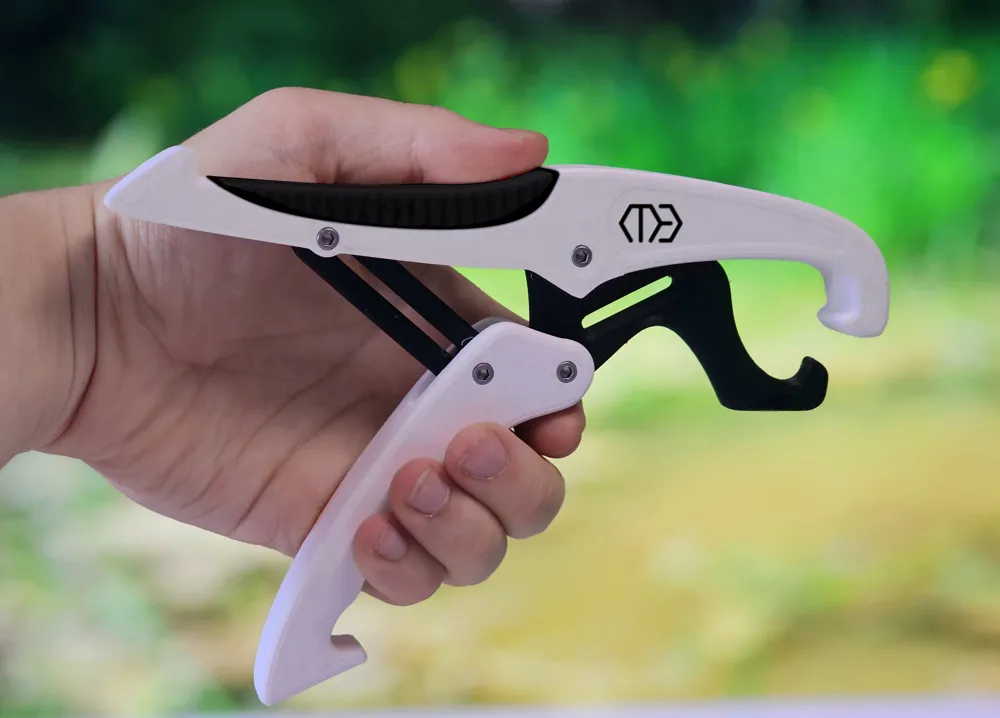

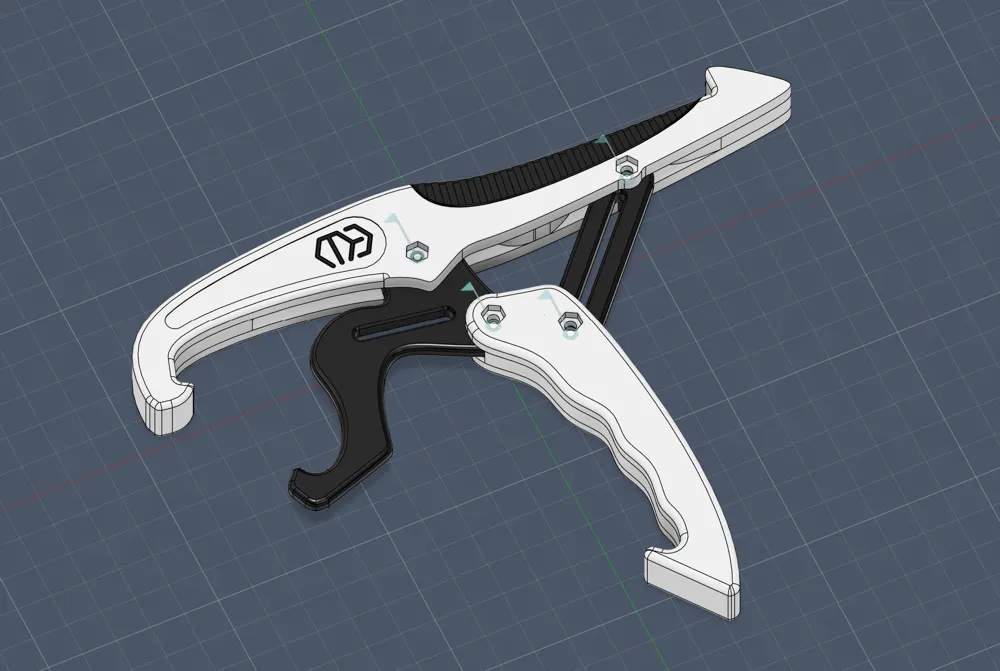

Fish Lip Gripper

Print with PETG or ASA.
4-5 walls minimum - high infill recommended

Hardware:
4x M3 hex socket screws (M3*14)
4x M3 nuts

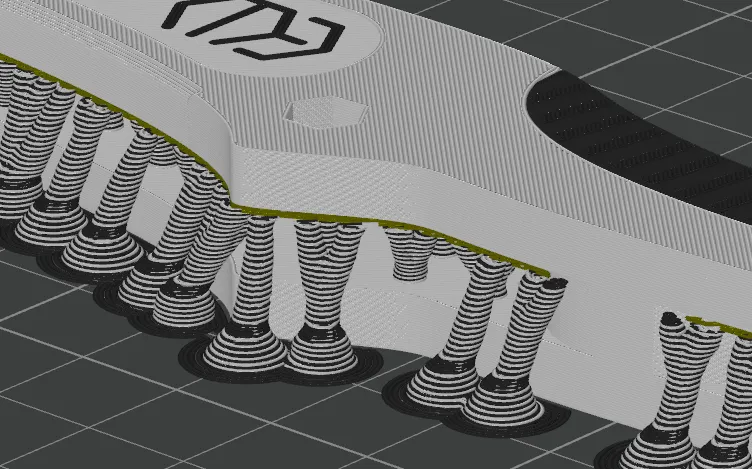

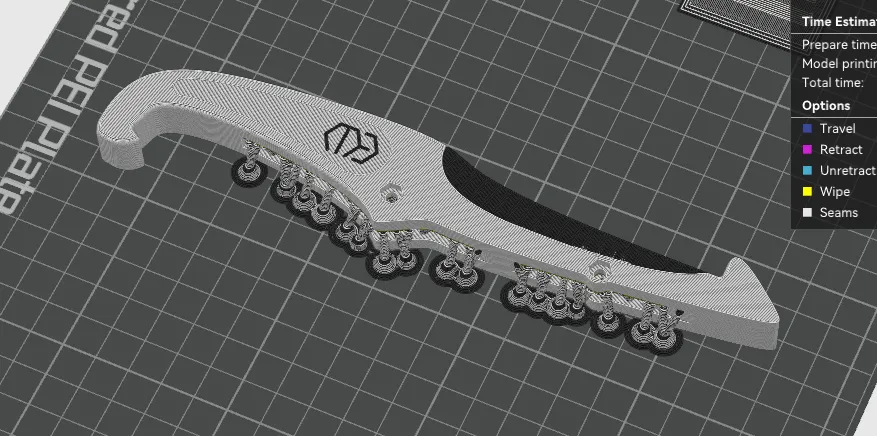

"Top" and "Handle" require supports on the inside. There is a 1mm clearance on there so left over support segments will not interfere. Use PVA for supports if possible.
Use color painting (or equivalent) for colored top

(xenomorph looking thing lol)

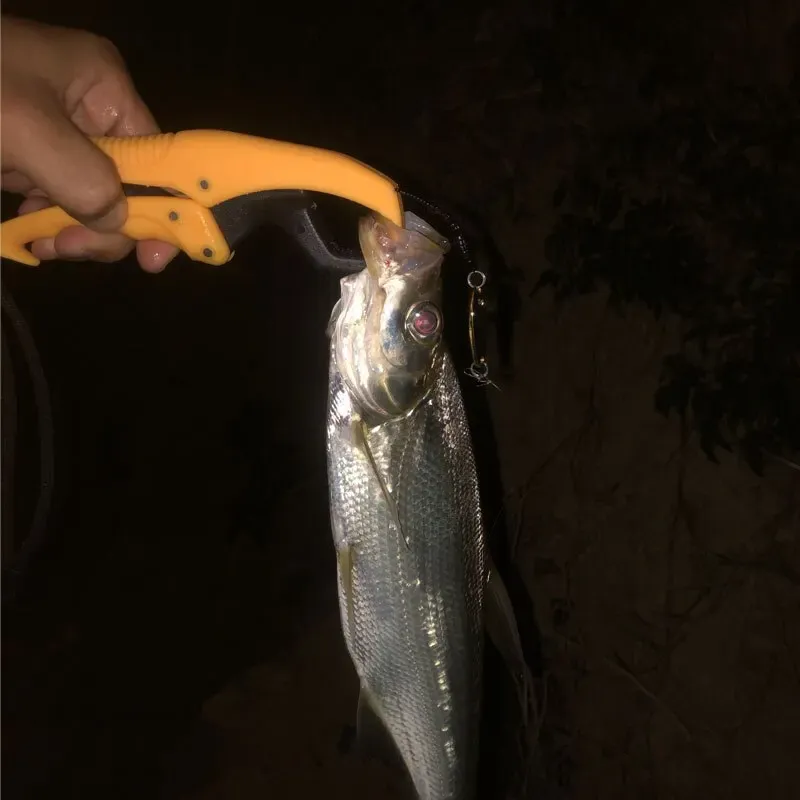

Intended Usage:

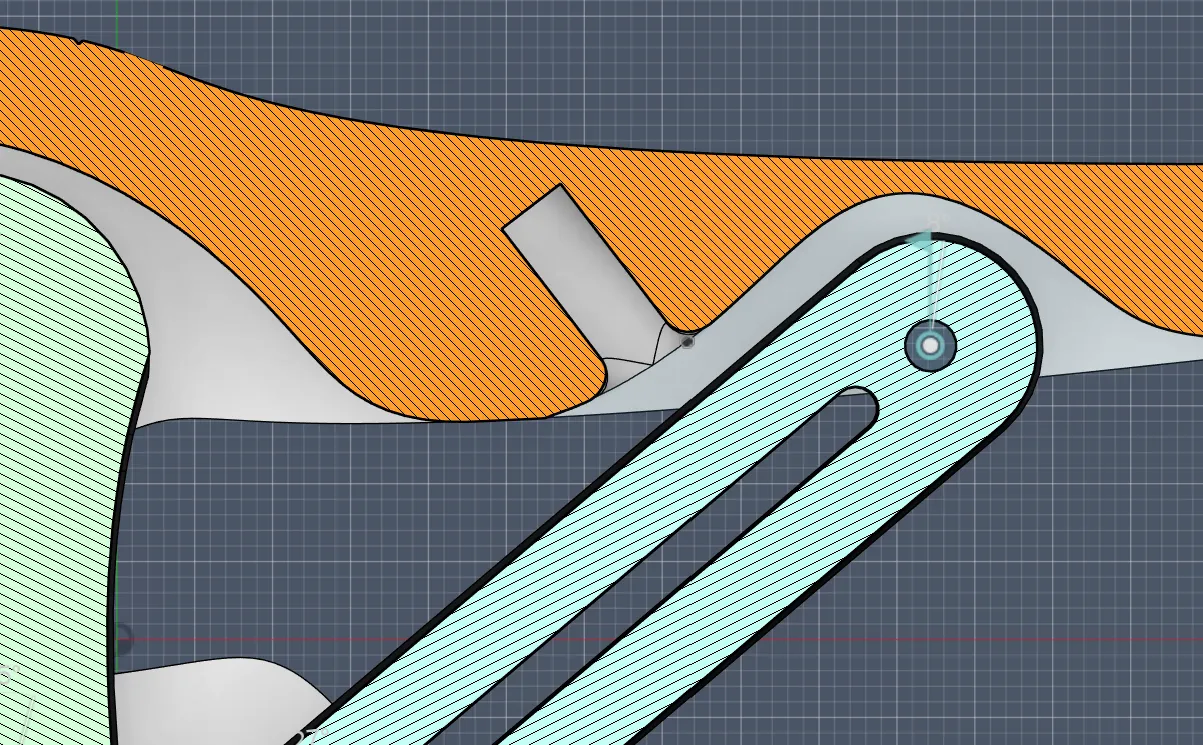

“Spring Top” contains hole for a spring:

Diameter: 6mm // length 16mm (use a longer spring and pre-compress it)
