Description

[Introduction]

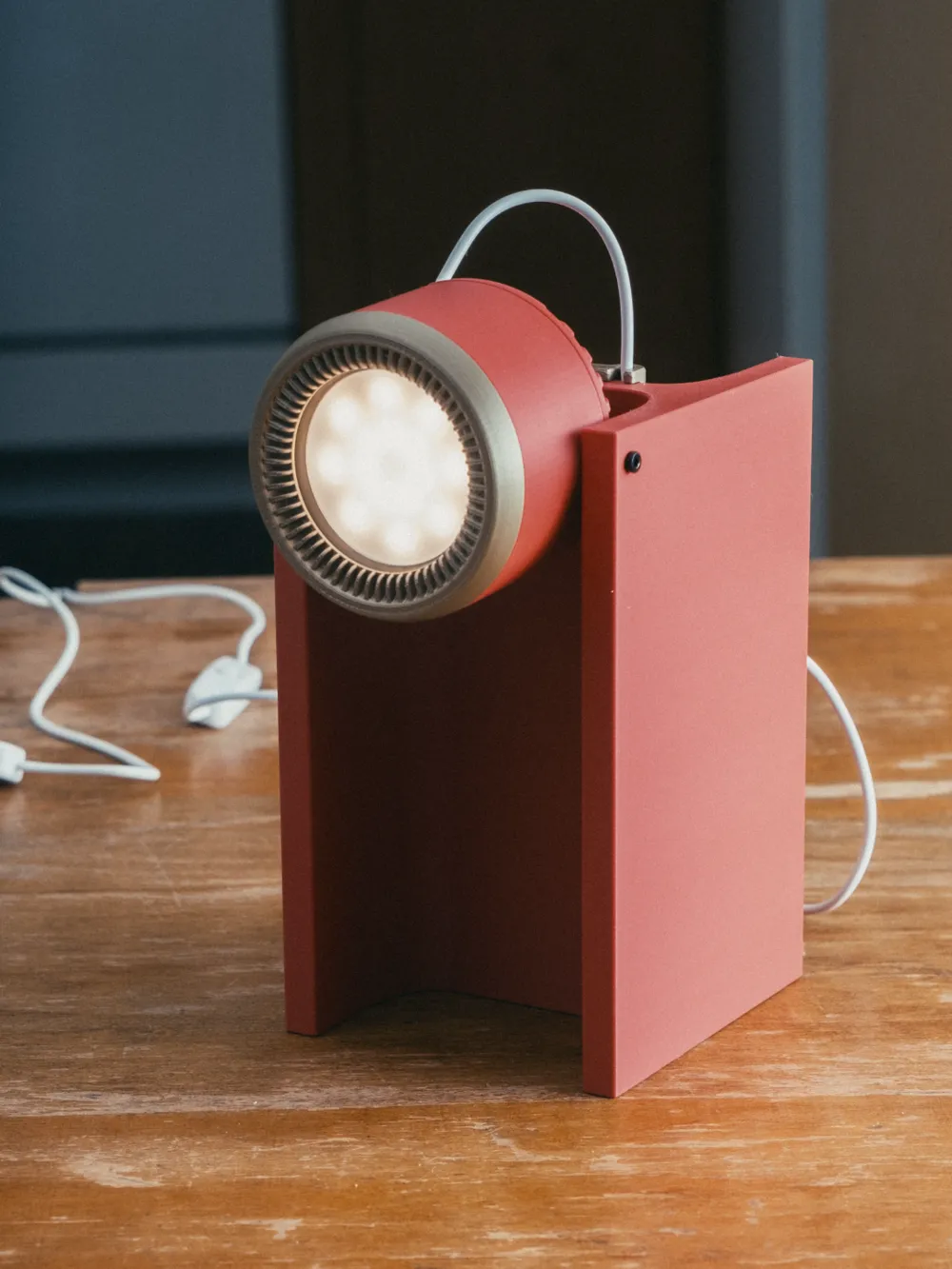

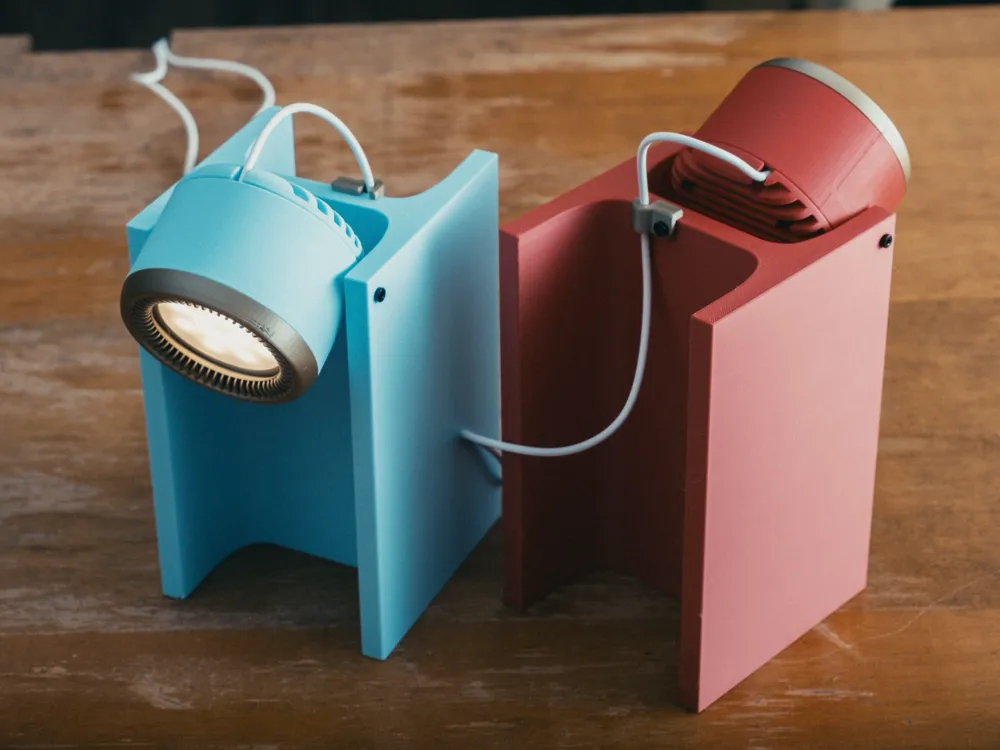

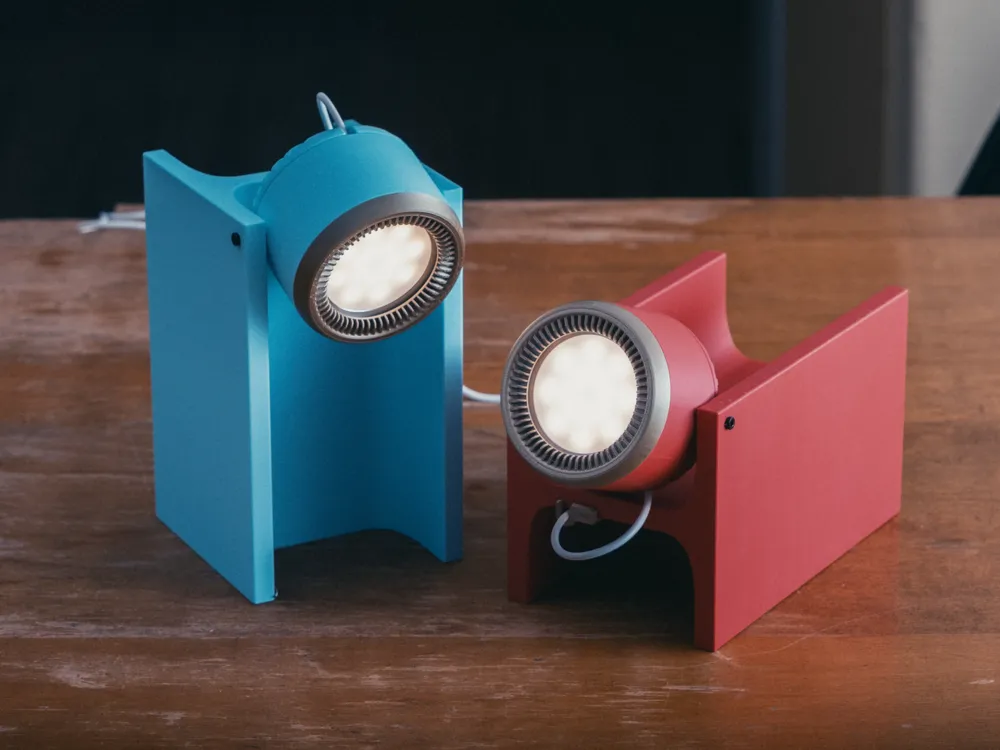

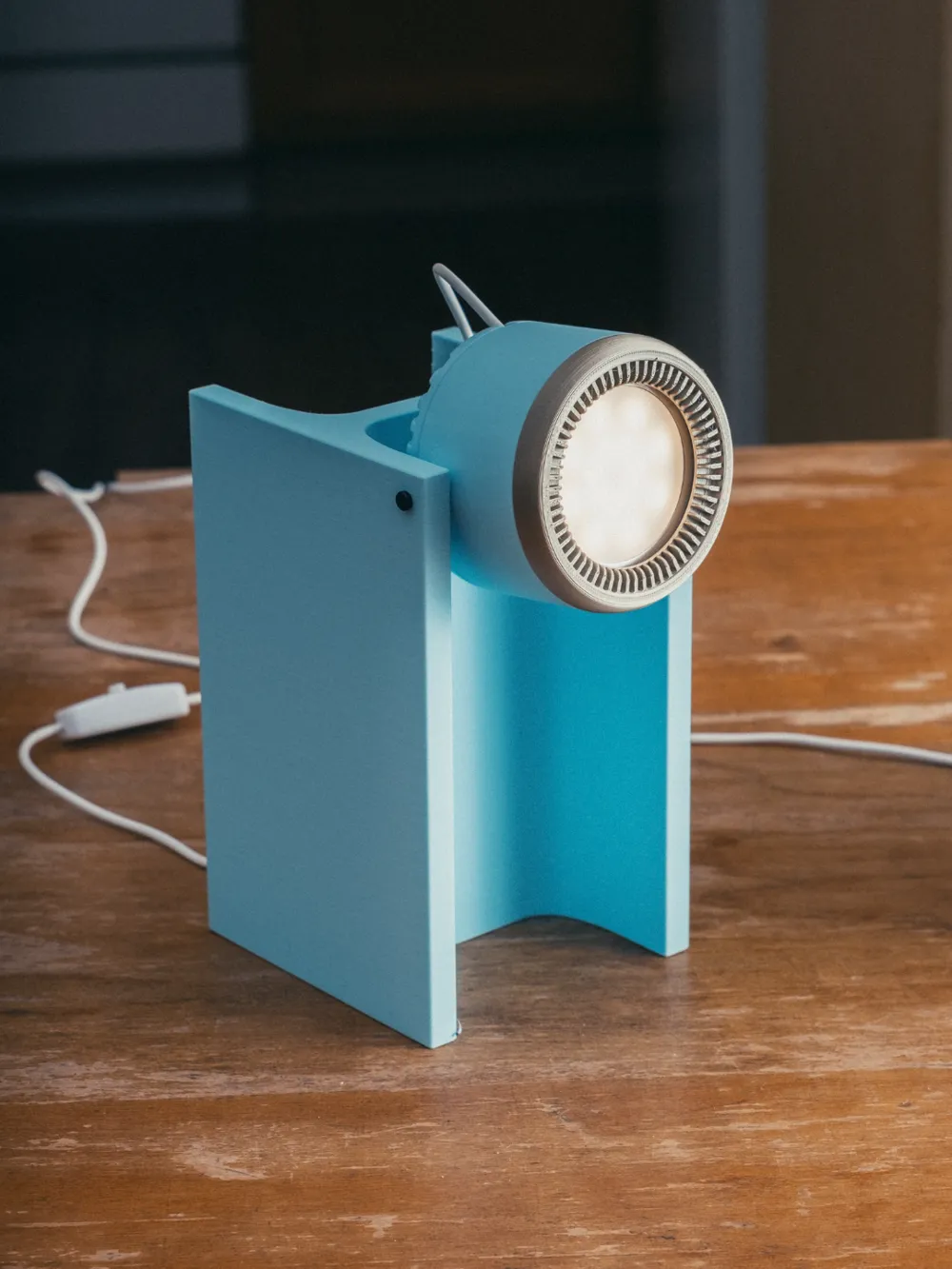

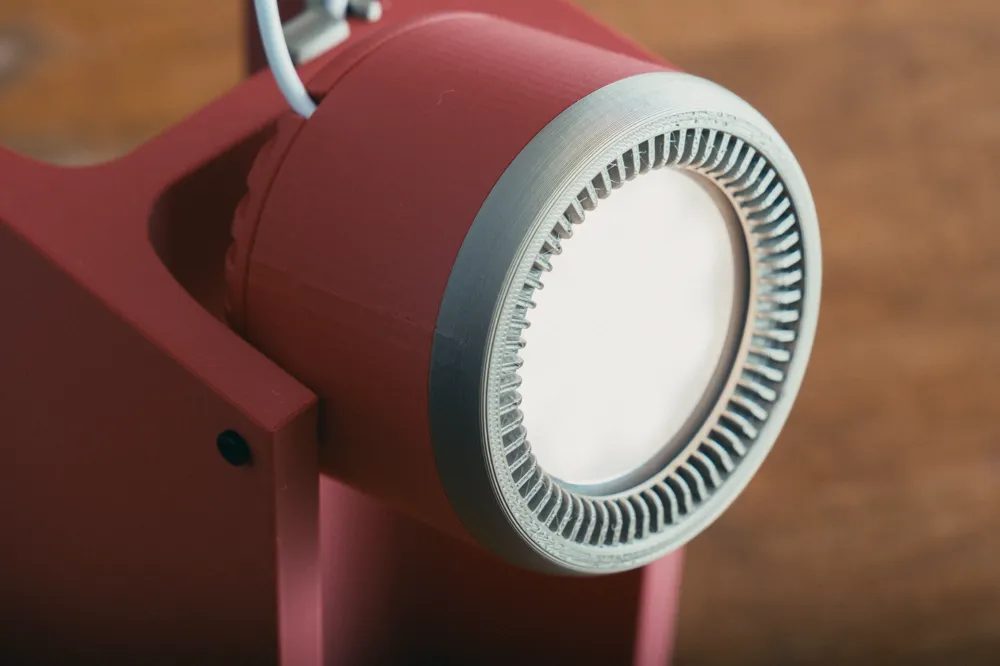

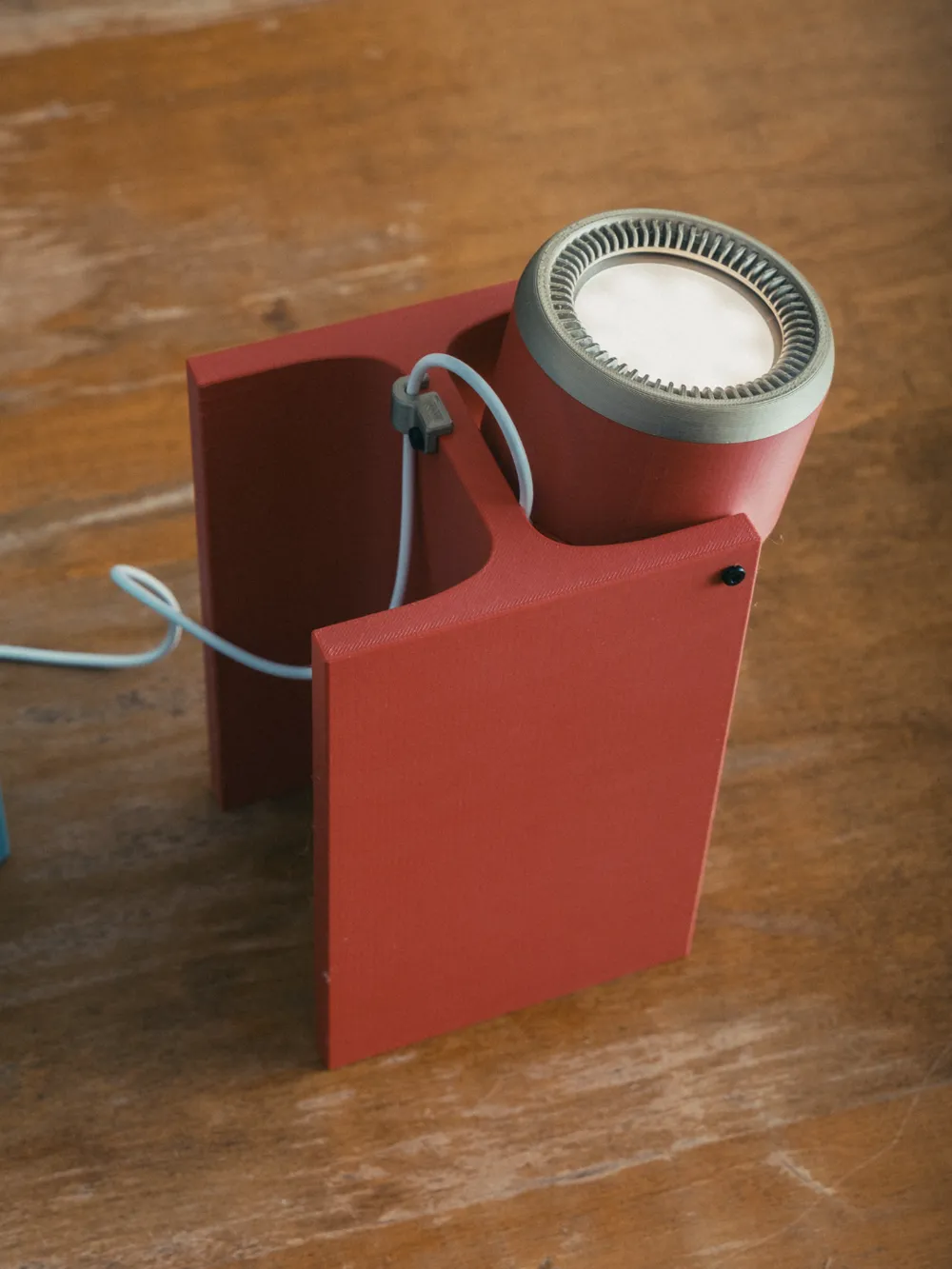

A can light mounted to an I-Beam. Can be orientated vertically or horizontally. Angle of the light is adjustable.

[Hardware & Filament]

Featured Filaments:

Bambu PLA Matte Dark Red

Bambu PLA Metallic Iridium Gold

Bambu PLA Matte Marine Blue

Bambu PLA Metallic Iridium Gold

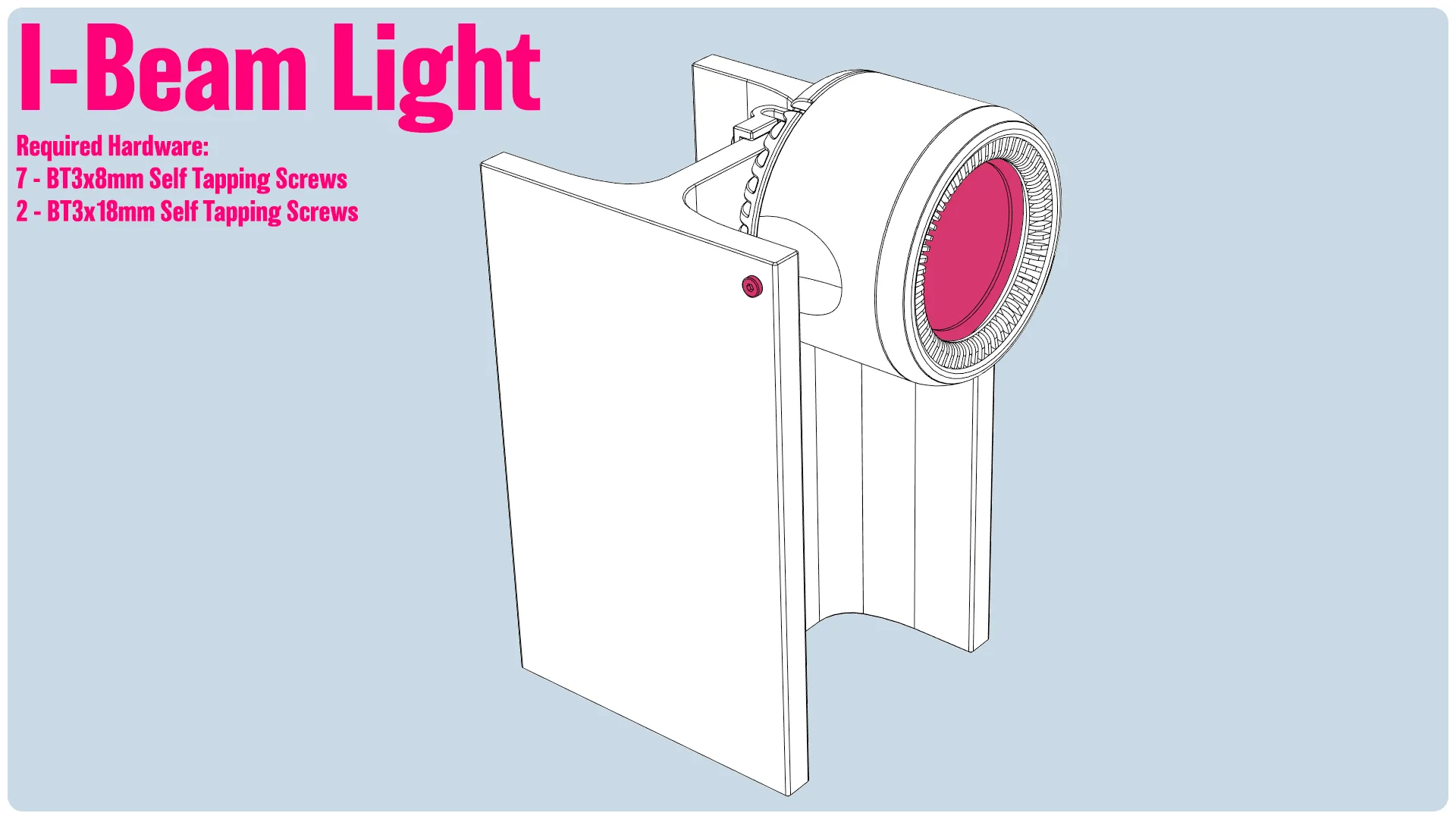

Hardware:

LED Lamp Kit 001

7 x BT3x8mm Self Tapping Screws

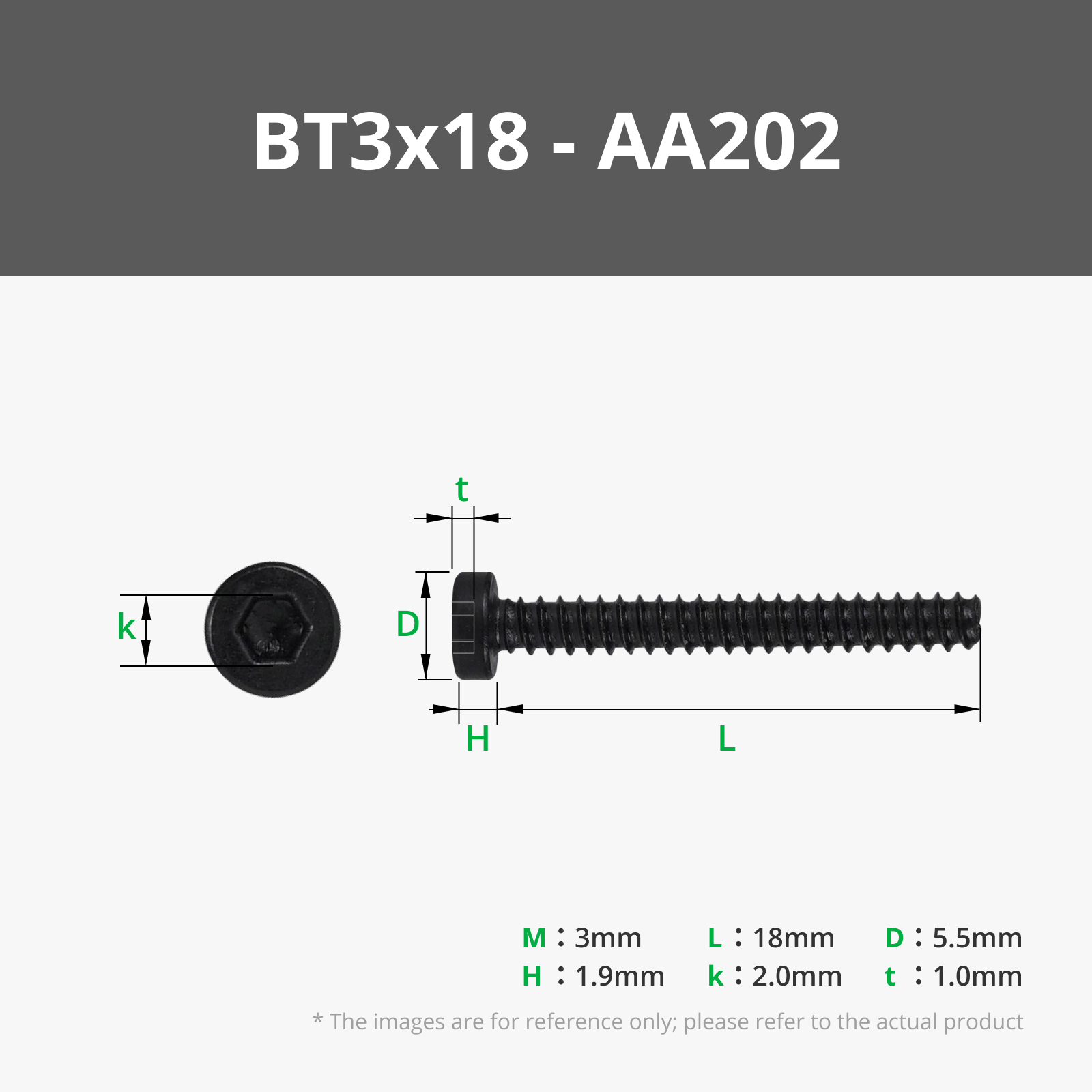

2 x BT3x18mm Self Tapping Screws

[Assembly]

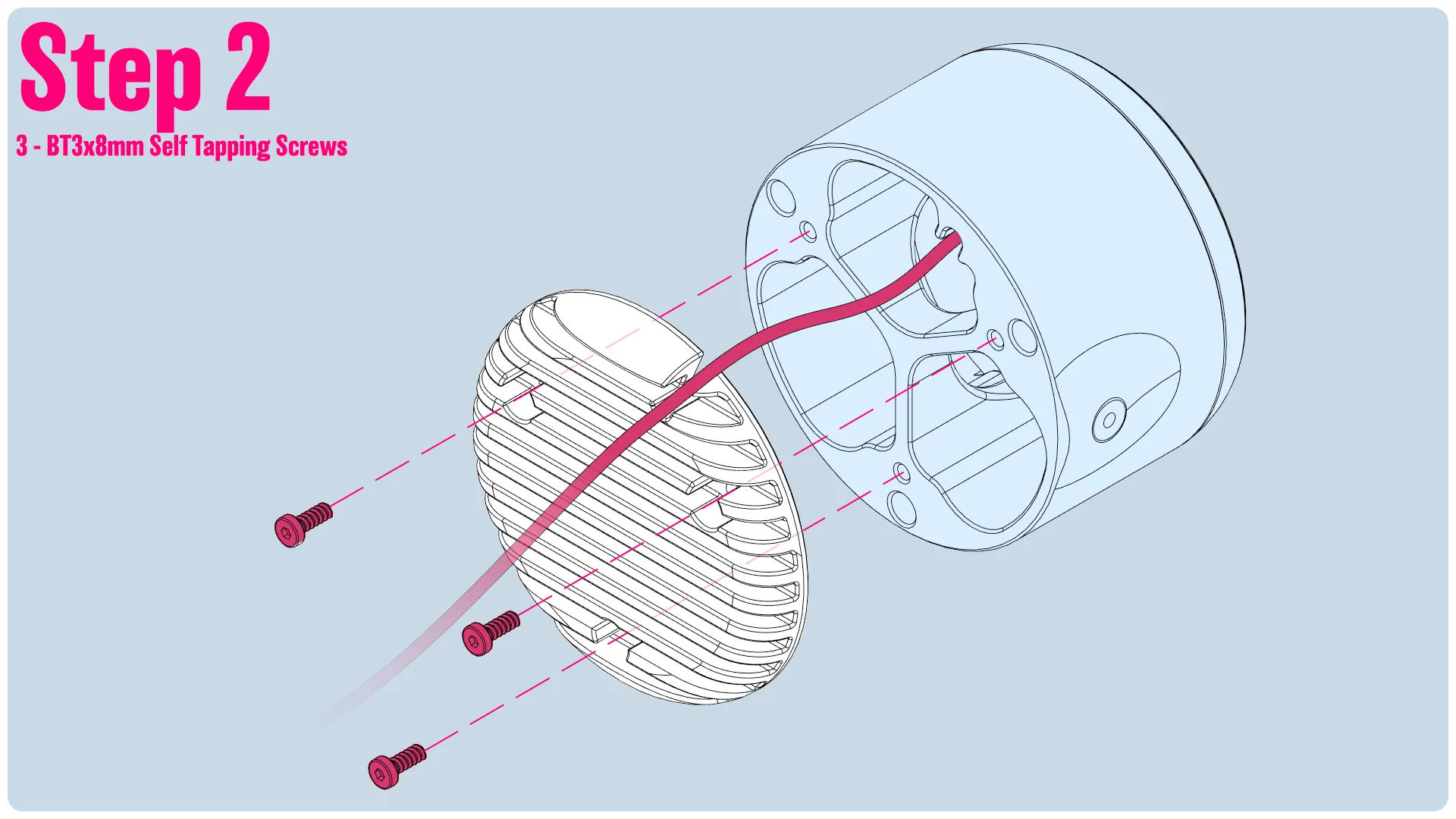

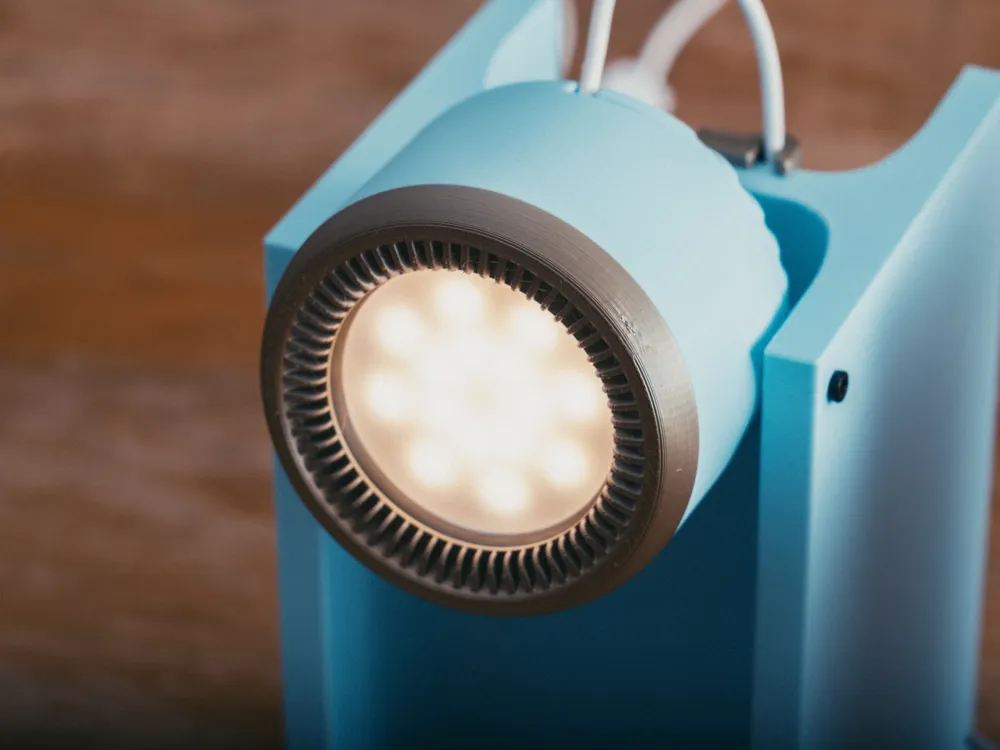

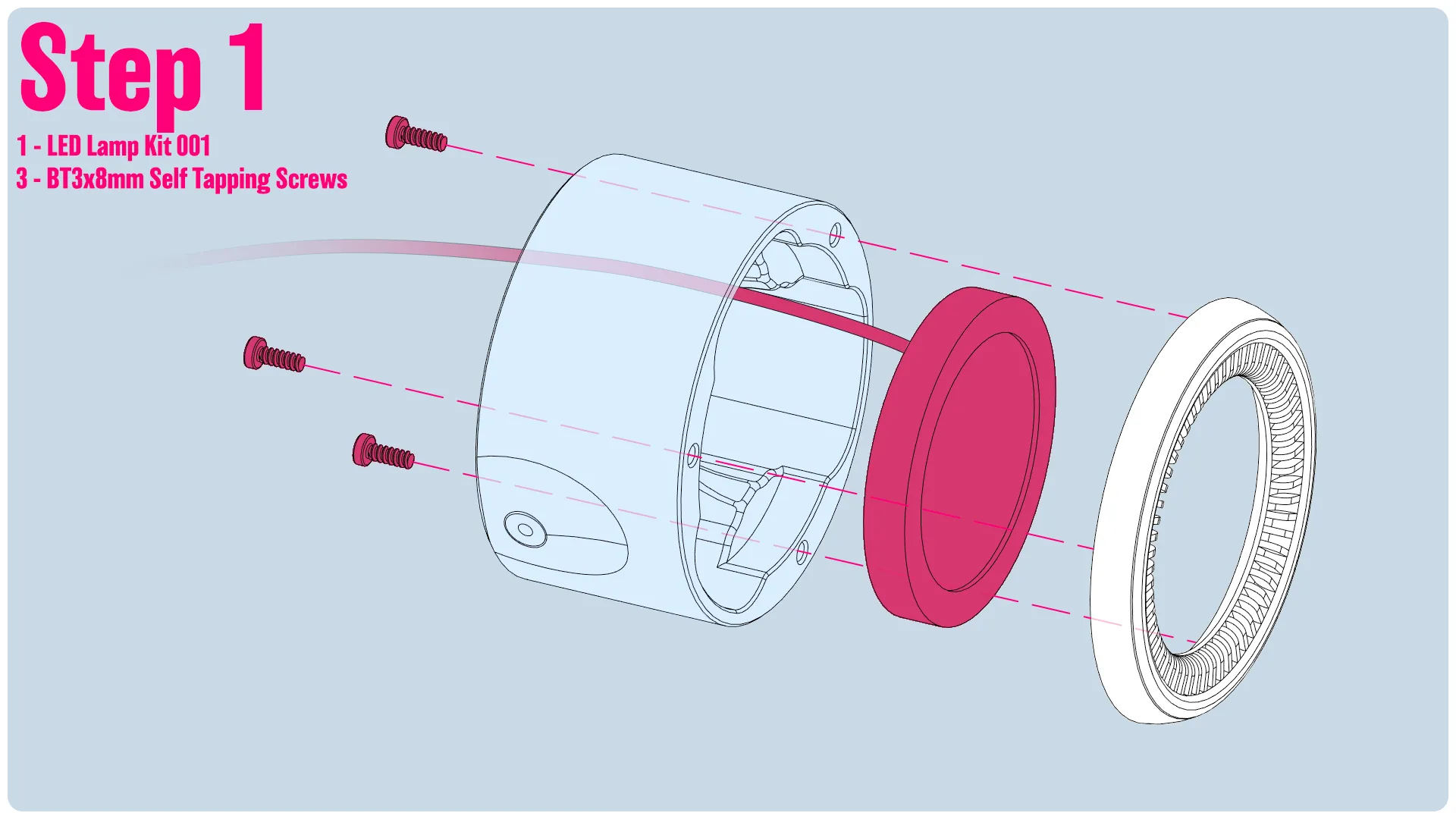

Install the LED Light in place, feeding the cable through the top opening in the main housing. Install the 3 screws to secure the light and front ring in place

Install the back cover using 3 screws. Feed the wire through the opening.

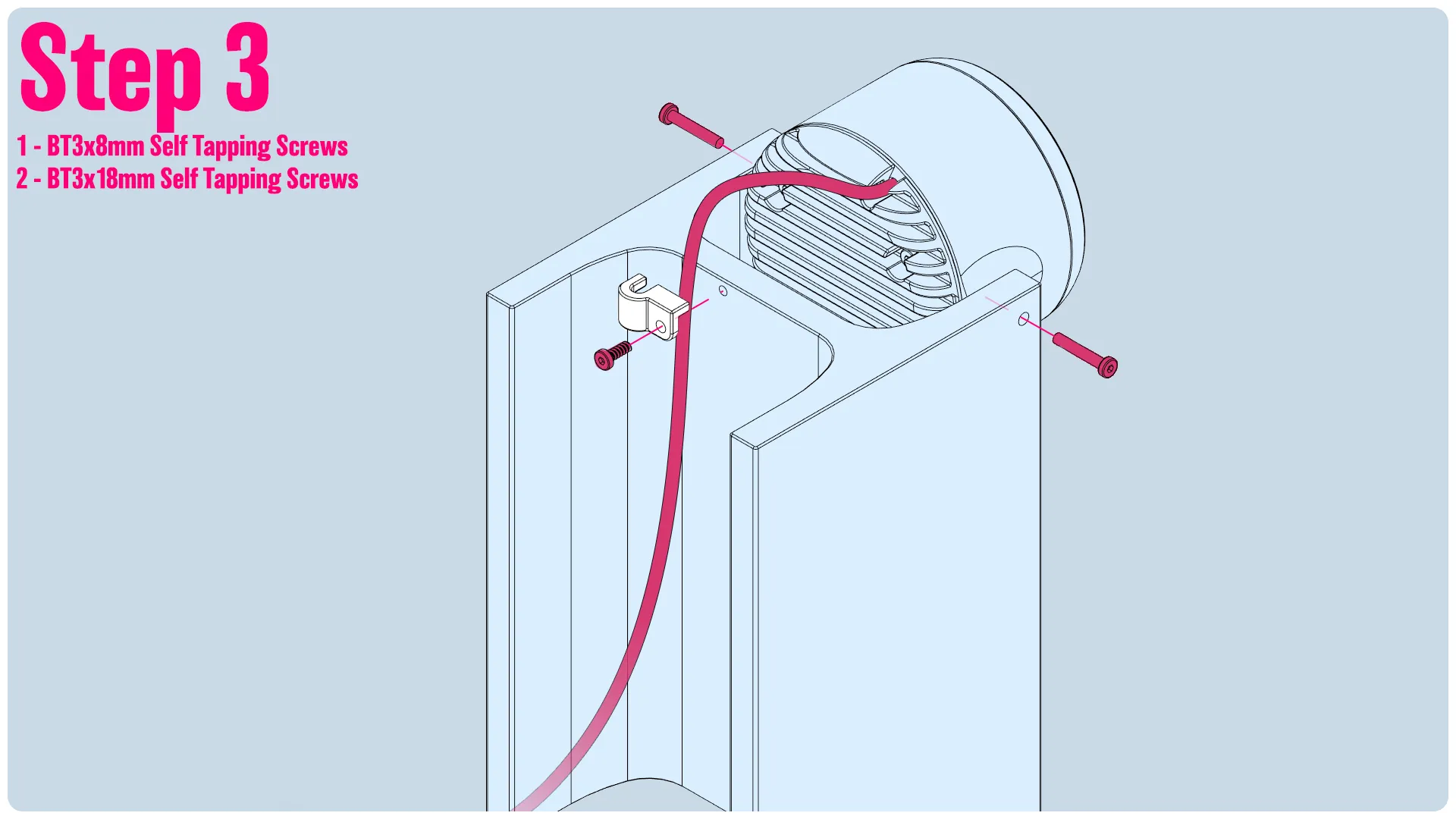

Install the light onto the I-beam using 2 3x18mm self taping screws. Do not over tighten them! It should be tight enough that the light gives enough resistance to stay in place, but not so much that it's difficult to turn.

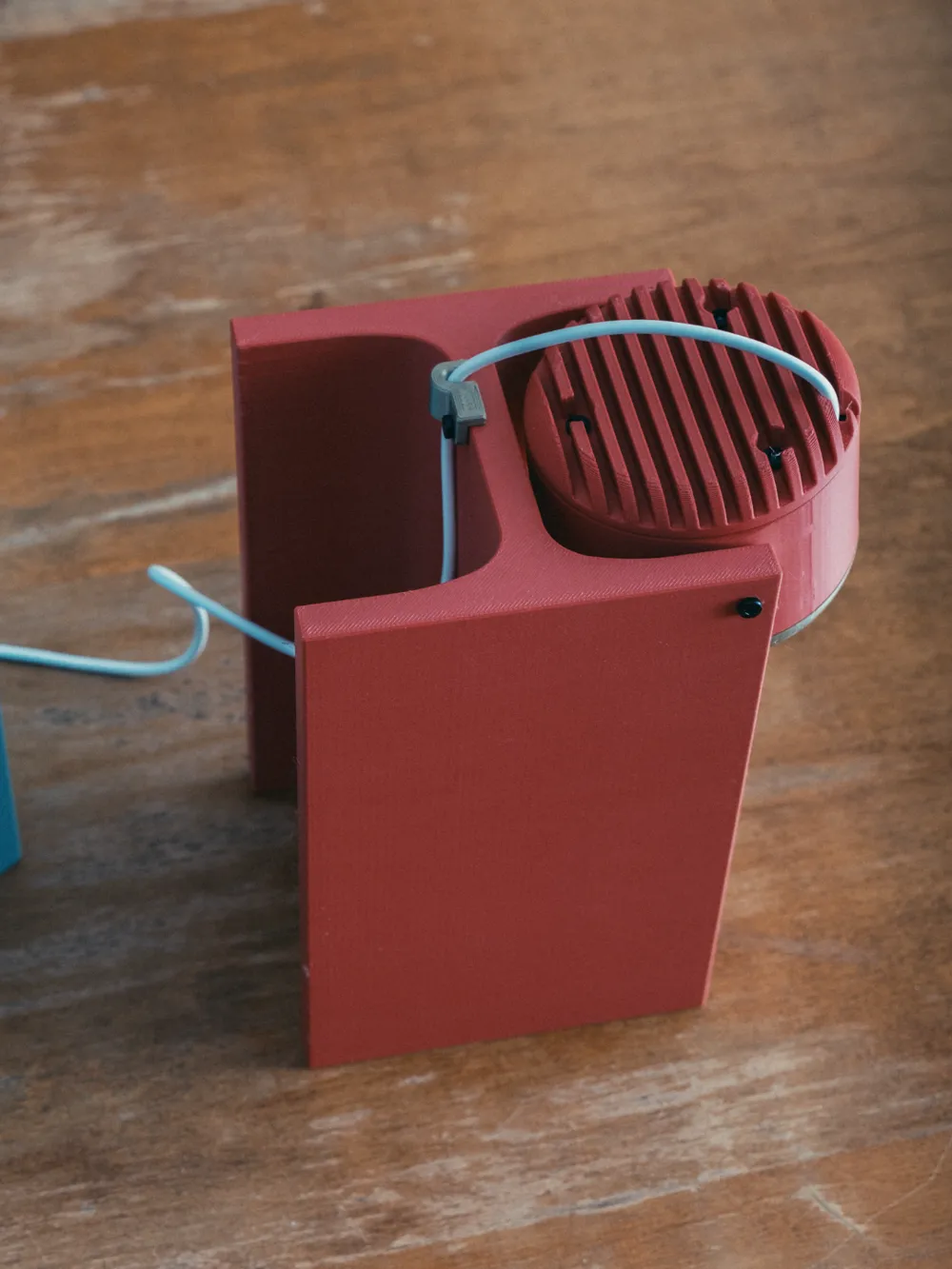

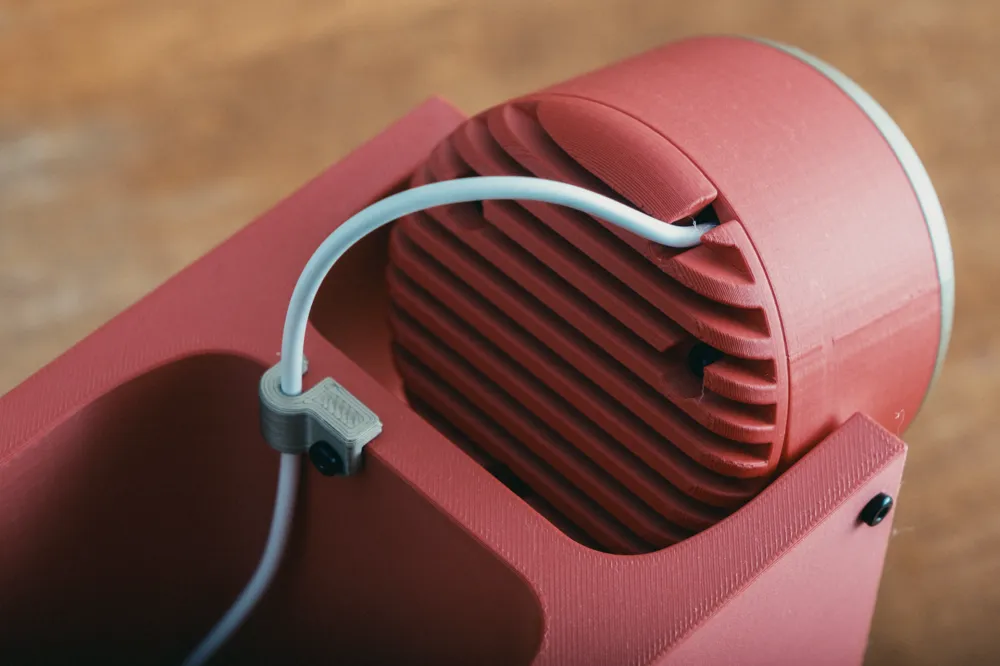

Use the wire clip to secure the wire in place. Make sure there's enough slack for the full range of motion of the light.

-------
