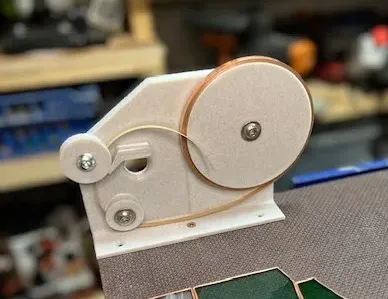

Stained Glass Foiler

Screw this to your work bench and foil away!

I have designed this to be as simple as possible to print, I printed this with a 0.8mm nozzle on an old Ender 3. If I can do it you can to!

The bolts used to hold the pieces together are 8mm but 5/16" should also fit.

Designed for 7/32" foil though easy to add spacer to the big wheel and not close the other wheels so far and it shoudl work for thicker foils.

The pieces are designed to be printed with no support, and by design can be adjustable in width to suit different foil widths but I have used it with ¼ inch foil.

I have an Instagram, and I have filmed how this foiler works: @chriswilson_artstuff

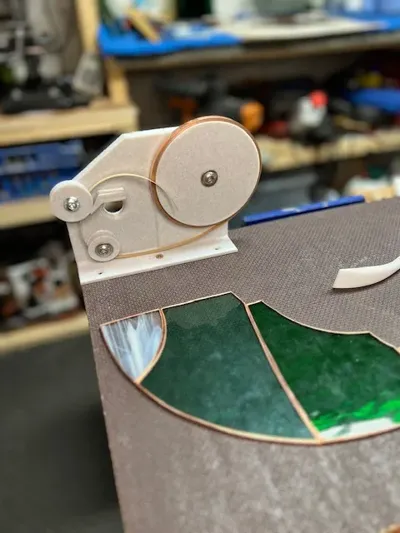

Note: In the picture there is a piece that isn't included in the files to download. This is because it is not needed. The piece was meant to split the foil from the backing but I found the top wheel split the foil better and so I don't use it. I normally only design and print things for myself, so this never bothered me.
