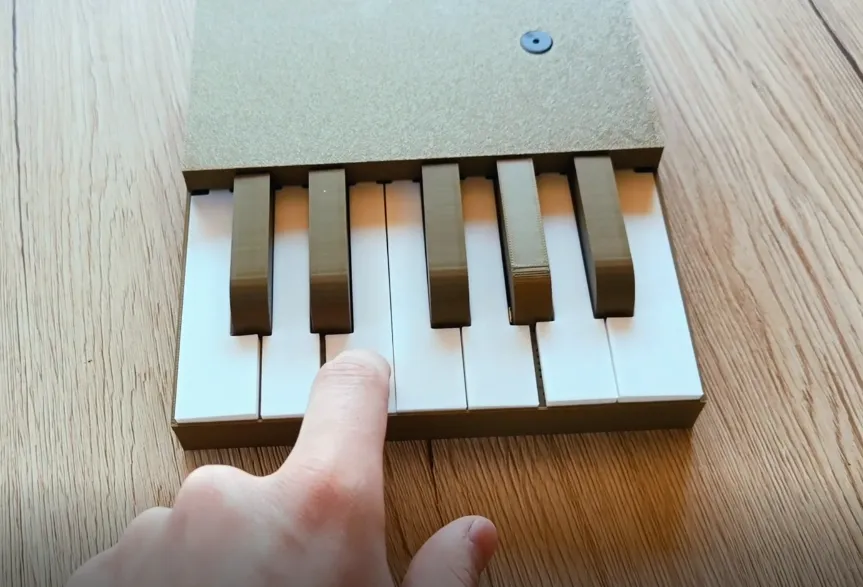

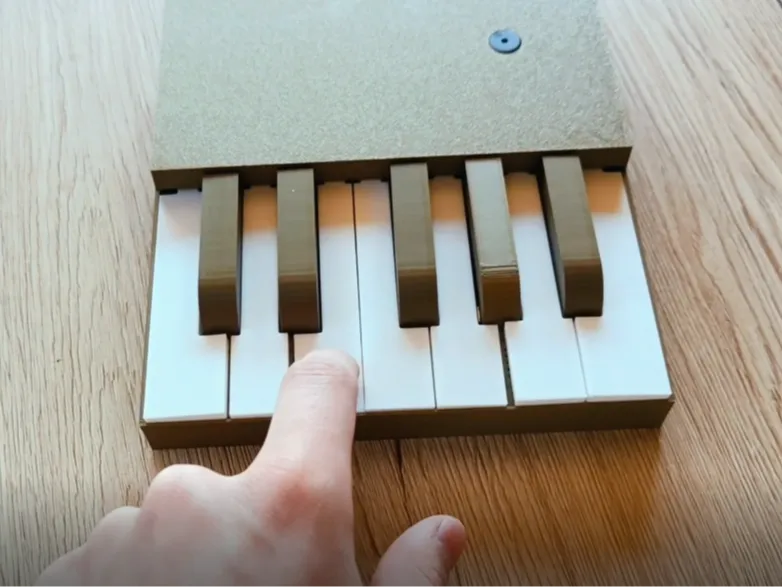

Piano Cabinet for DIY

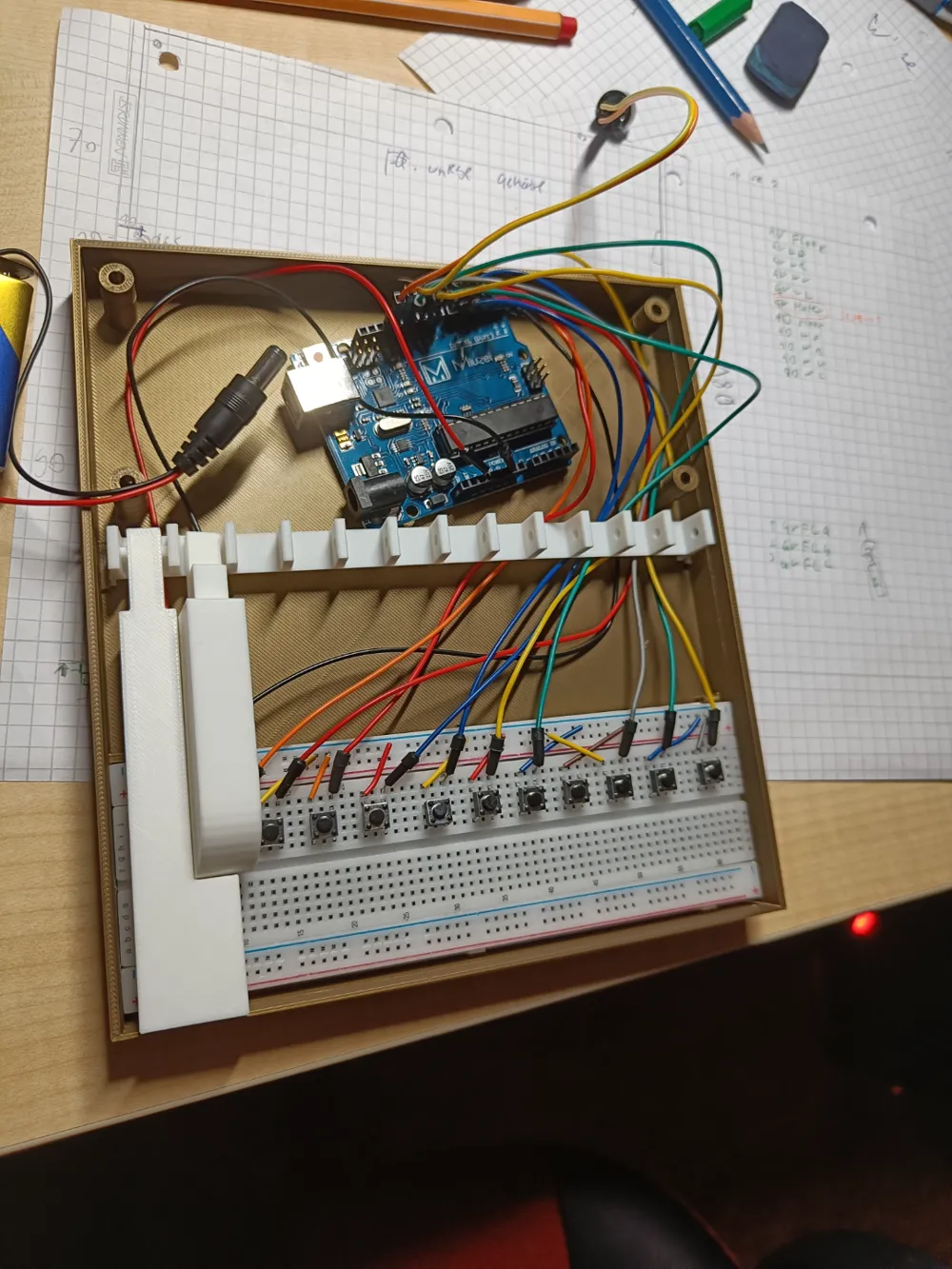

Piano. This was one of my projects thats focus was on 3D-modeling. The Documentation and Models may be not the best. But if you dont want to make a Micro Piano case from ground up you do now have a great basis or even a complete kit. What you need :

-MCU(Arduino Board)

-Breadboard

-12 small Buttons

-Baterie and the connection of it for power suply

-aktive buzzer

-jumper wires

-Schematic= isn´t that hard just try some things out

-code (IDE_Arduino UNO)

/* because of the limited inbuts on my board are here just 11 functioning Keys.

i know that the code is terible but it works XD

*/

int b1=0; //Create the Variabels

int b2=0;

int b3=0;

int b4=0;

int b5=0;

int b6=0;

int b7=0;

int b8=0;

int b9=0;

int b10=0;

int b11=0;

int b12=0;

#define but2 2 //define the inputs

#define but3 3

#define but4 4

#define but5 5

#define but6 6

#define but7 7

#define but8 8

#define but9 9

#define but10 10

#define but11 13

#define but12 12

//#define but13 13

#define buzzer 11

void setup() {

Serial.begin(9600);

pinMode(but2, INPUT_PULLUP); //Setting the inputs up

pinMode(but3, INPUT_PULLUP);

pinMode(but4, INPUT_PULLUP);

pinMode(but5, INPUT_PULLUP);

pinMode(but6, INPUT_PULLUP);

pinMode(but7, INPUT_PULLUP);

pinMode(but8, INPUT_PULLUP);

pinMode(but9, INPUT_PULLUP);

pinMode(but10, INPUT_PULLUP);

pinMode(but11, INPUT_PULLUP);

pinMode(but12, INPUT_PULLUP);

pinMode(buzzer, OUTPUT); //Setting the buzzer up

}

void loop() {

b1 = digitalRead(but2);

if(b1==0){

tone(buzzer,262,5); //Knopf eins

Serial.println("b1");

}

b2 = digitalRead(but3);

if(b2==0){

tone(buzzer,278,5); //Knopf Zwei

Serial.println("b2");

}

b3 = digitalRead(but4);

if(b3==0){

tone(buzzer,294,5); //Knopf Drei

Serial.println("b3");

}

b4 = digitalRead(but5);

if(b4==0){

tone(buzzer,312,5); //Knopf Vier

}

b5 = digitalRead(but6);

if(b5==0){

tone(buzzer,330,5); //Knopf Fünf

}

b6 = digitalRead(but7);

if(b6==0){

tone(buzzer,349,5); //Knopf Sechs

}

b7 = digitalRead(but8);

if(b7==0){

tone(buzzer,370,5); //Knopf Sieben

}

b8 = digitalRead(but9);

if(b8==0){

tone(buzzer,392,5); //Knopf Acht

}

/* b12 = analogRead(A1);

if(b12==0){

tone(buzzer,416,5); //Knopf Neun

delay(5);

}*/

b10 = digitalRead(but11);

if(b10==0){

tone(buzzer,440,5); //Knopf Zehn

}

b11 = digitalRead(but12);

if(b11==0){

tone(buzzer,467,5); //Knopf Elf

}

b9 = digitalRead(but10);

if(b9==0){

tone(buzzer,494,5); //Knopf Zwölf

}

digitalWrite(buzzer, LOW);

}
