Photopolymerization UV Lightbox ｜ UV Lightbox

【Friendly Open Source, No Sales or Profit-making Activities Allowed】

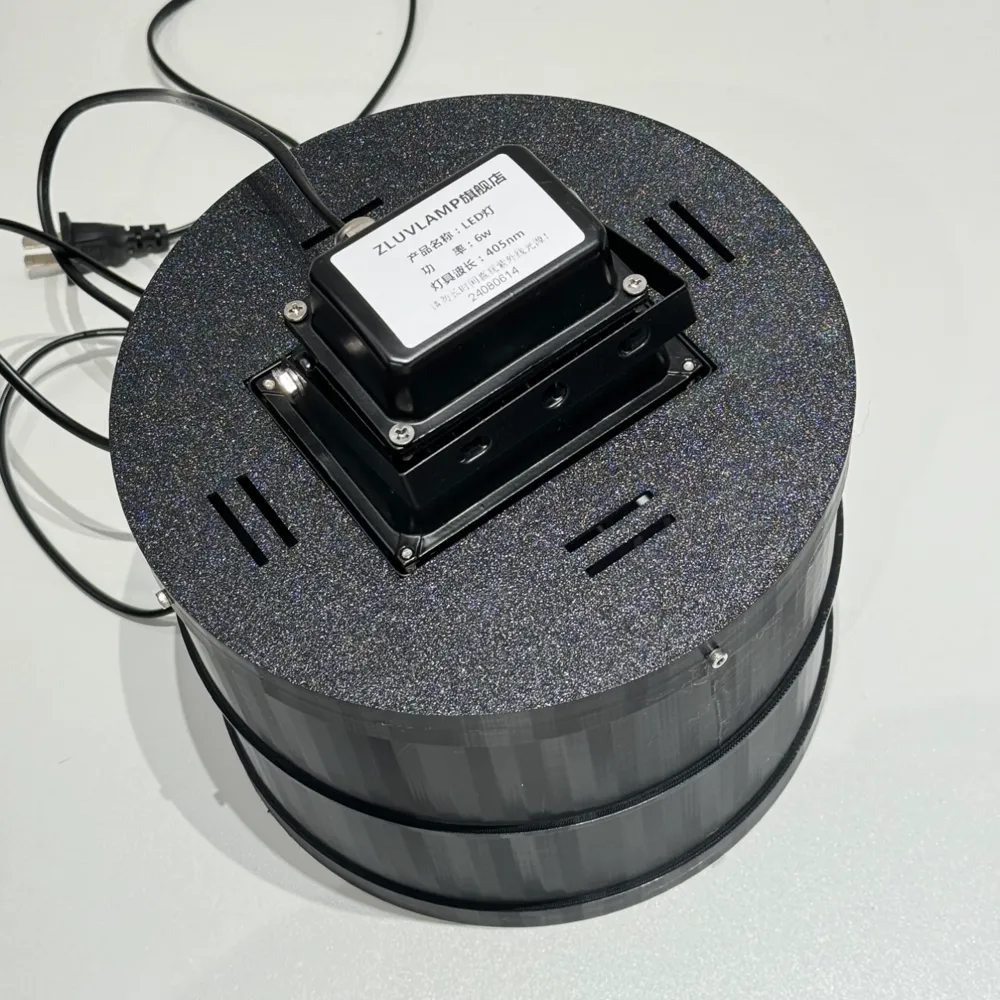

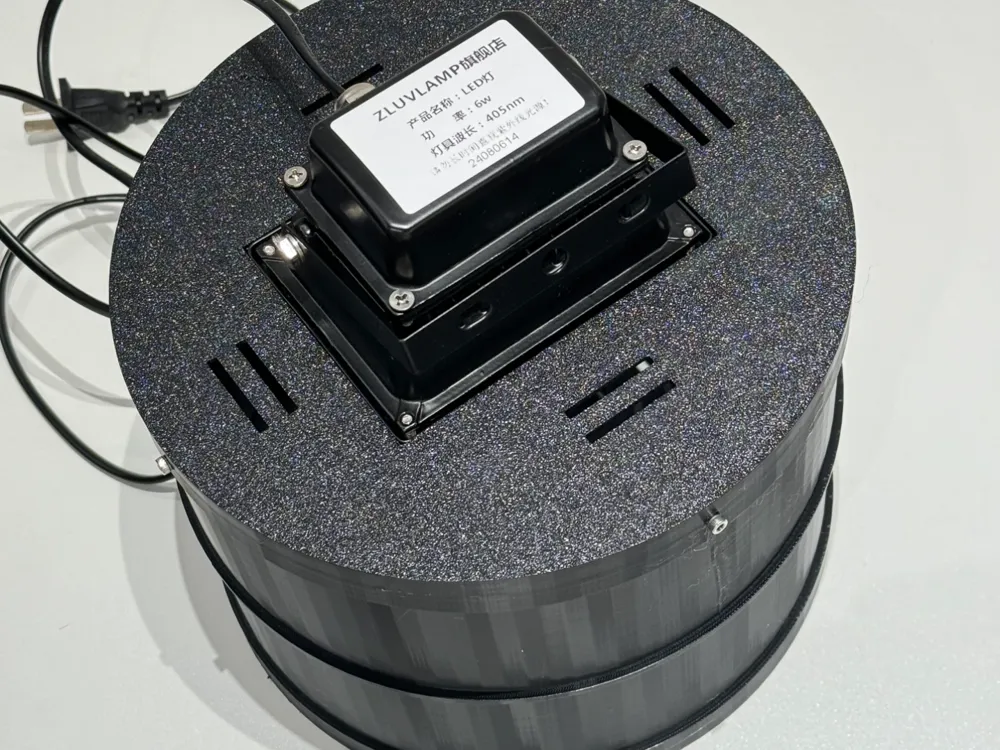

This self-designed UV curing lamp can meet the size requirements of most models for the Elegoo Mars 4U.

Model Description:

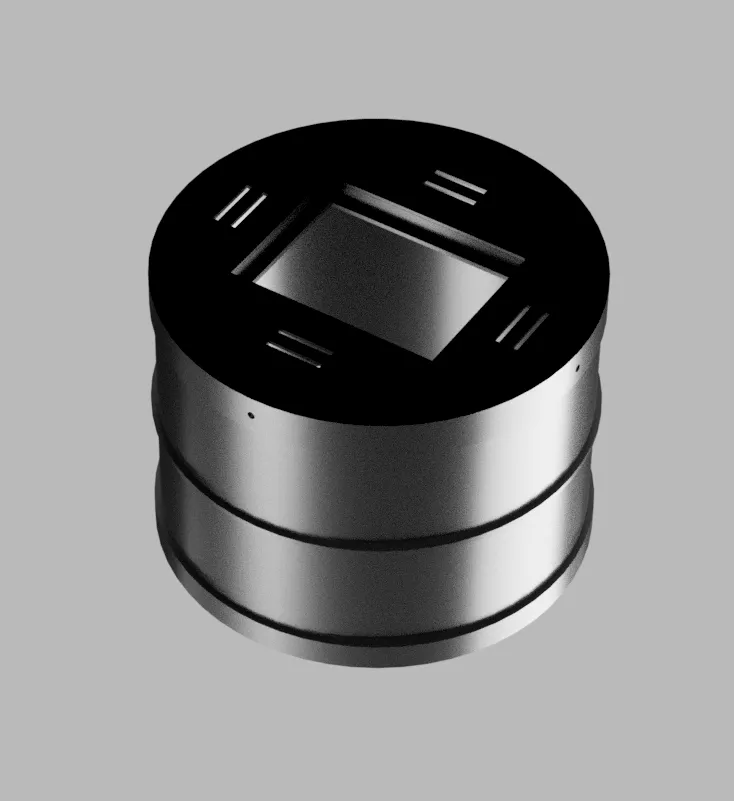

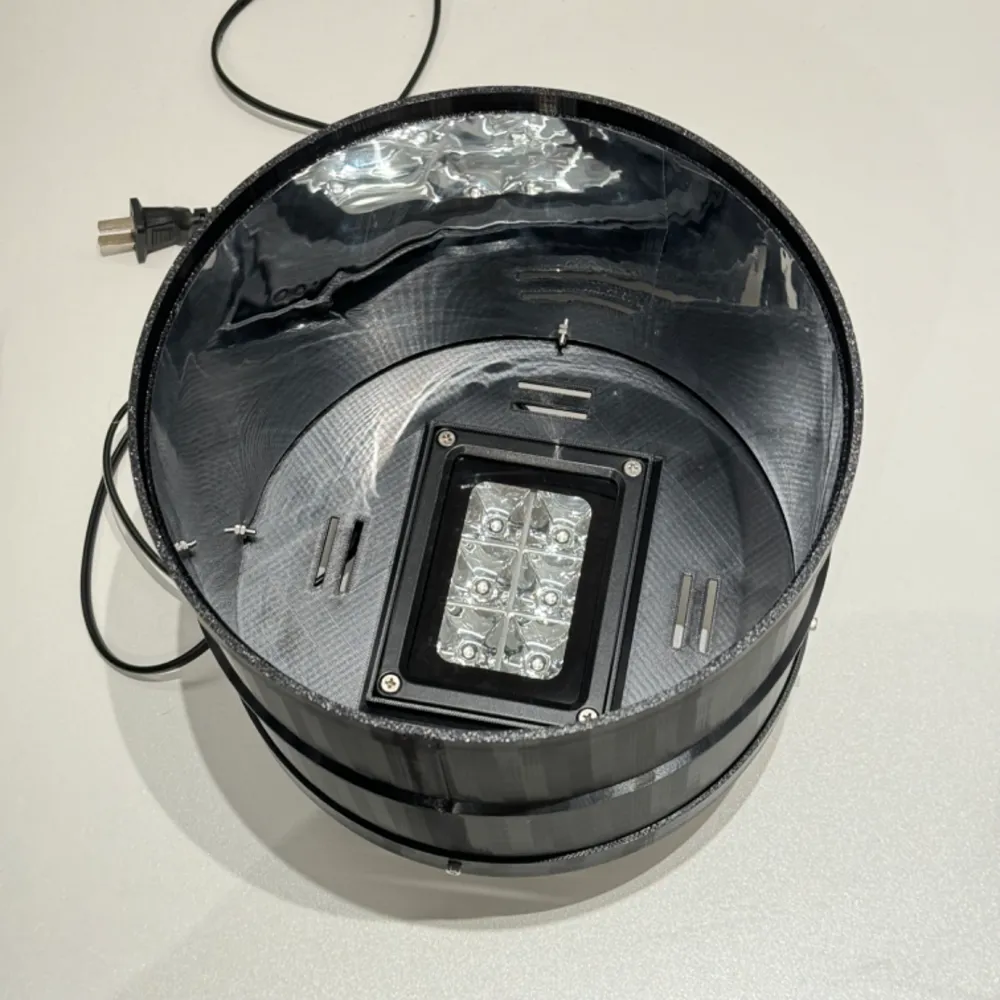

This UV curing lamp box adopts a detachable design, with the lamp fixing part requiring 4 M3x12 screws and nuts for secure assembly.

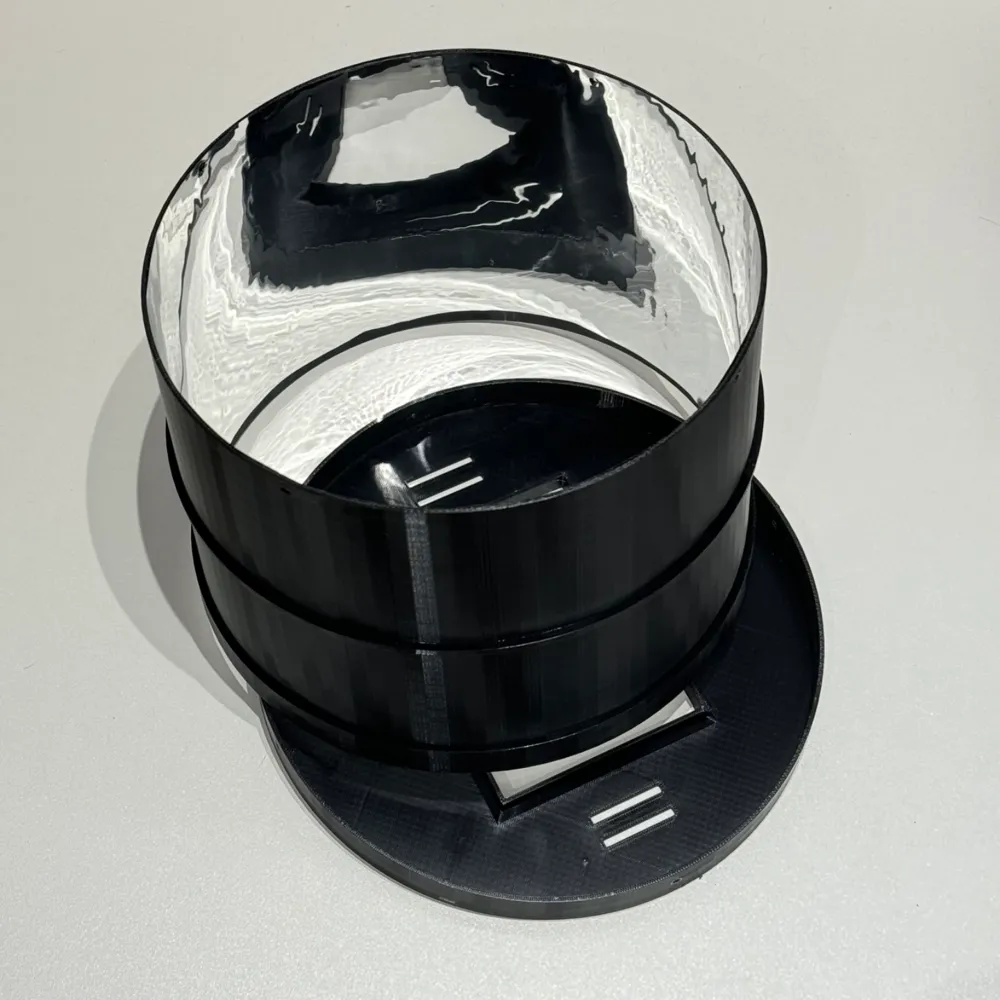

The detachable design is chosen for easy application of reflective film.

【The model file consists of 3 plates, please note: If the model to be cured is not that large, you only need to print the two models with large screw holes! The third plate is for height adjustment, and it is not mandatory to print it based on your actual needs!!!】

Additional Parts:

M3x12 screws and nuts 4 pieces

Reflective film (You can decide whether to print one layer or two layers based on your needs, purchase accordingly)

405NM curing lamp 1 piece

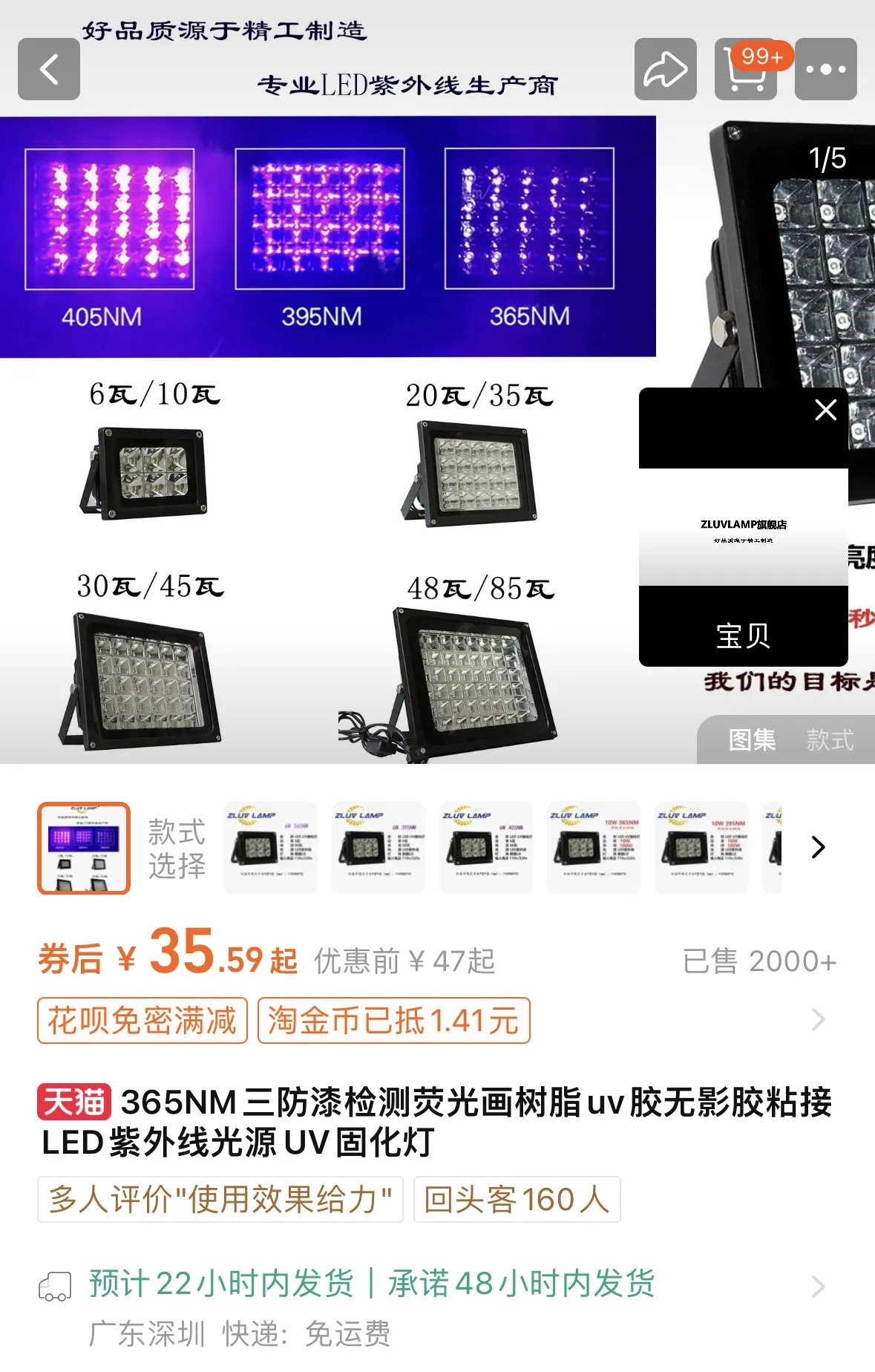

【Taobao】 https://m.tb.cn/h.gSh5sM4yaO5kNcV?tk=V32R30XTS2r CZ0015 「365NM Waterproof Coating Detection Fluorescent Paint Resin UV Glue Shadowless Glue Bonding LED Ultraviolet Light Source UV Curing Lamp」
【This model is custom-designed for this shop's curing lamp, it can be directly inserted without the need for extra glue, etc. The model has been updated subsequently, adding a limiting surface, so the part for fixing the lamp needs to have support enabled. It is not sure whether other UV curing lamps have size differences, please judge accordingly. 】

Printing Notes:

1. The model part for fixing the lamp needs to have support enabled, it is recommended to use 「Tree Support (Automatic)」

2. The wall model needs to have Brim enabled!!!
