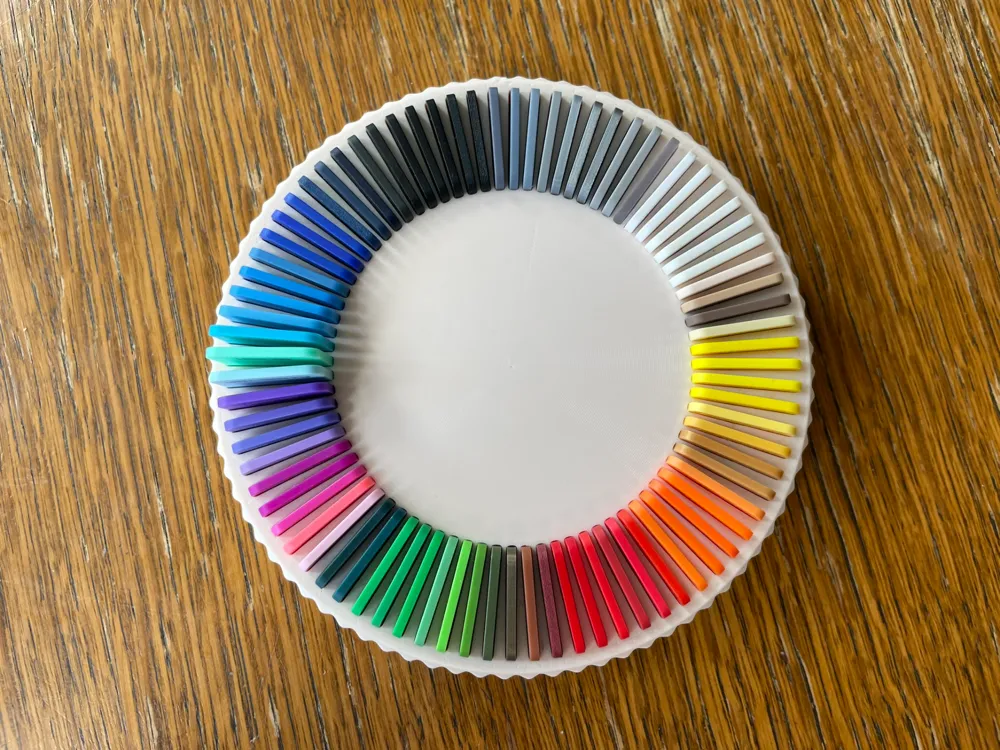

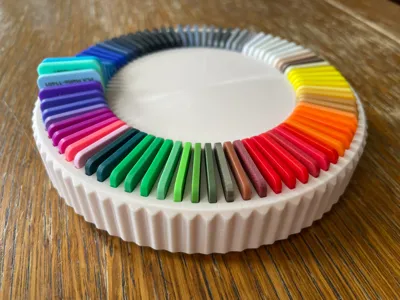

Rotating Filament Swatch Display - Bidirectional
Remixed by
IP Report
GIF
Print Profile(3)
0.2mm layer, 3 walls, 15% infill
Designer
6.4 h
2 plates
Adaptive layer height for minimal time and no sanding
5.3 h
2 plates
101.5% scale - relaxed fit for smooth sliding, no sanding
5.3 h
2 plates
Open in Bambu Studio
Boost
758
1821
386
219
3.3 k
2.3 k
Released
Description
Adaptation of BradFTBT3D's great design.

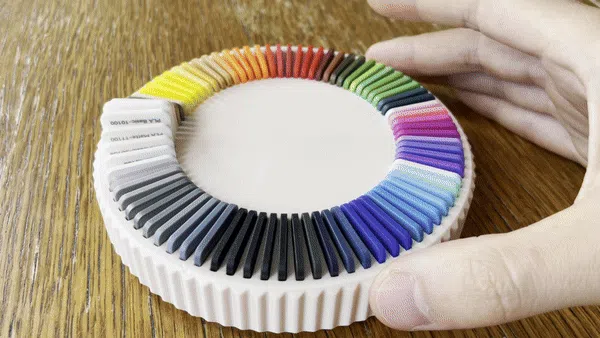

I was annoyed that the display only turned in one direction, meaning once you miss the desired swatch you have to circle all the way around to it again. So I modified the bottom part and now it moves in both directions.
Original print instructions:
Print Settings:
- Top Layer Height: 0.20mm
- Bottom Layer Height: adaptive or 0.10mm (for smooth ramp)
- Top & Bottom Surface: Concentric
- Print top upside down
- Use Arachne wall generator for best results
- As designed it will only turn clockwise, mirror base to turn counterclockwise
For best turning:
- Sand the ramp smooth with 220 grit sandpaper if needed (and lubricate a bit)
- Put rubber feet on the bottom so the base won't spin while turning the top
