BATTERY ADAPTOR POWERBASE/DEWALT
Print Profile(1)
Description

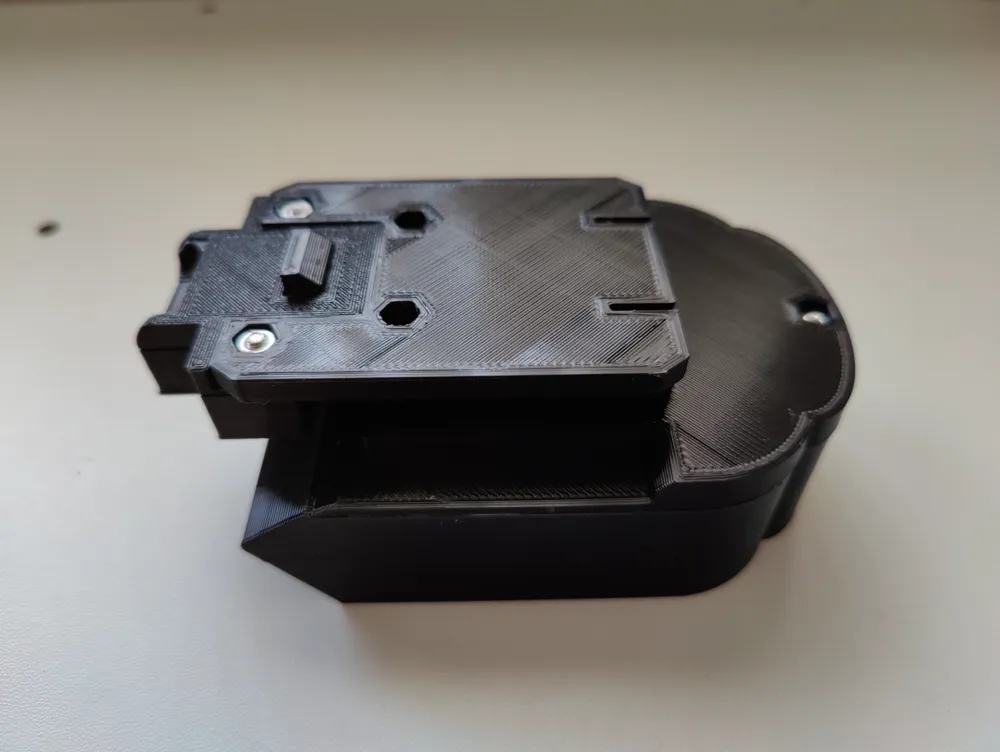

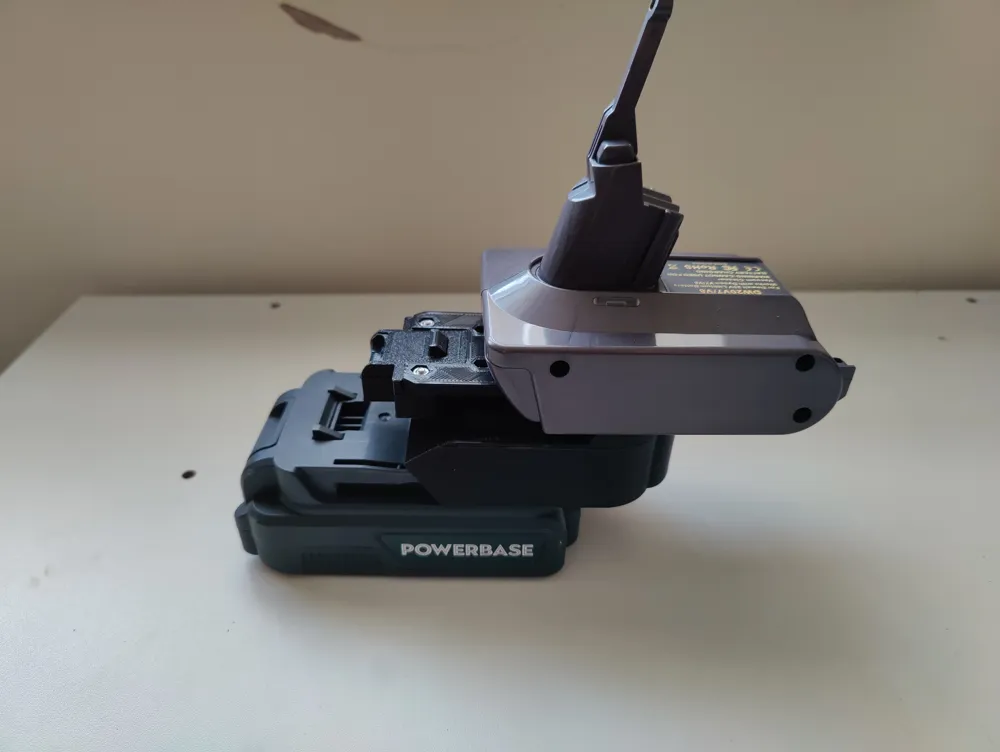

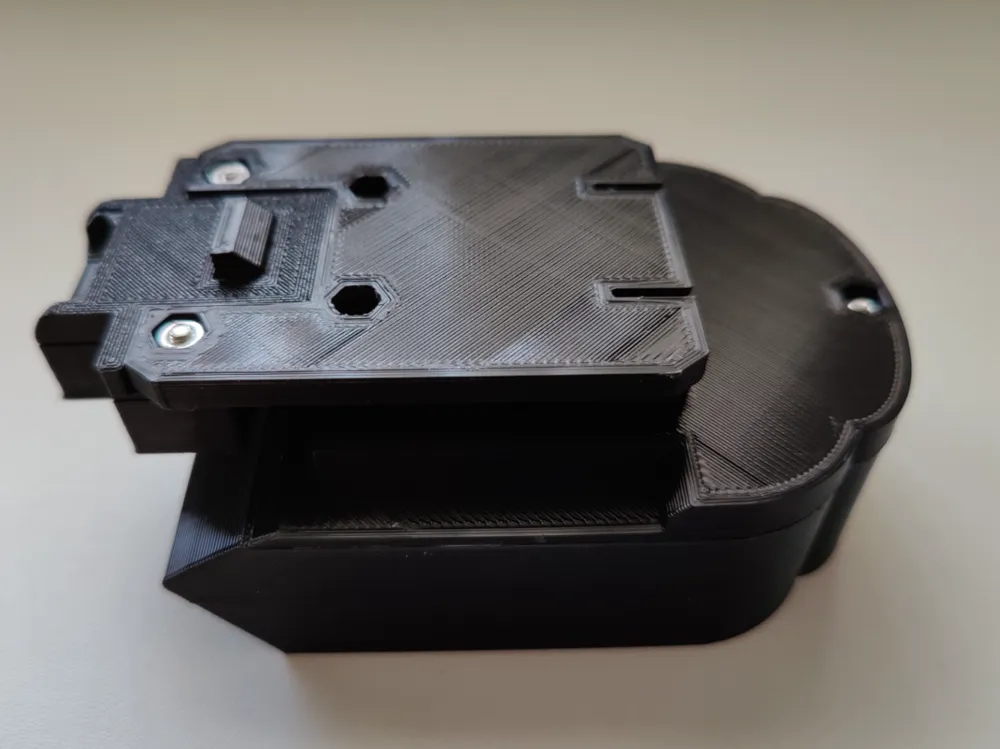

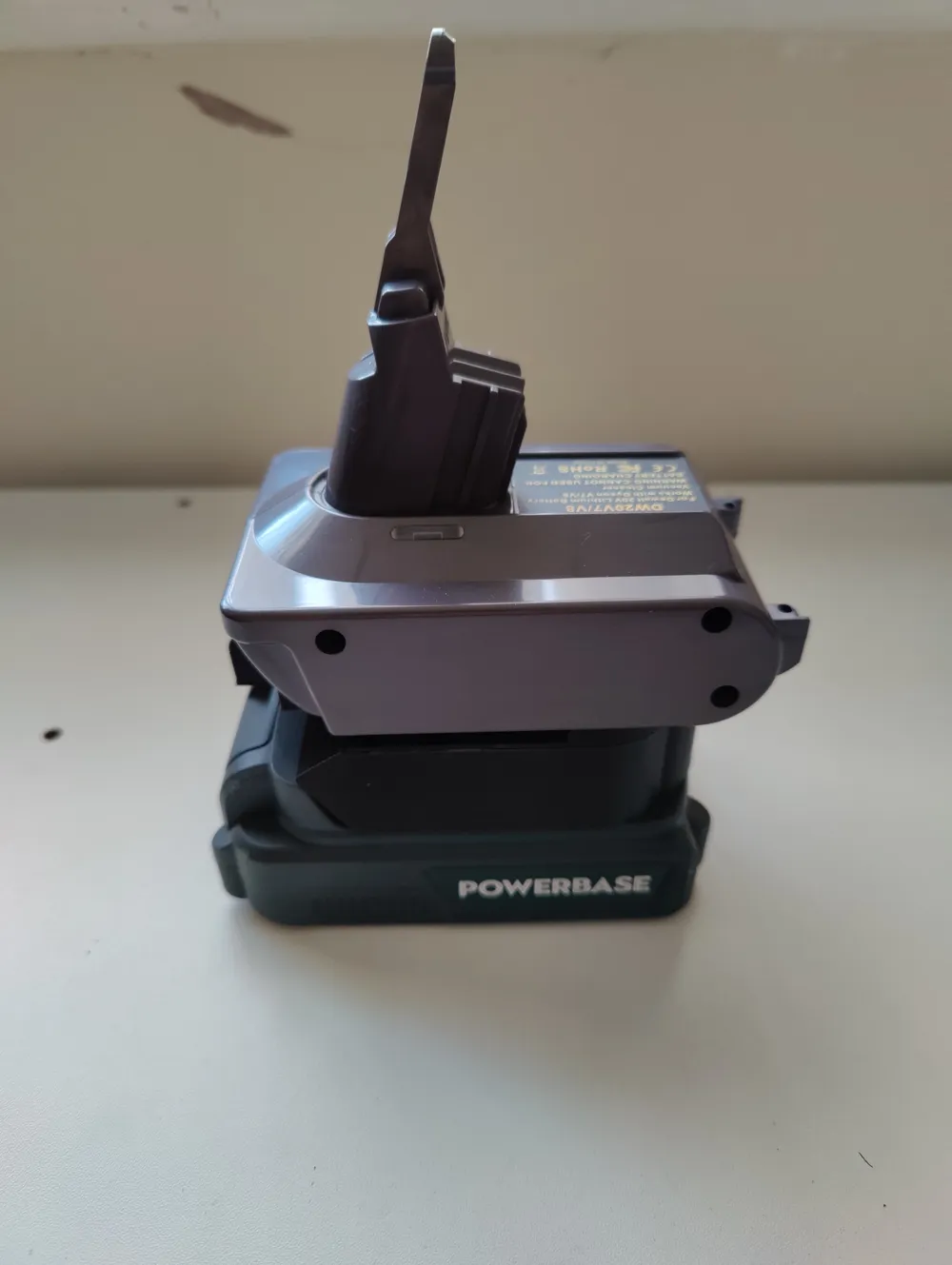

This is a battery adaptor for POWERBASE battery to DEWALT.
This model comes with 5 pieces.
Main parts:

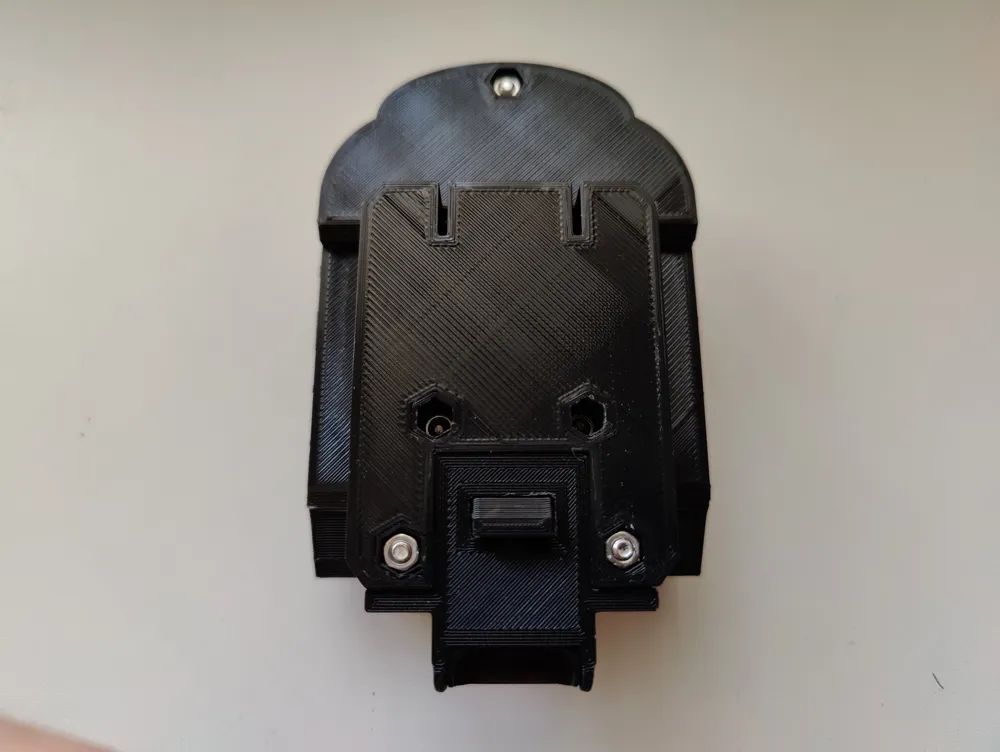

Part_1 - Dewalt side

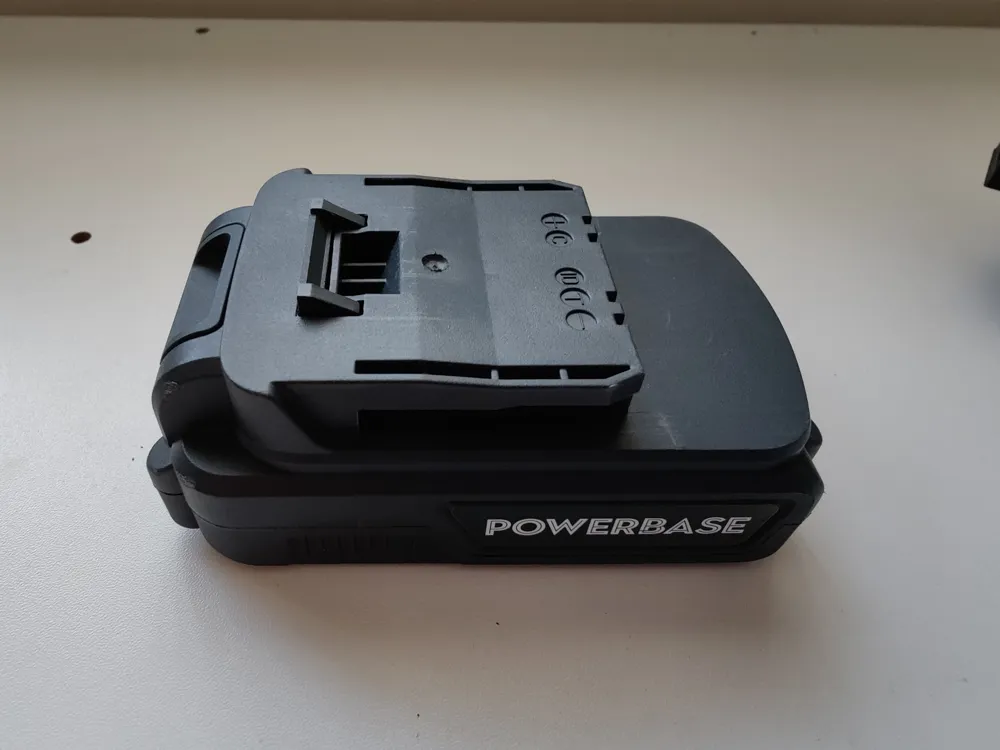

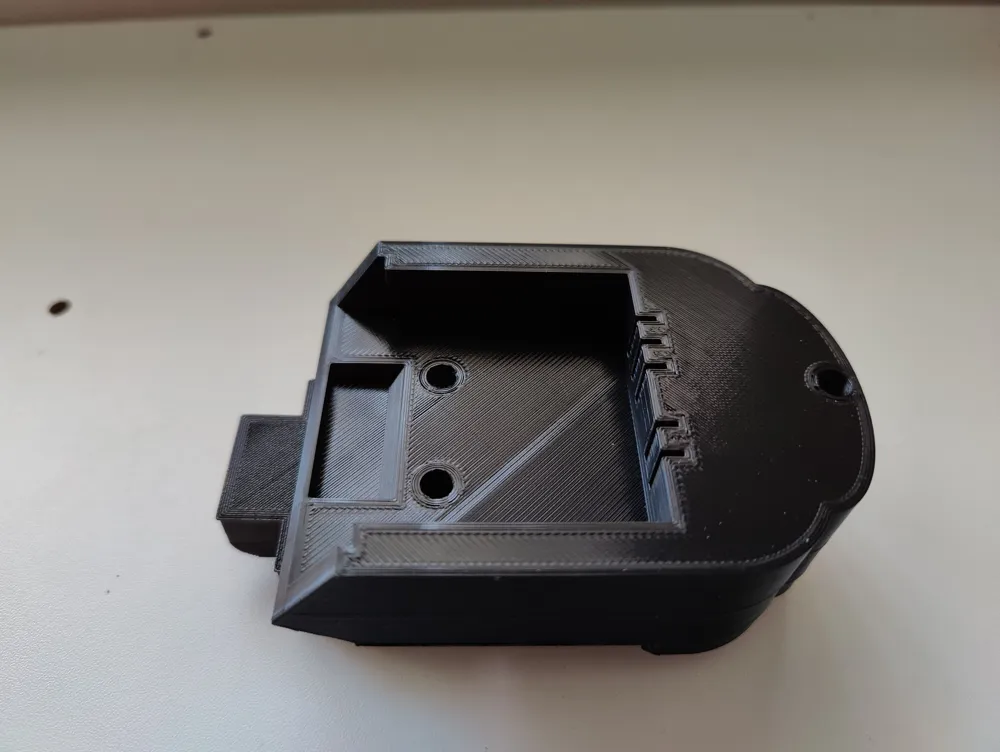

Part_2 - Powerbase side
There are 3 parts for the Release Button:
Part "A1" - button
Part "A2" - top piece
Part "A3" - bottom piece
Release button has to be assembled first.
Take part "A1" and put it in the part "A2". After that place the spring in part "A2". Now put part "A3" on top and hold it together.
This part will connect with the main part "Part_1" by using screws and nuts.
Main parts: "Part_1" / "Part_2"
These parts will contain space for the wiring.
Metal plates/pins needs to be installed and connected with wires.
After that put these two parts together using screws and nuts.
Hardware used:
Screws M4
Nuts M4
10mm x 4mm spring,
Small wires,
Metal plates/pins
Hot glue
