Flange-o-matic - parametric flange generator
IP Report
Print Profile(3)
sample flanges - 0.2mm layer, 2 walls, 15% infill
Designer
2.7 h
4 plates

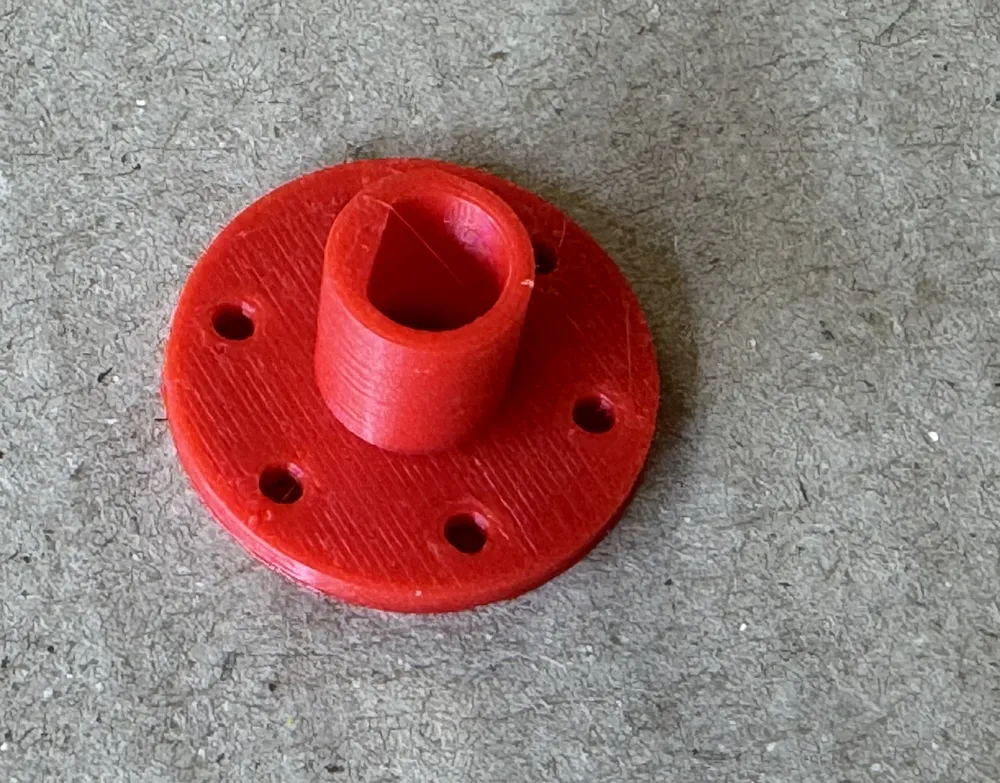

Sample of a flange with a "D bore" to support a motor shaft
Designer
13 min
1 plate
0.2mm layer, 2 walls, 15% infill
25 min
1 plate
Open in Bambu Studio
Boost
625
2071
44
33
1.1 k
525
Released
Description
Need a flange to connect a pipe? An umbrella stand? Adapter for a fan hose? Pipe cap?
Print your own with this parametric flange generator, designed to support most common flange shapes that use plastic. It supports bolt holes, blind flanges, and even square flanges.
Just click Customize to get started, and save yourself a trip to the hardware store!
If there's a feature you need, please leave a comment with details. And I'd love to see what you create, please share pictures!
NEW! You can create a D-bore for your motor D-shaft (or a funky guitar knob), just measure the width of the flat part of the motor shaft.
