[BaBo duo] AMS riser module

Links to my collection:

• BaBo collection
• BaBo duo collection
• BaBo inserts

Create your BaBo organizer! A system created to store them all!

Description:

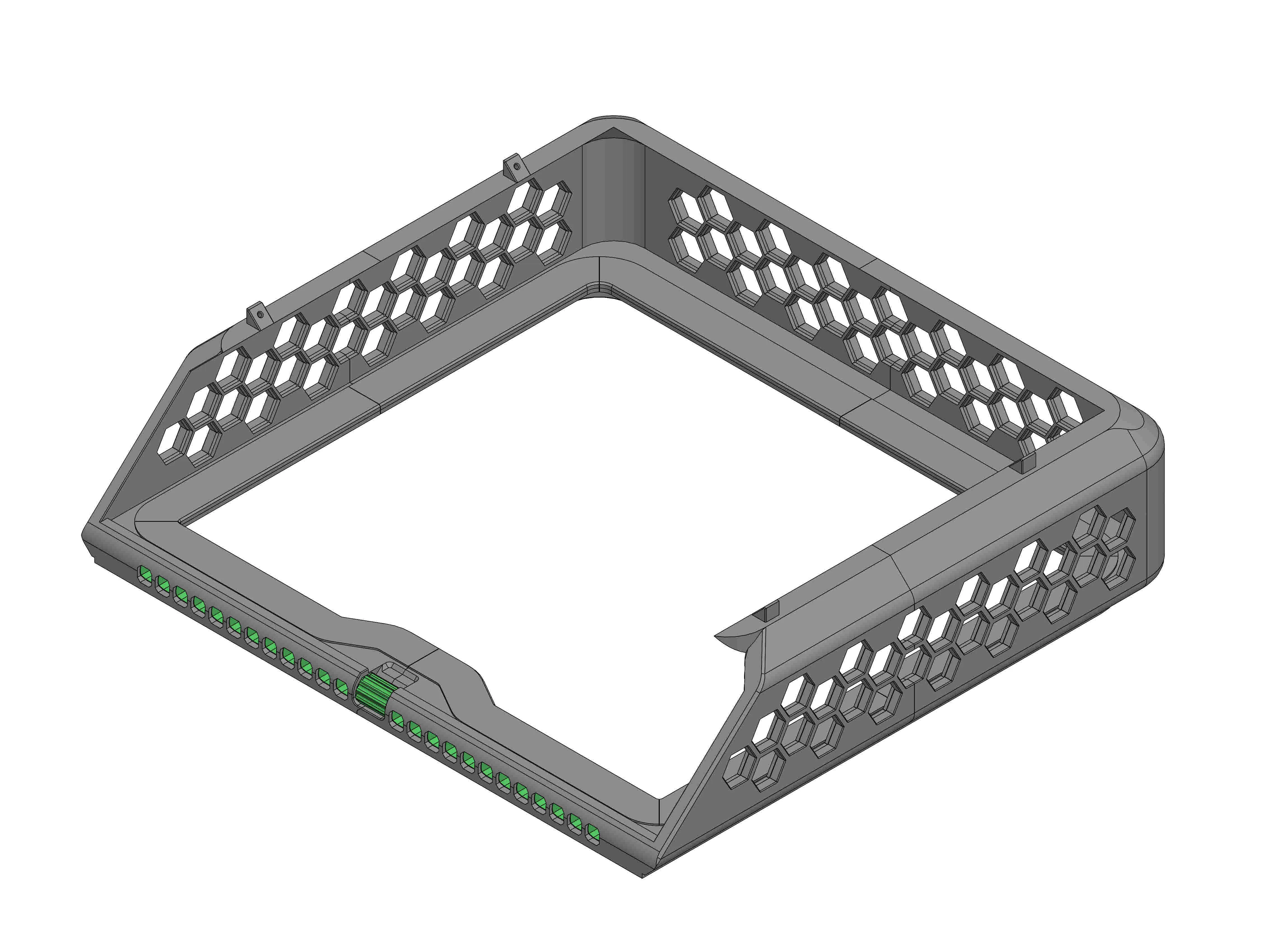

This is the BaBo duo riser module. The purpose of this riser is the possibility of ventilating the printing chamber with the help of a rotating closure in the front as well as better visibility in the chamber and the possibility of installing LED strip for lighting.

Compatible with X1 and P1 series.

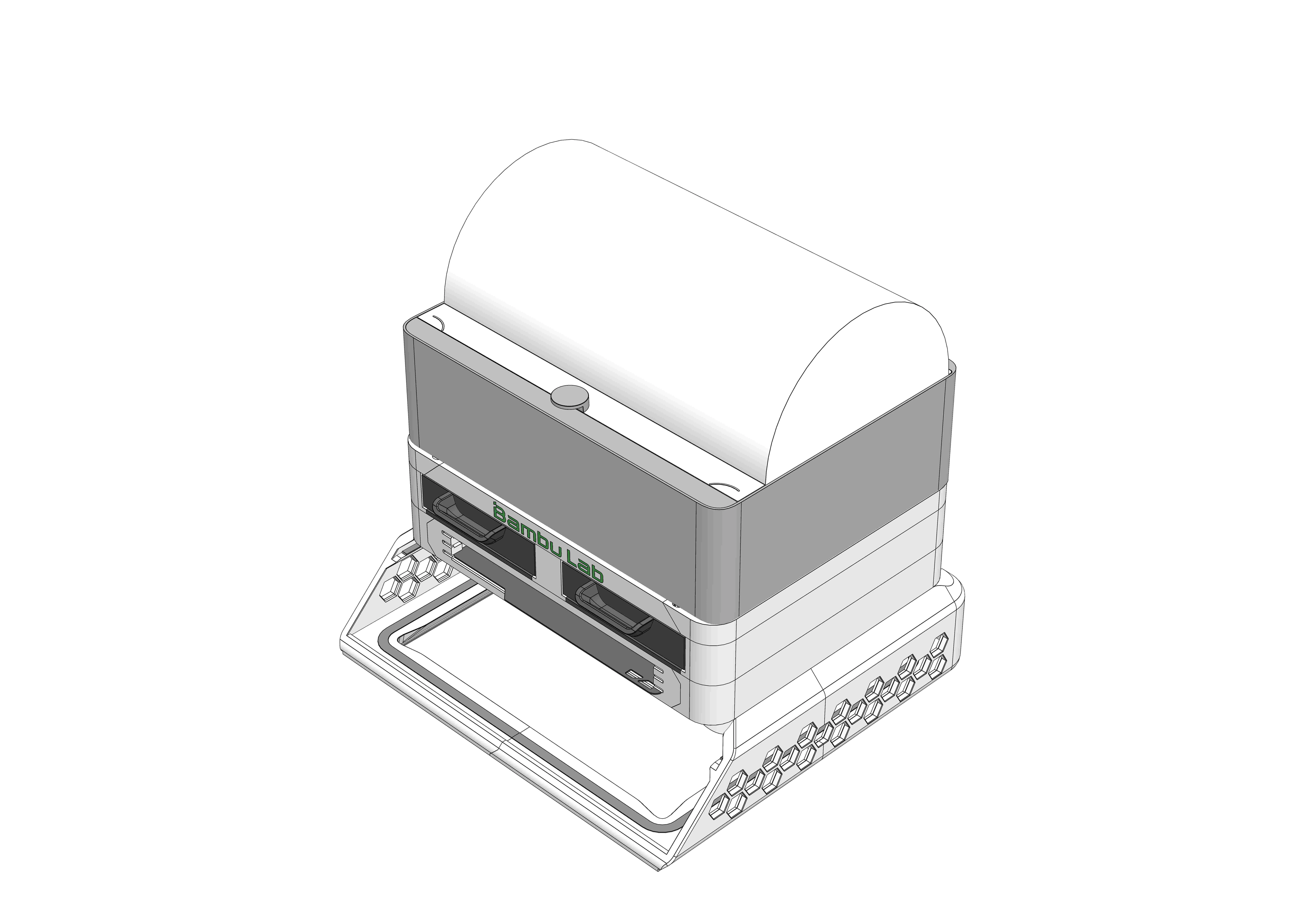

This riser can be mounted and combined with the BaBo Duo modules to create an individual organization system or just as an AMS riser. Build your riser according to your wishes and adjust it if necessary later.

If you only want to use it as a AMS riser without the drawers or plate holder etc. then you need at least the AMS adapter module.

Thanks to Mr.Quen for allowing me to use his pictures.  (The older version that can be seen in Mr.Quen's pictures is the V1 version of the riser and can be found in the print profiles.)

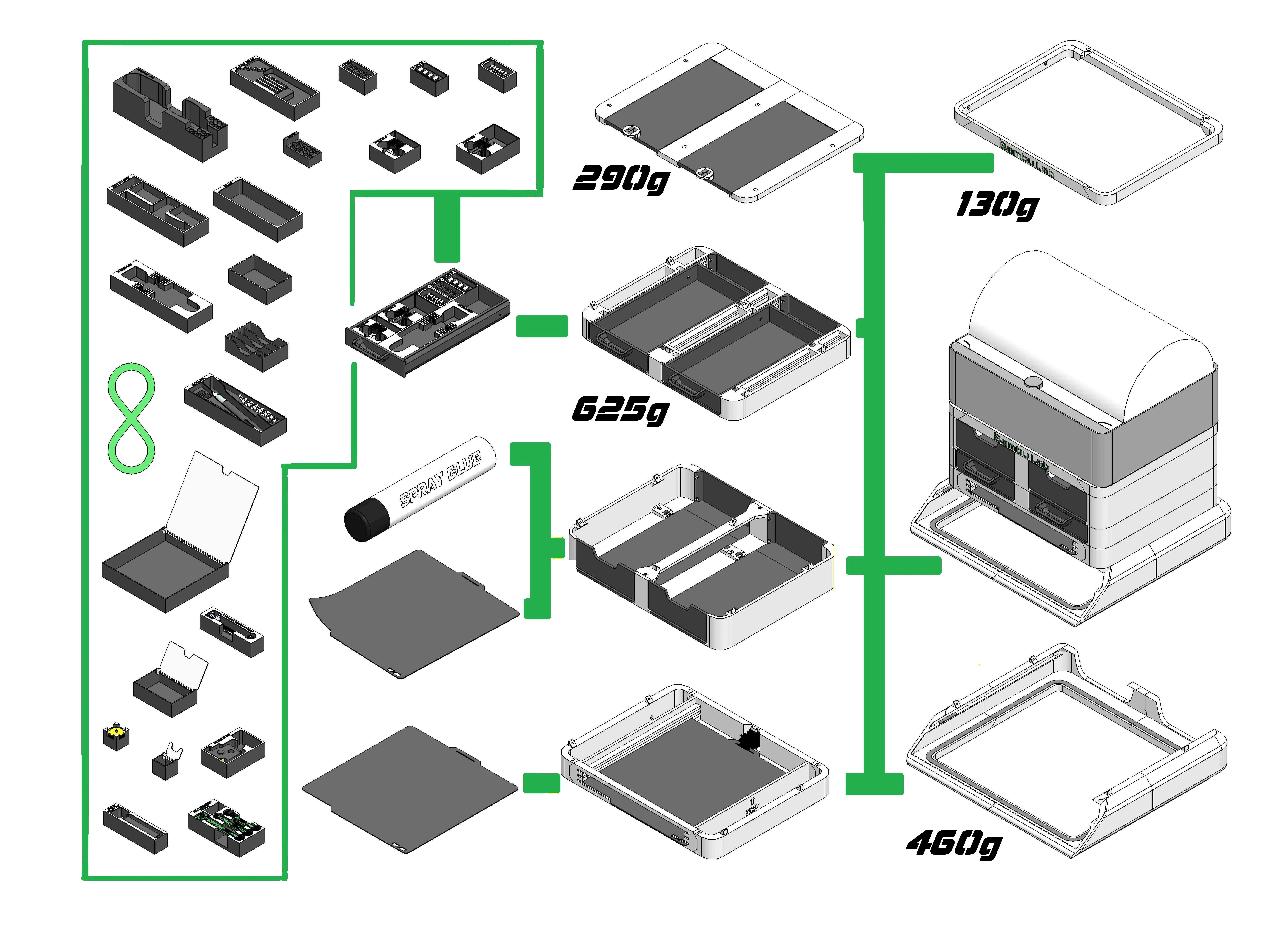

BaBo organizer is a stationary, very flexible system to store your tools, spare parts and even printing plates. The design is based on the iconic look of the Bambu Lab X1 printer. The entire system uses only 1 type of screw, M3x8 countersunk screws.

Update:

(31/10/23)

• improved connection between modules
• print profile optimizations

(07/11/23)

• added two TPU lips to prevent the glass from slipping out

(17/11/23)

• bottom gasket option and Honeycomb version added

(24/11/23)

• LED adapter for LED Lamp Kit 001 added

(15/12/23)

• added LED stripes guides (In the "Raw Model Files" you can find a model that you can stick to your riser if you haven't printed the current version.)
• removed bottom gasket

(10/09/24)

• complete redesign of the riser with many improvements

(29/11/24)

• Added version for 10mm and 12mm LED stripe

Printing:

Layer height: 0.2

Supports: Yes

Brim: No

Material: all (PETG recommended)

Assembly:

Follow the instructions in the picture.

• printed parts
• 4 x M3x8 countersunk screws
• 8mm LED strip

If you like this model, please throw me a like.  Designing the models is time, filament and coffee consuming. If you want to support my work buy me a coffee (PayPal). Thanks!
