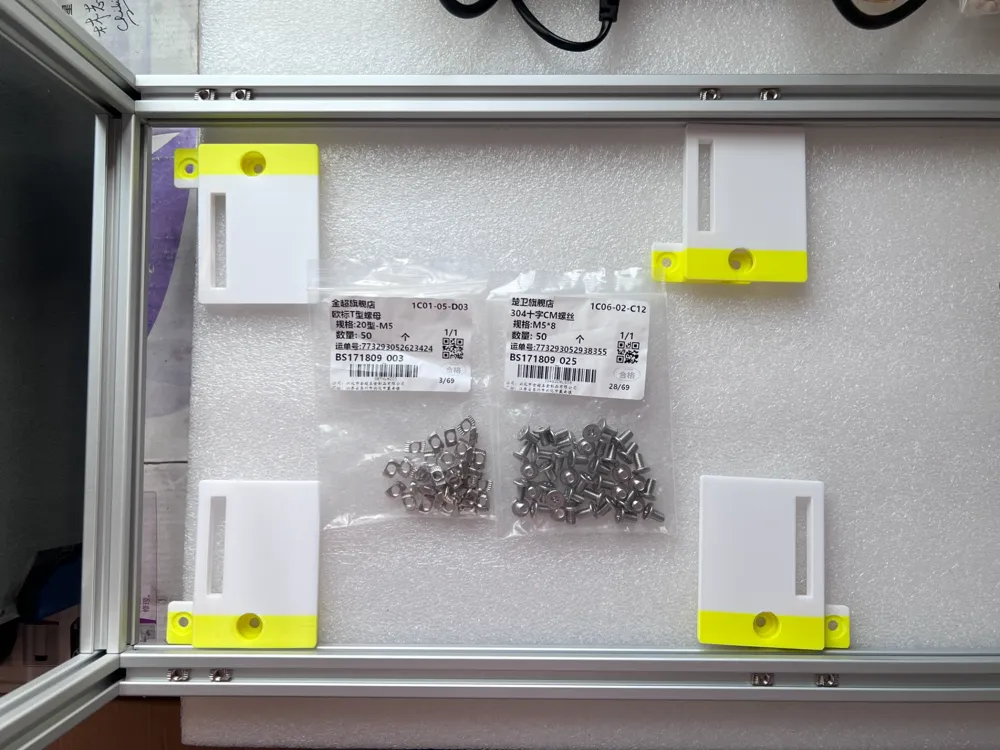

A glass lid riser for P1S and X1C printers, made with a 2020 aluminum extrusion frame. A 3D printed part is used with 2020 specific screws and nuts to form the lid riser. See picture for details:
It has left, right, front and back sides. The file is already calibrated for direct printing.
M5 European standard T-nuts and M5X8 flat head screws are used respectively. By the way, the aluminum extrusion I used is the European standard 2020 specification, 7 pieces of 600mm long and 4 pieces of 260mm long. I also made a model to increase the height of the frame. See my uploaded files for details. When screwing, first fix the two on the left side, then put on the glass lid, find the suitable position and then fix the two on the right side.
