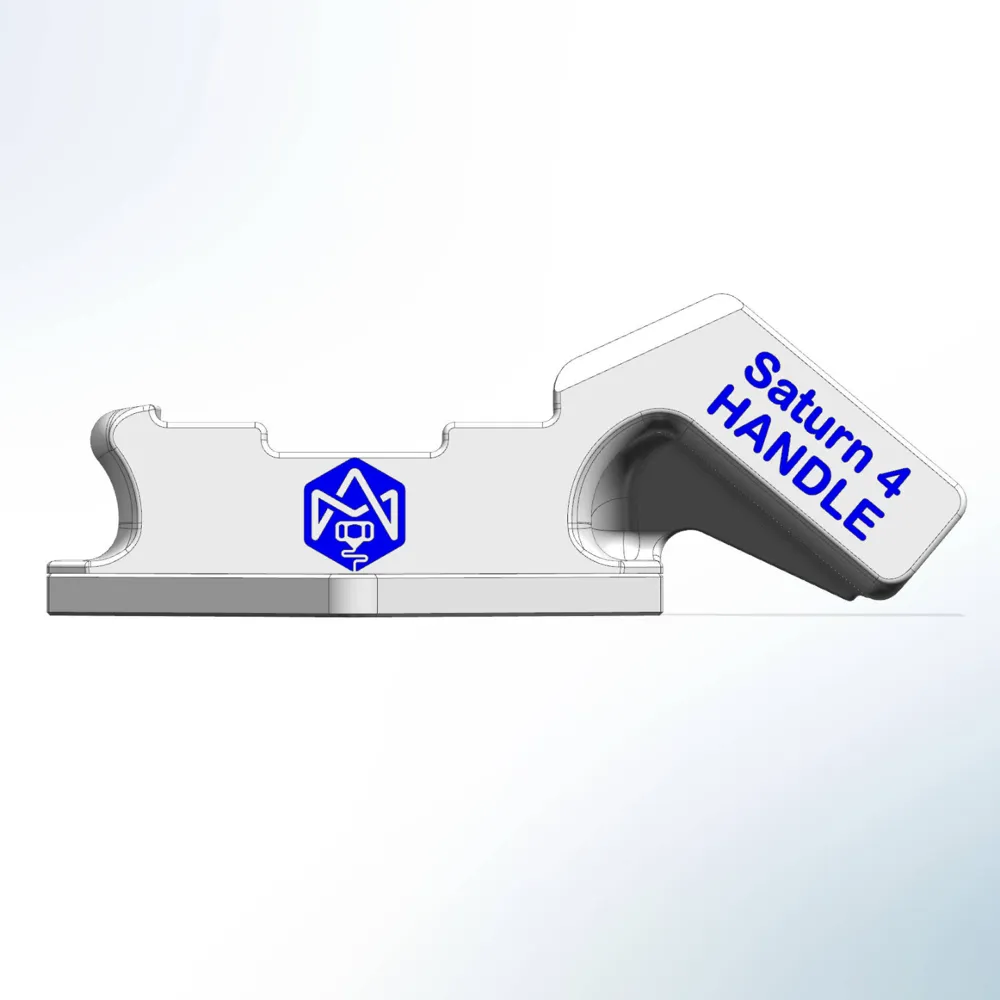

Saturn 4 & 4 Ultra - Bed handle and Tilt Dripper

NOTE: Second version with bolt connection is available at link: Saturn 4 and 4 Ultra HANDLE x DRIPPER V2 by Technix AM - MakerWorld

Design fit with Saturn 4 Ultra (not yet test on Saturn 4 but they share the same design.

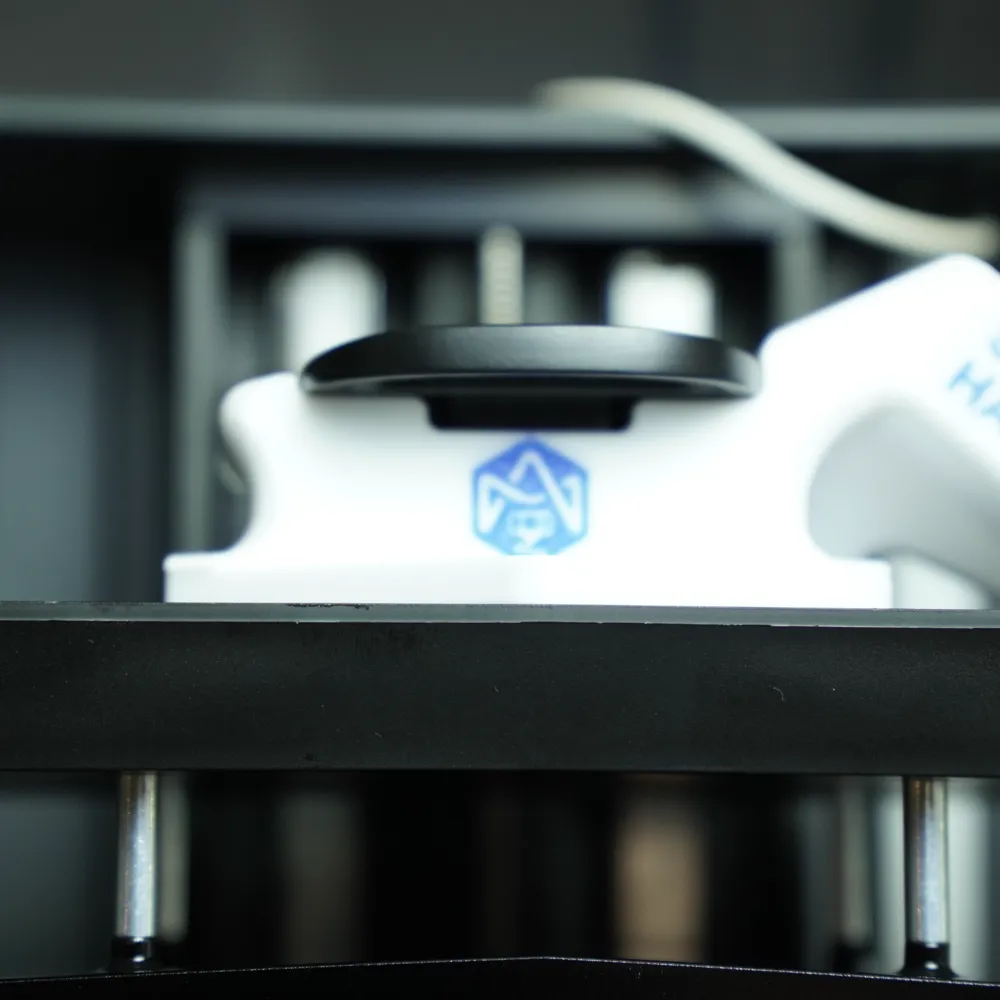

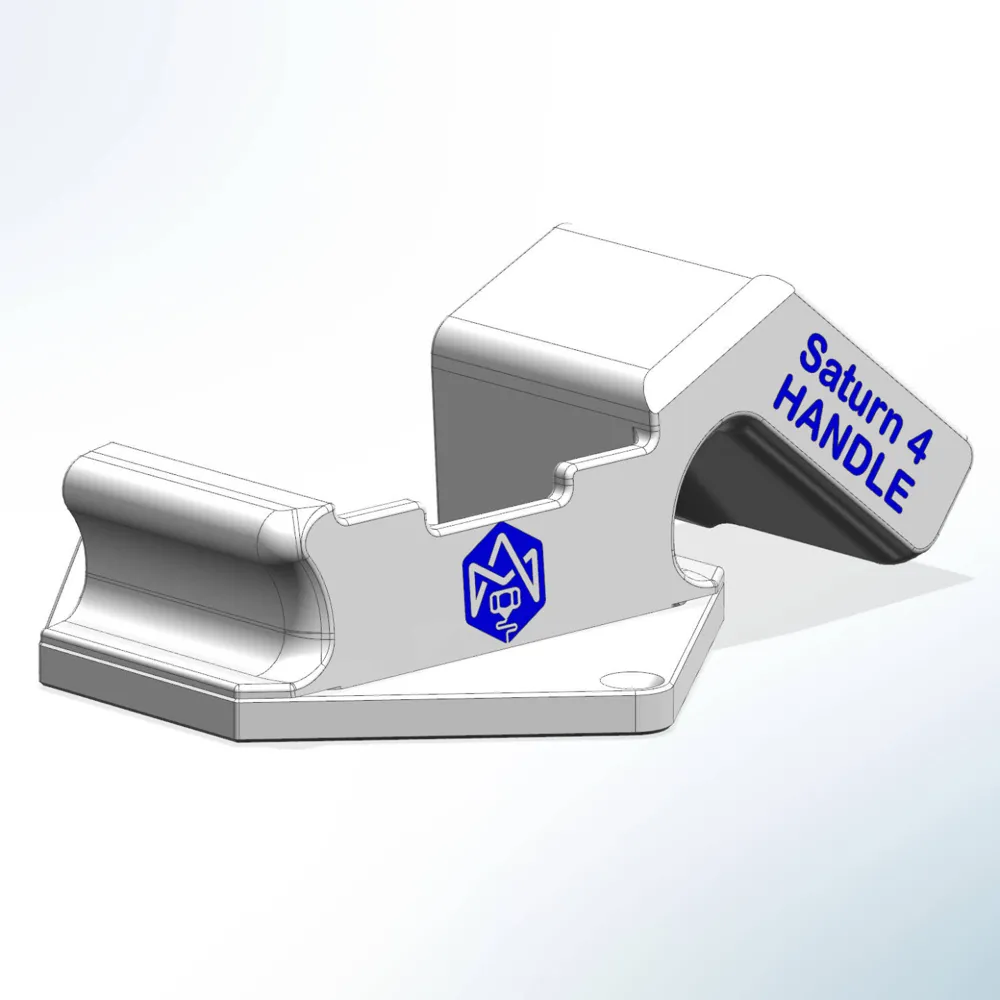

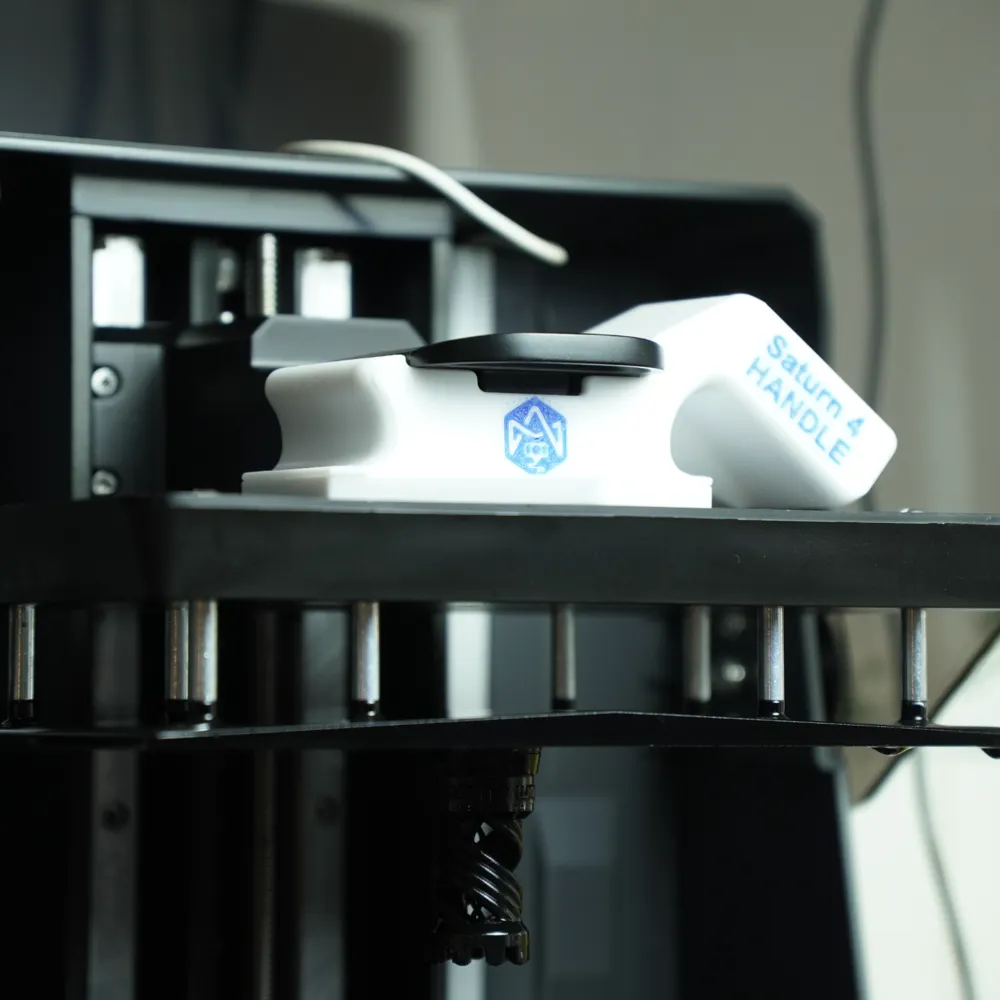

Purpose 1: Improve hand held safety with positive angle and thumb rest, suitable for left hand used.

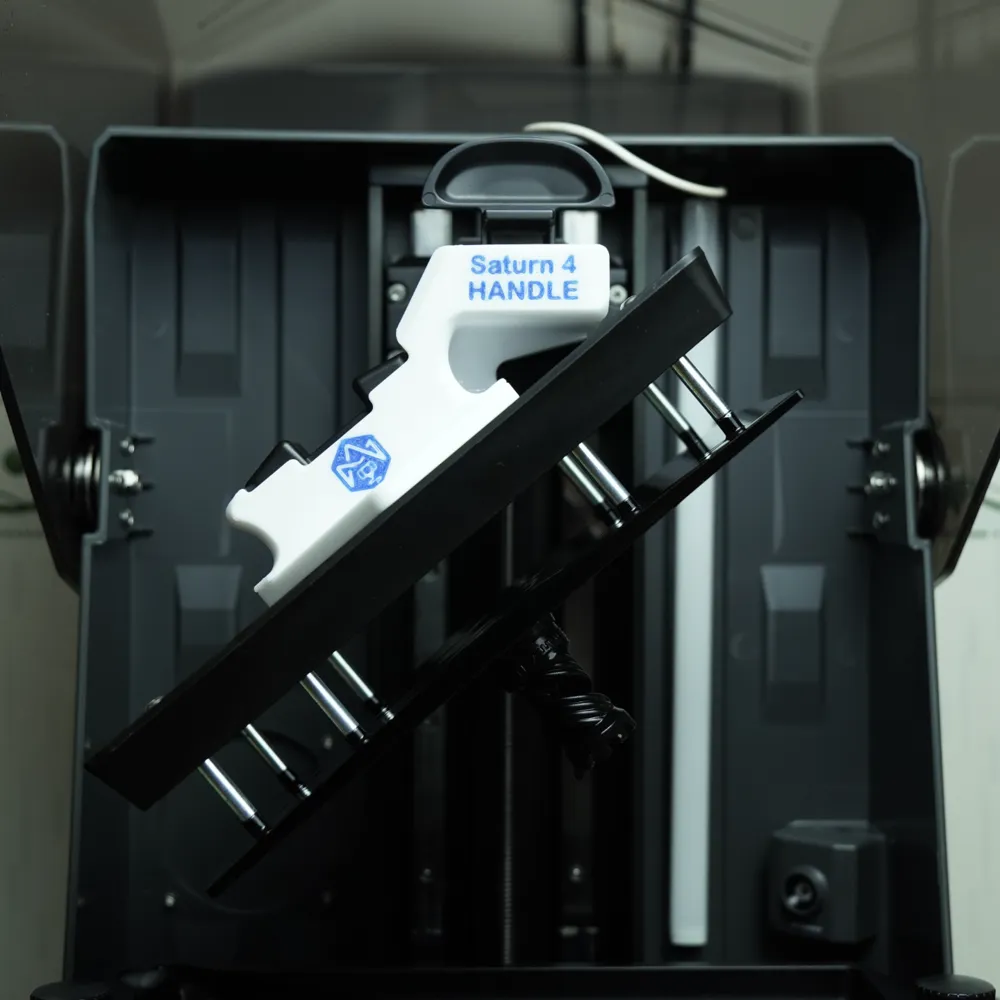

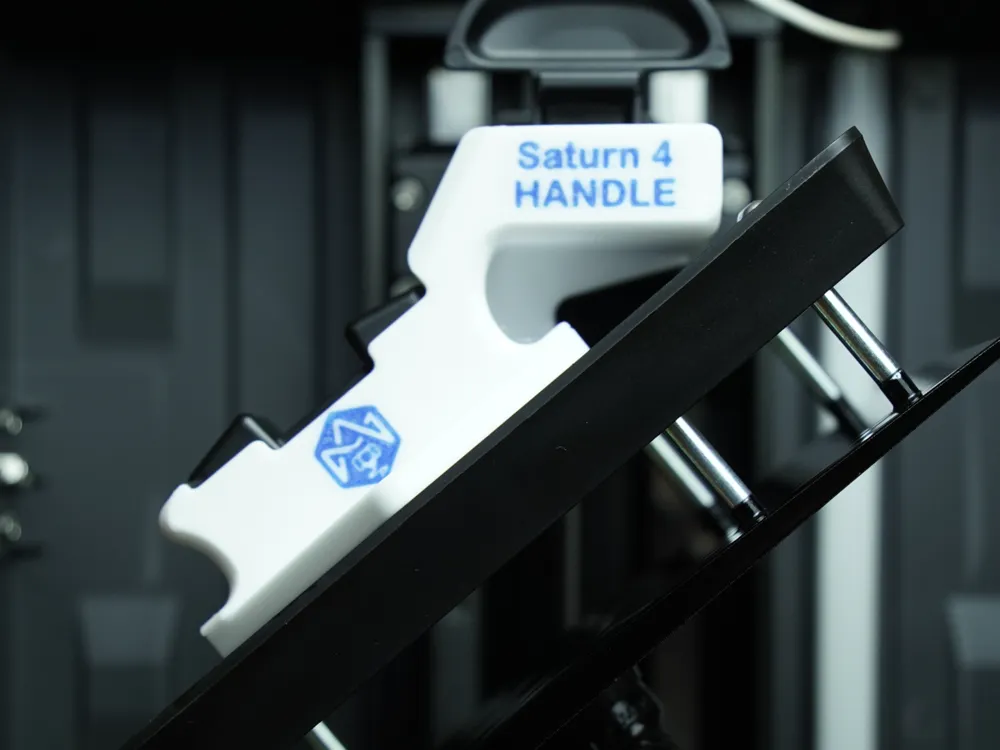

Purpose 2: Add a tilt slot to hang the bed at angle, save the most resin out of the bed gap and bed surface before washing.

Print with PETG, thicker wall thickness is recommended (I used 1.6mm and 30% infill). No support is required.

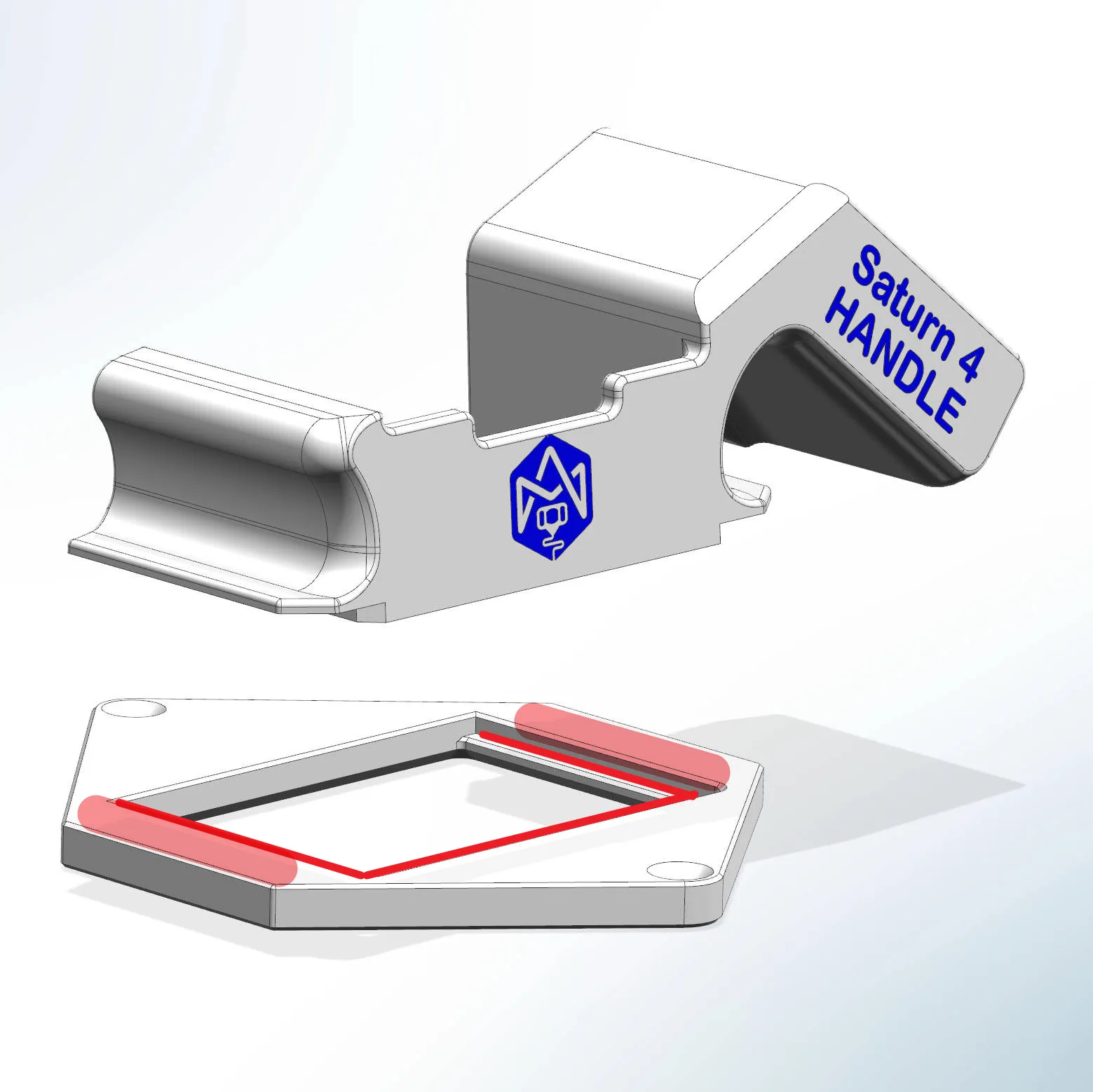

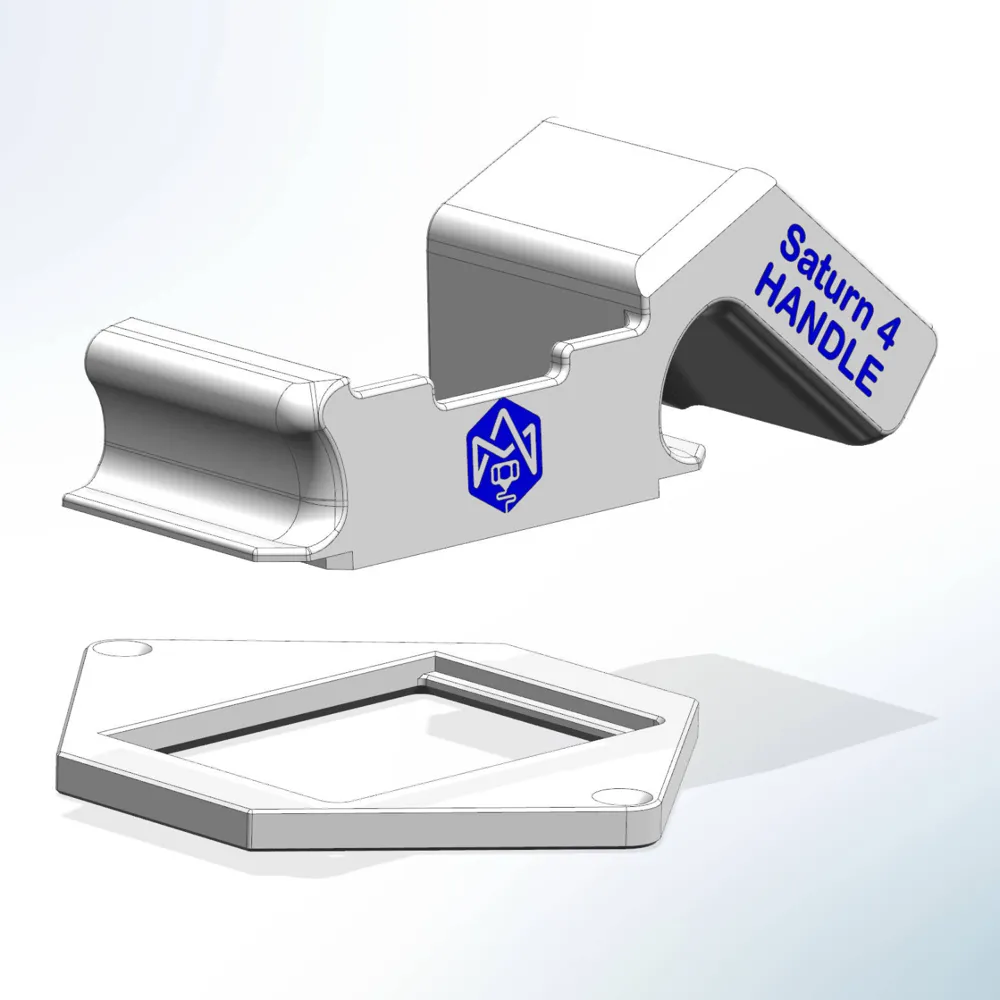

Some glue (I applied 3M Glue, recommend the best glue you can find, dont use cheap glue as it will be easy to break) is required to bond two part together

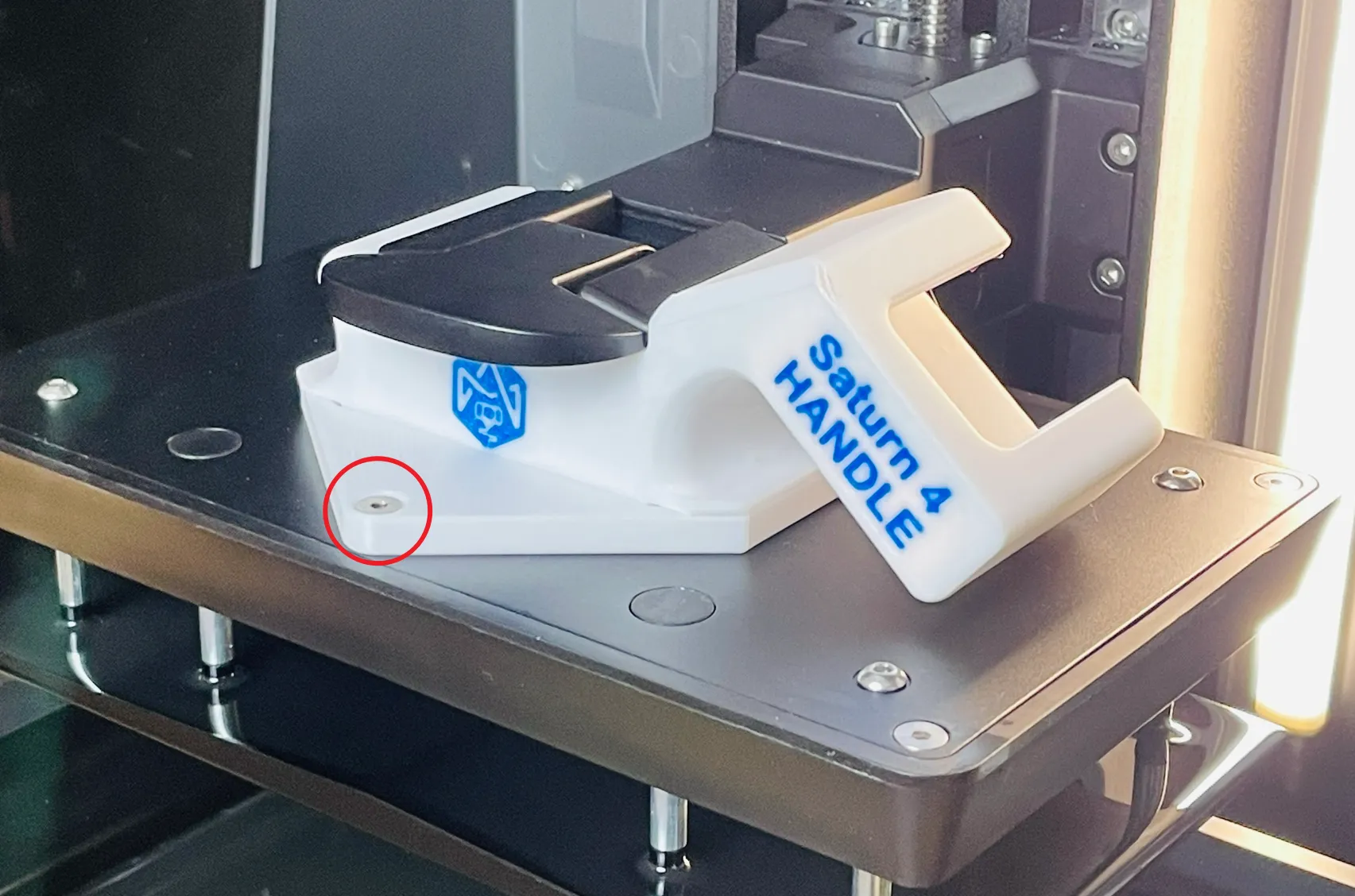

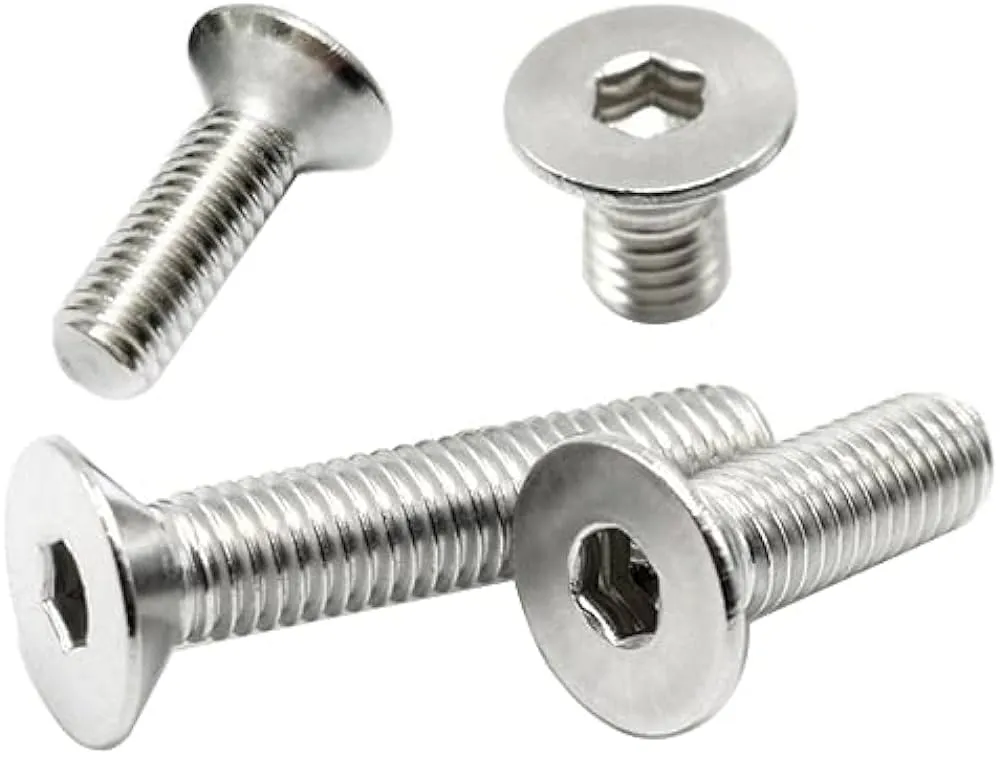

Assemble: Remove two tap screw in the middle and install the 3D printed handle with two M4x15 Screw (FLAT HEAD HEX SOCKET), both machine screw or plastic screw is applicable. Beside, screw length from 14mm to 20mm are applicable in this design.
