Broom wall hook - Halter Abstellkammer
Print Profile(3)
Description
Organizer for storage room
Dimensions : [mm] 184,42 x 217,09 x 30
Hole diameter : [mm] 5 (Dowel size 6)
It is recommended not to change the orientation of the model !
This is the only way to ensure the model's optimal stability !
During my first print, I aligned the holder flat, which resulted in a hook breaking under the weight of a broom !

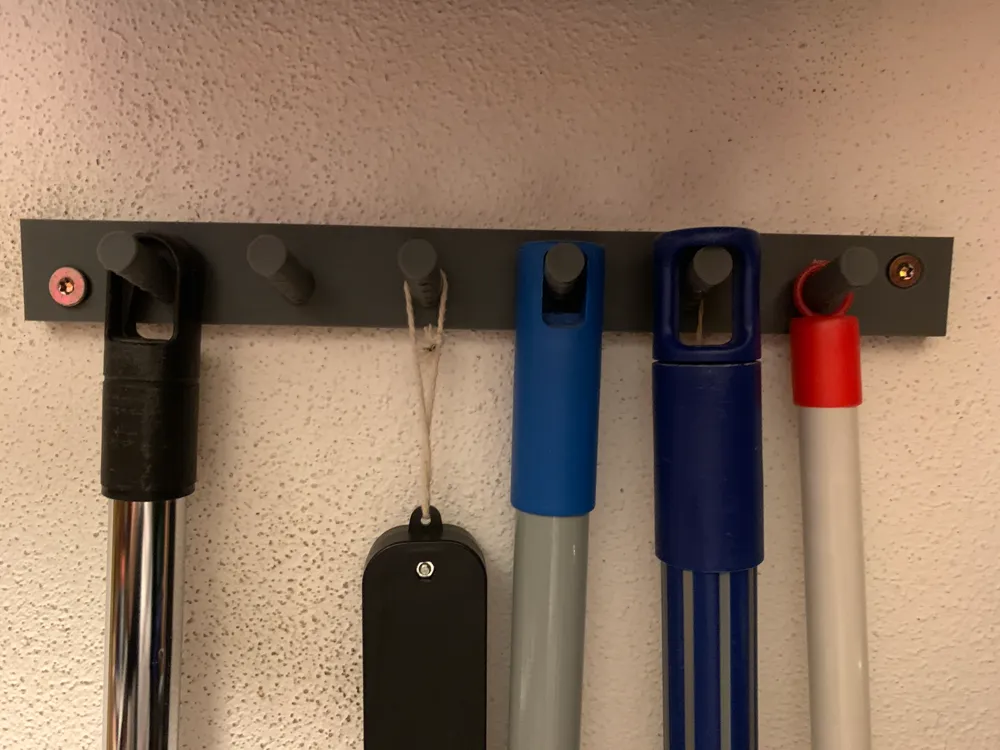

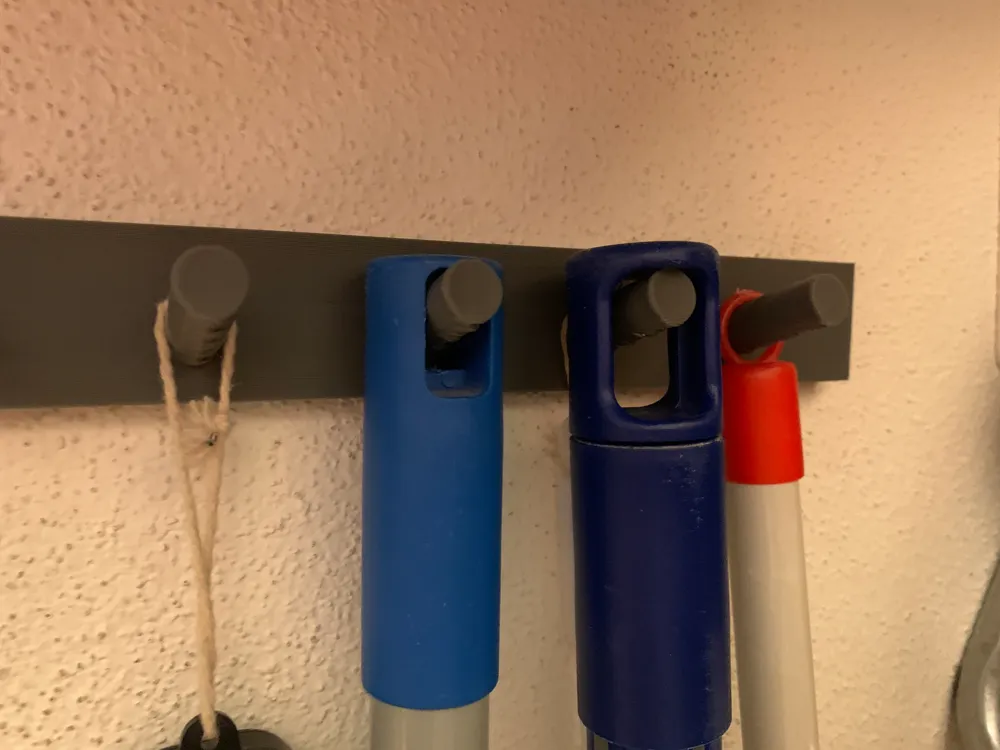

By orienting it sideways, the stability has significantly increased, and my holder has now been hanging in the
storage room for four years, fully loaded with brooms !
“Use DESIGNER profiles for proper alignment ”
No support is needed !!
layer height : 0,3 line width : 0,6
walls : 4 ; bottom: 4 ; top : 4
infill 30% ; print time ~ 2 h
Jayo Gray PLA Meta
MakerWorld : https://makerworld.com/en/@sweb3791
My Models : https://www.printables.com/de/@CB_384764/models
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
