Customizable label for "Knipextend" pliers
Print Profile(2)
Description
Boost Me (for free)
If you like my designs, feel free to hit the free Boost button 🚀 Your support helps me create more unique printable models!
Sadly the Knipextend pliers are not yet available, so i downloaded the STP File and created the models based on the part of one of the upcoming pliers. For attaching the label I would use double sided adhesive tape.
Today Knipex released the new set of pliers utilizing the “Knipextend” features,
they will have the option to attach a label, but also custom Modules.
STP File by Knipex is provided here.: https://insights.knipex.com/3d-druckdaten-knipextend
The Label dimensions are roughly 44 by 9 millimeters. I chose the height of 0.5 mm which is thin, but no issue for a leveled printer. Thinner is of course possible, but that can be customized. (Or you simply print a label using a labelmaker)
I will provide the "KNPX”, an empty label and the customizable (OpenSCAD) File. You can customize it using the Desktop-App or using the "parametric model maker" in MakerWorld/MakerLab.

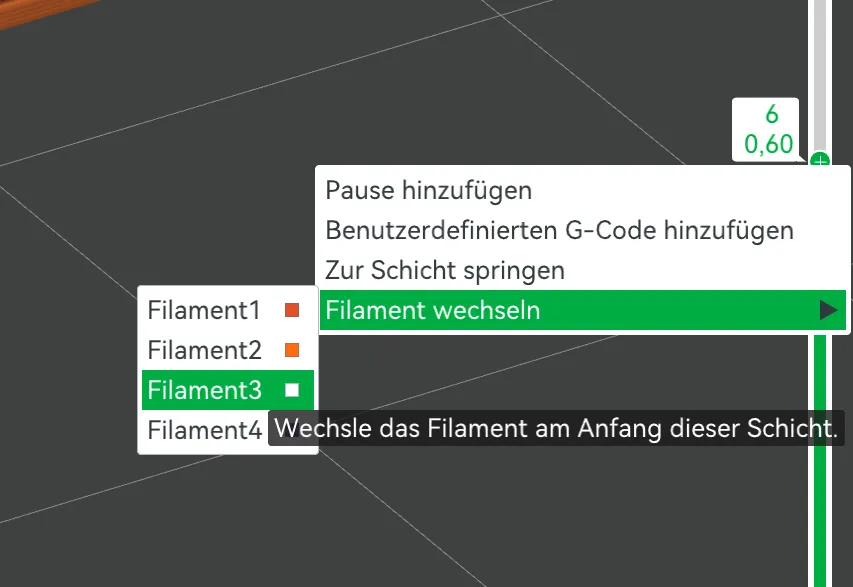

If you are using the default heights, you can add a “change filament at layer” afterwards.
If text and base are 0.6 mm high each, then please change the color at 0.6 mm.:
