Ultimate Mage Knight insert in the Original Box

This is an insert for Mage Knight Ultimate Edition (MKUE), but with a twist.

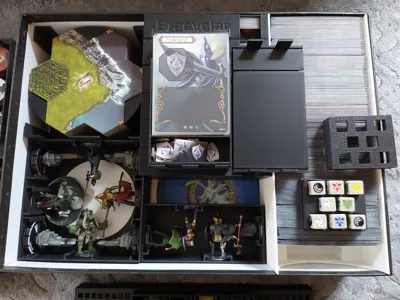

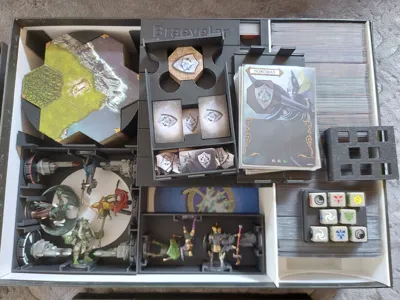

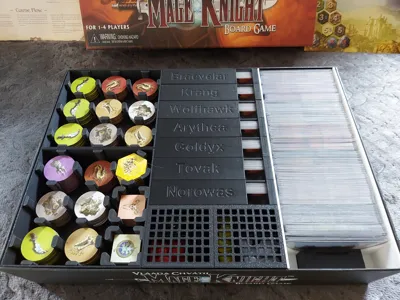

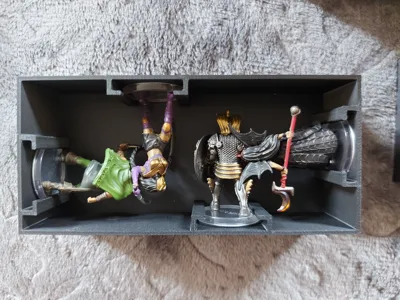

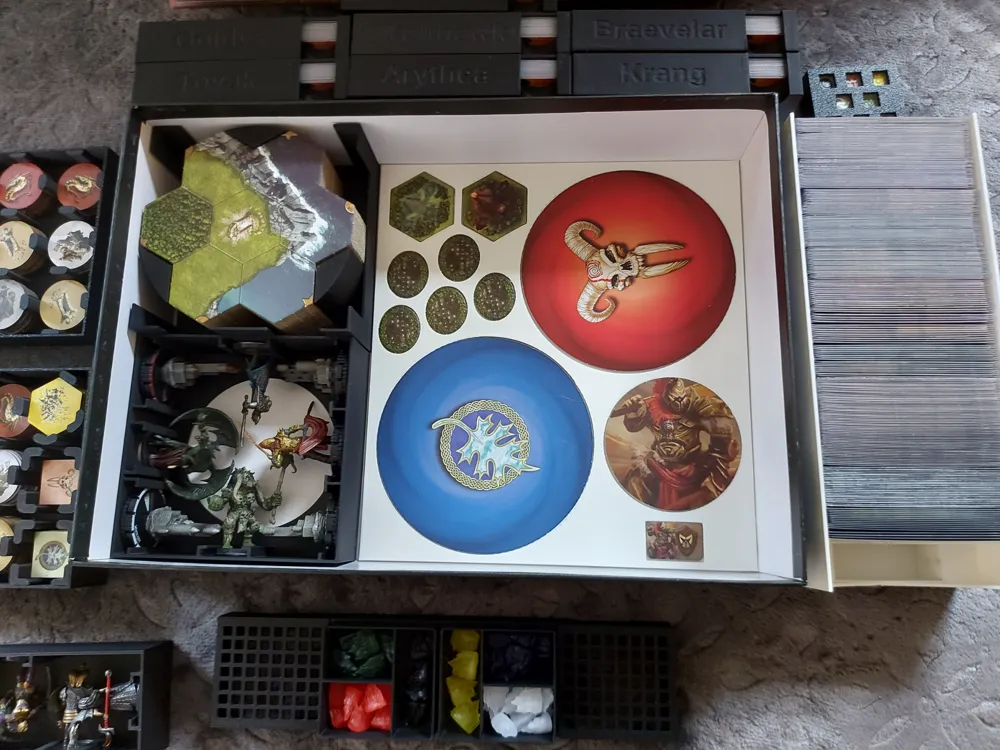

MKUE comes in a massive box and I wanted to design an insert that would reduce the size the game takes. As I had the original mage knight box (73mm x 245mm x 345mm), I decided to create this insert that fits all the MKUE components into the original Mage Knight's box. Additionally, I wanted to create an insert that would help me play the game without any expansion easily (to teach the game or have the “vanilla” Mage Knight experience). Because of this, I split (most of) the tokens and cards into separate compartments depending on whether they came from the base game or the later expansions.

Some of the models I use in this insert were adapted/modified from the great insert created by “Fabmaszter” in this design.

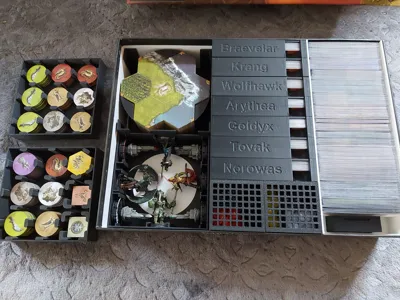

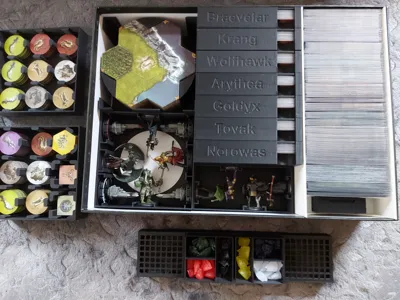

The 3mf file contains all the things that need to be printed in multiple plates. Note that the Character boxes all come with the name of the characters etched into them. In contrast, the STL files of the character boxes do not have the etched names. They would need to be added in whichever slicer is used (or CAD program/Blender).

As the space is overall tight, make sure your printer is properly calibrated to work with small tolerances. The smallest tolerance is 0.4mm for some components. Worst case, you might need to sand a few corners here and there.

The card dividers are designed to hold all cards with premium (100nits) sleeves. The compartments of the card divider are meant to hold the cards in the following order:

• Advanced Action Cards of the base game (28 cards)
• Spells of the base game (20 cards)
• Artifacts of the base game (16 cards)
• Basic Units of the base game (20 cards)
• Advanced Units of the base game (20 cards)
• Advanced Action Cards of the expansions (16 cards)
• Spells of the expansions (4 cards)
• Artifacts of the expansions (9 cards)
• Basic Units of the expansions (8 cards)
• Advanced Units of the expansions (8 cards)
• Wounds (54 cards)
• Site descriptions (23 cards)
• Tactic cards (12 cards)
• City descriptions (5 cards)

The tokens are also meant to be separated in the following order:

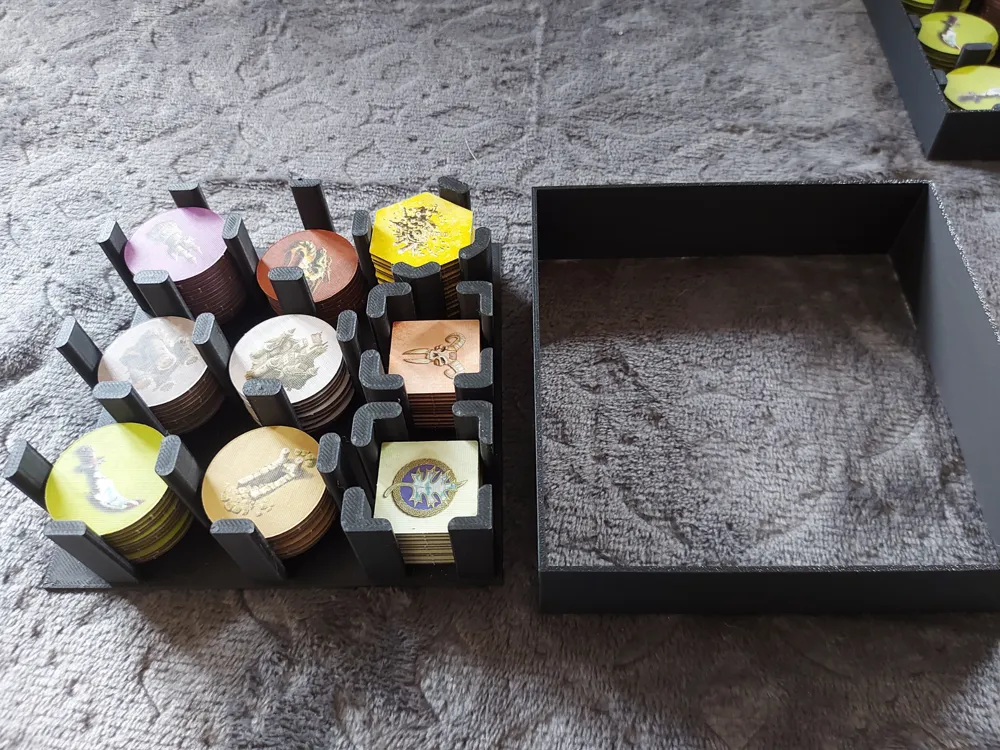

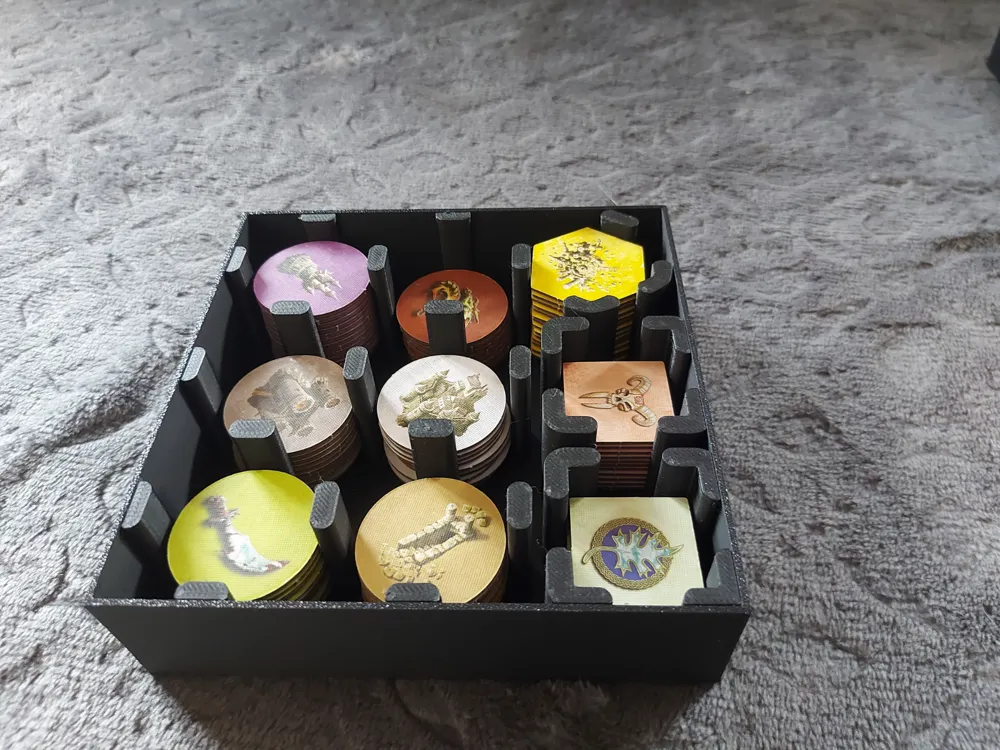

For the tall token tray, from top to bottom and left to right:

• 12 basic green tokens
• 10 basic gray tokens
• 10 basic purple tokens + 4 expansion purple tokens (+ one round divider to separate the two)
• 10 basic brown tokens
• 10 basic white tokens
• 6 basic red tokens
• 12 expansion tokens for 1st faction
• 12 expansion tokens for 2nd faction
• 12 basic yellow tokens + 3 expansion yellow tokens (+ one hexagonal divider to separate the two)

For the short token tray, from top to bottom and left to right:

• 8 expansion green tokens
• 8 expansion green tokens (of 1st faction)
• 8 expansion green tokens (of 2nd faction)
• 8 expansion grey tokens
• 8 expansion brown tokens (of 1st and 2nd factions)
• 8 expansion red tokens (of 1st and 2nd factions)
• 6 expansion brown tokens
• 6 expansion white tokens
• 6 expansion red tokens
