"Orange" Raspberry Pi 4/5 Cluster (Kubernetes)
Print Profile(2)
Bill of Materials
- 92mm x 25mm 5V USB Fan x 1:
- SABRENT 60w USB Power supply x 1:
- Raspberry Pi 4 or 5 x 1:
Description
“Orange” Raspberry Pi 4/5 Cluster (Kubernetes)
Love music and technology? This may be the case for you!

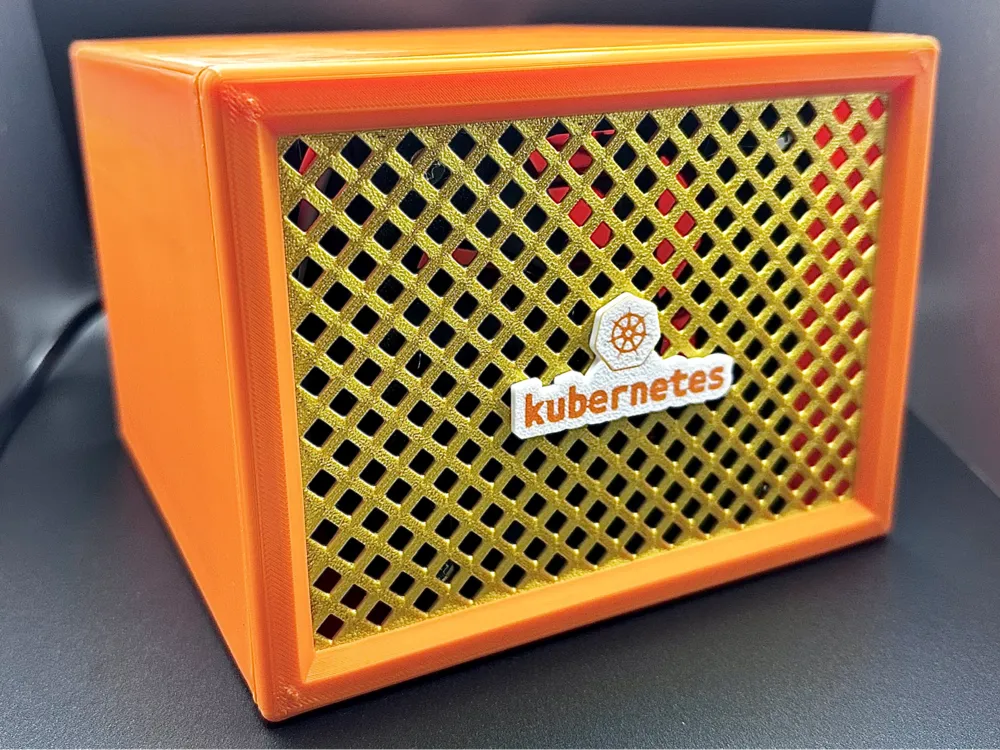

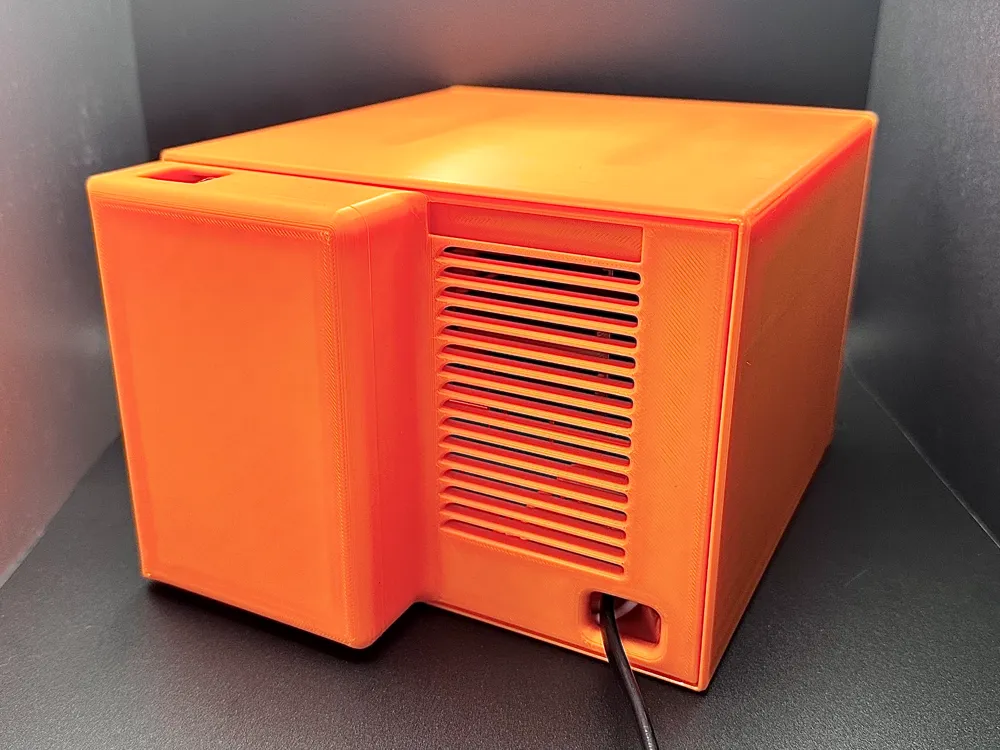

I designed this Raspberry Pi cluster case to look like an “Orange” speaker box. This was for a friend who is running Kubernetes on his Pi cluster. This is compatible with Raspberry Pi 4 and 5s.
Assembly Instructions

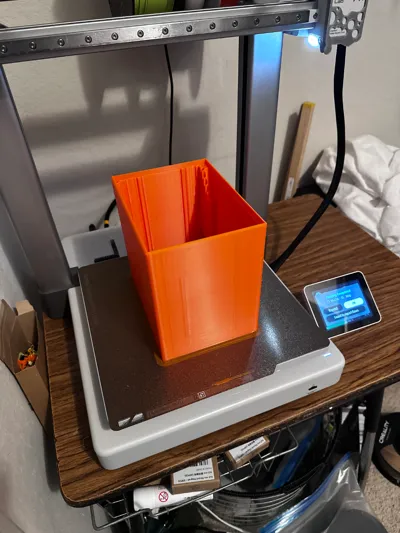

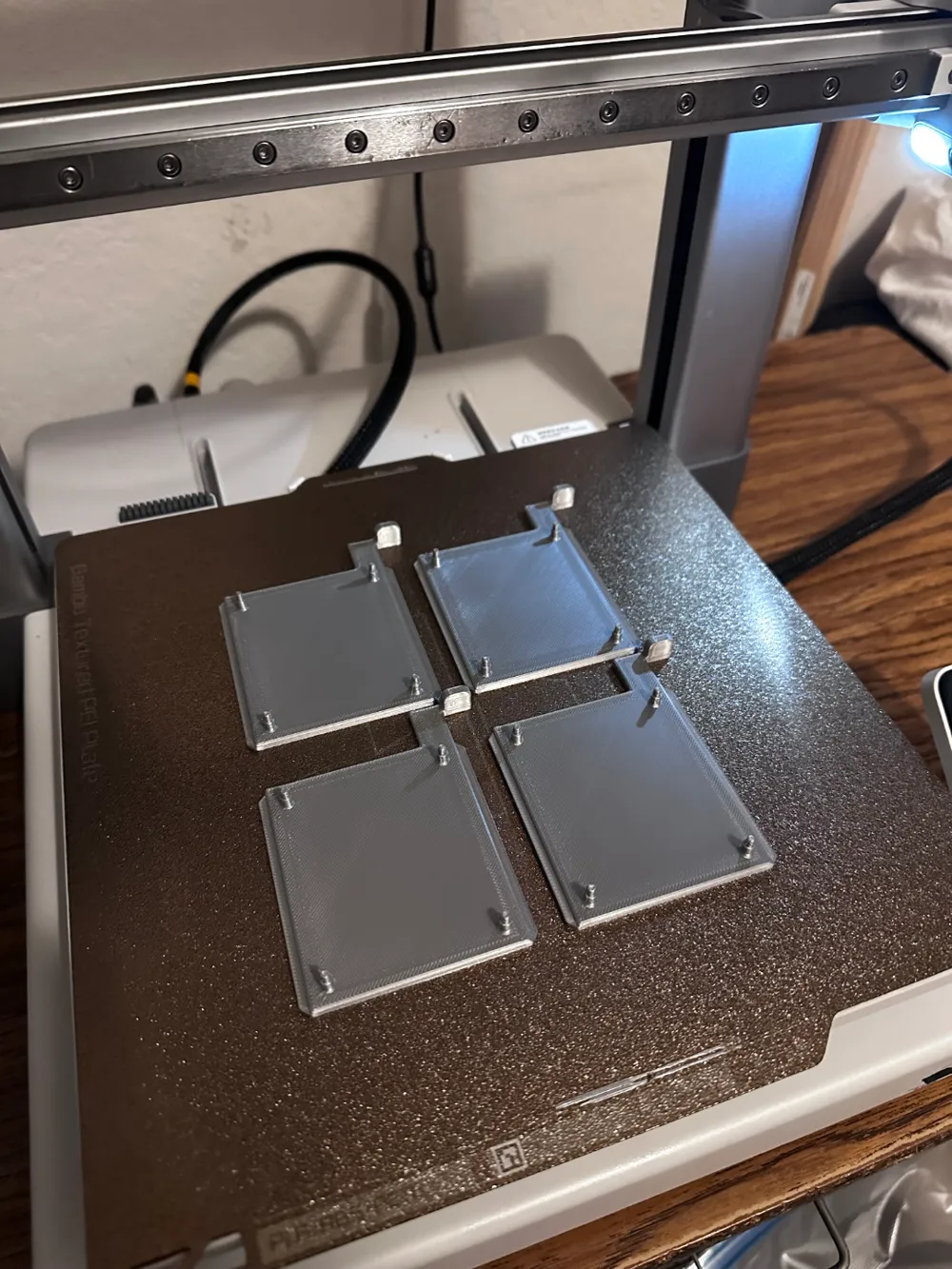

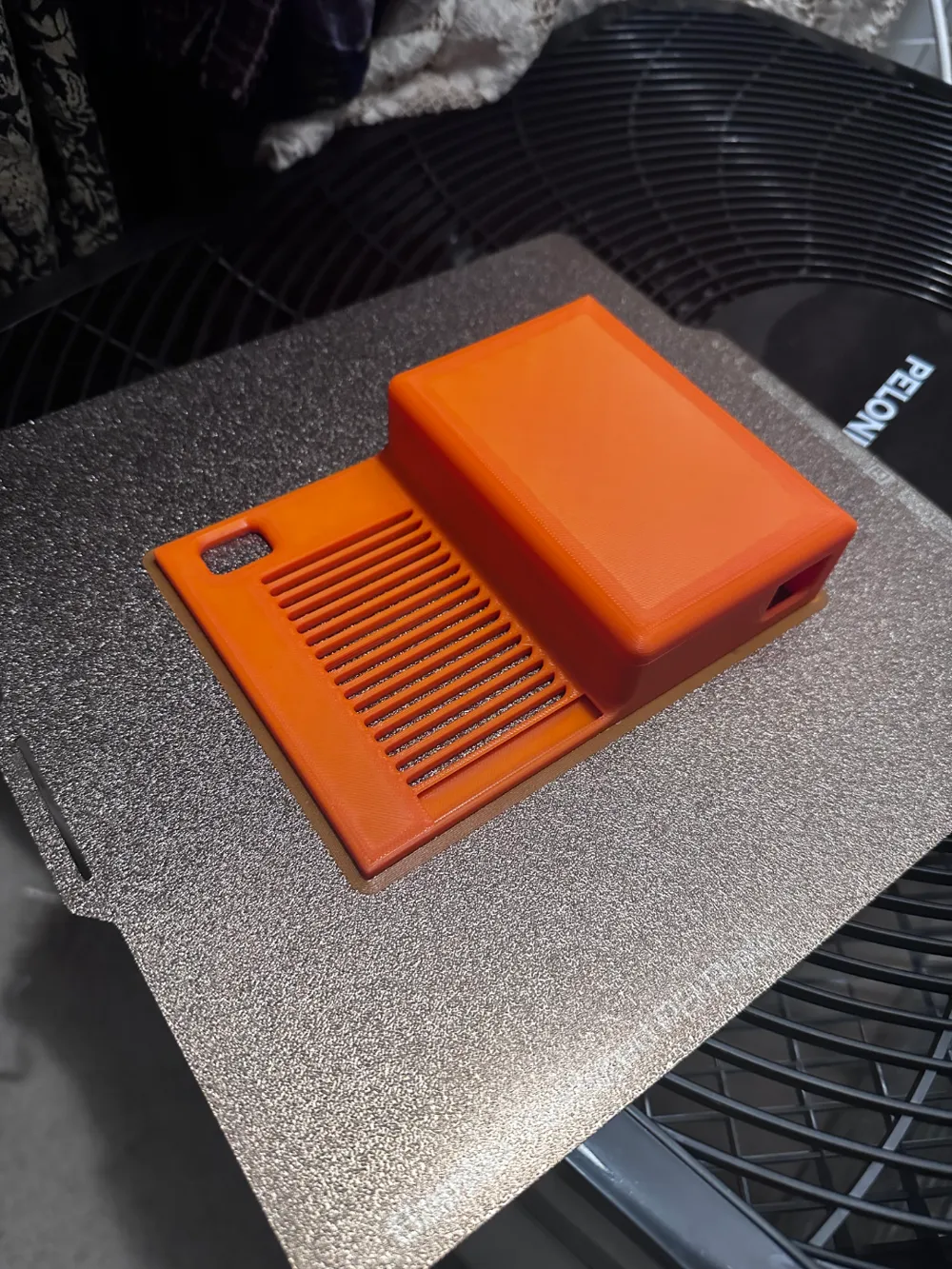

All models in the 3mf are oriented to be printed. If you download the models separate, references the 3mf file for placement.
Everything should snap into place, though some magnets (4mmx2mm) needed to be glued as well as press fit.

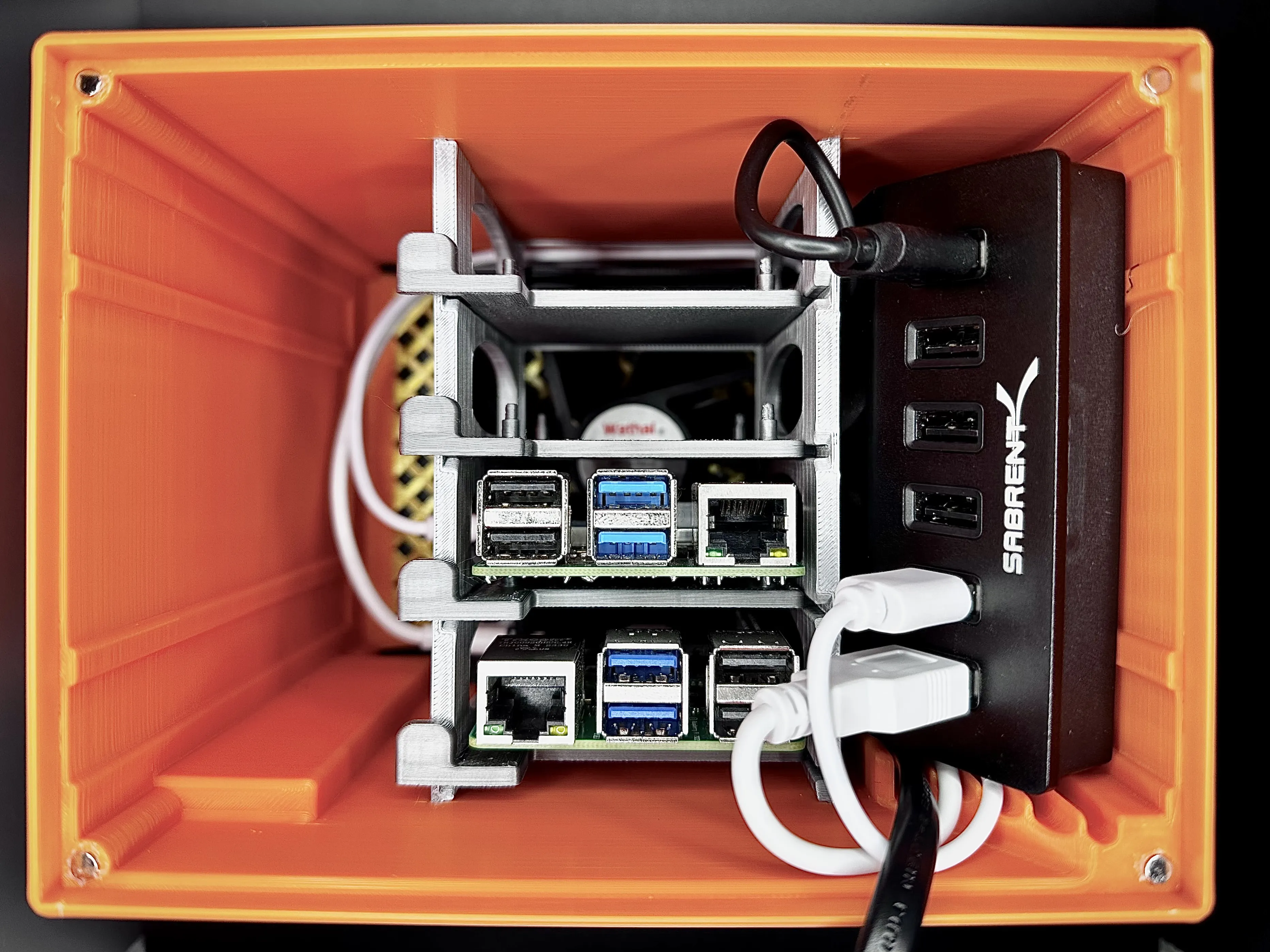

This is akin to a mini ITX build, so wiring can be challenging to get setup cleanly, but there's wire routing guides below the USB power supply.
As you can see from the image above, using USB cables with smaller plugs will help provide additional clearance for ethernet cables, etc.
Parts
4x2mm Round Magnets - https://store.bambulab.com/products/round-magnet

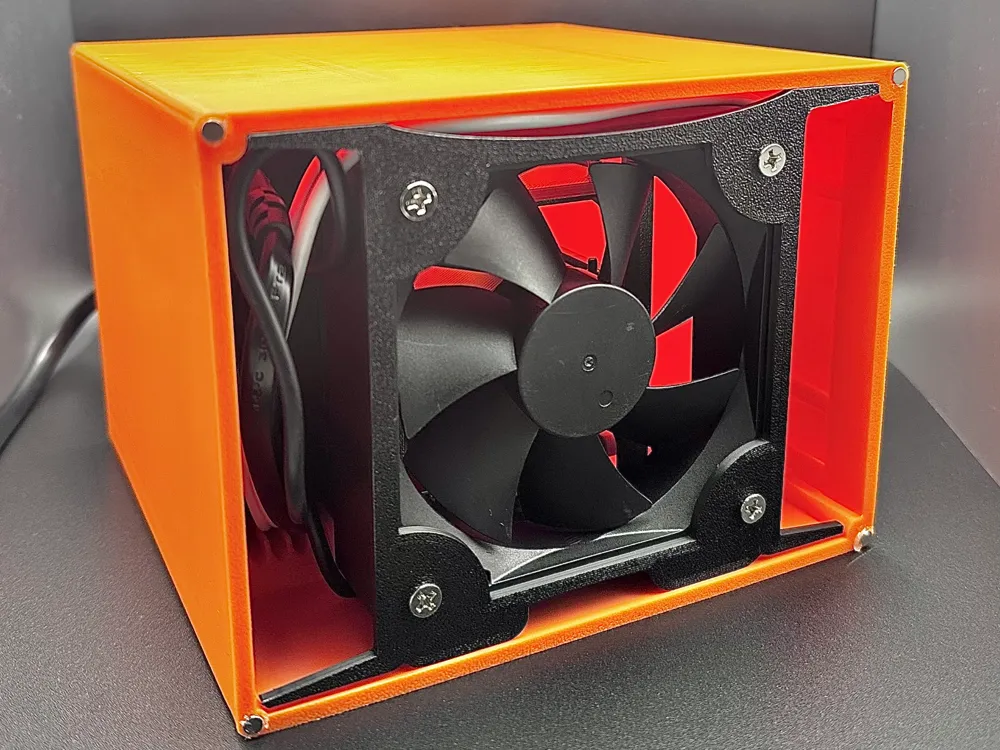

2 Packs 92mm x 25mm 5V USB Fan (Only need 1 fan) - https://www.amazon.com/dp/B08BP4C9DQ
SABRENT 60w USB Power supply - https://amazon.com/Sabrent-Aluminum-Family-Sized-Technology-AX-FLCH-B/dp/B01D336HBG
Raspberry Pi 4 or 5 - https://www.raspberrypi.com/products/raspberry-pi-5/
