Description

⚠️ Important Notice – Please Read Before Printing an AMS Riser
Due to a license change by benlevi, the original creator of my AMS Riser V2, I am no longer able to update the description of this model. I have already reached out to Support about this issue, but they were not able to help me – because of the license change, this situation is simply how it is, there is nothing more I can do on my end to modify the listing.

I'm currently receiving an increasing number of complaints from users who have printed the Riser V2 for the Bambu Lab P2S or X2D

⚠️ Compatibility – please double-check before you print:
Riser V2 → P1S, P1P, and X1C
Riser V3 → P2S and X2D
Printing the wrong version will result in fitment issues, as the printer dimensions and mounting points differ between generations.
Thanks for your understanding, and sorry for any confusion caused by the locked description – my hands are tied here, but I hope this notice helps clear things up!

You may need more space for Buildplates? Printed already my Riser V2 or plan to do so?

This could be an option.
This connect the awesome “Build Plate Rack - Bambu X1/P1” by toolmantim313 to my Riserv2.

I`ve changed some details on the Build Plate Rack but if you already have one i think its compatible.

I´ve added a bin with removable 2x5 Gridfinity on the Top of this construction.

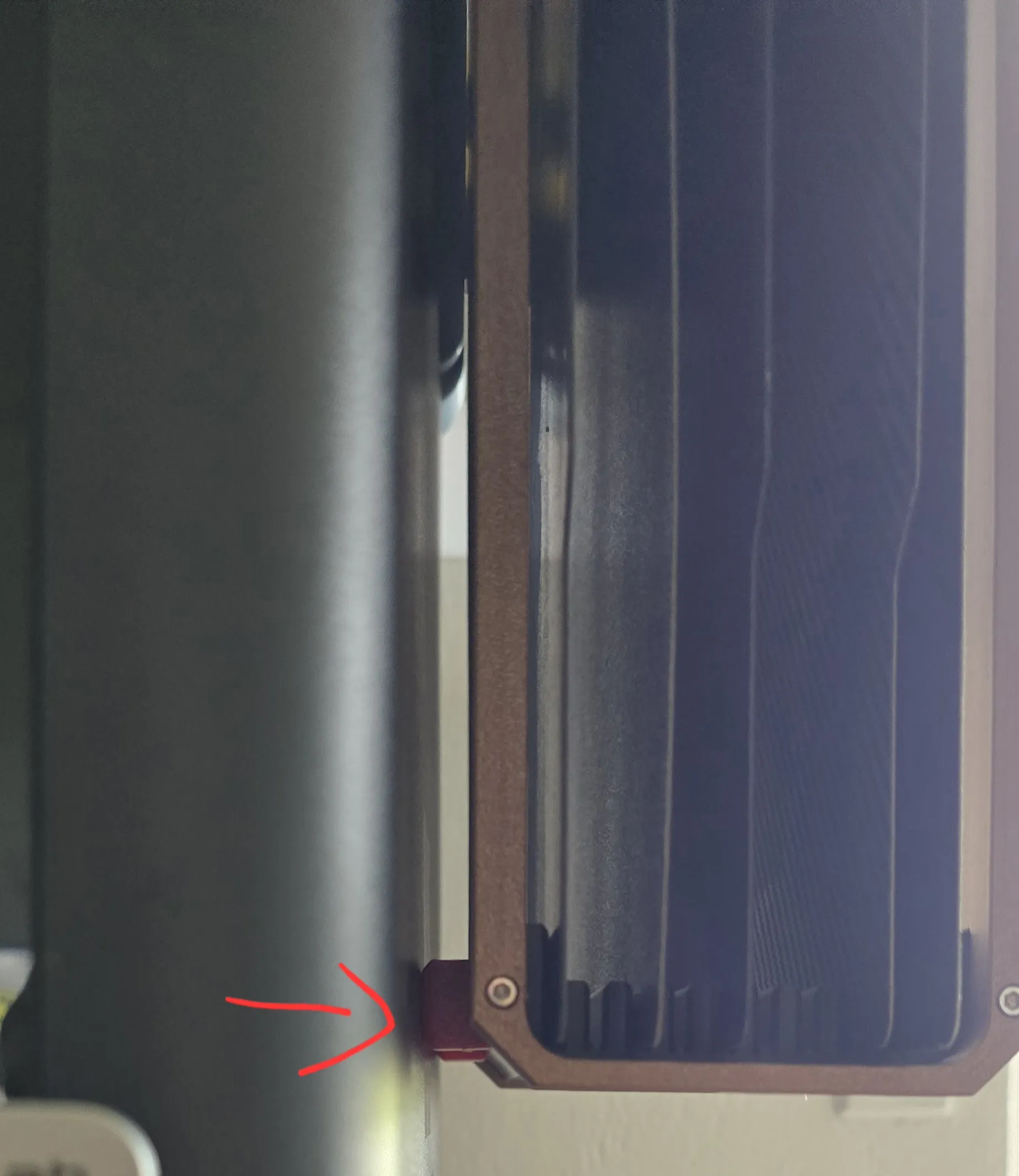

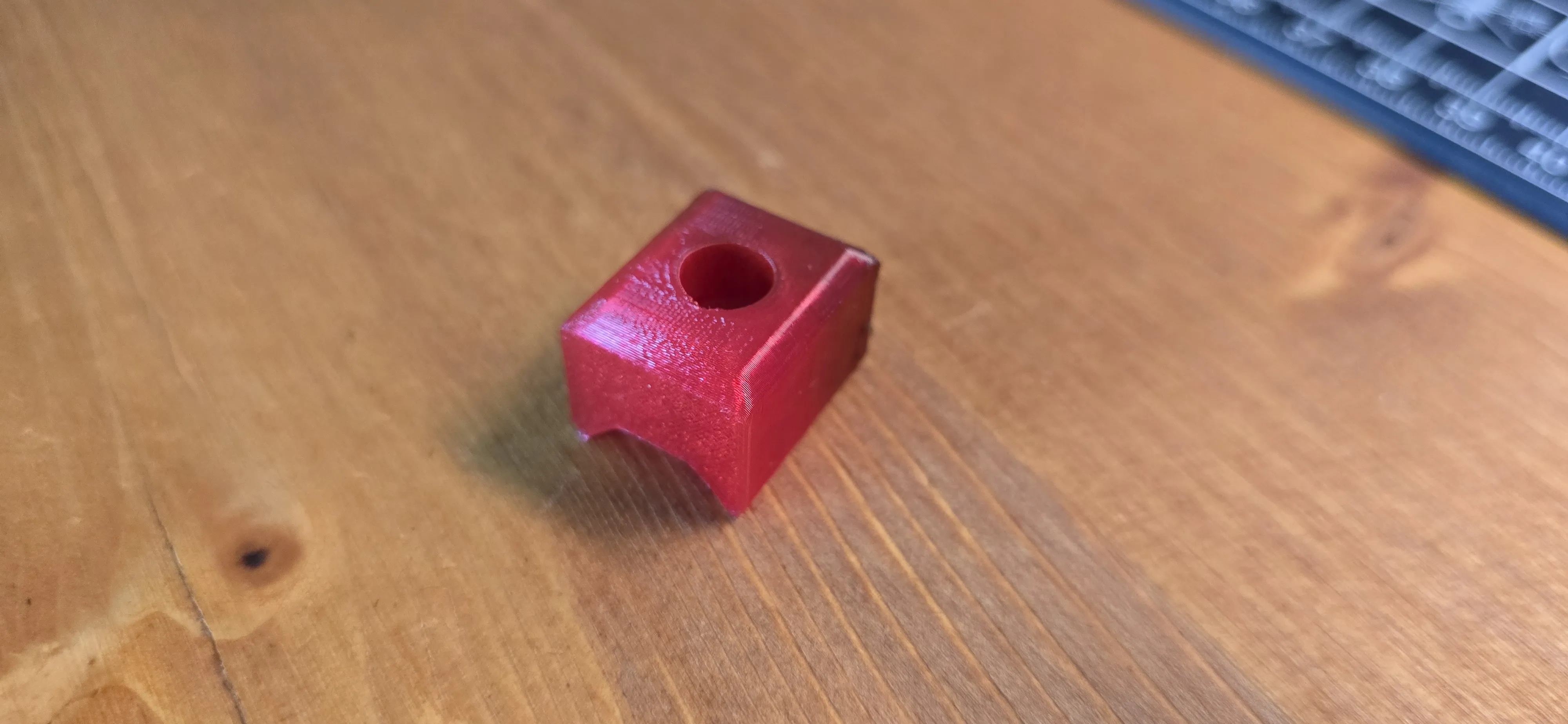

2024/07/03 added a Bumper made from TPU
