L. H. B. (Layer Height Benchmark)

L.H.B. (Layer Height Benchmark)

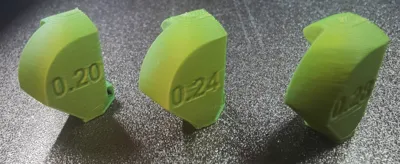

The L.H.B. (Layer Height Benchmark) epitomizes precision in 3D printing, offering a thorough evaluation of print quality across various layer heights. Crafted with meticulous detail, this model is indispensable for enthusiasts striving to optimize their printing processes.

OBS OBS OBS

Flow: its very important that your flow rating is spot on!
Bed: Due to a small contact area with the bed please make sure the bed is SUPER CLEAN, to help it stick!


OBS OBS OBS

Key Features:

Partial Sphere Shape: Anchored by a partial sphere, the L.H.B. provides insights into how printers handle curved surfaces and transitions between different layer heights, offering tangible feedback on printing capabilities.

Overhang Challenges: Featuring overhangs at angles of 22.5°, 45°, and 60°, the L.H.B. rigorously tests a printer’s structural integrity without additional supports, revealing its performance under varied conditions.

Reverse Angles: Incorporating reverse angles, the model simulates negative overhangs and inward sloping surfaces, enabling assessment of precision and retraction settings.

Sharp and Rounded Edges: A blend of sharp and rounded edges evaluates a printer's ability to handle intricate details and smooth curves across different layer heights.

Surface Quality Zones: Segmented sections facilitate focused examination of surface smoothness, aiding users in pinpointing the optimal layer height for achieving flawless finishes.

Triangle-Shaped Hole: The inclusion of a triangle-shaped hole adds complexity to the model, challenging printers to accurately reproduce geometric shapes.

Rounded Edge (Radius 1.25mm): A rounded edge with a precise radius of 1.25mm further tests the printer's capability to maintain intricate details and fine features.

Small Plato with Flat Top: The addition of a small plato with a flat top presents a unique challenge, assessing the printer's ability to produce smooth, even surfaces on a smaller scale.

Efficiency and Economy

• Material Usage: Despite its complexity, the L.H.B. minimizes material usage, consuming just shy of 4 grams of filament per print, ensuring economical usage without compromising quality.

The L.H.B. emerges as an invaluable visual quality tool, providing a comprehensive assessment of 3D printing capabilities. By leveraging this model, enthusiasts can fine-tune their printers and achieve superior print results, elevating the overall quality of their projects with precision and finesse.
