[Touhou Project] Reimu Hakurei • Deformable Control Rod

• 【本项目为东方Project的二次创作，最终版权归上海爱丽丝幻乐团所有 This project is a secondary creation of the Touhou Project, and the final copyright belongs to the Team Shanghai Alice】
• 【本项目为MinusT所作的3d东方系列的二次创作，模型外观版权属于MinusT先生 This project is a secondary creation of the 3D Touhou series created by MinusT, and the model's appearance copyright belongs to MinusT】

======================================================

Project Introduction

This project is Utsuho Reiuji's transformation control rod from MinusT's "[Touhou 3D] Subterranean Stars", which can unfold and transform forward into its magic cannon state

Based on the anime's appearance, the internal structure has been thoroughly designed, giving it considerable manufacturability and ease of installation After making approximately 8 control rods, the technical design has stabilized

This transforming control rod features two sets of movable parts First, a rotating ring at the head drives three sets of small guide rails Second, the main casing can slide forward, and three sets of linked parts will automatically unfold simultaneously

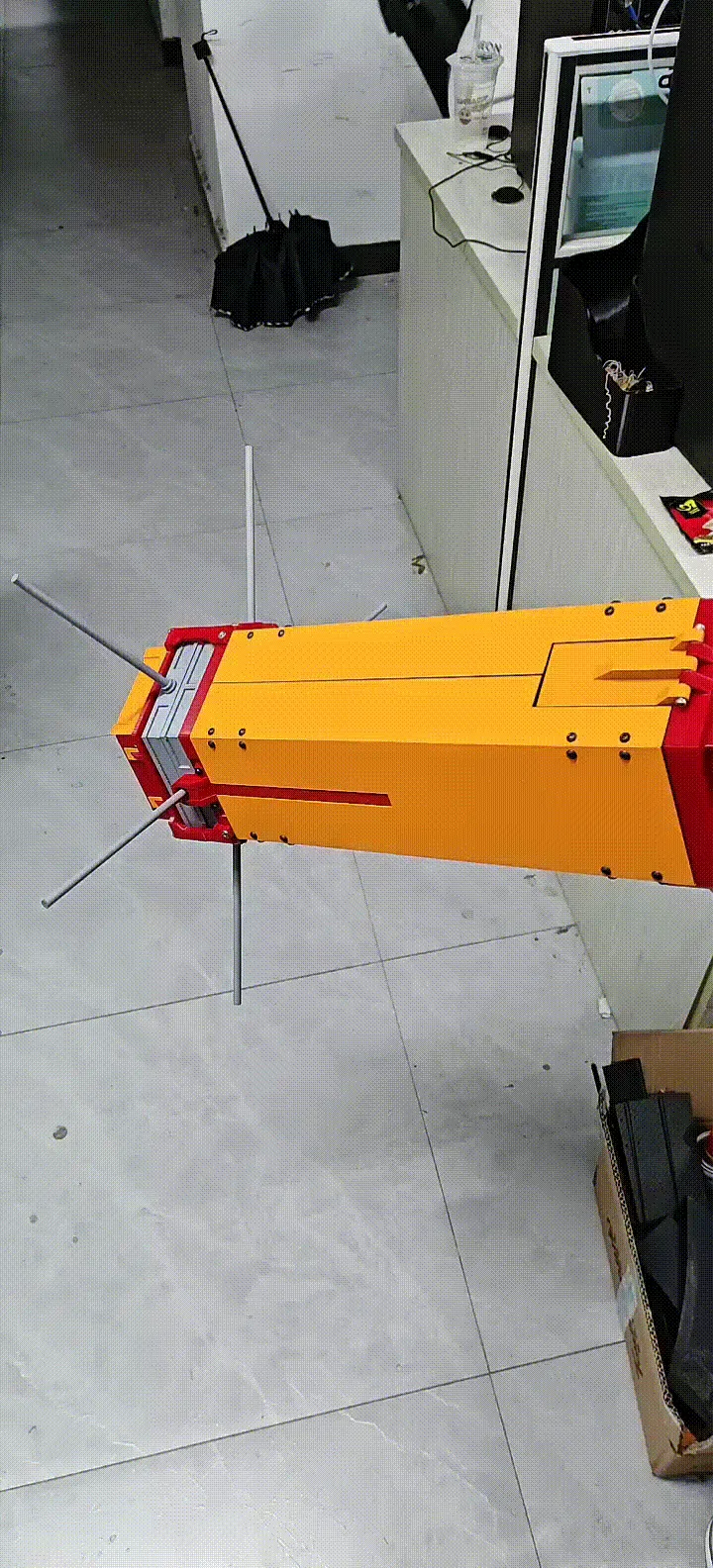

See the GIF below for a demonstration

3D/2D CAD drawings download link【Very important, please download together!】：

Link: https://pan.baidu.com/s/1qtOLQpAnYaCDngzxorvRA
Extraction code: 9961

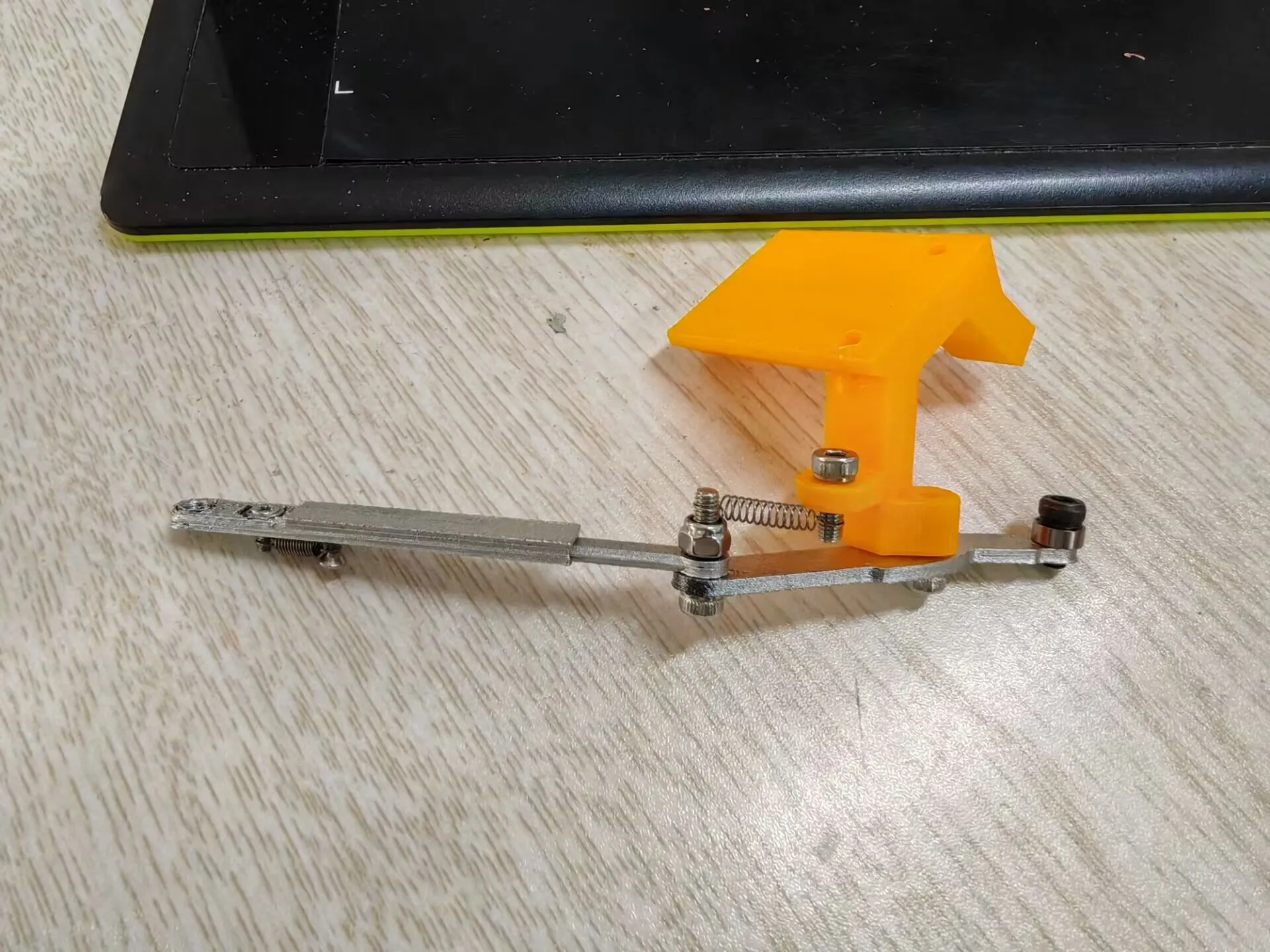

Note: The installation method of the springs in the model is shown in the figure There is only one type of spring, but two locations require it

Description to be added... Will update as needed
