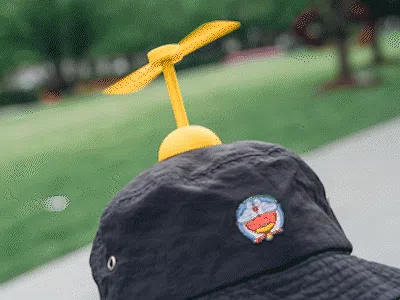

Bamboo Copter That Spins! Real-Life Doraemon

GIF

Print Profile(1)

All
P1S
H2S
X1
H2D Pro
X1 Carbon
H2C
X1E
H2D
P1P
P2S
A1
X2D
A2L

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
6.6 h
4 plates
5.0(7)

Open in Bambu Studio
Boost
147
289
11
17
282
83
Released

Description

Content has been automatically translated.
Show original

The PDF assembly instructions include a bill of materials

The instruction manual includes a parts list



Boost Me (for free)

ヾ(o′▽`o)ノ

Doraemon's Take-Copter Electric Headgear

哆啦A梦的竹蜻蜓电动头饰

  1. Print the take-copter, propeller, and battery cover
  2. Heat the top rod and install the hollow cup motor
  3. Solder the limit switch and terminal wires
  4. Secure the switch and wires with hot glue
  5. Attach the battery
  6. Neaten the wires and insert the battery
  7. Affix the magnet using super glue
  8. Insert the coupler into the propeller's center
  9. Attach the propeller, optionally securing it with super glue
  10. Select an appropriate base—three options are provided in the model—and attach the magnet
  11. Secure the base to a hat, helmet, headband, or hair clip
  12. Enjoy

The model also includes a Doraemon-themed storage base for elegantly displaying your Take-Copter; the limit switch remains inactive during display

  1. Print the main part, propeller, and battery cover
  2. Heat the top rod and install the hollow cup motor
  3. Solder the switch and wires
  4. Fix the switch and wires with hot glue
  5. Connect the battery
  6. Organize the wires and insert the battery
  7. Attach the magnet using super glue
  8. Press the Connector into the middle of the propeller
  9. Insert the propeller, which can be fixed with super glue
  10. Choose the appropriate base (three types provided in the model) and attach the magnet
  11. Fix the base on a hat, helmet, hair hoop, or hair clip
  12. Go have fun!

The model also includes a Doraemon-style storage base for displaying your Take-Copter, which does not trigger the switch when displayed
