This model is build from the ground up to house a slimagotchi with PiSugar3 battery and Waveshare V4 screen.

All ports and the two buttons of the PiSugar are accessable. The back of the case has a locking dovetail joint.

It was modeled to be printed without supports using overhangs. If you want cleaner surfaces around the ports, feel free to add supports yourself.

UPDATE Feb/2025

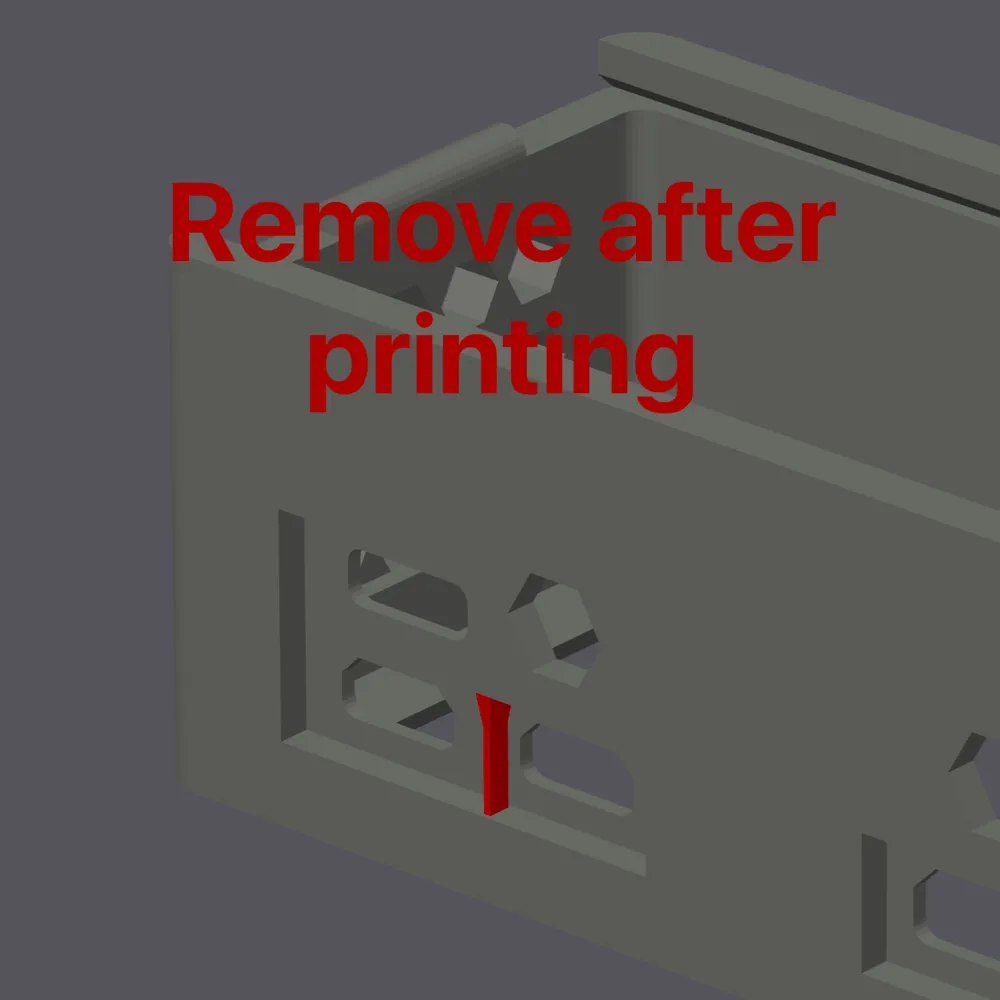

Thanks for the feedback. I have added more space around the ports. There is now one small support piece built into the model that should be removed (see picture). I also made the buttons taller to they are a little easier to press. Additionally i added a second version with 5.5mm extra space between the raspi and screen. This could allow a non-modified pwnagotchi to be fitted but please measure your device to ensure it will fit. Thanks!
