Description
Boost Me (for free)
If you like this model, please support my work with a boost, thank you very much!!
Update 4/13/25

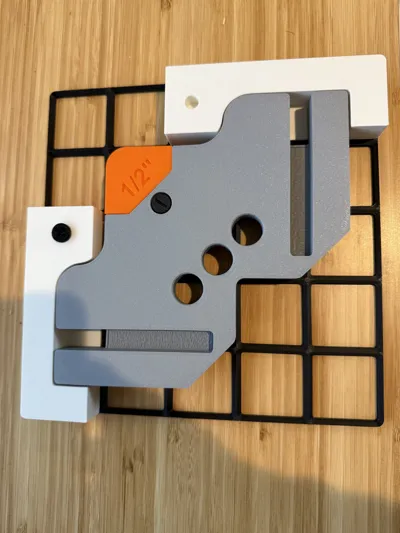

- added a Gridfinity holder for the base. It prints in 2 smaller parts rather than printing a huge 5x5 holder. Can also hold 2 additional screws.

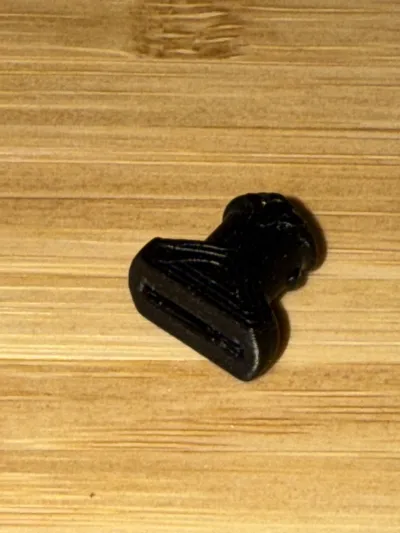

- added a much stronger screw that prints on its side. It doesn't look as good but might be a good option if your screws tend to snap when you tighten them.
Update 3/31/25:
- added 1/4" and 3/8" plates
- added a 9 plates holder to hold all 9 imperial plates
Corner radius router jig with changeable inserts. Can be clamped to the work piece to use with a handheld router.
The base is design to accommodate track saw clamps (slots for the clamps are 12mm wide, 7.5mm deep)
Inserts are available in metric and imperial measurements.
The base requires some support for the clamp slots.
Print the screw in PETG(or ABS/ASA), 100% infill . Don't over tighten it or it might snap.
