Shoji Pedestal Stand Lamp
Print Profile(2)
Description

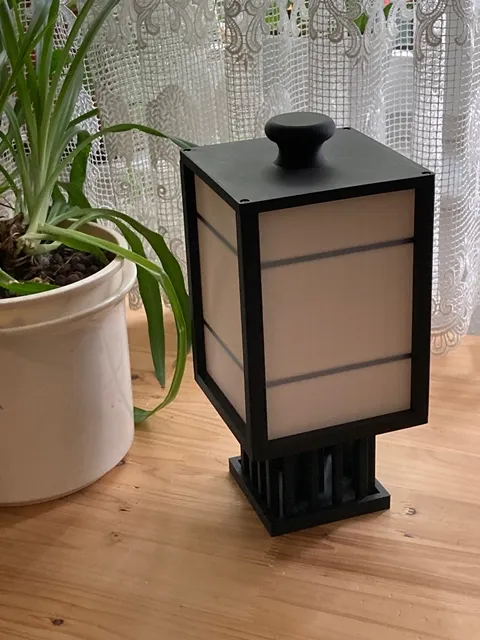

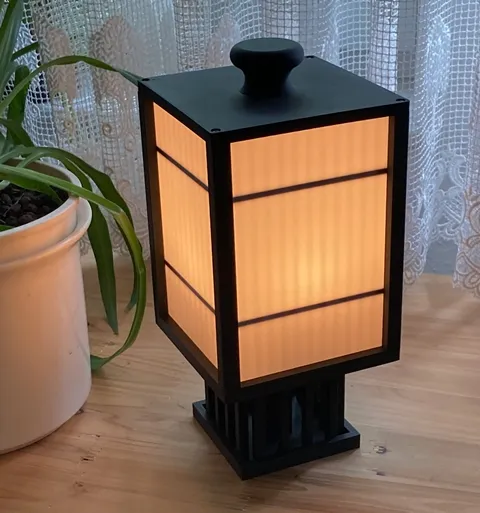

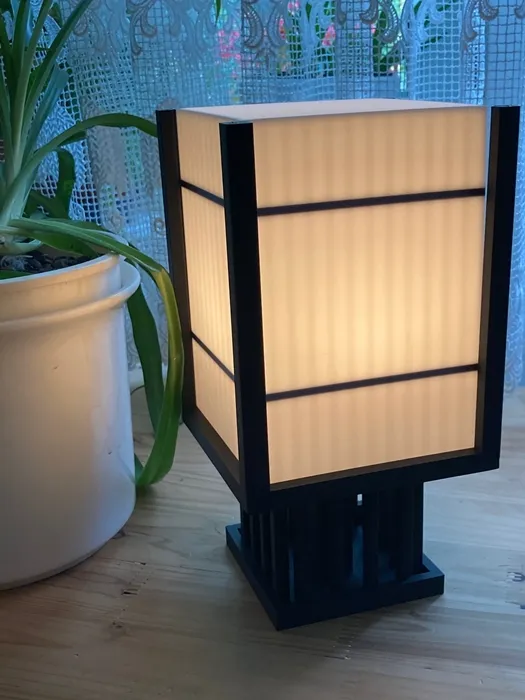

Pedestal style Japanese Shoji style lamp.
Shade measures 180 mm height x ~140 Width
The shade has ribs embossed on the inside to create the ribbed effect once the bulb is lit
Lamp with walls, base and top: 305 mm height by 140mm width
Print 1 each of the base, the shade holder, the shade and the top.

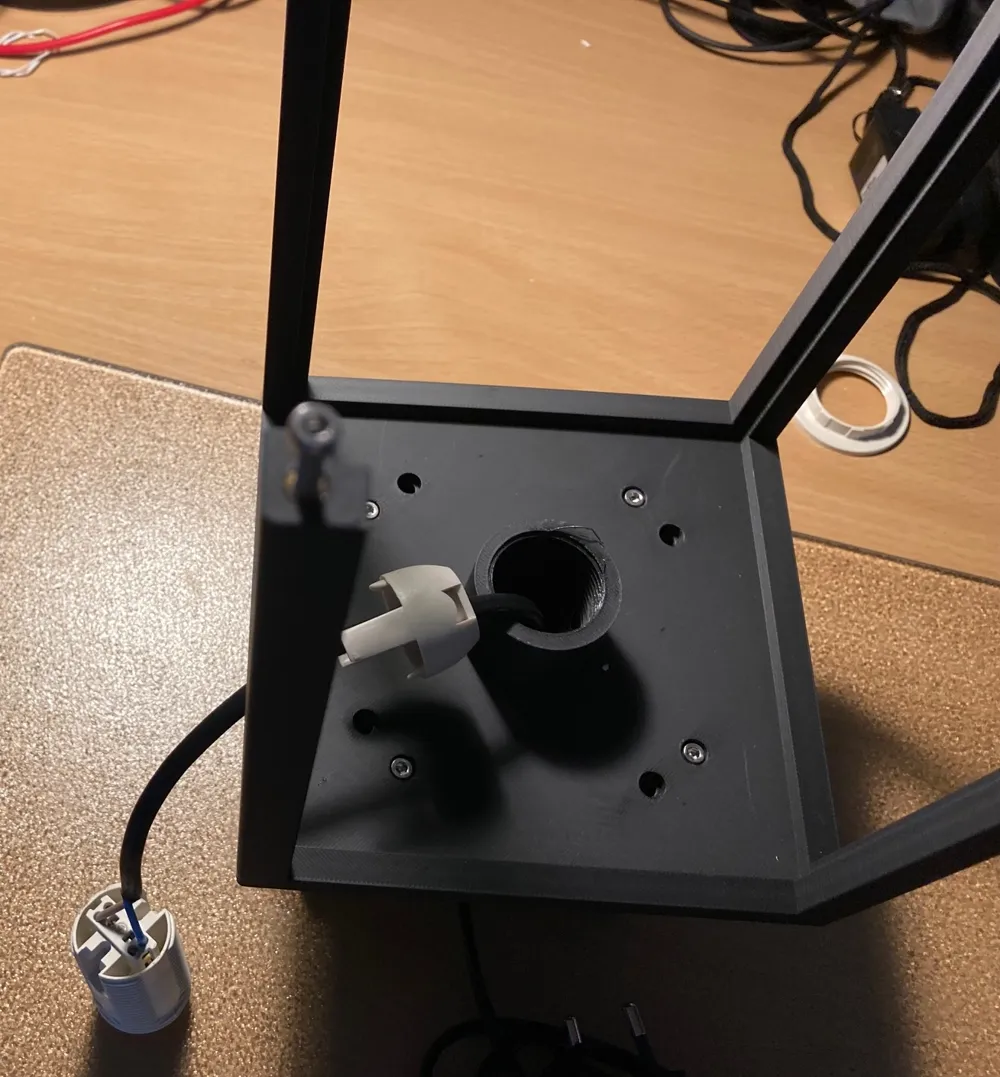

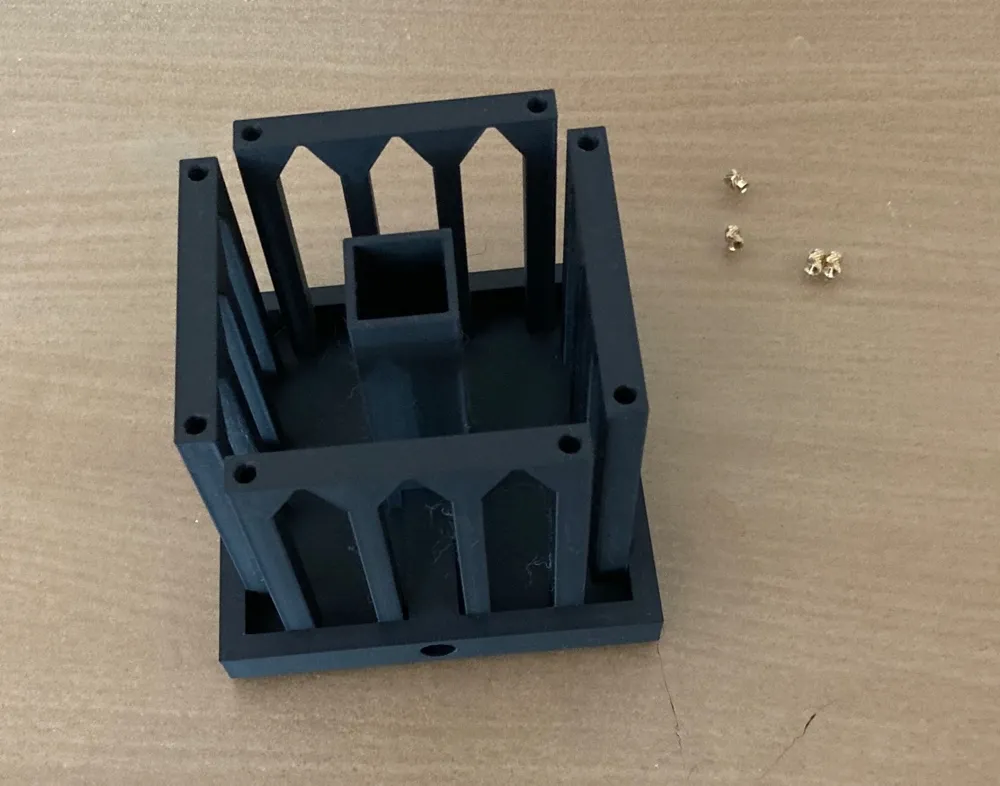

Melt 4 x M3 Inserts into the base to attach the shade holder cover with 4 - M3 x 6mm screws and then melt 4 inserts into the shade holder upper arms to attach the top with 4 more M3 x 6mm screws
No supports required.
The fassung-lamp socket ( e14-28 mm):
https://www.amazon.de/dp/B097K4YNL9
The electrical cable and switch:
https://www.amazon.de/dp/B002DAOX58
The E14 Bulb used here: (90 lms)
https://www.amazon.de/dp/B0B5MPL9MX
8 x M3 by 6 mm Screws
https://de.aliexpress.com/item/32443118299.html?
8 x M3 Inserts
https://www.amazon.de/dp/B08BCRZZS3?
The slicer settings for the base, shade holder, and top and e14 short neck:
.20 mm Standard
(All standard settings and speeds, Aligned seam settings)
Filament: Eryone Matte PLA+ Black
The slicer settings for The Shade:
Filament: Sunlu PLA+ Whte
(Optional) .. I added the stripes using an AMS and Sunlu Silk Silver PLA
.20 mm Strength and Flow rated Generic PLAs
Infill % - 100 , Rectangular
Wall Loops - 8
Top Shell - 5
Bottom Shell - 8
Seam Position- Aligned
