Works exactly like a real stop switch: you press (or hit), it locks in the low position, then you turn it 45° clockwise to unlock it, and it returns to its initial position.
In addition to the "click", it works very well!
The size of the base is 4X4 cm. In height, and in the raised position, it is 3.3 cm.
For assembly, you must: pass the mushroom through the hole in the cover, screw the spring onto it, being careful not to deform it, clip the spring (square base) into the cover.

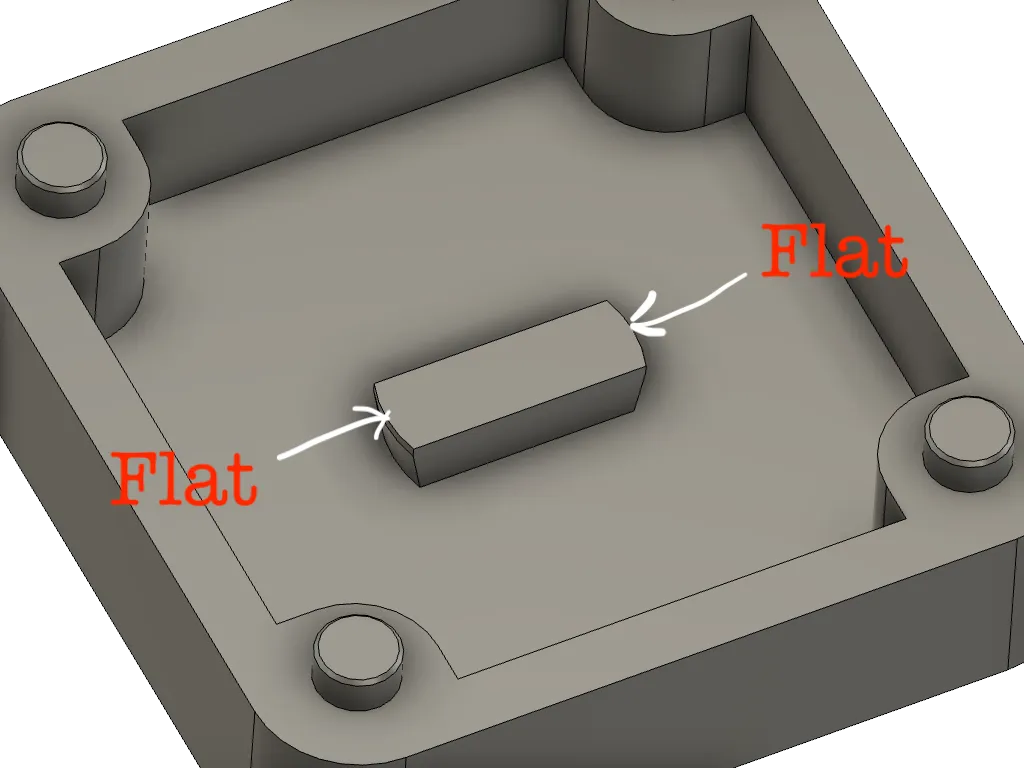

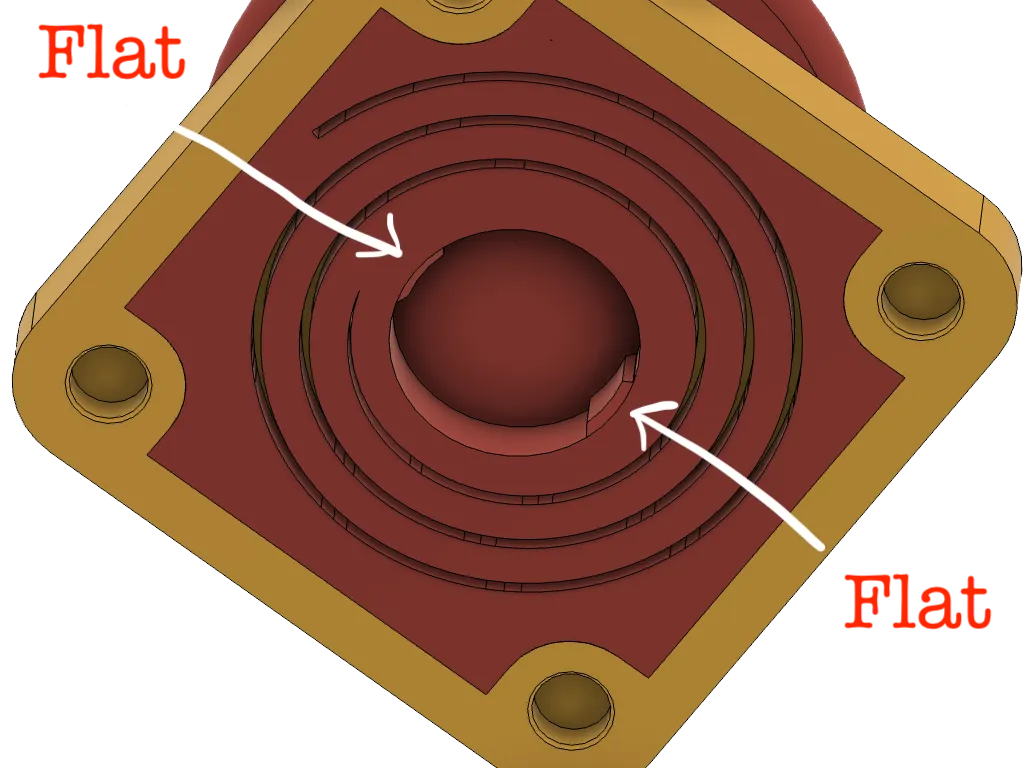

Then, clip the assembly onto the base, paying close attention to the orientation: there are two small flats in the spring hole to place opposite the shape in the base.
Enjoy!



Fonctionne exactement comme un vrai intérupteur d'arrêt: on appuie (ou frappe), il se bloque en position basse, puis on le tourne de 45° dans le sens horaire pour le débloquer, et qu'il reprenne sa position initiale.
En plus du "clic", il fonctionne très bien!
La dimension de la base est de 4X4 cm. En hauteur, et en position levée, il fait 3.3 cm.
Pour l'assemblage, il faut: passer le champignon dans le trou du couvercle, visser le ressort dessus en faisant bien attention à ne pas le déformer, clipper le ressort (base carrée) dans le couvercle.
Ensuite, clipper l'ensemble sur la base en faisant bien attention à l'orientation: il y a deux petits méplats dans le trou du ressort à mettre en face de la forme dans la base.
Savourez!
