E3D Revo 0.25mm Brass Nozzle Profile - BIQU Panda

These are Bambu Studio and Orca Slicer profiles for the E3D Revo 0.25mm Brass nozzle installed in the BIQU Panda Revo Hotend.

This is a work in progress. I'll update as I calibrate my filaments.

Updates

• 27 May 2024 - Initial Release.
  • Nozzle profiles for P1P, P1S, X1C
  • Filament Profiles for Bambu PLA, PLA Matte

Details

I've provided standard printer nozzle profiles for the P1P, P1S, and X1C to be imported into Orca Slicer or Bambu Studio. The provided filament profiles will be constrained to the printer definitions to avoid cluttering the slicer when using other nozzles.

My filament profiles are tuned for flow ratio, linear/pressure advance, maximum volumetric flow rate, and, if needed retraction. Custom start gcode is included that will apply the linear/pressure advance (K) value when you print.

I'll add profiles for filaments I have as I have time to add them.

Downloading & Installing

To download the configuration files click on Download STL.

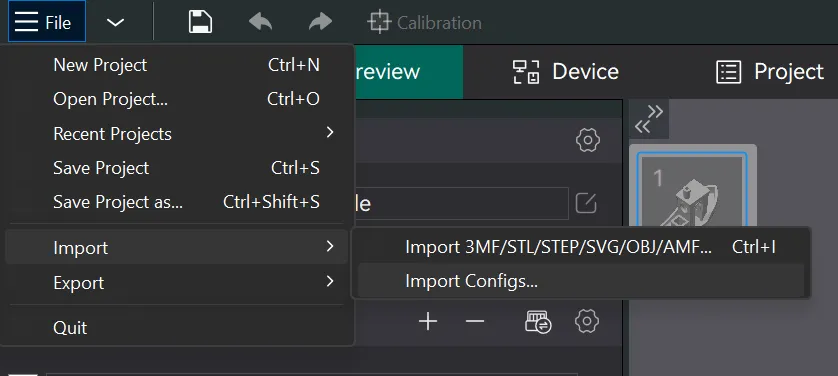

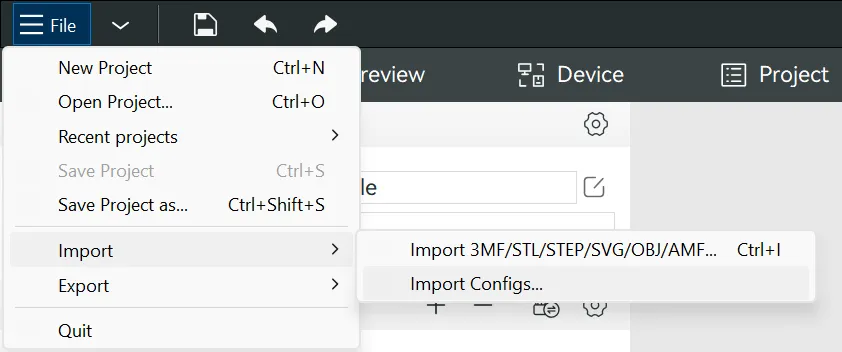

To import the profile into your slicer, go to File → Import → Import Configs… and select a downloaded file.

Usage

1. Download the nozzle profile for your printer under the heading Printer Nozzle Profiles
2. Download tuned filament profiles.
3. Install the 0.2mm nozzle profile for your printer
4. Import the downloaded profiles into the slicer.
5. Select the nozzle and the filament and slice and print

Overriding Nozzle Detection

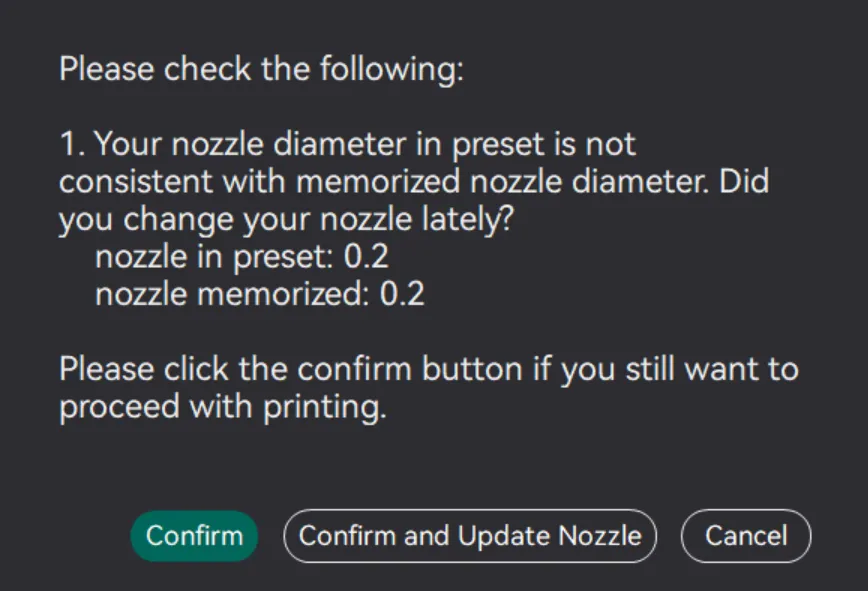

Bambu does not officially support a 0.25mm nozzle and a warning will be generated. In earlier versions of Bambu Studio (< 1.9.1) and Orca Slicer (<2.0) a dialog like the following will be displayed. Pressing Confirm allows the print to proceed.

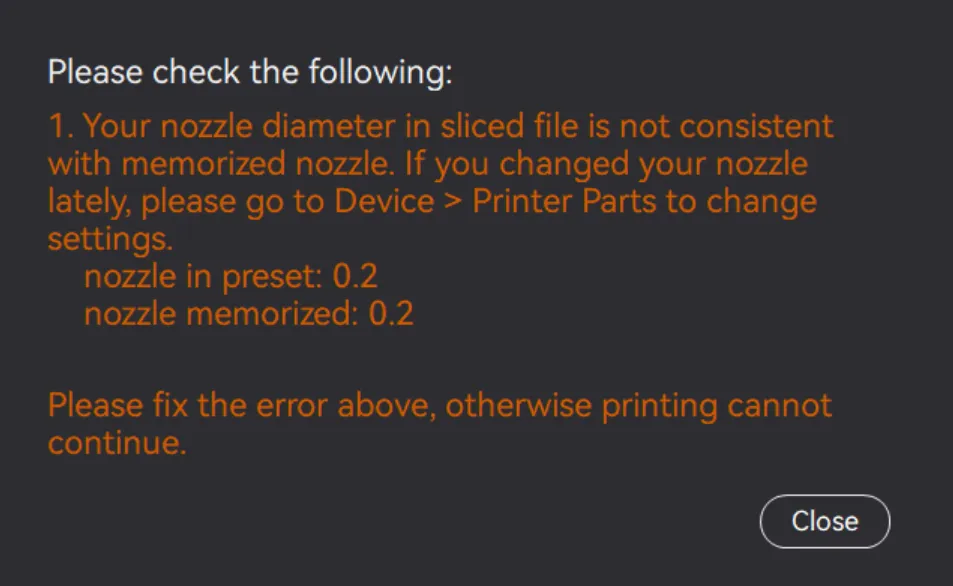

Starting with Bambu Studio 1.9.1 the option to override was removed and instead you'll see the following. For now, alternative nozzle sizes can only be supported with Orca Slicer.

Other BIQU Panda Revo Nozzle Profiles

• 0.4 mm
  • HF 0.4mm Brass
  • HF 0.4mm Obxidian
• 0.25 mm
  • 0.25mm Brass
  • 0.25mm Obxidian
  • 0.25mm Diamondback
• 0.15mm (Soon)
  • 0.15mm Brass

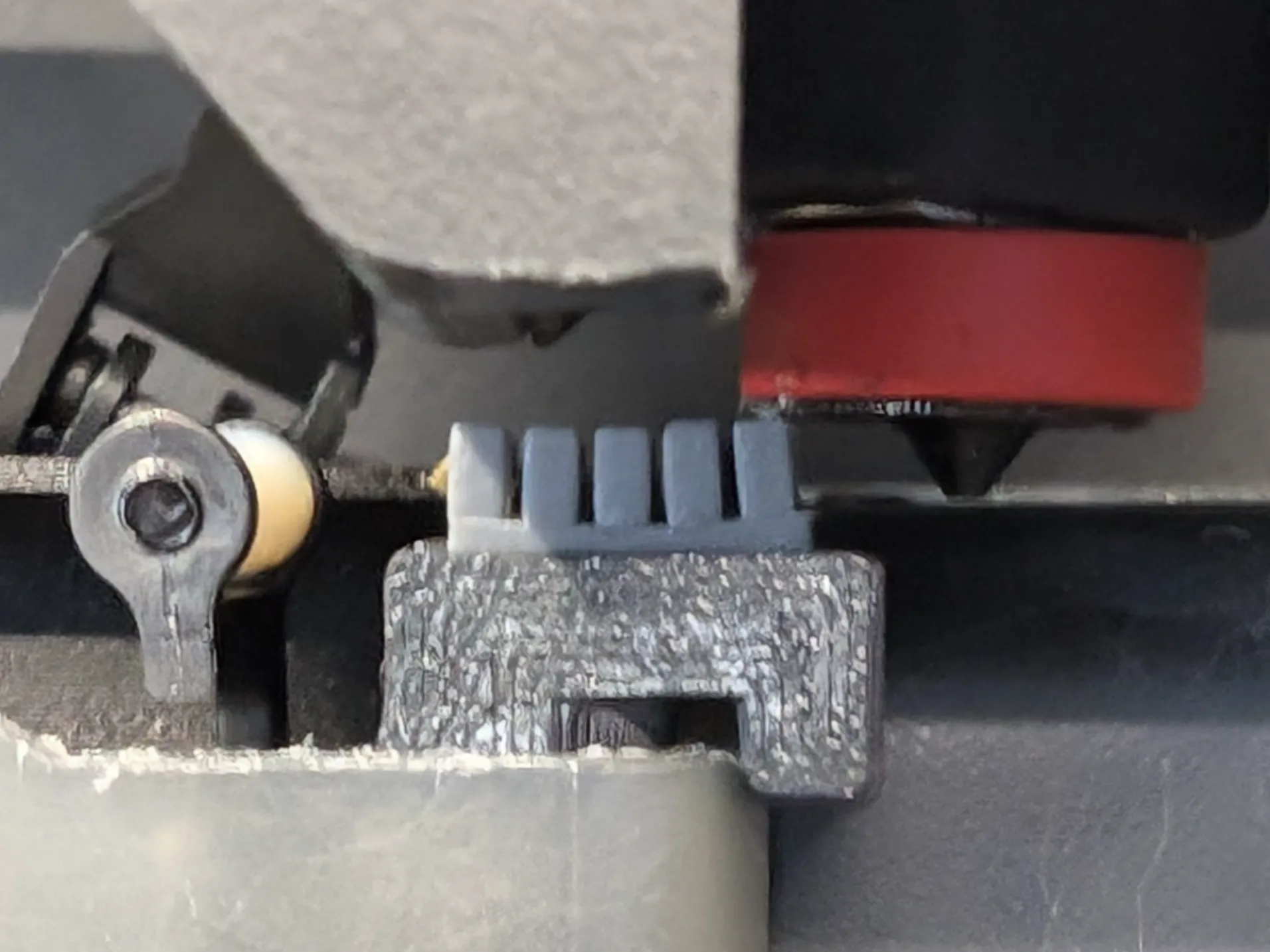

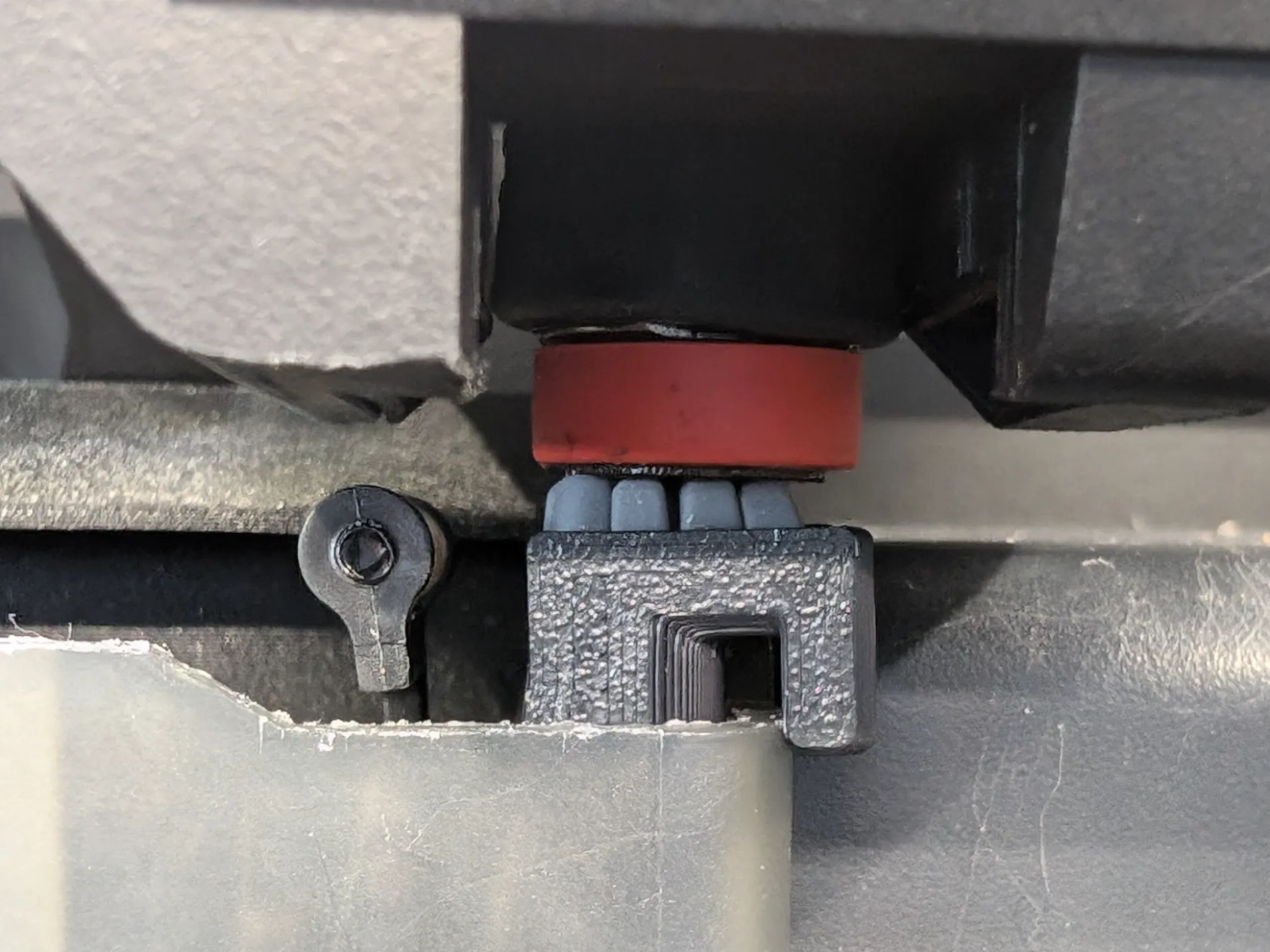

Nozzle Wipers

A1

A1 Mini

-

Feedback letting me know how your print went would be greatly appreciated.
