Asheron's Call Lifestone - Rotating Desk Lamp

An animated desk light referencing the 1999 classic Asheron's Call. This model wasn't originally created to share out and it's rough/imperfect in places. Some adjustment will be needed to work with any components you're using.

Parts & Assembly

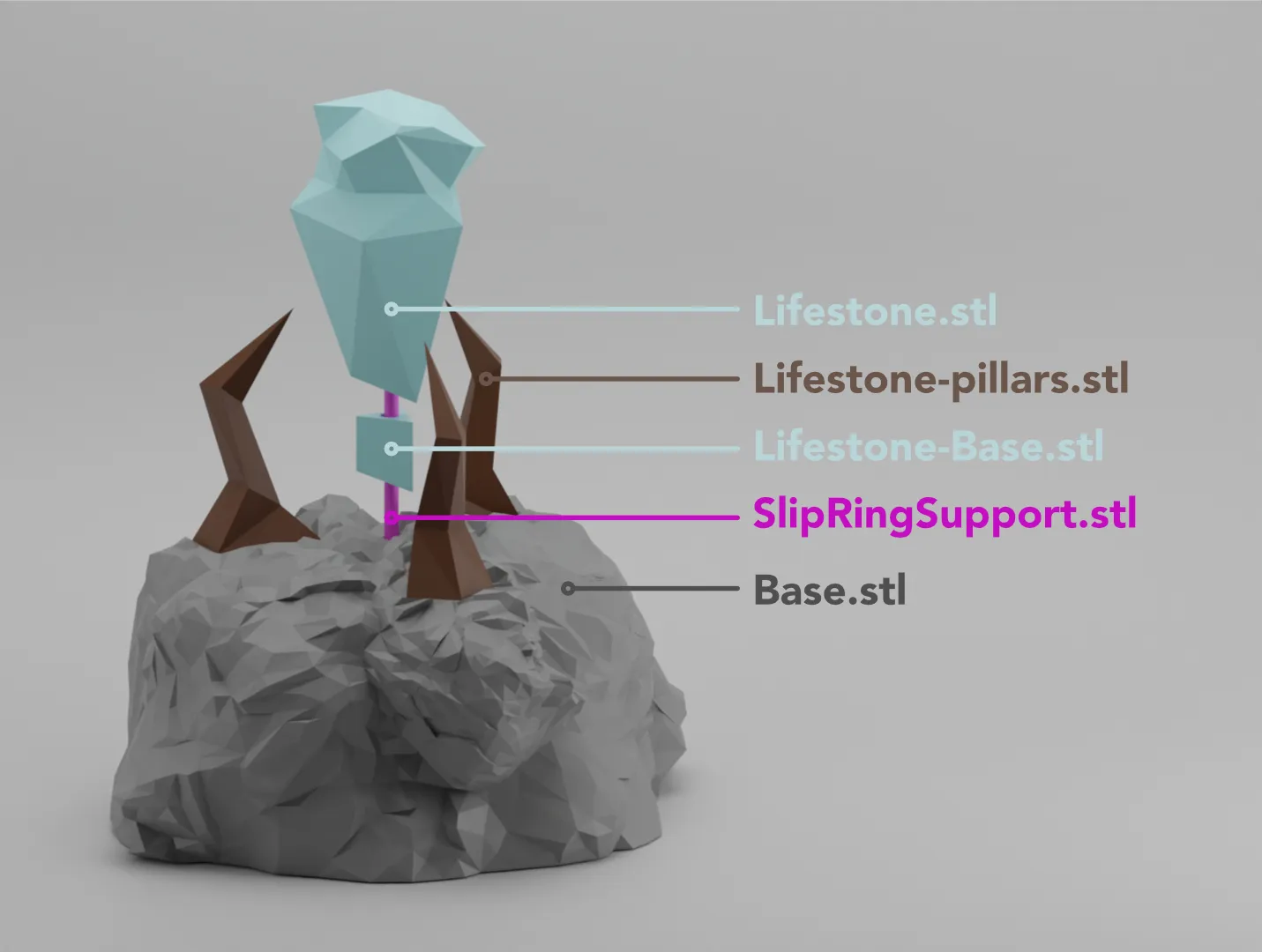

Surface

• Lifestone.stl: .2mm layer height, 2 wall loops, 0% infill with tree supports
  • An opaque PLA works well to soften/disperse the lights from the LEDs
• Lifestone-base.stl: This piece supports the lifestone and should stay in place with friction. Be sure to have the SlipRingSupport and this base in place before soldering on the LEDs.
• SlipRingSupport.stl: This element is sized to fit the slip ring listed in the part section - 2 wires can be fed through and soldered to 2 LEDs (facing opposite directions ito get 360º of light)
• Base.stl: I chose to print this in the pictured orientation with supports for the cavity holding the electronics.
• Lifestone-pillars.stl: These are separate files so that they can be easily painted and then just glued onto the base.

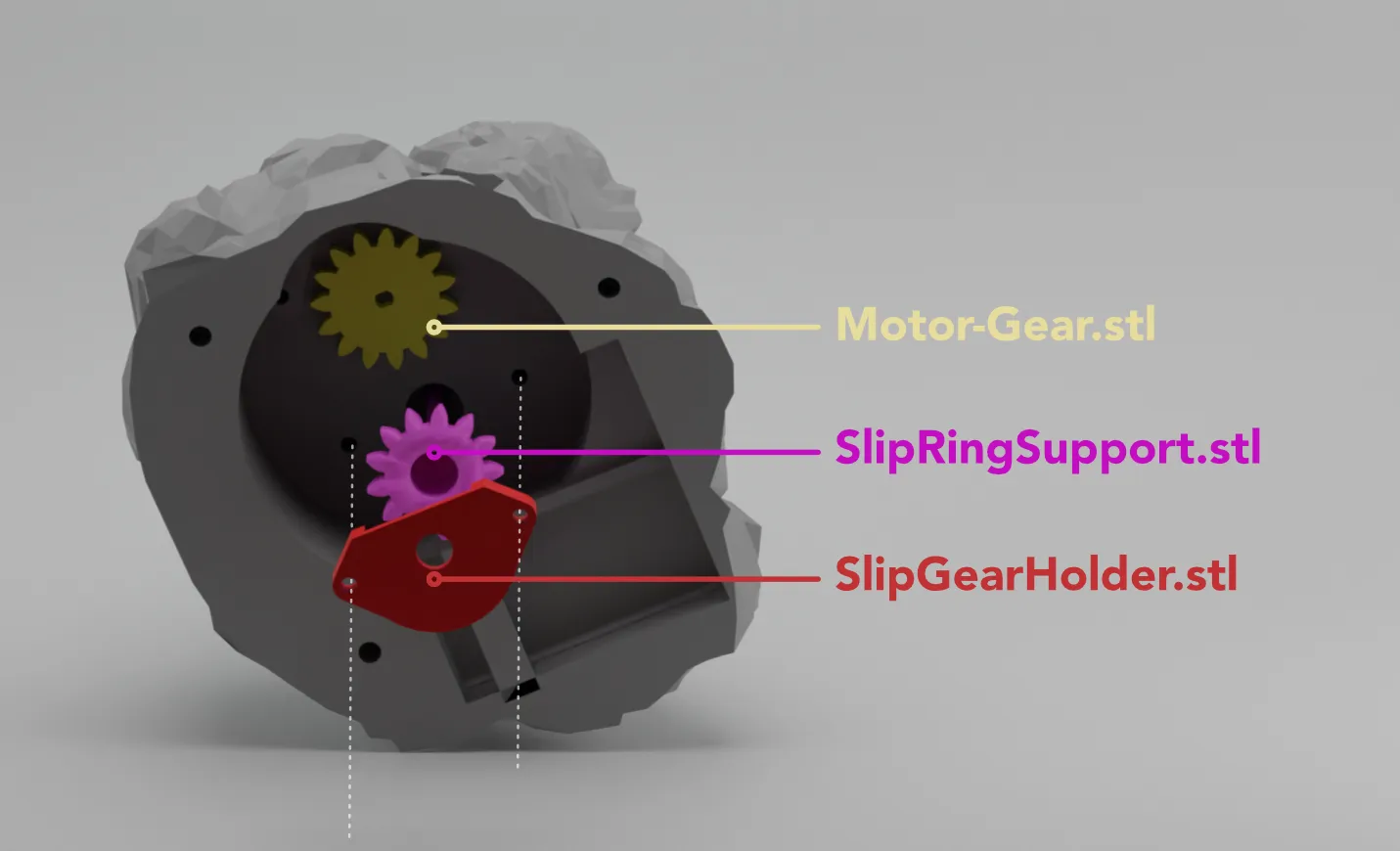

Mechanical

• SlipRingSupport.stl: As describe above, make sure the slip ring is in place before attaching this part.
• SlipGearHolder.stl: Two bolts can be used to secure this in the pace - cut off the head of the bolts and glue them into the base for an easy way to take these parts on/off as needed.
• Motor-Gear.stl: This is sized to fit the motor listed with spots for bolts/screws to secure it in place.
• The battery pack is held in place by the small plastic arm.

Non-Printed Parts

• AAA battery holder: https://www.amazon.com/dp/B07M8RV9DC
• LED lamp beads: https://www.amazon.com/dp/B07DPRWVRF
• Slip ring: https://www.amazon.com/dp/B07H2SRMXP
• Low RPM DC Motor: https://www.amazon.com/dp/B08BQXFZQM
• 8-32 bolts

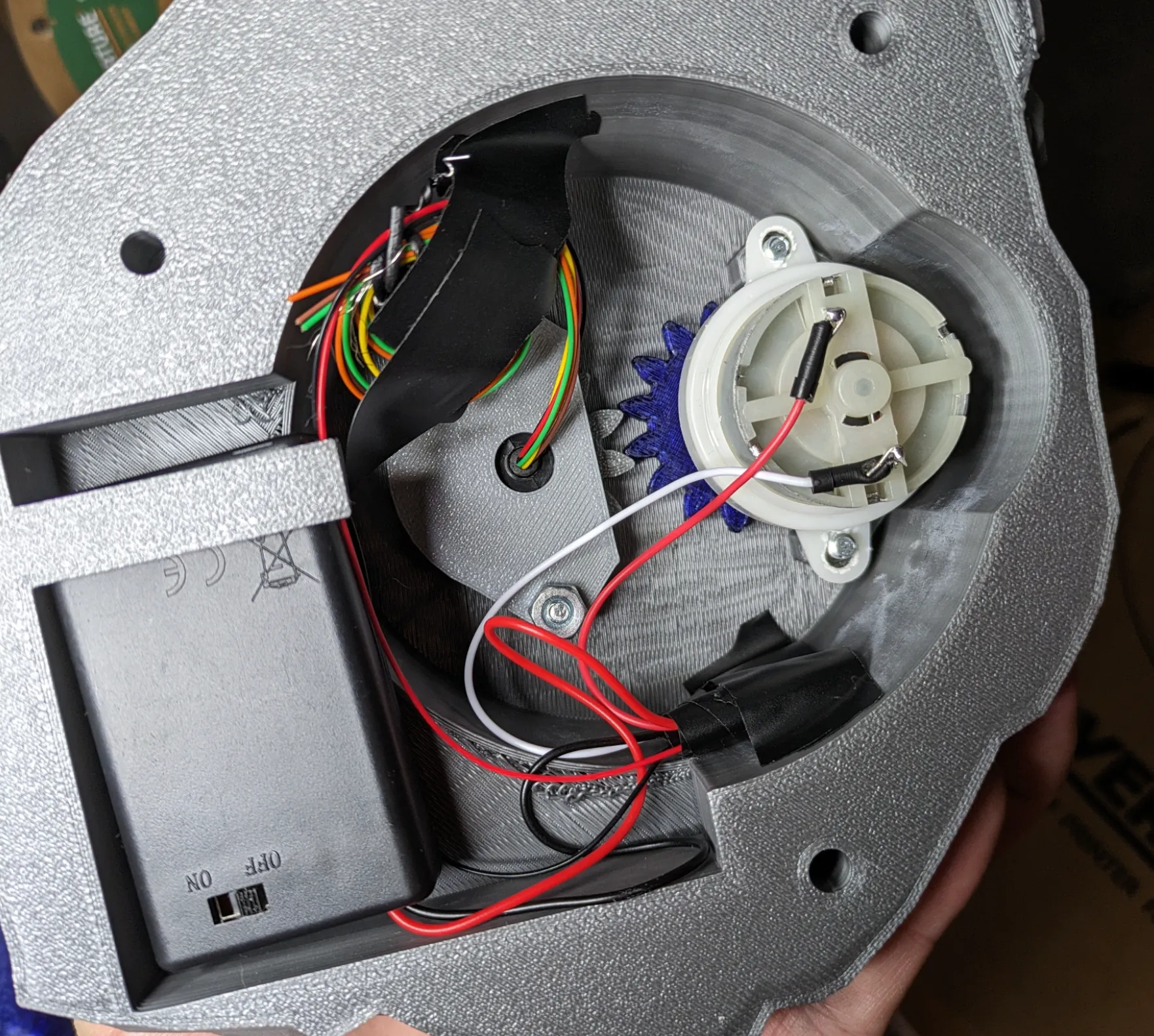

Partially finished version of the mechanical interior:

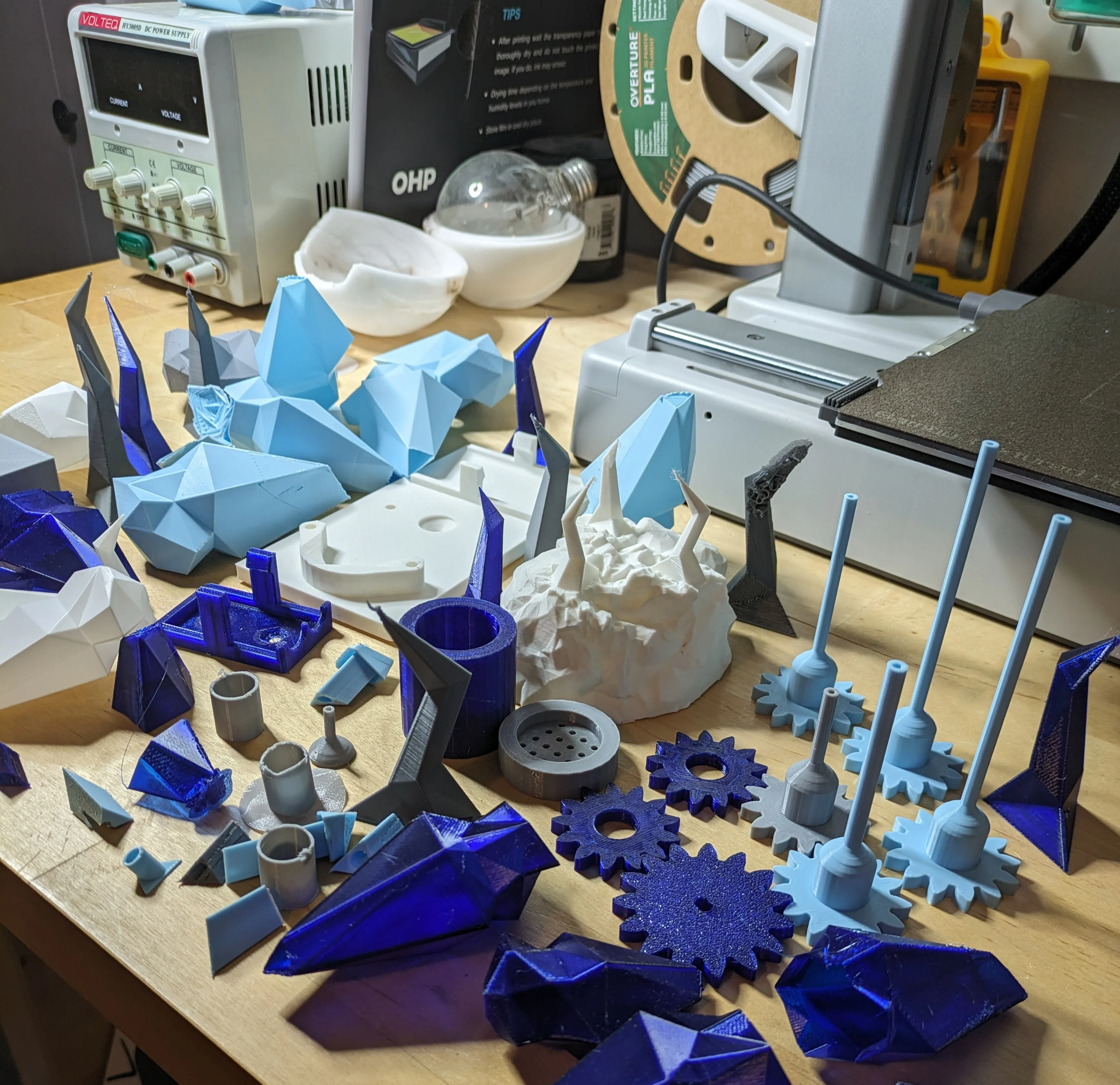

Some of the failed parts that were tested as part of the process:

Models utilized:

• Lifestone model from: Asheron's Call Stuff by HellsWrath • www.thingiverse.com/thing:2009487
• Rock models by Terrain4Print: https://www.thingiverse.com/thing:3735375 & Curufin: https://www.thingiverse.com/thing:2708333

This model is excluded from my commercial license given that it is a fan project.
