Minimized Cable Winder [3 Sizes]

VERSION 2.0 OF THIS MODEL IS AVAILABLE ON MAKERWORLD

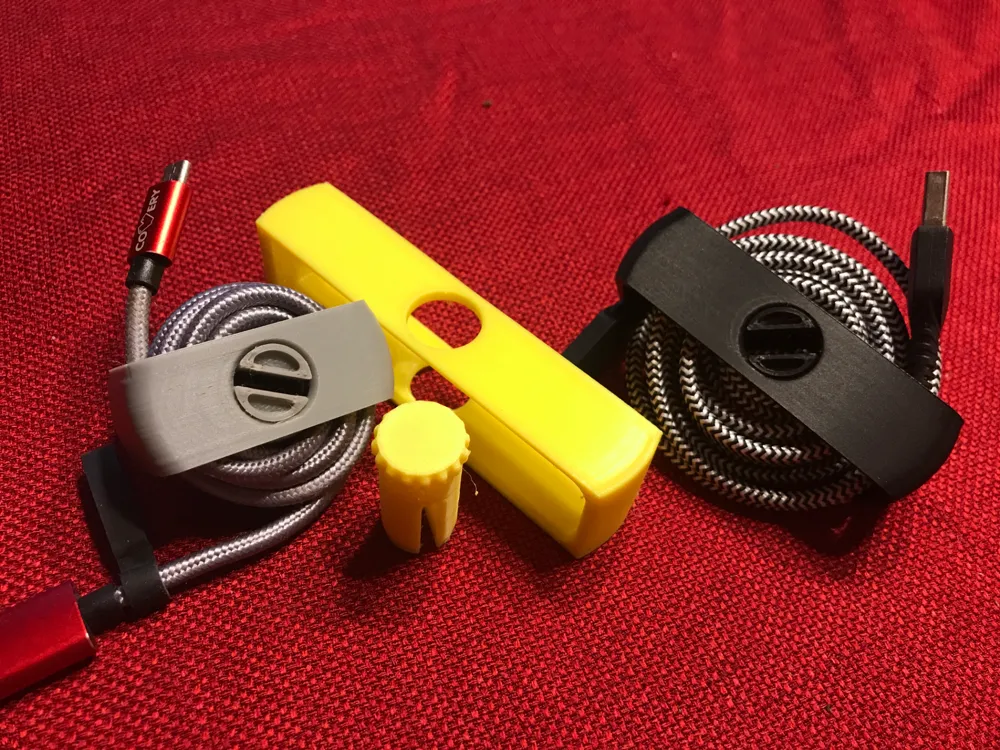

A simplified cable organizer that uses less material and prints faster.

Print Settings:

• Print a pin. Place the flat side on the build plate, not the prongs. Use at least 3 walls. Infill is not required but will improve the quality of bridges.
  • Use the 3mm gap pin for small/normal cables. Use the 5mm pin for larger cables. Either pin will work in all bodies.
• Print a body. Place the body on its side, open side flat on the build plate. Use at least three walls. No infill is required.
  • Use the 50mm body for short cables.
  • Use the 75mm body for average cables.
  • Use the 100mm body for long cables.
• (Optional) Print a key. You can insert the key into the gap of the pin to help you wind your cable.

The normal size (75mm) should take around 12g of filament.
