D3vil's Hooves K1 Series Feet. K1 Max, K1 and K1C
Print Profile(1)
Description

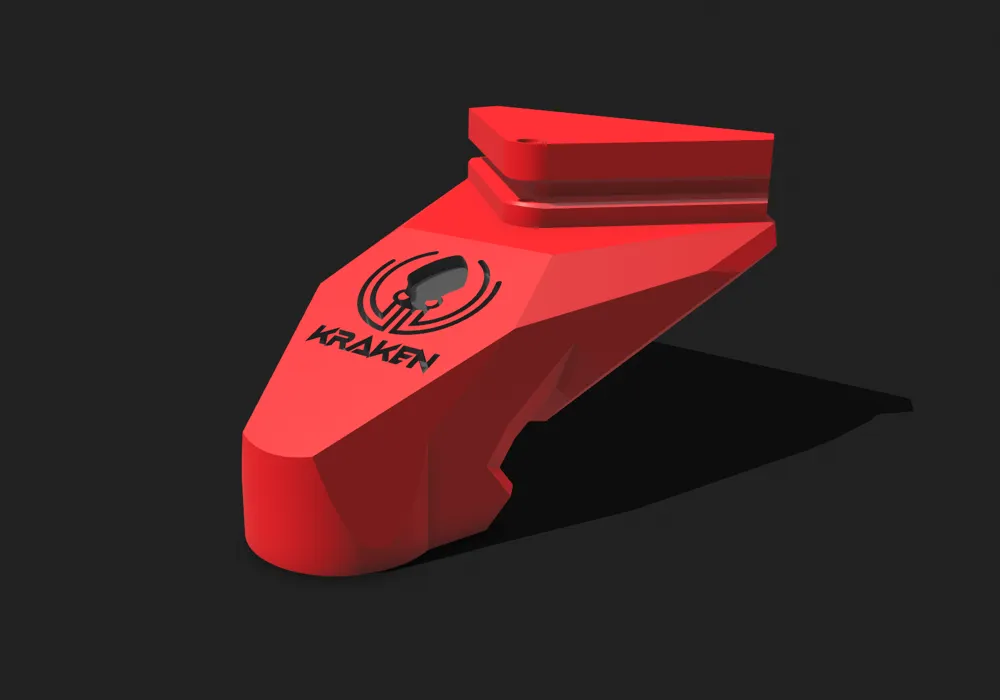

UPDATE: New Kraken model uploaded.

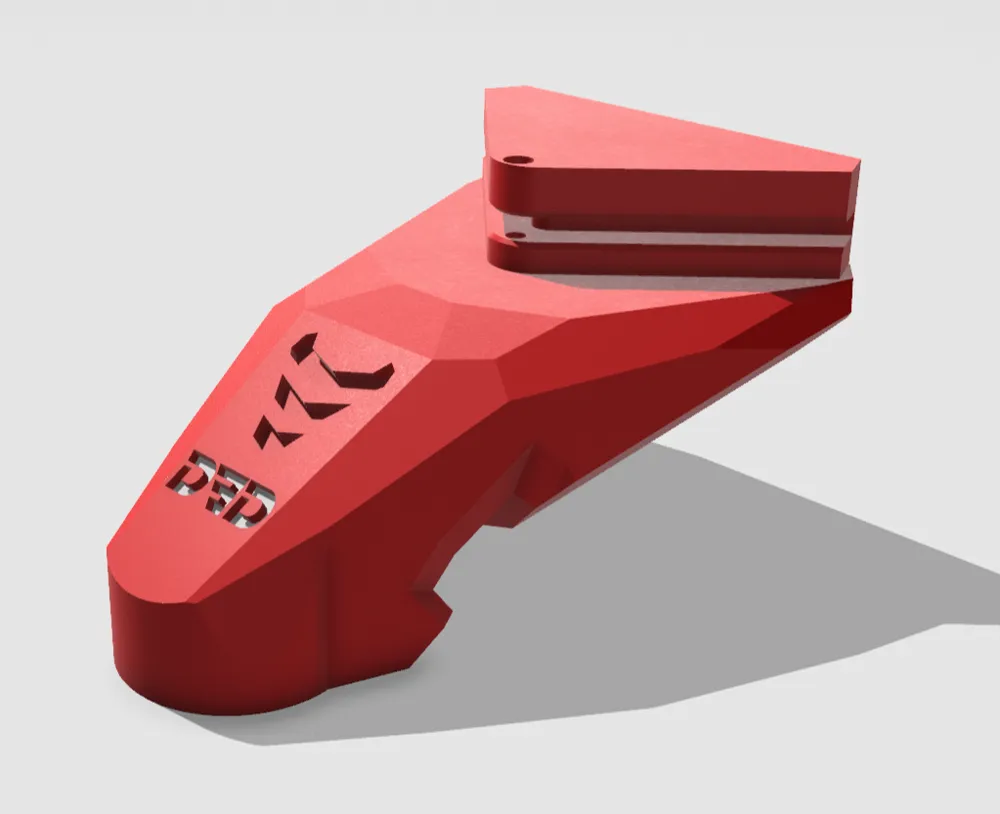

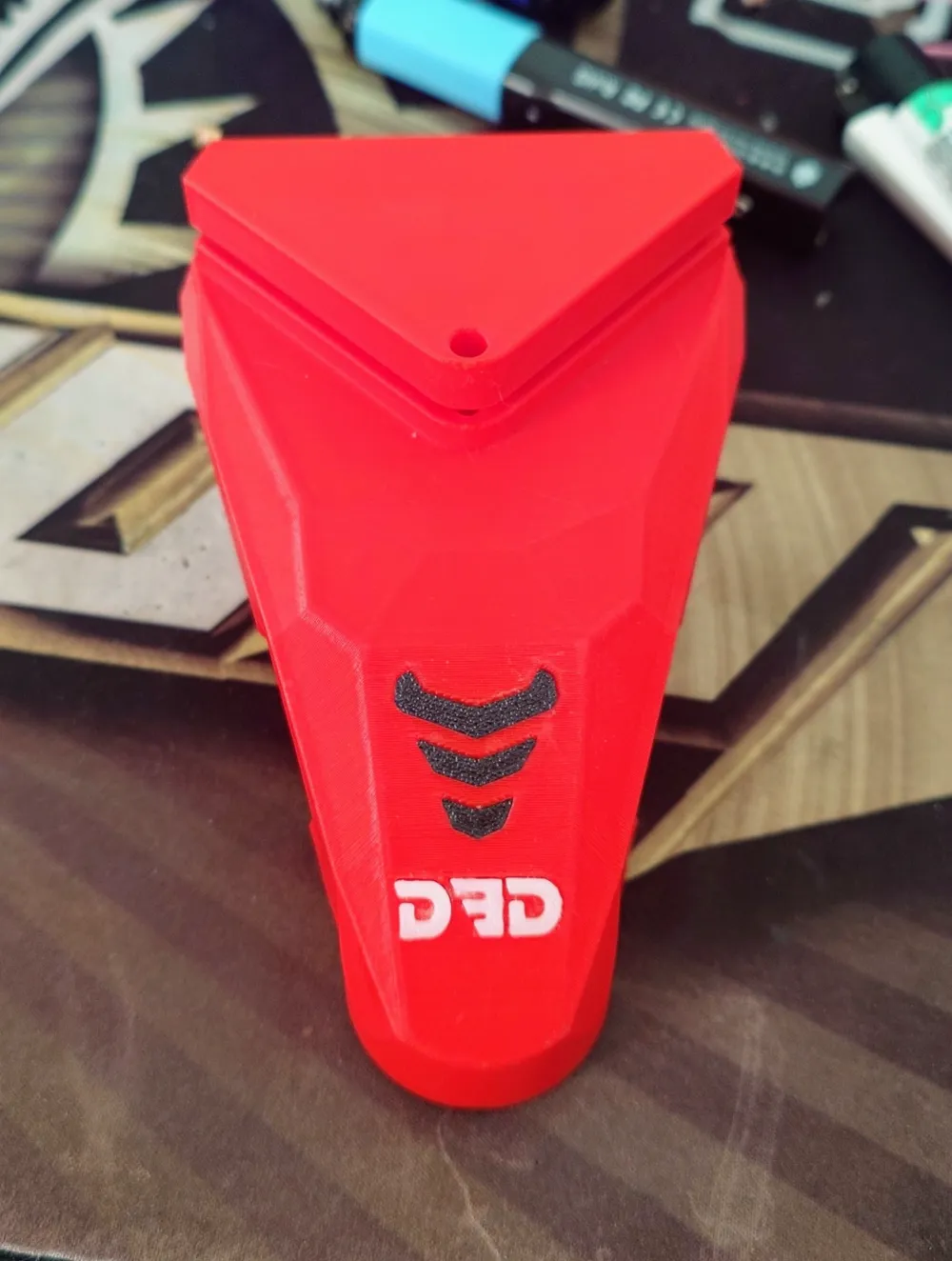

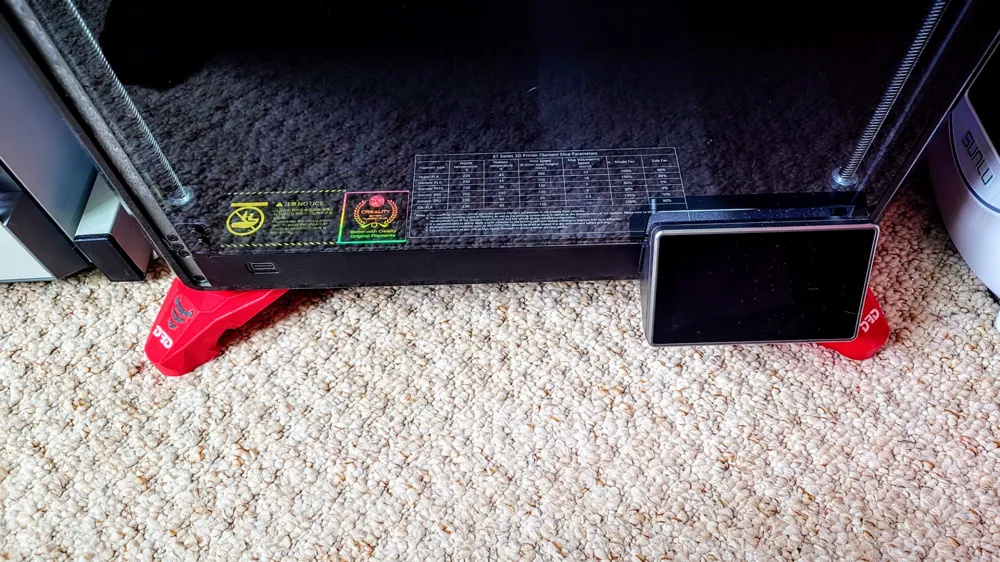

These are foot replacements heavily influenced by the D3vil Design Pradas.
https://www.printables.com/model/873016-d3vil-wears-prada-for-k1-series-creality-not-perfe
I made these by request for people with the K1 Max and/or have 270 hinges.
To utilise this, I used Derrick Darrell's excellent wide stance legs clamping method.
https://makerworld.com/en/models/465551
These use Voron style heat inserts to attach.
They can screw directly to the frame, but preferably you need to drill the frame holes out bigger to 4 - 4.5mm and screw into the heat set inserts for easy attachment and better grip.
You can print the inserts out in a different colour and use glue to attach them.
BOM:
4X or 8X (depending on attachment method) M3 5x4 Voron spec heat inserts.
4X M3 30mm machine screws.
Optionally:
4 - 4.5mm drill bit.
The original rubber feet and screws are used to attach to them.
Big shout out to the Booty Hole crew and the beta testers: JoeShmoe, Pedrothemagnanimous, Nandr0 and GHoZT.
Like my work and want to support some of my further work? Buy me a Ko-Fi.
https://ko-fi.com/mackinsvii
