Nano sized Bambu A1 Poop/Purge chute, with open bottom design. Total printed weight is less than 10g.

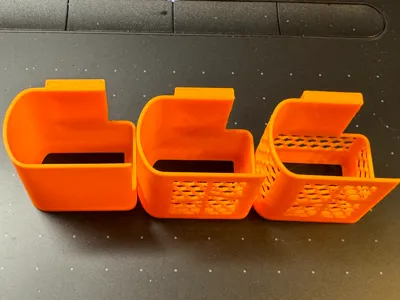

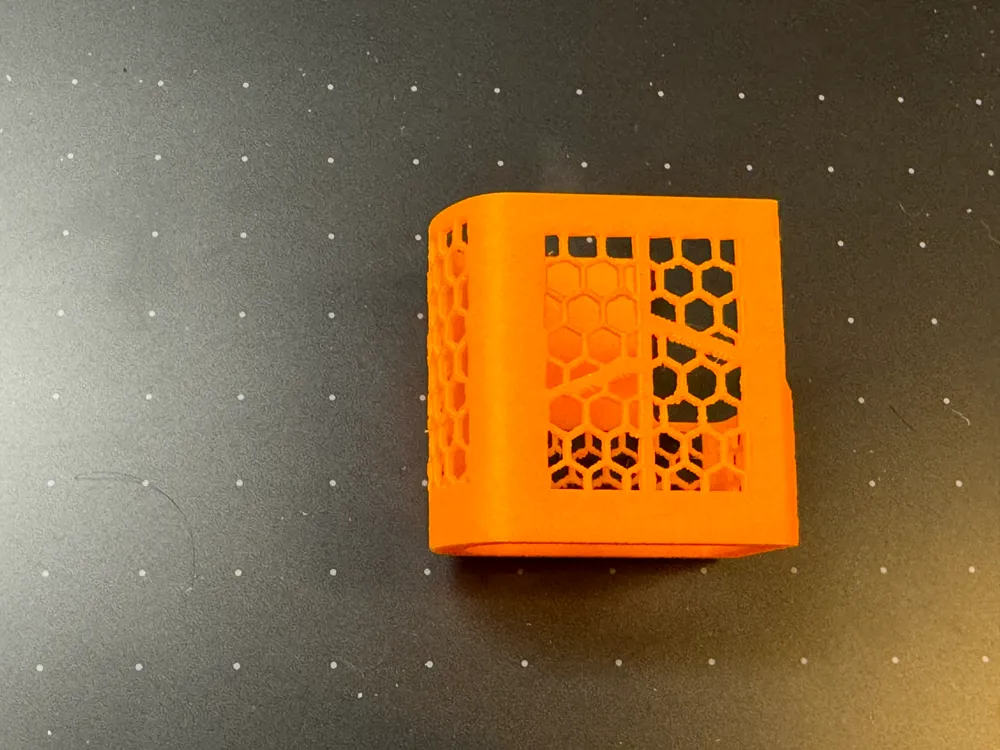

Three versions supplied, solid, front mesh and full mesh.

Installation:

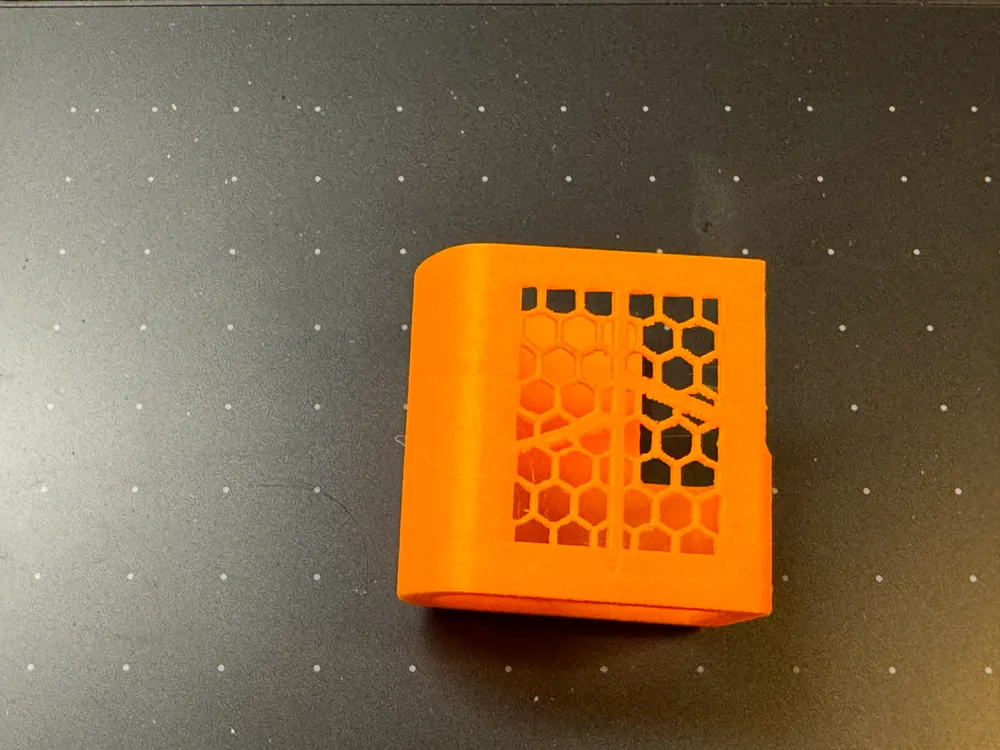

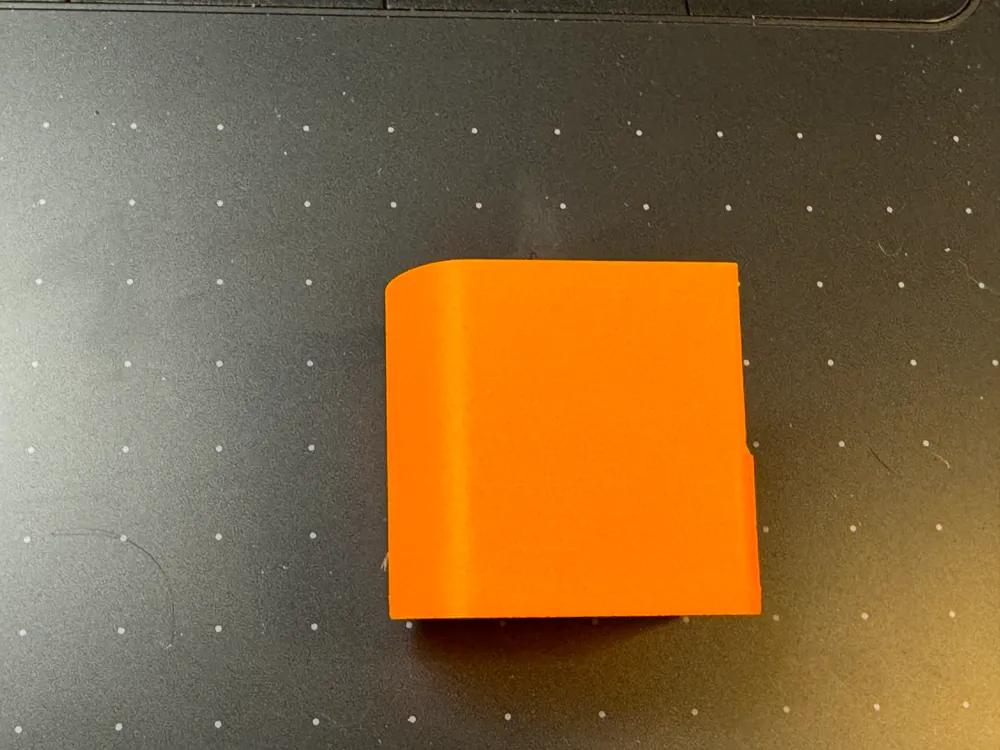

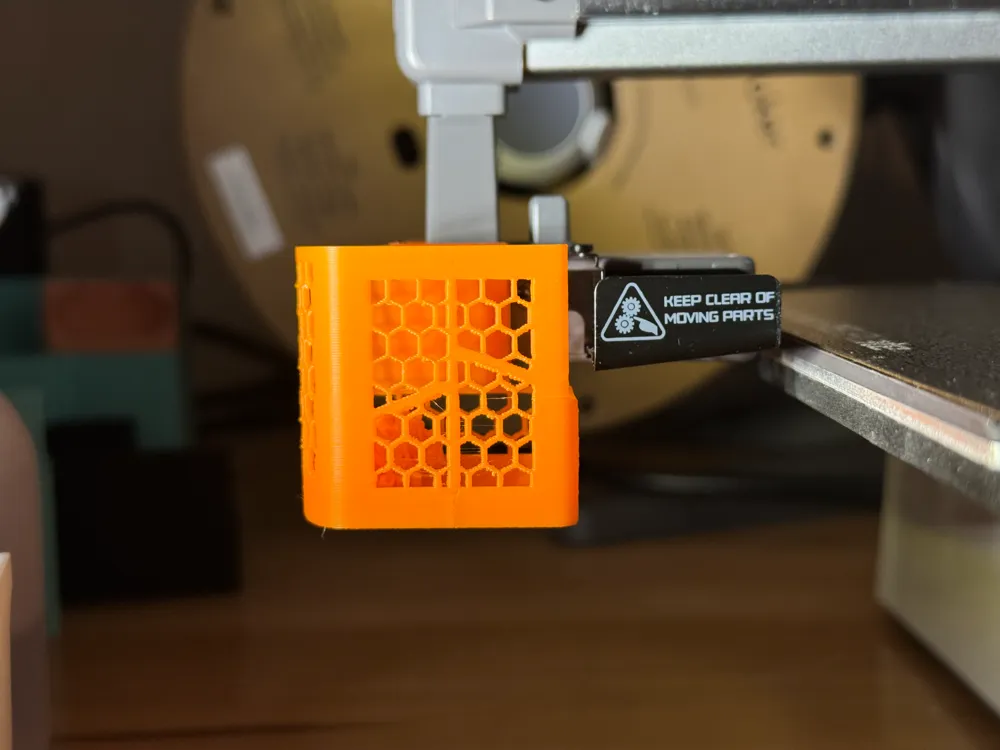

There is a built in support that needs to be removed after printing. Use anything flat such as a flat head screwdriver to get between the support and the poop chute to pry it off. Slide the two pieces together than slide it onto the purge wiper. See picture 2 and 3.

Note:

If you are using Bambu studio and receive warning about floating area in the model, it is safe to ignore.

Filament purge will drop through the chute, please place a box of any shape at the bottom to collect the purge waste. For example, this storage box.

See my A1 Accessories Collection and A1 Purge Basket Collection.
