Raspberry Pi 5 Four Bay NAS - Free 3D Print Model

Search models, users, collections, and posts

mklements

Hobby & DIY>Electronics

IP Report

Print Profile(8)

All

X1 Carbon

P1P

H2D

P1S

X1E

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

No Window, No Brass Inserts - 0.2mm layer

Designer

12.3 h

4 plates

4.9(44)

No Window, With Brass Inserts - 0.2mm layer

Designer

15.6 h

4 plates

4.9(38)

Window, With Brass Inserts - 0.2mm layer

Designer

15.6 h

4 plates

4.9(18)

Window, No Brass Inserts - 0.2mm layer

Designer

12.4 h

4 plates

5.0(4)

Click to see more

Open in Bambu Studio

Boost

2789

7769

249

266

5.4 k

1.1 k

Released

Description

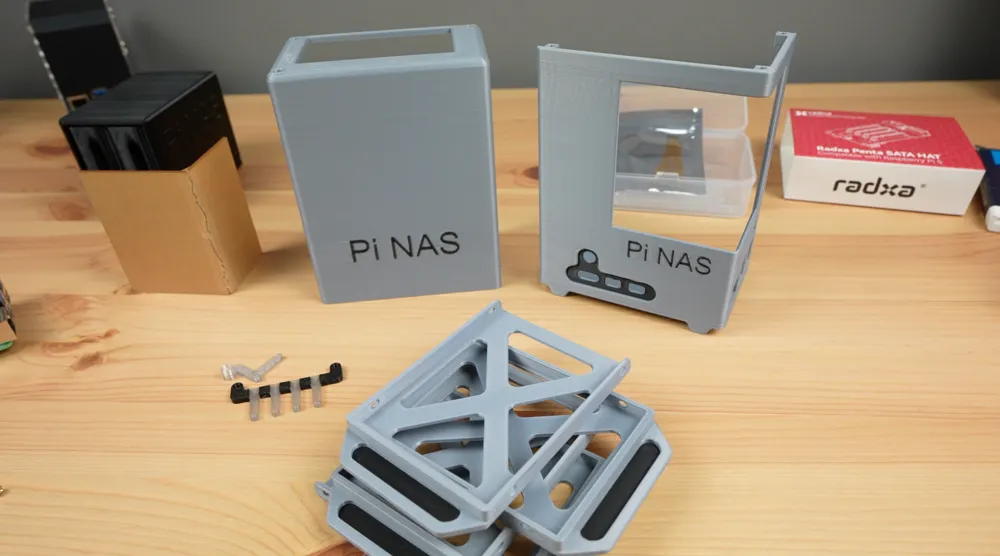

This enclosure is designed to house a Raspberry Pi 5 and the Radxa Penta SATA Hat to build a desktop NAS.

I have updated the design to fit the newer Radxa hat with slightly different dimensions. Updates have been made to the housing, SSD trays and button adaptor.

There are two primary options, leading to four variants.

With or without an acrylic window - this adds to the design aesthetic but may be difficult to make up without the correct tools
With or without holes for brass inserts - if brass inserts are not used, the holes are sized for M2.5 screws to be used directly

Visit my blog for the full parts list with suggested purchase links and the assembly and setup guide - https://www.the-diy-life.com/i-built-a-4-bay-raspberry-pi-5-based-nas/
