Pill Box with AM\PM Apertures

Update:01_11_18

Uploaded f3d file.

Update:17_08_18

New version available at the following link:

Pill Box with AM PM Apertures V4 - It's More Personal! by boothyboothy | Download free STL model | Printables.com

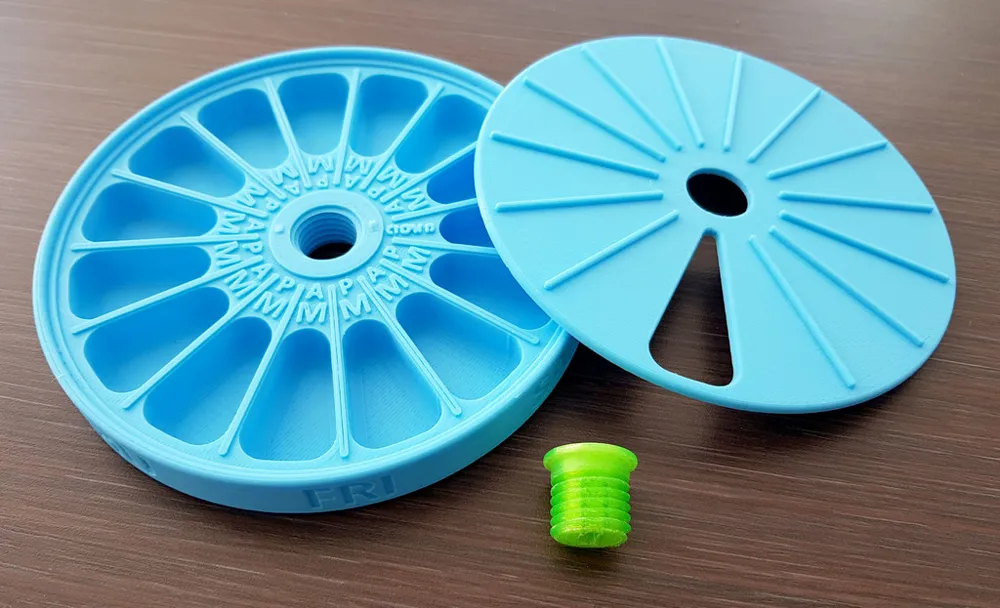

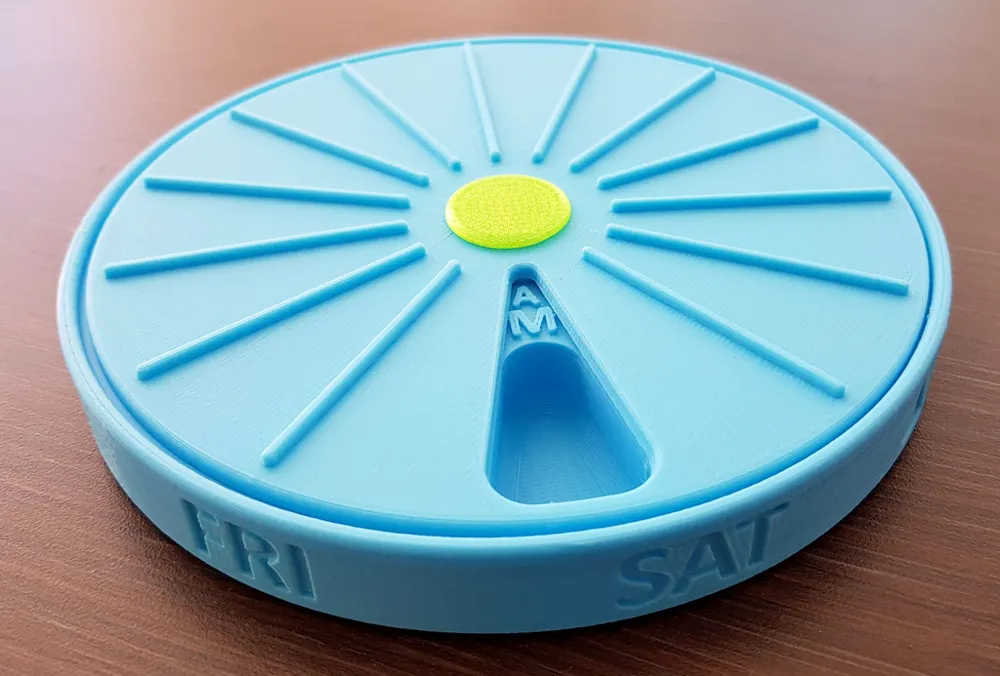

Circular Pill Box with:-

1. AM\PM apertures.
2. Ridged lid for Arthritic grip.
3. Slotted centre screw to adjust tension
4. Lid ratchet detail to stop at individual apertures (requires further refinement).

Update: 05\07\18 - Revised Base\Body design

1. Removed Base perimeter detail that sometimes binds with outer rim of lid.
2. Modified central node detail to facilitate revised ratchet detail and removed existing ratchet detail (Still to be finalised).
3. Included linear divisions between days on outer perimeter.
4. Removed closed lettering & icon due to limits of clarity with some printers.

Print Settings

Printer:

Balco Touch\Zonestar

Rafts:

Yes

Supports:

Yes

Resolution:

0.2

Infill:

15-20

Category: Organization
